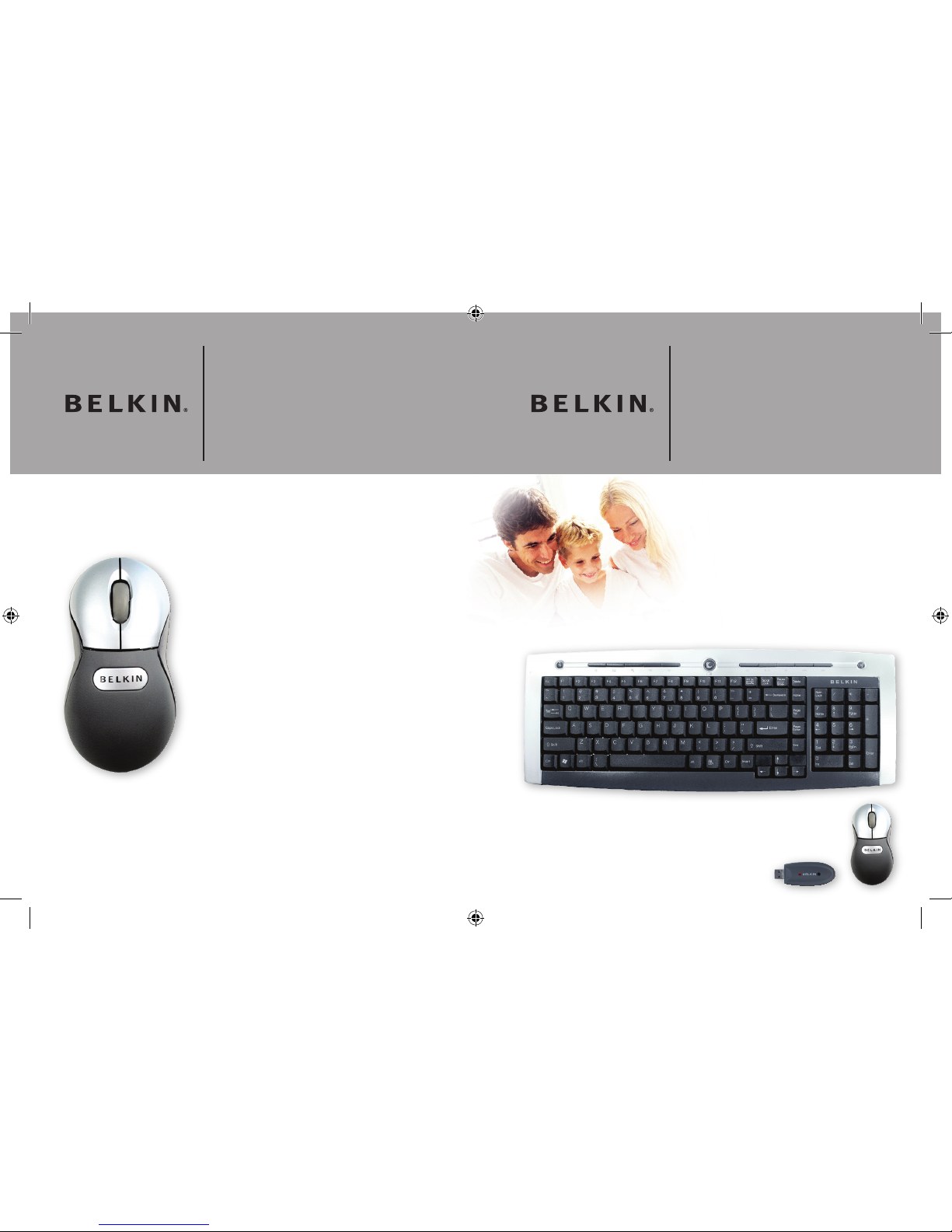

Belkin F8E846UKBNDL Manuale utente

Wireless Slim Keyboard

& Optical MiniMouse Bundle

F8E846ukBNDLUser Manual

Enjoy the freedom of wireless optical p recision

All rights rese rve d. All

trad e names a re registered

trad emark s of res pective

manuf act urer s list ed. Mac OS

and Mac are trademarks o f

Apple Comp uter, Inc., register ed

in the U. S. and othe r coun tries.

P74612uk

Belkin Corporation

501 West Walnut Street

Compton • CA • 90220 • USA

T: +1.310.898.1100

F: +1.310.898.1111

Belkin, Ltd.

Express Business Park • Shipton Way

Rushden • NN10 6GL • United Kingdom

T: +44 (0) 1933 35 2000

F: +44 (0) 1933 31 2000

Belkin B.V.

Starparc Building • Boeing Avenue 333

1119 PH Schiphol-Rijk • The Netherlands

T: +31 (0) 20 654 7300

F: +31 (0) 20 654 7349

Belkin GmbH

Hanebergstrasse 2

80637 Munich • Germany

T: +49.(0)89.143.405.0

F: +49.(0)89.143.405.100

Belkin SAS

5 Rue du Petit Robinson • 3ème étage

78350 Jouy en Josas • France

T: +33.(0)1.345.814.00

F: +33.(0)1.394.662.89

cov.indd 1 18/11/04 9:23:02 am

___

1. Introduction ...........................................................................................1

Compatible Equipment ..............................................................................1

Operating Systems ...................................................................................1

Package Contents .....................................................................................1

2. Quick Installation Guide for USB Connection ...................................2

3. Software Installation for Windows 98, Me, 2000, and XP ..............3

4. USB-PS/2 Standard Keyboard Hot Key Functions ..........................4

5. Troubleshooting ....................................................................................5

6. Uninstallation process for Windows 98, Me, 2000, and XP ............7

7. Information ............................................................................................8

Table of Contents

PR8369_F8E826uk_BNDL_man.indd 3 18/11/04 9:21:58 am

___

PR8369_F8E826uk_BNDL_man.indd 4 18/11/04 9:21:58 am

___

Introduction

EN 1

Congratulations

Congratulations and thank you for purchasing the Wireless Slim Keyboard

and Optical MiniMouse bundle from Belkin. We appreciate your business and

are sure you will enjoy years of reliable use with these high-quality, input

devices. Please review this entire User Manual so you can be sure to get the

most reliable performance from your new equipment.

Compatible Equipment

Works with all PCs that are compatible with

IBM®and equipped with USB interface

Note:

Use of these products on a desk made of iron, or other metal,

will negatively impact the operation of your Wireless Keyboard

and Mouse.

Operating Systems

Windows®XP, Me, 2000, 98 SE

Package Contents

Wireless Keyboard

Wireless Optical Mouse

Receiver

4 AAA batteries

User Manual

Please read the instructions for installing, operating, and using the wireless desktop.

PR8369_F8E826uk_BNDL_man.indd 1 18/11/04 9:21:58 am

___

2 EN

1. Be sure that your computer is turned on. If you are running Windows

98, Me, or 2000, you will need to keep your old keyboard and mouse

connected for installation.

2. Connect the receiver to your computer through the USB port.

Note:

When connecting the USB receiver to your computer, Windows will

start a New Hardware Wizard. In Windows XP, it will complete the

Wizard automatically. In Windows 98, Me, and possibly 2000, you

will need to follow through the New Hardware Wizard with your old

keyboard and mouse.

3. Install the batteries into your Keyboard and Mouse. Please make

sure you follow the indication on the inside compartment for correct

positioning of the batteries.

4) To set up the wireless keyboard link, press the reset button on the

bottom of the keyboard. Press the connection button “connect” on

the receiver simultaneously. The indicator light will turn on. Hold both

buttons for approximately 30 seconds. Release the buttons. The indicator

light will turn off and your keyboard will be operational.

5) Turn on the mouse. To set up the wireless Minimouse link, press the

reset button on the bottom of the mouse. Press the connection button

“connect” on the receiver simultaneously. The indicator light will turn on.

Hold both buttons for approximately 30 seconds. Release the buttons.

The indicator light will turn off and your mouse will be operational.

Quick Installation Guide

PR8369_F8E826uk_BNDL_man.indd 2 18/11/04 9:21:58 am

___

EN 3

Note:

The Keyboard and Mouse should now be functioning. If

they are not, repeat the setup instructions and refer to

the“Troubleshooting” section for help. When the Mouse and

Keyboard are operational, the software can be installed.

Warning:

It is recommended that you uninstall any previously

installed keyboard and mouse software prior

to installing your new Belkin software.

1. Be sure your computer is powered on.

2. Insert the CD into your computer’s CD-ROM drive.

3. If you have not previously installed Keyboard and Mouse software, click

“OK” and the installation will begin. Follow the on-screen instructions.

4. Upon completion of installation, you will be prompted

to restart your computer. You must restart at this

time in order for the software to function.

Software Installation for Windows 98, ME, 2000, and XP

PR8369_F8E826uk_BNDL_man.indd 3 18/11/04 9:21:59 am

___

4 EN

Play/Pause Start and stop the playback of your

audio and video applications.

Stop

Volume Down Decrease your system volume.

Volume Mute Mute your system volume.

Volume Up Increase your system volume.

Previous Track Back to the previous track.

Next Track Go to the next track.

Mail Open your system’s defaulte-mail application.

WWW Open your system’s default Internet browser.

Back Prior Internet page.

Forward Next Internet page.

Search Activate the search function of your

Internet browser. Next Internet page.

Sleep Toggle sleep function

on your computer

USB Standard Keyboard Hot Key Functions

PR8369_F8E826uk_BNDL_man.indd 4 18/11/04 9:22:00 am

___

EN 5

The Keyboard and/or Mouse is/are not detected or do not work

after installation.

• Make sure the receiver is plugged into the computer's USB port.

• For optimal performance, place the receiver at least eight inches (20cm)

away from the computer monitor, any external storage devices, or other

electrical devices.

• Make sure you have properly installed the batteries. Test the batteries to

make sure they are not dead (you can do this by installing them into another

device).

• You may have other system devices that are conflicting with the Mouse

and/or the Keyboard. Check the IRQ/address setting of these devices for

conflicts and change the settings as required. Please refer to your computer

documentation or the manufacturer’s technical support for assistance in

making these changes.

• Make sure you have properly established communication/synchronization

between the receiver and the Mouse and Keyboard.

• If your Mouse pointer becomes choppy on-screen or the Keyboard does not

• Make sure the mouse is switched on. If you do not use the mouse for several

minutes it will be put into a suspended state. For using the mouse again move

the mouse or press one of the mouse buttons.

Troubleshooting

PR8369_F8E826uk_BNDL_man.indd 5 18/11/04 9:22:00 am

___

6 EN

• When multiple wireless keyboard and mouse sets are used in a close

proximity, interference might occur. You can solve this by changing the

communication channel of your keyboard and mouse.

• To change the channel of the wireless

keyboard

, press the reset button

on the bottom of the keyboard. Press the connection button “connect”

on the receiver simultaneously. The indicator light will turn on. Hold both

buttons for approximately 30 seconds. Release the buttons. The indicator

light will turn off and your keyboard will have changed channel.

• To change the channel of the

mouse

, press the reset button on the

bottom of the mouse. Press the connection button “connect” on the

receiver simultaneously. The indicator light will turn on. Hold both buttons

for approximately 30 seconds. Release the buttons. The indicator light will

turn off and your mouse will have changed channel.

Troubleshooting

PR8369_F8E826uk_BNDL_man.indd 6 18/11/04 9:22:00 am

___

EN 7

1. Select “Setting”.

2. Select “Control Panel”.

3. Select “Add/Remove Programs”.

4. Select “Belkin Wireless Mouse Driver 3.82” and

"Belkin Keyboard Driver 5.0" then click on “Add Remove”.

5. You will be asked if you are sure if you want to remove the selected

application and all of its components. Click on “Yes”. The uninstall

process will begin. Follow the on-screen instructions to complete

the process.

Uninstallation Process for Windows 98, ME, 2000, and XP

PR8369_F8E826uk_BNDL_man.indd 7 18/11/04 9:22:01 am
