Belkin F5D5230-4 Istruzioni di installazione e manutenzione

Share your files and Internet connection

4-Port Cable/DSL

network

F5D52 0-4

Gateway Router

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4

Belkin Docking Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Sharing Your Internet Connection Is Done In 4 Easy Steps . . . . . .6-38

Step 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-10

Step 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-13

Step 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-21

Step 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22-38

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39-42

Glossary of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43-44

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Warranty, FCC, CE Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Thank You for purchasing the Belkin 4-Port Cable/DSL Gateway

Router. In minutes you will be able to network your computers

together and share your Internet connection. The following is a list

of features that make your new Router an ideal solution for your

home or small office.

Key Features:

NAT Firewall Security

Your Belkin 4-Port Cable/DSL Gateway Router employs Network

Address Translation (NAT) to protect your network from the outside

world by isolating it from the Internet. NAT monitors all of the

data coming in from the Internet and will only let through the

information you want.

Integrated 10/100 4-Port Switch

The Belkin 4-Port Cable/DSL Gateway Router has a built-in

4-Port network switch to allow your computers to share

printers, data and MP3 files, digital photos, and much more.

The switch features automatic detection so it will adjust to

the speed of connected devices. The switch will transfer data

between computers and the Internet simultaneously without

interrupting or consuming resources.

Built-in DHCP

Dynamic Host Configuration Protocol (DHCP) on-board

makes for the easiest possible connection of a network. The

DHCP server will assign IP addresses to each computer

automatically so there is no need for a complicated

networking setup.

Introduction

Web-Based User Interface

Setting up the Router’s functions is done through your web

browser. You can do this easily without having to install

additional software onto the computer. There are no disks to

install or keep track of and, best of all, you can make changes

and perform setup functions from any computer on the

network quickly and easily

Package Contents

• Belkin 4-Port Cable/DSL Gateway Router

• Power Supply

• Belkin SOHO Networking Software CD

• User Manual

System Requirements

• Broadband Internet connection such as a Cable or DSL modem

with RJ45 (Ethernet) connection

• At least one PC with an installed network interface card (NIC)

or alternative (USB Ethernet adapter or PCMCIA/CardBus card

for laptops)

• TCP/IP networking protocol installed on each computer

• High-quality networking cable*

• Microsoft Internet Explorer 4.0 or later, or Netscape Navigator 4.0

or later

We recommend top quality Belkin CAT6 Networking Cables, part

number A3L980-XX-S

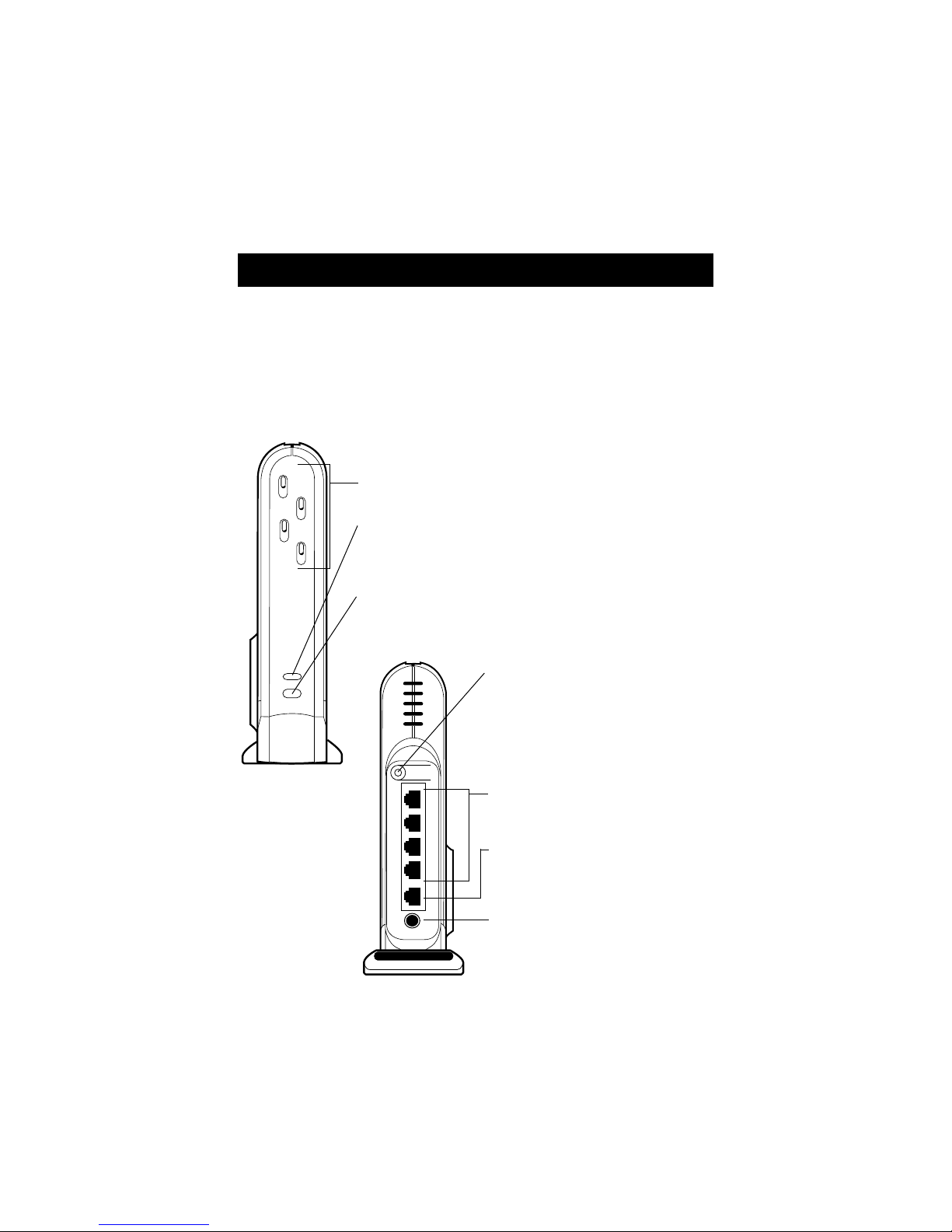

Product Descriptions

ready

B E L K I N

input

WAN

reset

Port Activity/Status Lights

Provide information about the network

Power Light

Indicates the power is on or off

RESET Button

Powers ON/OFF the router

without losing your settings.

LAN Ports

Connect your PCs to these ports

WAN Port

Connect your Cable or DSL

modem to this port

DC Power Jack

Connect the included power

supply to this jack

Front Panel

F5D5230-4

4-Port Cable/DSL Gateway Router

Rear Panel

WAN Link Status Light

Provides information about the connection to

the Cable or DSL modem

Product Descriptions

Front Panel

Power LED–When lit, this light indicates that the unit is

receiving power

WAN Link Status

• GREEN - indicates that there is an active connection with the

Cable or DSL modem. If this light is off, the link is not established.

• FLASHING GREEN – When the WAN link status light is flashing

green, data is flowing between the Router and the Cable or

DSL modem.

Port Activity/Status Lights

• AMBER-Solid amber indicates that there is a 100Mbps

(100Base-TX) link between the Router and the computer

connected to that port.

• GREEN-Solid green indicates that there is a 10Mbps (10Base-TX)

link between the Router and the computer connected to that port.

• FLASHING–When a port status light is flashing either amber or

green, data is flowing between the Router and the computer

connected to that port.

Rear Panel

Power Input Jack–Connect the DC power supply

WAN Port–Connect the network cable from the Cable or DSL modem

to the WAN port

LAN Ports–Numbered 1 – 4. Connect the network cable from your

PCs to these ports. Note: they do not need to be connected

sequentially. For example, in a two-computer network you can

connect one computer to Port 4 and another to Port 1.

Reset Button–If the Router stops functioning properly, you can power

off and on the Router, without losing your settings. Press and hold the

RESET button for 2 seconds. The power light will begin blinking and

the port lights may blink. When the lights stop blinking, the Gateway

Router has been reset.

Belkin Docking Options

The Belkin Docking Ring

Belkin has designed the Router to link together with other Belkin

networking products through the unique docking ring on the side of

module. It will fit into the mating ring of another Belkin network

product such as the 5- or 8-Port Switch. Simply place the modules

side by side and push them together.

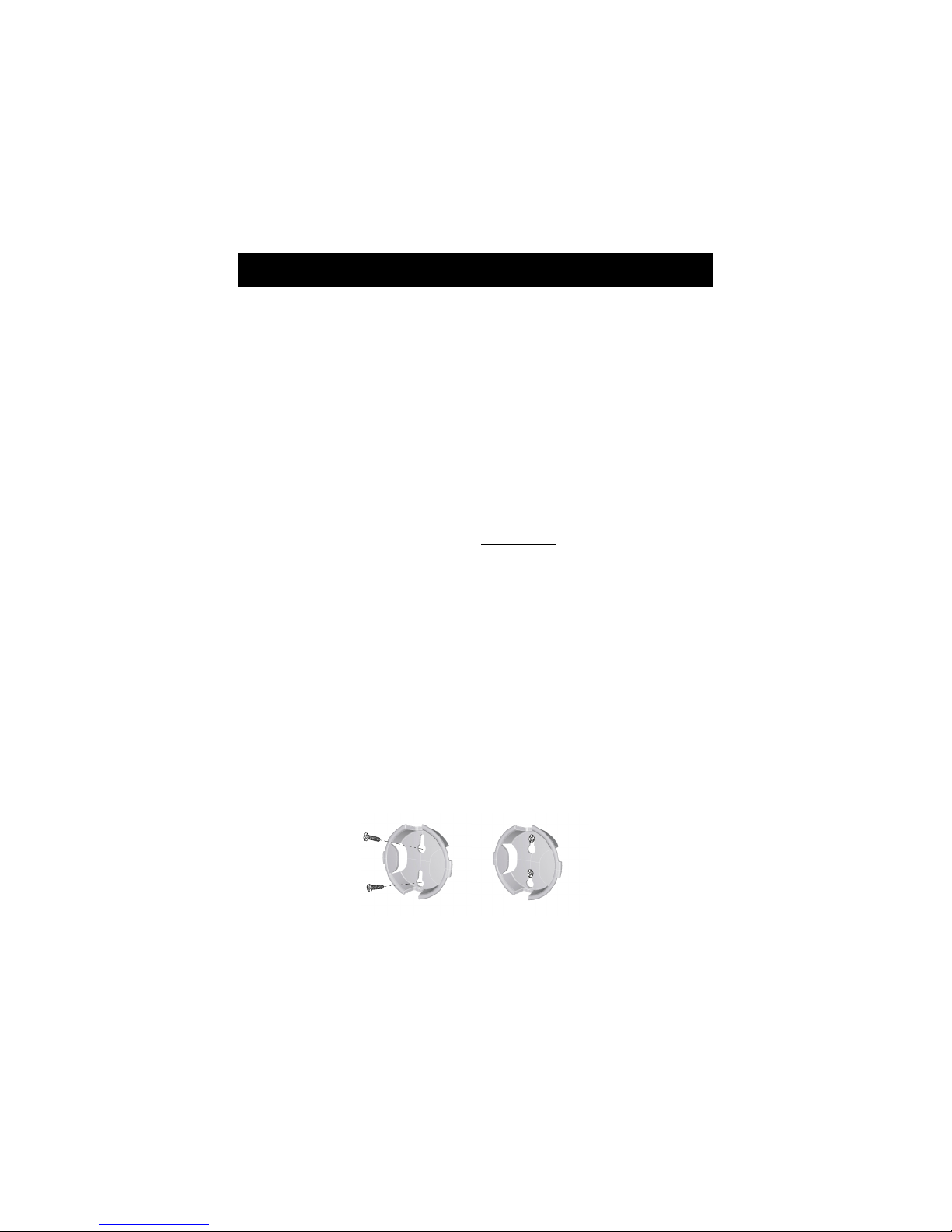

Wall Mounting the Belkin Gateway Router

Belkin provides an adapter that will allow the unit to be mounted to

the wall. The adapter is available at belkin.com. To install the wall

mount follow these steps.

1. Use the wall mount as a template and mark the screw holes on

your wall with a pencil.

2. Drill holes in the wall and insert screw anchors (not included) into

the wall.

3. Insert screws into the anchors and turn them in just far enough so

when the wall mount is placed on the screws that it is snug but

still able to slide.

4. Snap the wall mount into the docking ring on the Router.

5. Line up the wall mount’s holes with the screw heads and push the

wall mount over them. Slide the Router and wall mount down

over the screw heads to secure it to the wall.

Sharing Your Internet Connection Is Done In 4 Easy Steps

Step 1: Obtain information about your Internet Service Provider (ISP)

and your network

Step 2: Connect your computers to the Belkin 4-Port Cable/DSL

Gateway Router (the Router)

Step 3: Set up your computers for networking

Step 4: Configure the Router

STEP 1: Obtain information about your Internet Service Provider

(ISP) and your network

Setting up your Router is a simple procedure, even if you are not

familiar with networking. This guide will take you step by step

through the things that you need to do to successfully share your

Internet connection. There are a few pieces of information that you

will need to obtain about your Cable or DSL provider as well as

some network information. Most of the time, information is available

on-line from your provider. You may have to call your provider.

Answer the following questions either by checking with your ISP’s

online technical support or by calling your ISP’s technical support

hotline. A worksheet has been provided in this manual to record your

information for use later.

Is my IP address Static or Dynamic?

Your IP address is either Static or Dynamic.You will need to determine

whether your provider assigns you a new IP address every time you log

on (Dynamic) or they assign you an IP address that never changes

(Static). For more about what an IP address is, see the Glossary of

NetworkingTerms in the appendix of this manual.

Step 1

Does my Internet service provider use PPPoE?

It either does or does not. If you have a DSL modem, your service

provider may use PPPoE (for Point to Point Protocol over Ethernet) as

the communication language between your DSL modem and the

provider’s network. PPPoE is a secure way of connecting your network

to the Internet.Your Router supports PPPoE, so all you have to do is set

it up to utilize PPPoE. This will be covered later in the manual. For

more about PPPoE, see the Glossary of Networking term is the appendix

of this manual.

Is my connection bound to a MAC address?

It either is or is not. All network cards or adapters have a unique "serial

number", called a MAC address.Your service provider can "see" your

network adapter’s MAC address over the Internet. In some cases, the

provider will record the MAC address of your adapter and only let that

adapter connect to the Internet. This is done for several reasons, one of

which is security. It also enables your provider to keep track of how

many computers you have connected to your modem.You will need to

find out whether your provider requires the same network card to

connect to the modem all of the time. In the event that your provider

does bind your MAC address, your Router has a feature that will copy

the MAC address of your card.This will be covered later in the setup

procedure. For more about what a MAC address is, see the Glossary of

NetworkingTerms in the appendix of this manual.

Does my connection have an assigned host name?

It either does or does not.You will need to know if your provider assigns

you host name that is required for connection. If it does, then you will

need to know the host name. If your computer was assigned a host

name by your provider, the next section describes how you can obtain

your host name.

Step 1

Setup Worksheet

My IP Address is: Static Dynamic

If your IP address is static, you need the following information:

Static IP address:

Assigned by your provider

Subnet Mask:

Assigned by your provider

Gateway:

Assigned by your provider

My provider binds my Yes No

connection to a MAC address

My provider has assigned Yes No

me a Host Name

If Yes, My Host Name is:

My provider uses PPPoE Yes No

If your provider uses PPPoE, you need the following information:

User Name:

Assigned by your ISP

Password:

Assigned by your ISP

Service Name:

Assigned by your ISP

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Belkin Router di rete

Belkin

Belkin F9K1001V1 Manuale utente

Belkin

Belkin G Plus F5D7231-4 Manuale utente

Belkin

Belkin F1PI242ENAU Manuale utente

Belkin

Belkin F5D7230-4 Manuale di istruzioni

Belkin

Belkin F7D4401 Manuale utente

Belkin

Belkin F5D7631-4-ETEL Manuale utente

Belkin

Belkin F1P1210ENAU Guida di riferimento

Belkin

Belkin F5D52314 - Cable/DSL Gateway Router Manuale utente

Belkin

Belkin F5D5230-F Manuale utente

Belkin

Belkin F5D7234-4 Manuale utente

Belkin

Belkin SURF N300 Manuale utente

Belkin

Belkin F6D4630-4v2 Manuale utente

Belkin

Belkin SURF N300 Manuale utente

Belkin

Belkin F5D5230U4-V1.20.003 Manuale di istruzioni

Belkin

Belkin OmniView 5000HQ Manuale utente

Belkin

Belkin Wireless G Router Manuale utente

Belkin

Belkin BLKF9K1002 Manuale utente

Belkin

Belkin F5D8635V2 Manuale utente

Belkin

Belkin P73928EH Manuale utente

Belkin

Belkin TSG-UK-1-001 Guida di riferimento

Belkin

Belkin F5D6130 Manuale utente

Belkin

Belkin 802.11g Wireless Ethernet Bridge Manuale utente

Belkin

Belkin F1PI242EGAU Guida di riferimento

Belkin

Belkin F5D8633-4A Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
