Wireless G

Desktop Card

User Manual

F5D7000

Connect your desktop computer to a

wireless network

Wireless G

Desktop Card











�



 







�



 







�



�

1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Benefits of a Home Network . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Advantages of a Wireless Network . . . . . . . . . . . . . . . . . . . . . . 1

Placement of your Wireless Networking Hardware for

Optimal Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Applications and Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3 Installing and Setting up the Card . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Step 1: Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Step 2: Insert. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Step 3: Configure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4 Using the Belkin Wireless Networking Utility . . . . . . . . . . . . . . . . 12

Accessing the Belkin Wireless Networking Utility from the

Windows System Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Setting Wireless Network Profiles . . . . . . . . . . . . . . . . . . . . . . 15

Securing your Wi-Fi Network . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Configuring your Belkin Wireless G Desktop Card

to use Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

6 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table of Contents

Introduction

section

Thank you for purchasing the Belkin Wireless G Desktop Card (the

Card). Now you can take advantage of this great new technology

and gain the freedom to network your home and office computers

wirelessly. This Card allows you to connect a desktop computer

to your network. The easy installation and setup will have you

networking wirelessly in minutes. Please be sure to read through this

User Manual completely, and pay special attention to the section

entitled “Placement of your Wireless Networking Hardware for

Optimal Performance” on page 2.

Benefits of a Home Network

Your Belkin Home Network will allow you to:

• Share one high-speed Internet connection with all the computers in

your home

• Share resources, such as files, and hard drives among all the

connected computers in your home

• Share a single printer with the entire family

• Share documents, music, video, and digital pictures

• Store, retrieve, and copy files from one computer to another

• Simultaneously play games online, check Internet email, and chat

Advantages of a Wireless Network

Here are some of the advantages of setting up a Belkin wireless network:

• Mobility – you no longer need a dedicated “computer

room”—you can work on a networked laptop or desktop

computer anywhere within your wireless range

• Easy installation – Belkin Easy Installation Wizards make

setup simple

• Flexibility – set up and access printers, computers, and other

networking devices from anywhere in your home

• Easy expansion – the wide range of Belkin networking products

lets you expand your network to include devices such as printers

and gaming consoles

• No cabling required – you can spare the expense and hassle of

retrofitting Ethernet cabling throughout the home or office

• Widespread industry acceptance – choose from a wide range

of interoperable networking products

Introduction

Placement of your Wireless Networking Hardware for Optimal

Performance

Your wireless connection will be stronger the closer your computer

is to your wireless router (or access point). Typical indoor operating

range for your wireless devices is between 100 and 200 feet. In the

same way, your wireless connection and performance will degrade

somewhat as the distance between your wireless router (or access

point) and connected devices increases. This may or may not be

noticeable to you. As you move farther from your wireless router (or

access point), connection speed may decrease. Factors that can

weaken signals simply by getting in the way of your network’s radio

waves are metal appliances or obstructions, and walls.

If you have concerns about your network’s performance that might be

related to range or obstruction factors, try moving the computer to a

position between five and 10 feet from the wireless router (or access

point) in order to see if distance is the problem. If difficulties persist

even at close range, please contact Belkin Technical Support.

Note: While some of the items listed below can affect network

performance, they will not prohibit your wireless network from

functioning; if you are concerned that your network is not operating

at its maximum effectiveness, this checklist may help.

1. Placement of your Wireless Router or (Access Point)

Place your wireless router (or access point), the central connection

point of your network, as close as possible to the center of your

wireless network devices.

To achieve the best wireless network coverage for your “wireless

clients,” (i.e. computers enabled by Belkin Wireless Notebook

Network Cards, Wireless Desktop Network Cards, and Wireless USB

Adapters):

• Ensure that your wireless router’s (or access point’s) antennas

are parallel to each other, and are positioned vertically (toward

the ceiling). If your wireless router (or access point) itself is

positioned vertically, point the antennas as much as possible in

an upward direction.

• In multistory homes, place the wireless router (or access point) on a

floor that is as close to the center of the home as possible. This may

mean placing the wireless router (or access point) on an upper floor.

• Try not to place the wireless router (or access point) near a

cordless 2.4GHz phone.

Introduction

section

2. Avoid Obstacles and Interference

Avoid placing your wireless router (or access point) near devices that

may emit radio “noise”, such as microwave ovens. Other objects that

can inhibit wireless communication can include:

• Refrigerators

• Washers and/or dryers

• Metal cabinets

• Large aquariums

• Metallic-based, UV-tinted windows

If your wireless signal seems weak in some spots, make sure that

objects such as these are not blocking the signal’s path between

your computers and wireless router (or access point).

3. Cordless Phone Placement

If the performance of your wireless network is impaired after

attending to the above issues, and you have a cordless phone:

• Try moving cordless phones away from the wireless router

(or access point) and your wireless-enabled computers.

• Unplug and remove the battery from any cordless phone

that operates on the 2.4GHz band (check the manufacturer’s

information). If this fixes the problem, the phone may be

interfering.

• If your phone supports channel selection, change the

channel on the phone to the farthest channel from your

wireless network as possible. For example, change the

phone to channel 1 and move your wireless router (or

access point) to channel 11. (Your channel selection will

vary depending on your region.) See your phone’s user

manual for detailed instructions.

• If necessary, consider switching to a 900MHz or 5GHz

cordless phone.

4. Choose the “Quietest” Channel for your Wireless Network

In locations where homes or offices are close together, such as apartment

buildings or office complexes, there may be wireless networks nearby

that can conflict with yours. Use the Site Survey capabilities of your

Wireless Networking Utility to locate any other wireless networks,

and move your wireless router (or access point) and computers to a

channel as far away from other networks as possible.

Experiment with more than one of the available channels in order to

find the clearest connection and avoid interference from neighboring

cordless phones or other wireless devices.

For more Belkin wireless networking products, use the detailed site

survey and wireless channel information included in your User Manual.

5. Secure Connections, VPNs, and AOL

Secure connections typically require a user name and password, and

are used where security is important. Secure connections include:

• Virtual Private Network (VPN) connections, often used to connect

remotely to an office network

• The “Bring Your Own Access” program from America Online

(AOL), which lets you use AOL through broadband provided by

another cable or DSL service

• Most online banking websites

• Many commercial websites that require a user name and

password to access your account

Secure connections can be interrupted by a computer’s power

management setting, which causes it to “go to sleep.” The simplest

solution to avoid this is to simply reconnect by re-running the VPN or

AOL software, or by re-logging into the secure website.

A second alternative is to change your computer’s power management

settings so it does not go to sleep; however, this may not be appropriate

for portable computers. To change your power management setting in

Windows, see the “Power Options” item in the Control Panel.

If you continue to have difficulty with Secure Connections, VPNs, and

AOL, please review steps 1-4 in the previous pages to be sure you

have addressed these issues.

These guidelines should allow you to cover the maximum possible area

with your wireless router. Should you need to cover an even wider

area, we suggest the Belkin Wireless Range Extender/Access Point.

For more information regarding our networking products, visit our

website at www.belkin.com/networking or call Belkin Technical Support.

Introduction

section

Introduction

Product Features

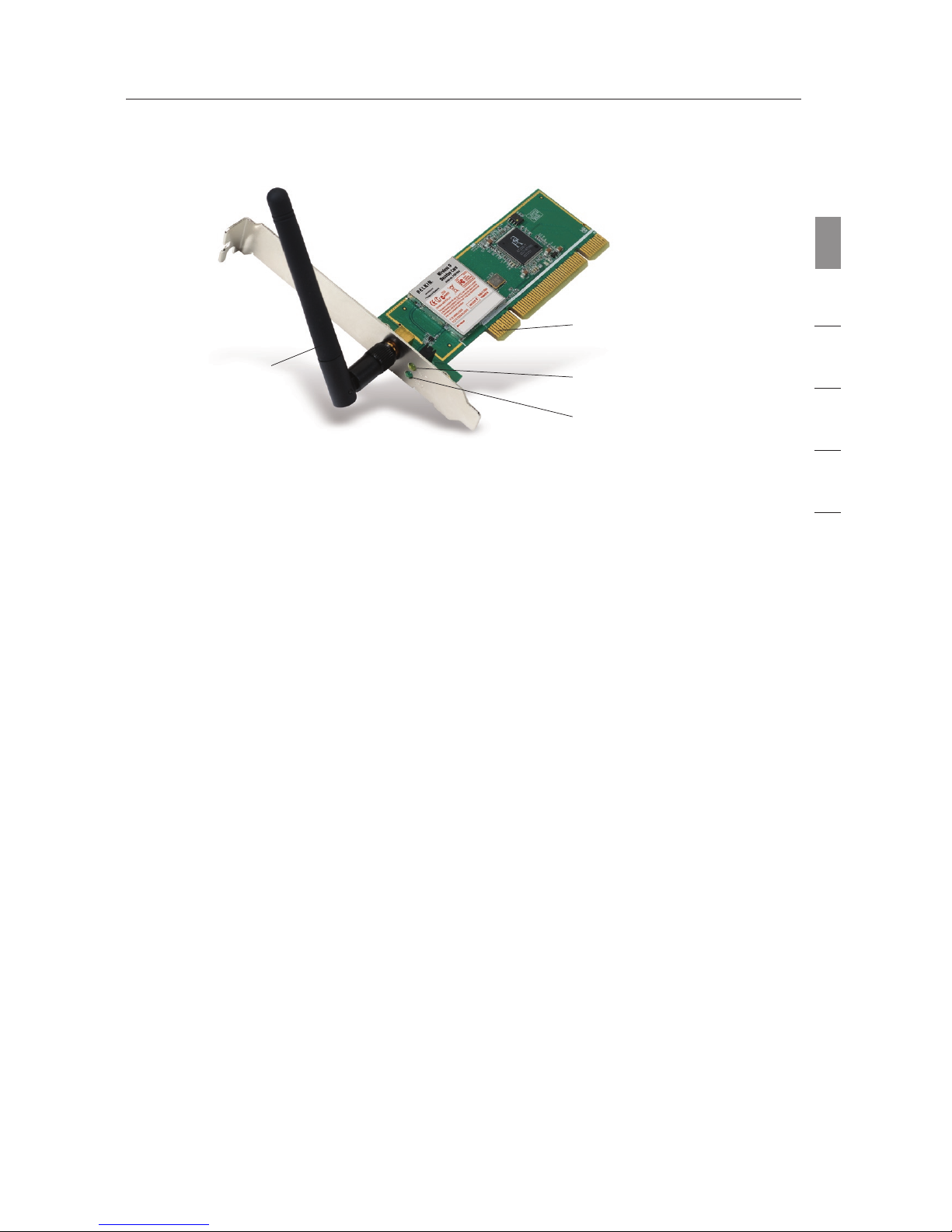

The Card complies with the IEEE 802.11g standard in order to

communicate with other 802.11g-compliant wireless devices at

54Mbps. The Card is compatible with all 802.11g devices as well as

other 802.11b products at 11Mbps. 802.11g products operate on the

same 2.4GHz frequency band as 802.11b Wi-Fi® products.

• 2.4GHz ISM (Industrial, Science, and Medical) band operation

• Integrated easy-to-use Wireless Networking Utility

• PCI interface, for operation in virtually any desktop computer

• WPA, WPA2, 64-bit WEP (Wired Equivalent Privacy), or 128-bit

encryption

• Wireless access to networked resources

• Support for both Infrastructure and Ad-Hoc (peer-to-peer)

networking modes

• Easy installation and use

• External antenna

• LED power and network link indicators

Overview

Applications and Advantages

• Wireless roaming with a laptop around the home or office

Offers the freedom of networking—without cables

• Connection rates of up to 54Mbps

Provides immediate wireless connectivity at home, work, and

hotspot locations without compromising the use of existing

802.11b and 802.11g products

• Compatibility with 802.11b products

802.11g wireless LAN solutions are backward-compatible with

existing Wi-Fi (IEEE 802.11b) products and with other products

that display the 54g logo

• Difficult-to-wire environments

Enables networking in buildings with solid or finished walls, or

open areas where wiring is difficult to install

• Frequently changing environments

Adapts easily in offices or environments that frequently rearrange

or change locations

• Temporary LANs for special projects or peak time

Sets up temporary networks such as at trade shows, exhibitions,

and construction sites, which need networks on a short-term

basis; also companies who need additional workstations for a

peak activity period

• SOHO (Small Office/Home Office) networking needs

Provides the easy and quick, small network installation SOHO

users need

Product Specifications

Host Interface: 32-bit PCI interface

Power Consumption: Tx/Rx peak 510/250mA @ 3.3VDC (max.)

Operating Temperature: 32—140 degrees F (0—60 degrees C)

Storage Temperature: -4—176 degrees F (-20—80 degrees C)

Humidity: Max. 90% (non-condensing)

Typical Operating Range: 100–200 ft.* (30—60m) indoors

*Wireless performance may vary

Overview

section

Overview

(a) Link LED

Lights up when the Card links to a wireless network

(b) Activity LED

Lights up and flashes when the Card is active

Fits securely into your computer’s PCI slot

(d) Antenna

System Requirements

• PC-compatible desktop computer with one available PCI slot and

CD-ROM drive

• Windows® 98SE, Me, 2000, or XP

Package Contents

• Wireless G Desktop Card

• Quick Installation Guide

• Installation Software CD

• User Manual

(c)

(b)

(a)

(d)

Altri manuali per Wireless G Router

Indice

Altri manuali Belkin Router di rete

Belkin

Belkin F5D8236ea4 Manuale utente

Belkin

Belkin Next Net Series Manuale utente

Belkin

Belkin PM01110EA Manuale utente

Belkin

Belkin AC900 DB Manuale utente

Belkin

Belkin Bob Manuale utente

Belkin

Belkin F5D7631-4-ETEL Manuale utente

Belkin

Belkin 802.11g Wireless Ethernet Bridge Manuale utente

Belkin

Belkin F1PI241EGau Guida di riferimento

Belkin

Belkin F5D7234-4 v3 Manuale utente

Belkin

Belkin F9K1002V5 Manuale utente

Belkin

Belkin F5D5230 Manuale utente

Belkin

Belkin FILTRAGE DE MAC ADRESSE Istruzioni per il montaggio

Belkin

Belkin F5D8235-4 - N+ Wireless Router Manuale utente

Belkin

Belkin WIRELESSBRIDGE GERMAN Guida rapida

Belkin

Belkin High Speed ADSL2+ Manuale utente

Belkin

Belkin AC1000 DB Manuale utente

Belkin

Belkin F1PI242ENAU Manuale utente

Belkin

Belkin F9K1102V2 Manuale utente

Belkin

Belkin GO N300 DB Manuale utente

Belkin

Belkin F5D7630 Guida rapida

Belkin

Belkin F9K1115V2 Manuale utente

Belkin

Belkin F5D8635V2 Manuale utente

Belkin

Belkin P73956EH Manuale utente

Belkin

Belkin F5D7230-4 Manuale di istruzioni

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
