Belkin TSG-UK-1-001 Guida di riferimento

®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

®Self Help Guide

IMPORTANT!

This Guide refers to the

following Products:

Establishing A Connection From PC To Router

Synopsis:

Please read the following carefully;

Requirements:

This Self-Help Guide is designed to assist you if

you are having difficulty in forming a connection

between your PC and your Belkin Router or

Modem Router.

This guide will concentrate on the Local Area

Network (or LAN) connection between PC and

Router. Please refer to our separate guides if you

are experiencing other issues such as Internet

connectivity.

In order to complete the steps as outlined in this

Self-Help Guide you will simply need the following;

•A Belkin Router or Modem Router (powered)

•A Computer with a working RJ45 LAN Port

•An RJ45 (Patch) Networking Cable

The Guide is based upon Users of Windows

Operating Systems so a machine running

Windows 98SE, ME, 2000 or XP is required.

All Belkin Modem

Routers

All Belkin Routers

TSG-UK-1-007 | www.belkin.com | Page 1 of 6

®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

®Self Help Guide

Establishing A Connection From PC To Router

TSG-UK-1-007 | www.belkin.com | Page 2 of 6

In most cases there will be no problems connecting between your PC and your

(Modem) Router providing they are connected to one another. We would always

recommend initially attempting to open the User Interface of the Router from a PC

connected via Ethernet Cable to test connectivity, before assuming a problem and

undertaking troubleshooting.

To access the Web User Interface of any Belkin (Modem) Router simply open your

Internet Browser (i.e. Internet Explorer) and type the IP Address of the (Modem) Router

into the Address Bar. This is usually 192.168.2.1.

All being well the Web User Interface of the Belkin (Modem) Router should appear. If it

doesn’t then the following steps should be undertaken.

As a primary check you ensure that the PC and (Modem) Router are indeed capable of

‘talking’ to one another from a physical connectivity point of view. Please therefore

ensure the following;

•The (Modem) Router and PC are both powered on.

•An Ethernet (Patch) Cable is plugged between PC and one of the Router’s LAN Ports

•There are lights illuminated by the PCs Ethernet (LAN) port.

•There is a light on the Front Fascia of the Router indicating the LAN connection

If you are having problems connecting to the (Modem) Router via a Wireless (WLAN)

connection, then we would suggest establishing a wired connection as described

above in the first instance.

Check The Physical Connections

®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

Providing the physical connections are fine, then the actual connectivity between the

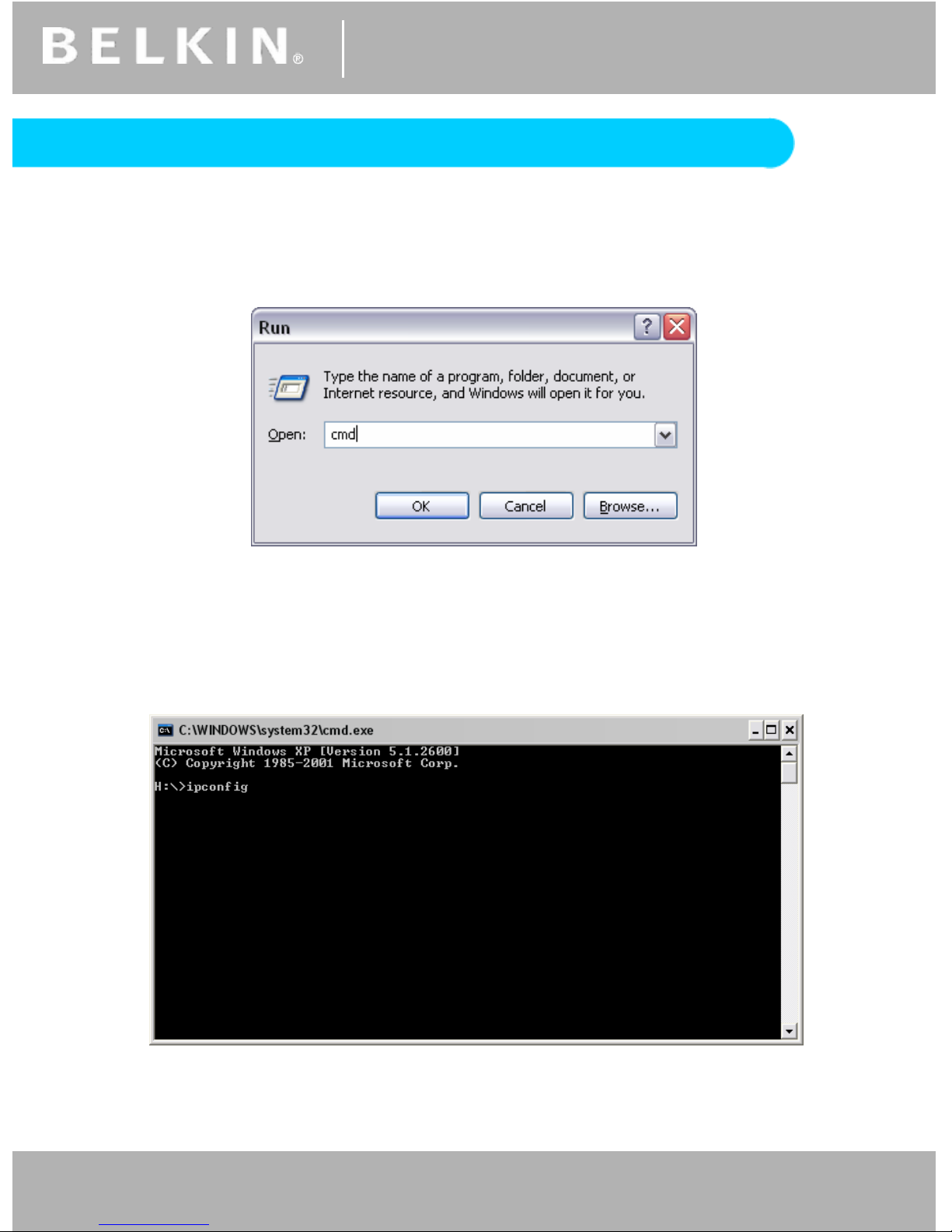

two devices should be tested next. To do this click on the ‘Start’ button, locate the

‘Run’ option and once the ‘Run’ command Window opens type ‘cmd’ into the entry field

(as shown below) and then press ‘OK’ or hit ‘ENTER’.

NOTE: ‘cmd’ is simply an abbreviation of ‘command’ which older operating systems

will use instead of the abbreviated form.

A Black DOS-Window should appear with a flashing cursor. Simply type in ‘ipconfig’

and press ‘ENTER’*.

*’ipconfig’ is an abbreviation of Internet Protocol Configuration – For older Operating

Systems use ‘winipcfg’

Self Help Guide

TSG-UK-1-007 | www.belkin.com | Page 3 of 6

Checking the Network Connectivity

®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

Providing you have a working connection to your (Modem) Router information similar

to that shown below will be displayed;

By default all Computer Network Interface Cards (NICs) are set to ‘Obtain an IP Address

Automatically’ if the Network Card has done this then it will obtain one from the Router

which is acting as a DHCP Server. The Information shown in the Screenshot above

shows that this is happening correctly;

1. The DNS Suffix shows ‘Belkin’ – This is the ‘Hostname’ of the Belkin (Modem) Router

2. The Default Gateway shows the Router’s IP Address (192.168.2.1) as used above.

3. The PC has successfully obtained a 192.168.2.x IP-Address from the Router

If you receive that same type of information as shown above then please try connecting

to the User Interface of the Router via your Internet Browser again, as a Network

Connection does seem to be present.

If you receive Information that is missing a ‘DNS Suffix’ and/or ‘Default Gateway’ or

shows any other message including ‘Media Disconnected’ then please double check

the Physical connections and if required continue with the troubleshooting as follows.

Self Help Guide

TSG-UK-1-007 | www.belkin.com | Page 4 of 6

B e l k I n

1 9 2 . 1 6 8 . 2 . 2

2 5 5 . 2 5 5 . 2 5 5 . 0

1 9 2 . 1 6 8 . 2 . 1

®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

To troubleshoot further click on the ‘Start’ menu and select ‘Control Panel’. In the

‘Control Panel’ double click the icon for ‘Network Connections’ (which in older

Operating Systems may show as ‘Internet Connections’ after which ‘Network’ should

be selected).

Once the Network Connections are open you will see an Icon for your Local Area (LAN)

Connection which is essentially the Network Card of your Computer. This will look

similar to that shown below;

If for any reason there is a red cross shown on the Icon then the physical connection

should be checked.

Self Help Guide

TSG-UK-1-007 | www.belkin.com | Page 5 of 6

®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

Next, right-click the Icon for your Local Area Connection so that the sub-menu appears

and select ‘Properties’. This will bring up the ‘Properties’ Window for your Computer’s

Network Card.

From the large white window select the option

For ‘Internet Protocol (TCP/IP)’ Providing you

Have administrative rights over the Computer

the ‘Properties’ button should be highlighted.

Self Help Guide

TSG-UK-1-007 | www.belkin.com | Page 6 of 6

Click on the ‘Properties’ button to continue. A

screen similar to that shown left should

appear.

Connectivity problems are often because the

Card has been set to ‘Use The Following IP

Address’ i.e. a Static IP Address.

Set the Card to ‘Obtain An IP Address

Automatically’ and ‘Obtain DNS Server

Address Automatically’ as shown here and

then click the ‘OK’ button to save the

changes.

Once the changes are affected you should

test the connectivity again using ‘ipconfig’ in

the black DOS Window as described before.
