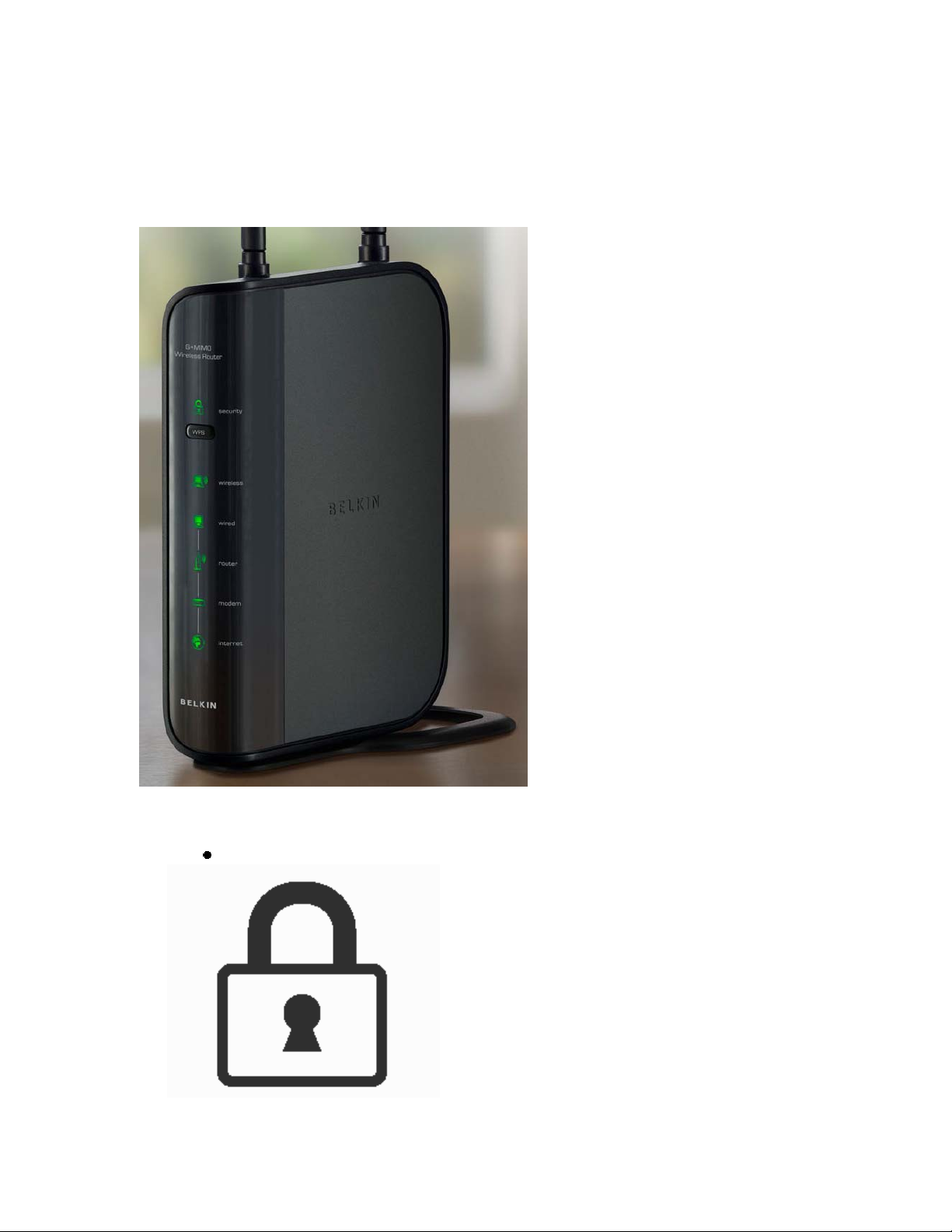

Enhanced Wireless Router

User Manual

F6D4230-4

8820-00034-A

Ok-mk 12/3/08

Splash Screen

Table of Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x

Advantages of a Wireless Network…………………………..x

Placement of your Enhanced Wireless Router. . . . . . . . . . . . . .x

2 Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x

3 Knowing your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Setup Assistant Software System Requirements . . . . . .x

4 Connecting and Configuring your Router . . . . . . . . . . . . . . .x

5 Alternate Setup Method . . . . . . . . . . . . . . . . . . . . . . . . . . .x

6 Using the Web-Based Advanced User Interface . . . . . . . . . .x

Changing LAN Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .x

Viewing the DHCP Client List Page . . . . . . . . . . . . . . . . . x

Configuring the Wireless Network Settings . . . . . . . . . . . x

Setting WPA/WPA2 Encryption…………………x

Setting WEP Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x

Using the Access Point Mode . . . . . . . . . . . . . . . . . . . . . .x

Setting MAC Address Control . . . . . . . . . . . . . . . . . . . . . .x

Configuring the Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . x

Using Dynamic DNS……………………………………….x

Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x

Restarting the Router . . . . . . . . . . . . . . . . . . . . . . . . . x

Updating the Firmware . . . . . . . . . . . . . . . . . . . . . . . . x

7 Manually Configuring Network Settings . . . . . . .x

8 Recommended Web Browser Settings . . . . . . . . . . . . . . . . .x

9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x

10 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x

20929_8820-00034_F6D4230-4_Enhanced_Router_User_Manual_111008

clean.doc

Page 2 of 114

Introduction

Thank you for purchasing the Belkin Enhanced Wireless Router (the

Router). Following are two short sections—the first discusses the benefits

of home networking, and the other outlines best practices that maximize

your wireless home network range and performance. Please be sure to

read through this User Manual completely, and pay special attention to the

section entitled “Placement of your Enhanced Wireless Router” on the

next page. By following our simple setup instructions you will be able to

use your Belkin Home Network to:

•Share one high-speed Internet connection with all the computers in

your home

•Share resources, such as files and hard drives among all the

connected computers in your home

•Share a single printer with the entire family

•Share documents, music, video, and digital pictures

•Store, retrieve, and copy files from one computer to another

•Simultaneously play games online, check Internet email, and chat

Advantages of a Wireless Network

Here are some of the advantages of setting up a Belkin Wireless Network:

•Mobility – you’ll no longer need a dedicated “computer room”—now

you can work on a networked laptop or desktop computer anywhere

within your wireless range

•Easy installation – Belkin’s Setup Assistant makes setup simple

•Flexibility – set up and access printers, computers, and other

networking devices from anywhere in your home

•Easy expansion – the wide range of Belkin networking products let

you expand your network to include devices such as printers and

gaming consoles

•No cabling required – you can spare the expense and hassle of

retrofitting Ethernet cabling throughout the home or office

•Widespread industry acceptance – choose from a wide range of

interoperable networking products

20929_8820-00034_F6D4230-4_Enhanced_Router_User_Manual_111008

clean.doc

Page 3 of 114

Placement of your Enhanced Wireless Router

Important Factors for Placement and Setup

Your wireless connection will be stronger the closer your computer is to

your Router. Typical indoor operating range for wireless devices is

between 100 and 200 feet.

In the same way, your wireless connection and performance will degrade

somewhat as the distance between your Router and connected devices

increases. This may or may not be noticeable to you. As you move further

from your Router, connection speed may decrease. Factors that can

weaken signals simply by getting in the way of your network’s radio waves

are metal appliances or obstructions, and walls.

If you have concerns about your network’s performance that might be

related to range or obstruction factors, try moving the computer to a

position between five and 10 feet from the Router in order to see if

distance is the problem. If difficulties persist even at close range, please

contact Belkin Technical Support.

Note: While some of the items listed below can affect network

performance, they will not prohibit your wireless network from functioning;

if you are concerned that your network is not operating at its maximum

effectiveness, this checklist may help.

20929_8820-00034_F6D4230-4_Enhanced_Router_User_Manual_111008

clean.doc

Page 4 of 114

1. Router Placement

Place your Router, the central connection point of your network, as close

as possible to the center of your wireless network devices.

To achieve the best wireless network coverage for your “wireless clients”

(i.e., computers enabled by Belkin Wireless Notebook Network Cards,

Wireless Desktop Network Cards, and Wireless USB Adapters):

•Ensure that your Router’s networking antenna is positioned

vertically (toward the ceiling).

•In multistory homes, place the Router on a floor that is as close to

the center of the home as possible. This may mean placing the

Router on an upper floor.

•Try not to place the Router near a cordless 2.4GHz phone.

2. Avoid Obstacles and Interference

Avoid placing your Router near devices that may emit radio “noise,” such

as microwave ovens. Dense objects that can inhibit wireless

communication include:

•Refrigerators

•Washers and/or dryers

•Metal cabinets

•Large aquariums

•Metallic-based UV tinted windows

If your wireless signal seems weak in some spots, make sure that objects

such as these are not blocking the signal’s path (between your computers

and Router).

3. Cordless Phones

If the performance of your wireless network is impaired after attending to

the above issues, and you have a cordless phone:

•Try moving cordless phones away from your Router and your

wireless-enabled computers.

•Unplug and remove the battery from any cordless phone that

operates on the 2.4GHz band (check manufacturer’s information). If

this fixes the problem, your phone may be interfering.

•If your phone supports channel selection, change the channel on

the phone to the farthest channel from your wireless network. For

example, change the phone to channel 1 and move your Router to

channel 11. See your phone’s user manual for detailed instructions.

•If necessary, consider switching to a 900MHz or 5GHz cordless

phone.

20929_8820-00034_F6D4230-4_Enhanced_Router_User_Manual_111008

clean.doc

Page 5 of 114

4. Choose the “Quietest” Channel for your Wireless Network

In locations where homes or offices are close together, such as apartment

buildings or office complexes, there may be wireless networks nearby that

can conflict with yours.

Use the Site Survey capabilities found in the Wireless Utility of your

wireless adapter to locate any other wireless networks that are available

(see your wireless adapter’s user manual), and move your Router and

computers to a channel as far away from other networks as possible.

•Experiment with more than one of the available channels, in order

to find the clearest connection and avoid interference from

neighboring cordless phones or other wireless devices.

•For Belkin wireless networking products, use the detailed Site

Survey and wireless channel information included with your

wireless network card. See your network card’s user guide for more

information.

These guidelines should allow you to cover the maximum possible area

with your Router. Should you need to cover an even wider area, we

suggest the Belkin Wireless Range Extender/Access Point.

5. Secure Connections, VPNs, and AOL

Secure connections typically require a user name and password, and are

used where security is important. Secure connections include:

•Virtual Private Network (VPN) connections, often used to connect

remotely to an office network

•The “Bring Your Own Access” program from America Online (AOL),

which lets you use AOL through broadband provided by another

cable or DSL service

•Most online banking websites

•Many commercial websites that require a user name and password

to access your account

Secure connections can be interrupted by a computer’s power

management setting, which causes it to “go to sleep.” The simplest

solution to avoid this is to simply reconnect by rerunning the VPN or AOL

software, or by re-logging into the secure website.

A second alternative is to change your computer’s power management

settings so it does not go to sleep; however, this may not be appropriate

for portable computers. To change your power management setting under

Windows, see the “Power Options” item in the Control Panel.

If you continue to have difficulty with Secure Connections, VPNs, and AOL,

please review the steps above to be sure you have addressed these

issues.

20929_8820-00034_F6D4230-4_Enhanced_Router_User_Manual_111008

clean.doc

Page 6 of 114

For more information regarding our networking products, visit our website

at www.belkin.com/networking or call Belkin Technical Support at:

US: 877-736-5771

UK: 0845 607 77 87

Australia: 1800 235 546

New Zealand: 0800 235 546

Singapore: 65 64857620

Europe: www.belkin.com/support

Product Overview

Product Features

In minutes you will be able to share your Internet connection and network

your computers. The following is a list of features that make your new

Belkin Enhanced Wireless Router an ideal solution for your home or small

office network.

Works with Both PCs and Mac®Computers

The Router supports a variety of networking environments including Mac

OS®8.x, 9.x, X v10.x, Linux®, Windows®98, Me, NT®, 2000, XP, Vista®,

and others. All that is needed is an Internet browser and a network

adapter that supports TCP/IP (the standard language of the Internet).

Patent-Pending Network Status Display

Lighted LEDs on the front of the Router indicate which functions are in

operation. You’ll know at-a-glance whether your Router is connected to

the Internet. This feature eliminates the need for advanced software and

status-monitoring procedures.

20929_8820-00034_F6D4230-4_Enhanced_Router_User_Manual_111008

clean.doc

Page 7 of 114

Web-Based Advanced User Interface

You can set up the Router’s advanced functions easily through your web

browser, without having to install additional software onto the computer.

There are no disks to install or keep track of and, best of all, you can make

changes and perform setup functions from any computer on the network

quickly and easily.

NAT IP Address Sharing

Your Router employs Network Address Translation (NAT) to share the

single IP address assigned to you by your Internet Service Provider while

saving the cost of adding additional IP addresses to your Internet service

account.

SPI Firewall

Your Router is equipped with a firewall that will protect your network from

a wide array of common hacker attacks including IP Spoofing, Land Attack,

Ping of Death (PoD), Denial of Service (DoS), IP with zero length, Smurf

Attack, TCP Null Scan, SYN flood, UDP flooding, Tear Drop Attack, ICMP

defect, RIP defect, and fragment flooding.

Integrated 10/100 4-Port Switch

The Router has a built-in, four-port network switch to allow your wired

computers to share printers, data and MP3 files, digital photos, and much

more. The switch features automatic detection so it will adjust to the speed

of connected devices. The switch will transfer data between computers

and the Internet simultaneously without interrupting or consuming

resources.

Universal Plug and Play (UPnP)

UPnP is a technology that offers seamless operation of voice messaging,

video messaging, games, and other applications that are UPnP-compliant.

Support for VPN Pass-Through

If you connect to your office network from home using a VPN connection,

your Router will allow your VPN-equipped computer to pass through the

Router and to your office network.

Built-In Dynamic Host Configuration Protocol (DHCP)

Built-In Dynamic Host Configuration Protocol (DHCP) on-board makes for

the easiest possible connection of a network. The DHCP server will assign

IP addresses to each computer automatically so there is no need for a

complicated networking setup.

20929_8820-00034_F6D4230-4_Enhanced_Router_User_Manual_111008

clean.doc

Page 8 of 114

Setup Assistant

The Setup Assistant, second generation of Belkin’s renowned Easy Install

Wizard, takes the guesswork out of setting up your Router. This automatic

software determines your network settings for you and sets up the Router

for connection to your Internet Service Provider (ISP). In a matter of

minutes, your Router will be up and running on the Internet.

Note: Setup Assistant software is compatible with Windows 2000, XP, and

Vista; and Mac OS X v10.x. If you are using another operating system, the

Router can be set up using the Alternate Setup Method described in this

User Manual (see page xx) [VERIFY PAGE NUMBER].

Integrated Enhanced Wireless Access Point

Enhanced is an exciting new wireless technology that achieves data rates

of up to 150Mbps. Actual throughput is typically lower than the connected

data rate and will vary depending on your networking environment.

NOTE: The standard transmission rate—150Mbps—is the physical data

rate. Actual data throughput will be lower.

MAC Address Filtering

For added security, you can set up a list of MAC addresses (unique client

identifiers) that are allowed access to your network. Every computer has

its own MAC address. Simply enter these MAC addresses into a list using

the Web-Based Advanced User Interface and you can control access to

your network.

20929_8820-00034_F6D4230-4_Enhanced_Router_User_Manual_111008

clean.doc

Page 9 of 114

Knowing your Router

Package Contents

•Belkin Enhanced Wireless Router

•Quick Installation Guide

•Belkin Setup Assistant Software CD

•RJ45 Ethernet Networking Cable

•Power Supply

•User Manual on the Setup Assistant CD

System Requirements

•Broadband Internet connection such as a cable or DSL modem with

RJ45 (Ethernet) connection

•At least one computer with an installed network interface adapter

•TCP/IP networking protocol installed on each computer

•RJ45 Ethernet networking cable

•Internet browser

Setup Assistant Software System Requirements

•A computer running Windows® 2000, XP, or Vista®; or Mac OS® X

v10.x

•Minimum 1GHz processor and 128MB RAM

•Internet browser

20929_8820-00034_F6D4230-4_Enhanced_Router_User_Manual_111008

clean.doc

Page 10 of 114

Knowing your Router

The Router has been designed to be placed on a desktop. All of the

cables exit from the rear of the Router for better organization and utility.

The Network Status Display is easily visible on the FRONT of the Router

to provide you with information about network activity and status.

*need photoshopped photo

A. Wireless Security

Altri manuali per F6D4230-4

Indice

Altri manuali Belkin Router di rete

Belkin

Belkin F5D7233 - Wireless G Travel Router Manuale utente

Belkin

Belkin F5D7233 - Wireless G Travel Router Manuale utente

Belkin

Belkin AC 1600 DB Manuale utente

Belkin

Belkin 802.11g Wireless Ethernet Bridge Manuale utente

Belkin

Belkin INVENTEL CONFIG XP Istruzioni per il montaggio

Belkin

Belkin F5D7230au4 Istruzioni per l'uso e l'installazione

Belkin

Belkin F5D5230U4-V1.20.003 Manuale di istruzioni

Belkin

Belkin Surf Manuale utente

Belkin

Belkin Next Net Series Manuale utente

Belkin

Belkin P73928EH Manuale utente

Belkin

Belkin AC1800 DB Manuale utente

Belkin

Belkin Home Base F5L049ea Manuale utente

Belkin

Belkin N Wireless Manuale utente

Belkin

Belkin F5D8236ea4 Manuale utente

Belkin

Belkin SURF N300 Manuale utente

Belkin

Belkin F9K1002V1 Manuale utente

Belkin

Belkin F9K1124 Manuale utente

Belkin

Belkin F9K1102V2 Manuale utente

Belkin

Belkin F5D7234-4 v5 Manuale utente

Belkin

Belkin VoIP Manuale di riferimento

Belkin

Belkin F1P1210ENAU Guida di riferimento

Belkin

Belkin TSG-UK-1-008 Guida di riferimento

Belkin

Belkin F5D6230-3 Manuale utente

Belkin

Belkin Wireless Gplus Notebook Card Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
