BENETEAU FIRST 21.7 Manuale utente

FIRST 21.7

ANG 24/06/04

OWNER’S MANUAL

FIRST 21.7

FR-BEY _ _ _ _ _ _ _ _ _

BENETEAU REF : ./

SUMMARY:

I) INTRODUCTION................................................................................................................................................3

II) IDENTITY CARD OF THE BOAT ...................................................................................................................4

III) ACCOMMODATION.......................................................................................................................................6

IV) DECK (Location of the life raft) .......................................................................................................................8

V) SAILS AND RIGGING......................................................................................................................................9

VI) FRESH WATER SYSTEM.............................................................................................................................12

VII)BILGE PUMP SYSTEM ................................................................................................................................14

VIII) SEACOCKS AND SKIN FITTINGS...........................................................................................................16

IX) ELECTRIC SYSTEMS ...................................................................................................................................17

X) GAS SYSTEM..................................................................................................................................................20

XI) EMERGENCY SYSTEM OF THE STEERING SYSTEM...........................................................................22

XII) MOTORIZATION .........................................................................................................................................23

XIII) HANDLING .................................................................................................................................................25

XIV) MAINTENANCE.........................................................................................................................................26

XV) ENVIRONMENT ..........................................................................................................................................29

XVI) CENTREBOARD SYSTEM ...................................................................................................................... 30

EXPLANATION OF THE TYPOGRAPHY USED:

DANGER

WARNING

TAKE CARE

FIRST 21.7

ANG24/06/04 2 / 30

RECEIPT

OWNER’S NAME …………………………………………………………………………..

ADDRESS …………………………………………………………………………..

…………………………………………………………………………..

Owner of the FIRST 21.7 n° ……………………………………………………………………………….

Do certify that I have accepted delivery and read the information in the owner’s manual delivered with the boat.

On …………………………………………

Signature

Please keep this copy for your records

•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••

RECEIPT

OWNER’S NAME : …………………………………………………………………………..

ADDRESS : …………………………………………………………………………..

…………………………………………………………………………..

Owner of the FIRST 21.7 n° ……………………………………………………………………………….

Do certify that I have taken delivery and read the information in the owner’s manual delivered with the boat.

On …………………………………………

Signature

Please send back this copy to CHANTIERS BENETEAU S.A

ZIdesMaresBP66

85270 Saint Hilaire de Riez

FRANCE

FIRST 21.7

ANG24/06/04 3 / 30

I) INTRODUCTION

Dear Madam, Dear Sir,

You have just taken delivery of your new BENETEAU boat and we would like to congratulate you first of

all for the confidence you showed to us in choosing a product of our mark.

A BENETEAU boat is built to last : each boat is subject to particular care in the slightest details, as early as

when she is designed, when she leaves the factory and she is launched ; this way, she will come up to your

expectations for many years.

This manual was meant to help you to enjoy your boat safely. You will find in it the details of your boat ,

her fittings and information about the use and maintenance. Read it carefully and get to know her before you put out

to sea.

If this is your first boat, or if you change to a new type of boat (to which you are not used) get some training

to control and sail her , to ensure your safety and comfort. Then you will be able to assume the command of the boat.

Your dealer, your national sailing association or your Yacht club will be very happy to recommend you local sailing

schools or professional instructors.

Have fine and safe sailing time.

(1) Throughout their lives, our boats are regularly improved and benefit from our experience and our

customers’ experience ; therefore the specifications given in this owner’s manual are not contractual and may be

modified without prior notice and up dating obligation.

In the same way, this manual has a general purpose and it may sometimes list some equipments or refer to

some points which are not relevant to your own boat. In case of doubt, you shall always refer to the inventory list.

KEEP THIS MANUAL IN A SAFE PLACE AND HAND IT OVER TO THE NEW OWNER IF YOU SELL THE

BOAT.

FIRST 21.7

ANG24/06/04 4 / 30

II) IDENTITY CARD OF THE BOAT

Type ....................................................... FIRST 21.7

Name of Builder .................................... CHANTIERS BENETEAU SA

Design Category..................................... B

N° of acknowledged body...................... CE 0607

Length of Hull 6.25 m

Over All Beam 2.48 m

Draught: Shallow :

Deep:

0.70

1.80

Clearance Height 10.40 m

Maximum Authorized Engine Power : 8 kW

Fresh Water Capacity 35 Litres

Battery Capacity 45 Amp

Category Height of Waves

(m)

Wind Force

(Beaufort)

A > 4 > 8

B < 4 < 8

C < 2 < 6

D < 0.5 < 4

For additional information concerning the fitted equipment, please refer to their manuals enclosed in the boat

litterature.

Maximum recommended number of persons on board by design category:

Category Number of

persons

B 4

C 6

D 6

The equipments of the C.E. Certified boat are : The fuel tanks, the parts of the steering system, the parts of the gas

system and the hatches and portholes.

(1)

FIRST 21.7

ANG24/06/04 5 / 30

WEIGHT ESTIMATION

SAILING CATEGORIES A B C D

Light Boat : 1185 1185 1185

Safety Equipment : 45 45 45

Sail : 15 15 15

Light Displacement : 1245 1245 1245

Minimum Crew : 75 75 75

Life Raft : 30 30 30

Rest of Crew : 225 225 225

Personal Equipment: 125 125 125

Optional Equipment (6 HP Outboard Engine) 40 40 40

Margin for Extra Equipment : 45 45 45

MAXIMUM LOAD DISPLACEMENT

(Kg)

1785 1785 1785

MAXIMUM LOAD (Kg) 540 540 540

MAXIMUM LOAD = MAXIMUM LOAD DISPLACEMENT – LIGHT DISPLACEMENT

ANY OVERLOADING CARRIES A RISK OF FLOODING OR LOSS OF STABILITY

FIRST 21.7

ANG24/06/04 6 / 30

III) ACCOMMODATION

FIRST 21.7

ANG24/06/04 7 / 30

EXIT IN CASE OF FIRE

= Recommended Exit

FIRST 21.7

ANG24/06/04 8 / 30

IV) DECK

- The safe lines can be fastened either on the mooring cleats or on the toe rail.

Some boats are fitted with a foldaway swimming ladder. The swimming ladder shall be in its usual

place on the transom as soon as you are on board.

Make sure that the hatches and portholes are closed before you put out to sea.

In case of rough sea, close the boat with her door and washboard so that no water may come into the

boat

Check that nothing blocks up the draining holes ; never seal them.

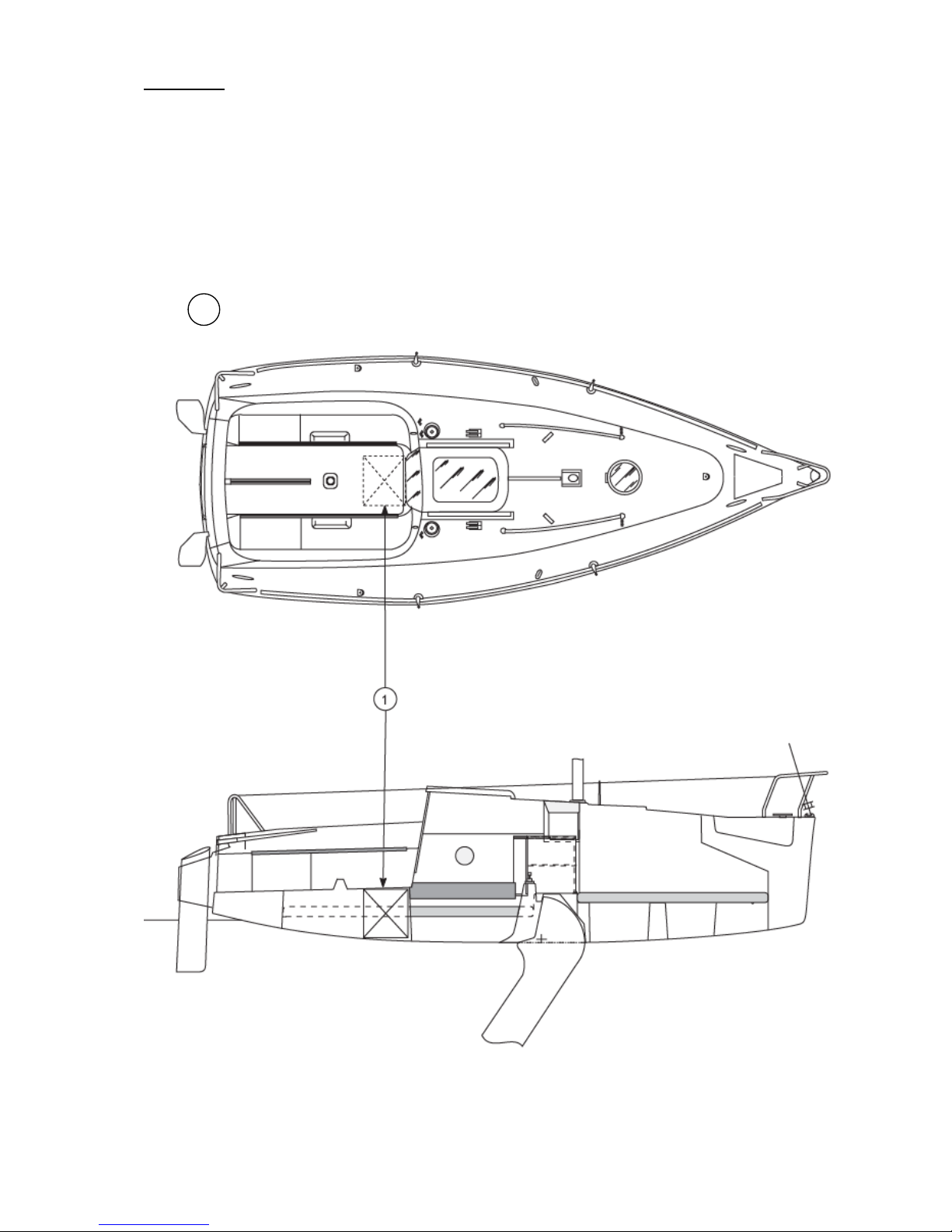

1 Location of the life-raft

FIRST 21.7

ANG24/06/04 9 / 30

V) SAILS AND RIGGING

Specifications of the Sails :

SAIL AREA m²

I 8.59 m

Total 25.20 m² J 2.40 m

Main Sail 13.80 m² P 8.24 m

Genoa (maxi) 11.40 m² E 2.85 m

Spinnaker 34.70 m² LP 2.67 m

Specifications of the Standing Rigging:

V : Vertical - D : Diagonal

REF CABLE Ø mm

1 V1 (Shroud) 4

2 D1 (Lower Shroud ) 4

3 Forestay 4

4 Preventer Backstay 3

FIRST 21.7

ANG24/06/04 10 / 30

DECK FITTING LAY OUT

REF STANDARD MAST

1 Genoa Furling Line

2 Mainsail Halyard

3 Reef n° 1

4 Spinnaker Boom Toppping Lift

5 Reef n° 2

6 Spinnaker Halyard

7 Spinnaker Boom Downhaul
