BenQ W1600UST Manuale utente

Digital Projector

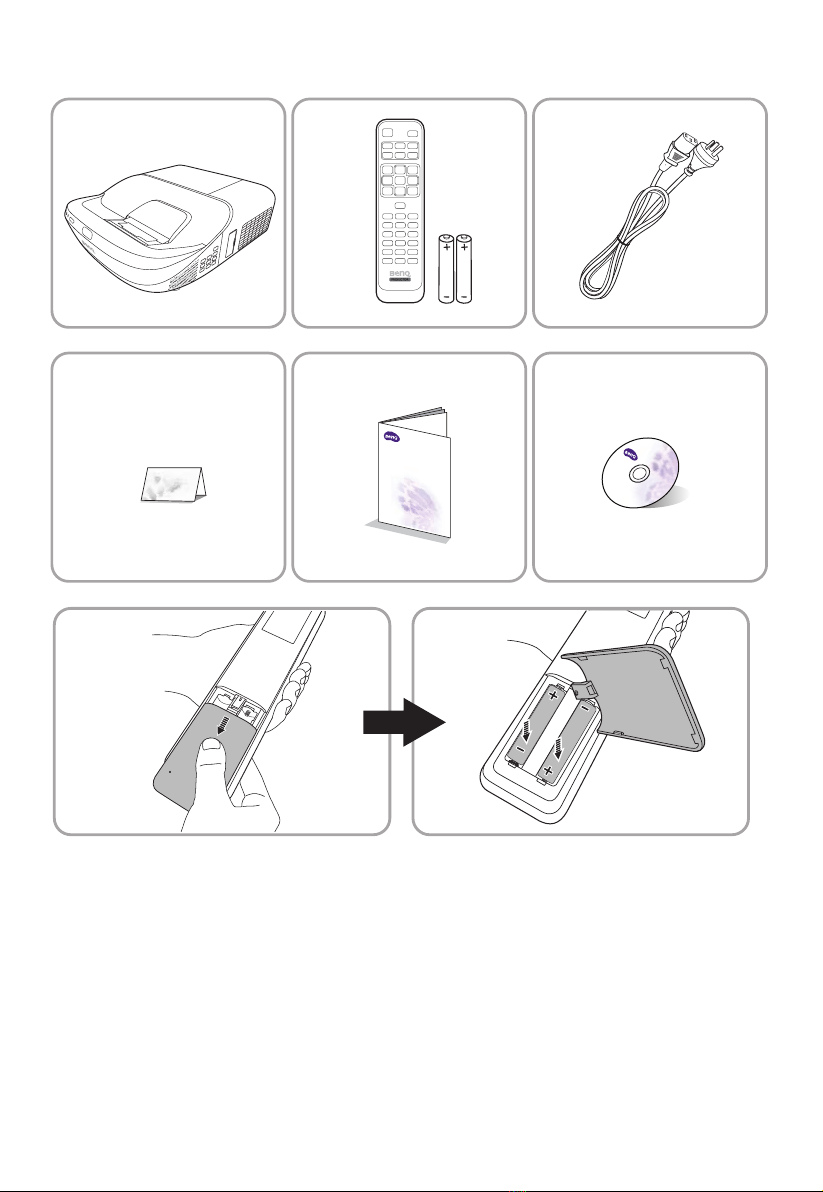

Quick Start Guide

a

D

V

M

W

h

X

Dimensions Unit: mm

385.5

429.2

152.6

126.6

152.6

429.2

All measurements are approximate and may vary from the actual sizes.

BenQ recommends that if you intend to permanently install the projector, you should physically test the

projection size and distance using the actual projector in situ before you permanently install it, so as to make

allowance for this projector's optical characteristics. This will help you determine the exact mounting position

so that it best suits your installation location.

Projection dimensions

1ON

2

3

4

5

2

1

1. Choosing a location

Front Table Rear Table

2. Using the test pattern

3. Correcting the image

Positioning your projector

Using the quick install

OFF

1

2

3

X 2

Projector specifications

All specifications are subject to change without notice.

Optical

Resolution

1920 (H) x 1080 (V)

Display system

1-CHIP DMD

Lens

F = 2.4, f = 3.35 mm

Lamp

240 W lamp

Electrical

Power supply

AC100–240V, 3.9 A, 50–60 Hz

(Automatic)

Power consumption

410

W (Max); < 0.5 W (Standby)

Mechanical

Weight

6.1 Kg (13.4 lbs)

Output terminals

Speaker

(Stereo) 10 watt x 2

Audio signal output

Audio jack x 1

Control

USB

Type Mini-B x 1 (Service download)

RS-232 serial control

9 pin x 1

IR receiver x 1

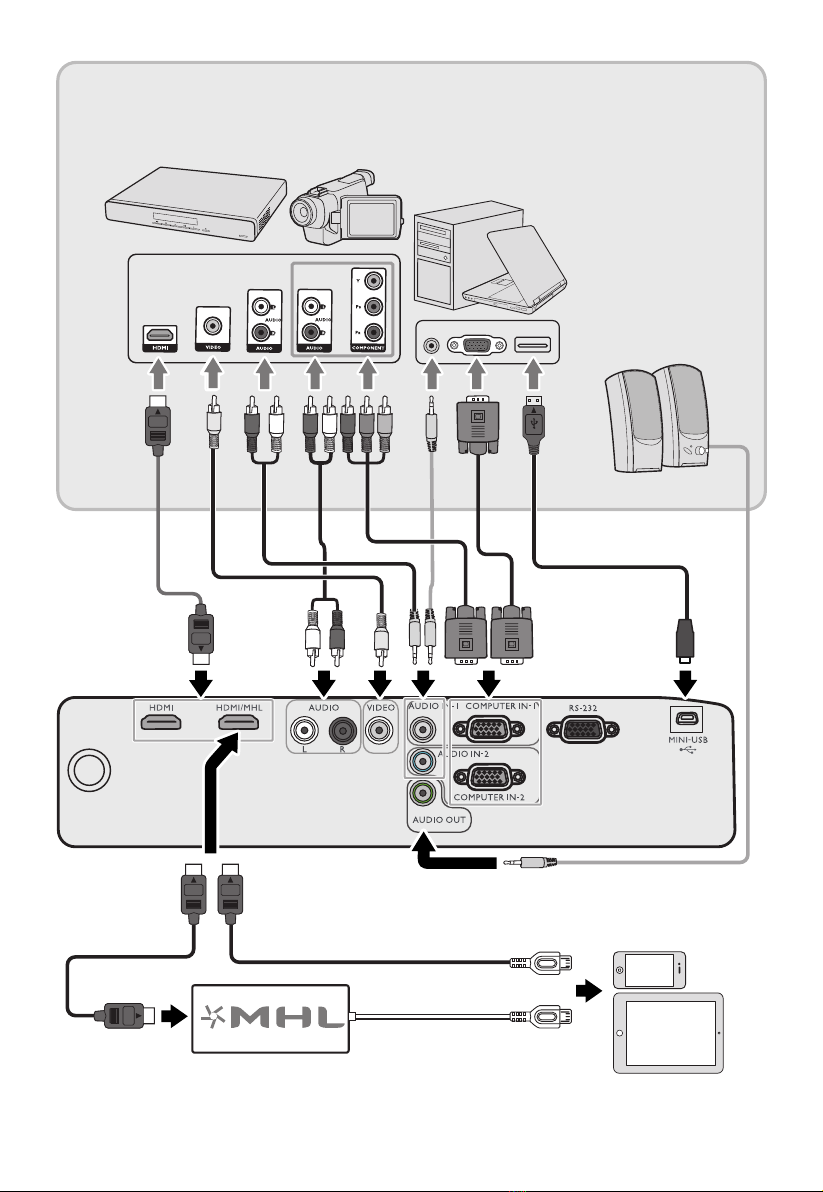

Input terminals

Computer input

RGB input

D-Sub 15-pin (female) x 2

Video signal input

VIDEO

RCA jack x 1

SD/HDTV signal input

Analog - Component RCA jack x 3

(through RGB input)

Digital - HDMI x 1; HDMI/MHL x 1

Audio signal input

Audio in

RCA audio jack (L/R) x 2

PC audio jack x 2

Environmental Requirements

Operating temperature

0°C–40°C at sea level

Storage temperature

-20°C–60°C at sea level

Operating/Storage relative humidity

10%–90% (without condensation)

Operating altitude

0–1499 m at 0°C–35°C

1500–3000 m at 0°C–30°C (with

High Altitude Mode on)

For further information, please refer to the enclosed User Manual.
