Beta Three TLA-101F Manuale utente

TLA-101F

UM-TLA-101F-20120622 ver A

User Manual

Two way dual 10 Weatherproof

Line Array Speaker System

文件（图）名

版本第2页共14页

英文说明书

产品名称

客户/品牌/型号

文件（图）号

专业音箱

ELDER/β3/TLA-101F

10.

Read the instruction first before using this product.

Pay attention to all warnings.

Obey all operating instructions.

Do not expose this product to rain or moisture.

Do not block any ventilation openings. Install according to instructions .

Do not install this product near any heat source, such as , heater, burner, or any other equipment with heat radiation .

Only use spare parts by manufacturer.

Pay attention to the safety symbol on the of the cover.

manual

Please keep this manual for future reference

Clean this equipment with a dry cloth.

manufacturer's

supplied the

outside

SAFETY INSTRUCTIONS

PLEASE READ THIS MANUAL FIRST

Thank you for a buying product. Read this manual first as it will help you operate the system properly. Please keep this manual

for future reference.

WARNING:

This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with

the product, please ensure they comply with the local safety codes.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important

operating and servicing instructions.

ATTENTION: Don't refit the system or spare parts without being authorized as this will .void the warranty

WARNING: Don't (such as candles) the equipment.place naked flames close to

TLA-101F

文件（图）名

版本第3页共14页

英文说明书

产品名称

客户/品牌/型号

文件（图）号

专业音箱

ELDER/β3/TLA-101F

CONTENTS

PRODUCT INTRODUCTION

Main Features

Product Description

Application

CONNECTION

Terminal Plate

Connection

System Connection Demonstration

INSTALLATION

Installation Accessories

Installation Reference

TECHNICAL SPECIFICATION

Specification

Frequency Response

Impedance Curve

Harmonic Distortion

Waterfall

Dimension Drawing

Product information updated without

notification, please visit www.elderaudio.com for

latest update.

may be

Weatherproof Line Array Speaker System

TLA-101F

文件（图）名

版本第4页共14页

英文说明书

产品名称

客户/品牌/型号

文件（图）号

专业音箱

ELDER/β3/TLA-101F

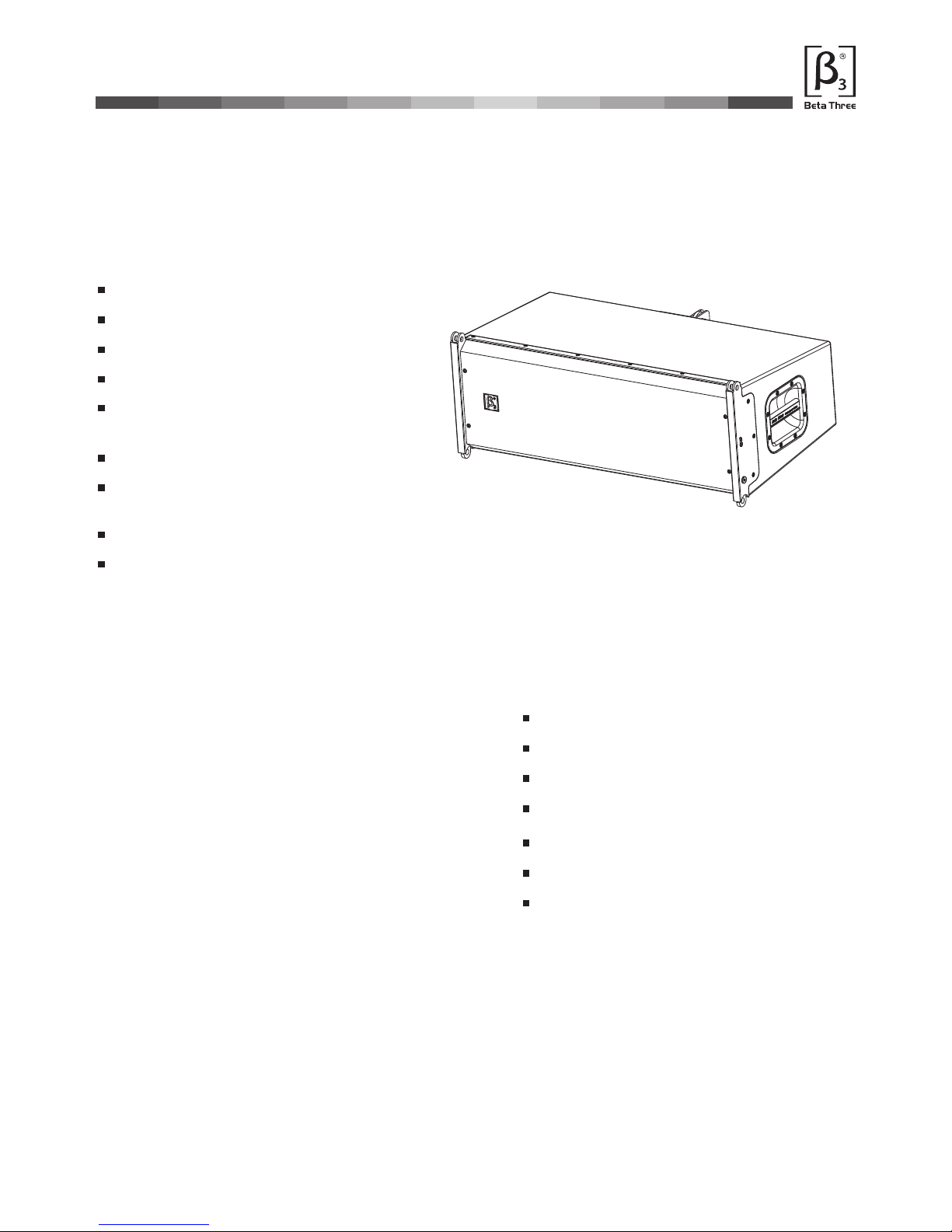

PRODUCT INTRODUCTION

Dual 1.7 Neo compression driver.''

Dual 10 Neo woofer.''

Long term continuous power: LF 800W, HF 280W.

o o o o

Dispersion: LF 30 x 80 , HF 100 x70 .

Frequency response: LF 60Hz-4kHz (-3dB),

HF 1000Hz-16kHz(-3dB).

Sensitivity: LF 100dB, HF 110dB.

Max SPL: LF /128dB(PEAK),

HF 128dB/134dB(PEAK).

122dB

Appropriate hanging frame with shackle for installation.

Main Features

Overload protection is available.

Application

Theater

Religion Place

Auditorium

Multi-function hall

All kinds of living performance

Sports events

Mobile performance

Weatherproof Line Array Speaker System

Two way dual 10 Weatherproof Line Array Speaker System"

Product Description

T-Line Weatherproof Line Array is composed by a dual 10 ''

full range element TLA-101F and a suspend-able dual 12 ''

subwoofer TLB-101F. Compact construction, light weight

and quick installation makes the system most suitable for

outdoor touring performance applications.

T-Line Weatherproof Line Array Speakers were designed in

accordance with IP54 Standard, mainly be applicable for

outdoor touring performance.

The adjacent speakers can achieve the seamless coupling

and form the consistent cylindrical wave. The adjustable

angle between two adjacent speakers is 0°- 1 0°.

Magn etic ci rcui t of L F is o ptimize d through t h e fin i te

element analysis to achieve the ultra-low distortion and

maximum clarity under the high SPL. Overheated protection

for drivers, perfect and reliable circuit protection.

TLA-101F adopts multifunctional structure design and

Russian birch, weatherproof polyurethane painting provides

super strong weather resistance.

TLA-101F

文件（图）名

版本第5页共14页

英文说明书

产品名称

客户/品牌/型号

文件（图）号

专业音箱

ELDER/β3/TLA-101F

CHA

BRI DGE IN

CHB

SIGN AL GND

SIGN AL +

SIGN AL -

BRID GE

PARAL LEL

STER EO ON

OFF

50HZ

25HZ

OFF

CHB O UTPUT

CHA O UTPUT

POW ER

CAB LE

FUS E

5HZ

CAUTION

BRI DGE

OUT PUT ASSI GNMEN T:

BRI DGE MON O OUTPU T:

CHA :

PIN1 + : SIGNAL GND

CHA:

PIN 1+ :

PIN 1 - :

PIN 2+ :

PIN 2 - :

CHA SIG NAL

CHA GND

CHB SI GNAL

CHB GN D

CHB: PIN 1+ :

PIN 1 - :

PIN 2+ :

PIN 2 - :

CHB SI GNAL

CHB GN D

PIN2 + :

Ser ial no:

Special design for big power！

RISK OF ELECTRIC SHOCK

DO NOT OPEN

MOD E LF FILT ER GRO UND

CLI PLIM ITE R

INP UT

PIN1 :

PIN2 :

PIN3 :

TLA-101F

Warranty does not

cover permanent

damages of parts inside

of the speaker caused

by overload running

for a long time.

LF: 400W/HF: 140W

SENSITIVITY(1W/1m):

POWER(RMS):

IMPEDANCE:

LF: 100dB/HF: 110dB

LF: 8 Ohm/HF: 8 Ohm

TLA-101F

INPUT/THRU

Weatherproof Line Array Series

Elder Audio Manufacture Co., Ltd.

No.

IEC IP-54 STANDARD

CONNECTION

TLA-101F has two Speakon NL4 socket and amplifier connection. Two parallel connection socket is convenient to connect

with another speaker.

Terminal Plate

2: Disconnection1: Connection

Nl4 Connection

System Connection Demonstration

Note: The output impedance of speaker and amplifier should be matched.

Note: The polar of speaker and amplifier should be correctly connected.

Weatherproof Line Array Speaker System

TLA-101F

文件（图）名

版本第6页共14页

英文说明书

产品名称

客户/品牌/型号

文件（图）号

专业音箱

ELDER/β3/TLA-101F

Frame(6.DJS.B-009)

Wheel bracket(1.AZPJ.154)

2: Stacked with wheels

The outstanding point of real hanging

plate indicates the present angle.

4 wheel" (7.YXPJ.B06)

Warning: Make sure the mounting accessories

safety factor not less than 5:1 or meet the local

standard during installation .

1: Hanging

Installation Accessories

INSTALLATION

Installation Reference

Weatherproof Line Array Speaker System

T-Line Weatherproof Line Array is supplied with flying frame

TLF-101F, which has 4 x 4'' wheels optional when the line

array system stacked.

TLA-101F frame is welding steel frame, which maximally

hangs 12pcs TLA-101F and 6pcs TLB-101F.

TLA-101F

文件（图）名

版本第7页共14页

英文说明书

产品名称

客户/品牌/型号

文件（图）号

专业音箱

ELDER/β3/TLA-101F

Dispersion（H×V）:

LF: 400W : 140W (RMS)

LF: 800W HF: 280W (MUSIC)

LF: 2600W HF: 560W (PACK)

LF:8 Ohms HF:8 Ohms

Cabinet dimension( W×H×D):

Package dimension(W×H×D):

System type:

HF driver:

LF driver:

Frequency response (-3dB):

Sensitivity (1W@1m):

Power:

Rated impedance:

Cabinet:

Installation:

Carry:

weather resistant polyurethane finish, black powder coating for grille.

Connector:

Net Weight:

Gross weight:

Max SPL(1m):

Dual 1.7" Neo compression driver

Dual 10" woofer

Appropriate frame with 1/2"shackle

2 wooden handle

Finish:

Optional accessory: Frame( Wheel bracket(

4" wheel

6.DJS.B-009), 1.AZPJ.154),

(7.YXPJ.B06)

Specification

TECHNICAL SPECIFICATION

0 0 0 0

LF:30 ×90 HF:110 ×80

NL4×2 @ LF:1+ 2- HF: 3+ 4-

1.8kHz-2.5kHz

Weatherproof Line Array Speaker System

Two way dual 10 Weatherproof Line Array Speaker System"

Russian birch

Recommended crossover point:

LF:100dB HF:110dB

LF:60Hz-4kHz HF:1000Hz-16kHz

LF:122dB/128dB(PEAK)

HF:128dB/134dB(PEAK)

800×440×323mm(31.5×17.3×12.7in)

585×430×920mm(23.0×16.9×36.2in)

26.5kg(58.3lb)

29.5kg(64.9 lb)

TLA-101F

2 50 100 200 500 1k 2k 5k 10k 20k20 Hz

120

dBS

252.0

Deg

110 180.0

100 108.0

90 36.0

80 -36.0

70 -108.0

CLIO

130

2 50 100 200 500 1k 2k 5k 10k 20k20 Hz

120

dBS

110

100

CLIO 252.0

Deg

180.0

108.0

36.0

-36.0

-108.0

文件（图）名

版本第8页共14页

英文说明书

产品名称

客户/品牌/型号

文件（图）号

专业音箱

ELDER/β3/TLA-101F

TECHNICAL SPECIFICATION

Frequency Response/phase Curve-LF

Frequency Response

Phase Curve

Frequency Response/phase Curve-HF

Frequency Response

Phase Curve

Weatherproof Line Array Speaker System

10 Hz 20 50 100 200 500 1K 2K 5K 10K 20K

Ohm

30 Deg

-180

-150

-120

-90

-60

-30

120

150

180

10 Hz 20 50 100 200 500 1K 2K 5K 10K 20K

Ohm

40 Deg

-180

-150

-120

-90

-60

-30

120

150

180

TLA-101F

文件（图）名

版本第9页共14页

英文说明书

产品名称

客户/品牌/型号

文件（图）号

专业音箱

ELDER/β3/TLA-101F

Impedance vs Freq

TECHNICAL SPECIFICATION

Impedance Curve-LF

Impedance Curve-HF

Weatherproof Line Array Speaker System

2 50 100 200 500 1k 2k 5k 10k 20k20 Hz

120

dBS

180.0

Deg

110 108.0

100 36.0

90 -36.0

80 -108.0

70 - 180.0

CLIO

180.0

Deg

108.0

36.0

-36.0

-108.0

- 180.0

1 3 0

1 2 0

1 1 0

1 0 0

9 0

8 0

CLIO

20 50 100 200 500 1k 2k 5k 10k 20k

TLA-101F

文件（图）名

版本第10页共14页

英文说明书

产品名称

客户/品牌/型号

文件（图）号

专业音箱

ELDER/β3/TLA-101F

TECHNICAL SPECIFICATION

Harmonic Distortion-LF

Harmonic Distortion-HF

Distortion Curve

Frequency Response

Distortion Curve

Frequency Response

Weatherproof Line Array Speaker System
