Bicker UPS-1000-B1 Manuale utente

User Manual UPS-1000-B1

Bicker Elektronik GmbH

Ludwig-Auer-Straße 23 |86609 Donauwörth · Germany

Line-Interactive UPS

English

UPS-1000-B1

Revision 1 2

Date Change

21.12.2021

Revision 0-1

Initial version

27.01. 202 2

Revision 1

Release version

Revision Directory

Legend of used symbols

Symbol Description

Attention! Important hazard warning.

Do not dispose of in the domestic waste.

Warning of electrical voltage.

UPS-1000-B1

Revision 1 3

UPS-1000-B1

Revision 1 4

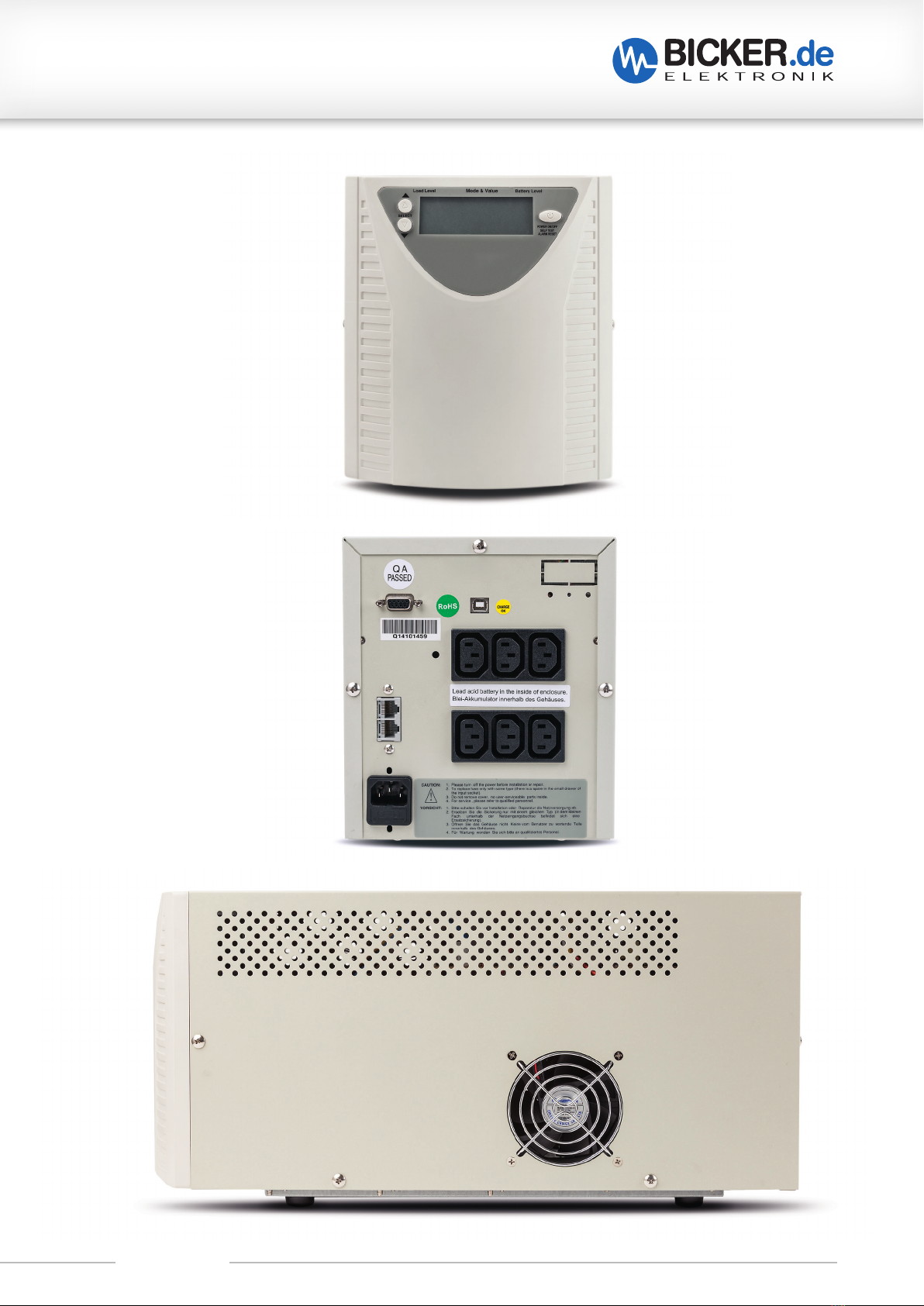

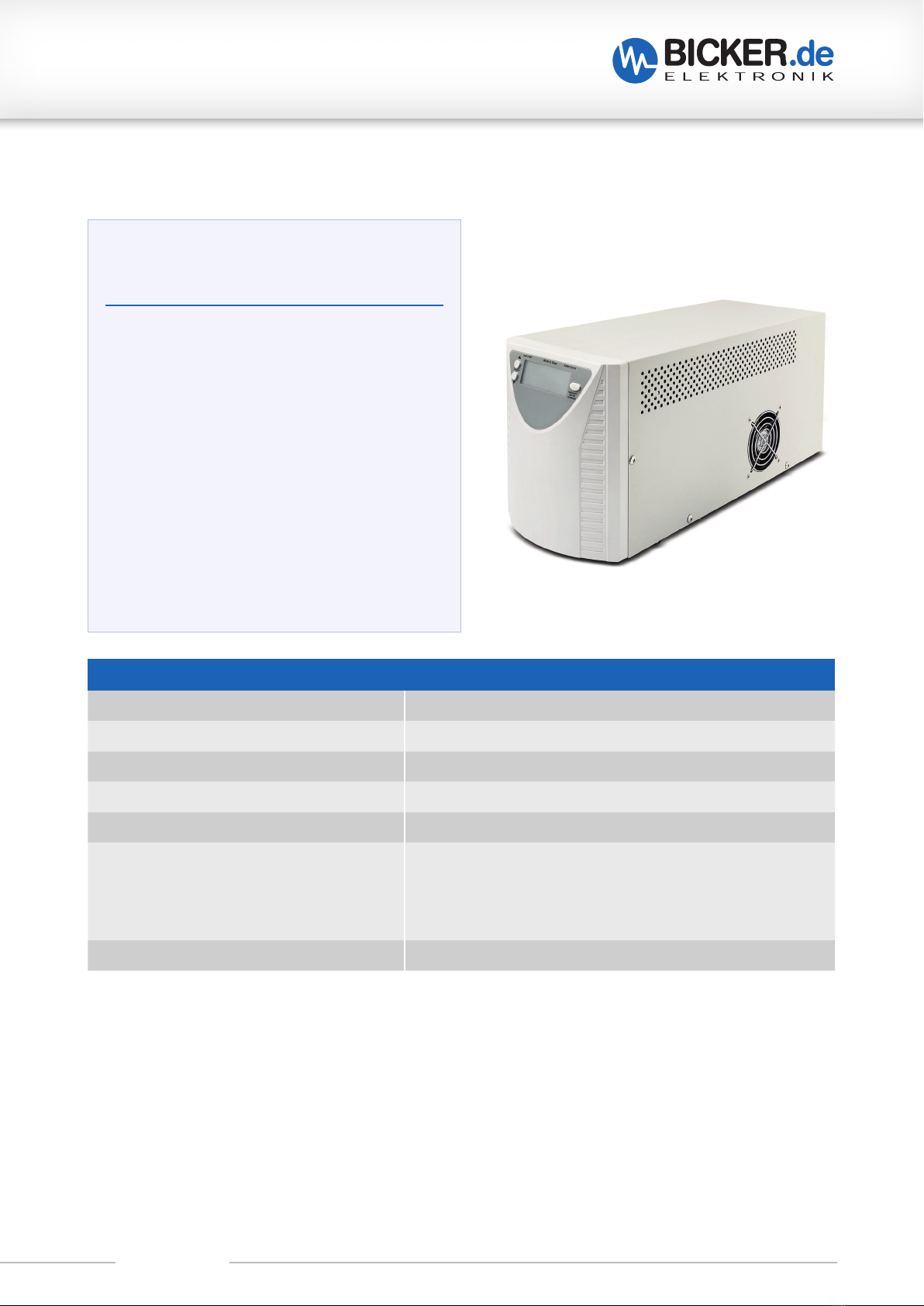

A Technical Data

UPS-1000-B1

600 W / 1000 VA

 Line Interactive Design mit Sinus-

Ausgangsspannung

 AVR function (Buck / Boost)

 Microprocessor-based controlling

 Battery backup time monitoring

 Operating temperature up to +60 °C

 Reboot function

 Load sensor



RS232 and USB interface for communication

with software UPSilon 2000

 Hawker/Cyclon batteries

INPUT DATA

Input voltage 230 V AC

Input frequency 47 Hz ~ 65 Hz, 50/60 Hz, auto detection

Efficiency App. 97 %, mains operation

Overcurrent protection AC fuse 6.3 AT

Input voltage range -20 % ~ +24 %

AVR range (2 Bucks, 2 Boosts) Extended Buck: +15 % of selected nominal voltage

Buck mode: +8 % of selected nominal voltage

Boost mode: -8 % of selected nominal voltage

Extended Boost: -12.5 % of selected nominal voltage

Overvoltage protection 220 Joules

UPS-1000-B1

Revision 1 5

OUTPUT DATA

Output power at nominal inputs 600 W / 1000 VA max. at +40 °C

Derating +40…+60 °C, 10 W / K

Output voltage 230 V AC

Voltage wave form Sine

Crest factor 3:1

Output frequency (synchronised to mains) Auto select for 50/60 Hz

47 Hz ~ 55 Hz for 50 Hz nominal;

56 Hz ~ 65 Hz for 60 Hz nominal

Transfer time Blackout 3 ms typical, Brownout 1 ms,

battery mode to normal mode: 1 ms typical

Overload protection Overload alarm level 100 % ~ 120 %,

Overload shutdown level 120 % ~ 190 %

BATTERY

Type of battery 1x BP-2480 (Cyclon), 24 V/ 8 Ah, 12 cells

Voltage 24 V DC

Typical backup time at half power 500 VA / 300 W: ca. 14 Min. bei +20 °C

Typical backup time at full power 1000 VA / 600 W: ca. 4.5 Min. bei +20 °C

Charging method Smart puls charging with 2 charging modes:

Quick charging,

Trickle charging, at 90 % battery capacity

Charging time App. 5 hours for 90 %, at 230 V AC and +25 °C

Charge current 2.5 A max.

Average charging voltage Quick charging mode: 28.1 V max.

Trickle charging mode: 26.2 V…28.1 V

Protection Thermal protection, overcurrent protection and

overcharging voltage protection

UPS-1000-B1

Revision 1 6

COMMUNICATION & MANAGEMENT

Interface RS232, USB: UPSilon2000 compatible

Display LCD

Acoustic alarm Alarm in UPS operation:

Battery low

Alarm because of abnormal operation:

Overload, short circuit oder over heat

EBT system

(Estimation of Backup Time)

Display via LCD-Display

Fan control Normal mode: Fan turns slowly

USB mode: Fan turns quickly

ENVIRONMENT & SAFETY

Operating temperature 0…+60 °C, derating from +40 °C (10 W/K)

Temperature transport/storage -15…+60 °C

Humidity 5…95 %, non-condensing

Acoustic noise ≤40 dBA (at 1 m distance from chassis surface)

Safety EN62040-1

EMC EN62040-2

DIMENSION AND WEIGHT

Dimensions W / H / D 18 x 22 x 46 cm

Dimensions W / H / D shipping unit 30 x 33 x 55 cm

Weight 15 kg

Packing One carton for each unit, 16–30 units per pallet

UPS-1000-B1

Revision 1 7

A Technical Data .................................................................................................... 4

B Introduction and description ............................................................................ 8

B1 Description of the product and its functions........................................................................................8

B2 Intended use .............................................................................................................................................................9

C Safety instructions ........................................................................................... 10

D Drawing............................................................................................................. 12

E Name / Address / Support E-Mail / Phone number of the manufacturer .... 12

F General Data ..................................................................................................... 13

F1 Assembly and installation advice............................................................................................................... 13

F2 Convection and installation position....................................................................................................... 13

F3 Description of connectors.............................................................................................................................. 14

F4 Connecting diagram .......................................................................................................................................... 15

G Operating .......................................................................................................... 16

G1 UPS on......................................................................................................................................................................... 16

G2 UPS off......................................................................................................................................................................... 16

G3 Cold start.................................................................................................................................................................... 16

G4 „oFF“ mode............................................................................................................................................................... 16

G5 SELF test button (1)............................................................................................................................................. 16

G6 ALARM RESET.......................................................................................................................................................... 17

G7 ALARM battery low.............................................................................................................................................. 17

G8 Battery charging.................................................................................................................................................... 17

G9 Settings....................................................................................................................................................................... 17

G10 LCD display............................................................................................................................................................... 17

G11 Change output frequency only for cold start (without mains)!.............................................. 17

G12 Change output voltage (in UPS mode).................................................................................................. 18

G13 Auto start of the UPS as soon as mains is present.......................................................................... 18

G14 Load sensor/green mode................................................................................................................................ 19

G15 LCD display and operating elements...................................................................................................... 20

G16 UPS back .................................................................................................................................................................... 21

H Optical and acoustic indicators....................................................................... 22

H1 Display in normal mode................................................................................................................................... 24

H2 Display in battery mode................................................................................................................................... 26

H3 Acoustic alarm........................................................................................................................................................ 27

H4 SELF TEST................................................................................................................................................................... 27

H5 Timer function........................................................................................................................................................ 27

H6 Reset the UPS.......................................................................................................................................................... 27

I Troubleshooting............................................................................................... 28

J Maintenance ..................................................................................................... 29

J1 Change of battery................................................................................................................................................ 30

J2 Disposal ...................................................................................................................................................................... 31

J3 Disclaimer.................................................................................................................................................................. 31

UPS-1000-B1

Revision 1 8

B Introduction and description

Read carefully before initial operation !

This manual shall help the user to get familiar with the product and its components and features. It shall

provide information as accurately and completely as possible.

The manual as well as all documents has to be read and followed strictly before installation. Otherwise in

certain situations warranty and guarantee can be cancelled partly or completely. Any liability on the part of

Bicker Elektronik is excluded for possible existing errors as well as non-compliance with the instructions for

use and installation.

B1 Description of the product and its functions

The UPS-1000-B1 is a uninterruptible Power Supply (UPS) with Line Interactive Design. In contrast to a con-

ventional off-line UPS, it has a sine voltage output. The UPS can be operated with a BP-2480 battery pack up

to +60 °C operating temperature.

The primary use of the UPS is to supply the connected application during power failures and /or voltage fluc-

tuations. The application which should be protected is connected to the output of the UPS.

In the event of a voltage drop or a voltage fluctuation of the input voltage (below undervoltage limit), the UPS

is switched to battery mode (also backup mode). In this state, the application at the UPS output is supplied via

the inside energy storage device. The backup time (also buffer time) depends on the available energy of the

installed battery pack, the level of the connected load current and the software settings of the UPS.

In the event of a power failure and the set backup time in UPSilon2000 has expired, the operating system of

the PC is shut down and the UPS is switched off.

In the event of a power failure and the return of the input voltage during the shutdown of the operating

system, the operating system is shut down by the UPS management software UPSilon2000. The UPS then

switches off the output for a short time. After a few seconds, this reboot function automatically switches back

to mains operation. The downstream PC can then automatically start here (BIOS setting PC). In addition, the

energy storages are recharged.

UPS-1000-B1

Revision 1 9

B2 Intended use

• The UPS is designed for the 230 V mains.

• The UPS-1000-B1 may only be installed in an upright position.

• Never install the UPS near liquids or in an excessively humid environment.

• Do not expose the UPS to direct sunlight or a heat source.

• After the initial installation to the AC mains, the battery starts to charge.

• It takes about 8 hours to fully charge.

• To minimize battery damage, the UPS has to be charged before storage and recharged every 6 months.

• The UPS must not be used as an inverter for any purpose other than that for which it was intended.

• The UPS is not designed for medical or life support systems.

• No laser printer or tube monitor may be connected to the UPS.

• It must be ensured that no foreign matter enters the UPS and that the fan outlet is always free.

• It must be ensured that the UPS-1000-B1 may only be loaded with maximum load. This value can be found

in the technical data in chapter A.

UPS-1000-B1

Revision 1 10

C Safety instructions

WARNING!

Disregarding of following issues can result in electric shock, fire, serious injury or death.

1. Care must be taken to ensure proper and professional wiring.

2. The device must not be exposed to fire and temperatures outside the specification.

3. The UPS is designed for the 230 V mains.

4. The device must not be operated in a damp environment or in an environment in which condensation

or condensation is to be expected.

5. The device must not be opened, short-circuited, reversed, overheated or otherwise modified.

6. Modifications or attempts to repair the device are to be omitted.

7. Effects of foreign objects on the device must be avoided (e.g. metal parts).

8. Do not put obviously damaged devices into operation (e.g. dents, burn marks, rough contamination).

9. Ventilation openings have to be kept free.

10. Device must not be dropped.

11. All parts of the device and accessories must not be eaten or swallowed.

12. The UPS may only be installed in an upright position.

13.

The UPS is supplied with voltage from both the 230 V power grid and the internal energy storage

device (battery). The latter is still live even after disconnecting the input source.

14. The UPS may only be loaded with 600 W / 1000 A max. according to the data sheet.

Note derating (page 13)!
