BIPAC-5100 / 5100W

(Wireless) ADSL Router

Quick Start Guide

Billion BIPAC-5100 / 5100W ADSL Router

Package Contents

BIPAC-5100 / 5100WADSL Router

CD-ROM containing the online manual

RJ-11 ADSL/telephone Cable

Ethernet (CAT-5 LAN) Cable

AC-DC power adapter (12VDC, 1A)

This Quick Start Guide

 Do not use the BIPAC-5100 / 5100W in high humidity or high

temperatures.

 Do not use the same power source for the BIPAC-5100 / 5100W

as other equipment.

 Do not open or repair the case yourself. If the BIPAC-5100 /

5100W is too hot, turn off the power immediately and have it

repaired at a qualified service center.

Warning

 Place the BIPAC-5100 / 5100W on a stable surface.

 Only use the power adapter that comes with the package. Using

a different voltage rating power adaptor may damage the router.

ttention

For more detailed instructions on configuring and using

the (Wireless) ADSL Firewall Router, please refer to the

on-line manual.

Quick Start Guide

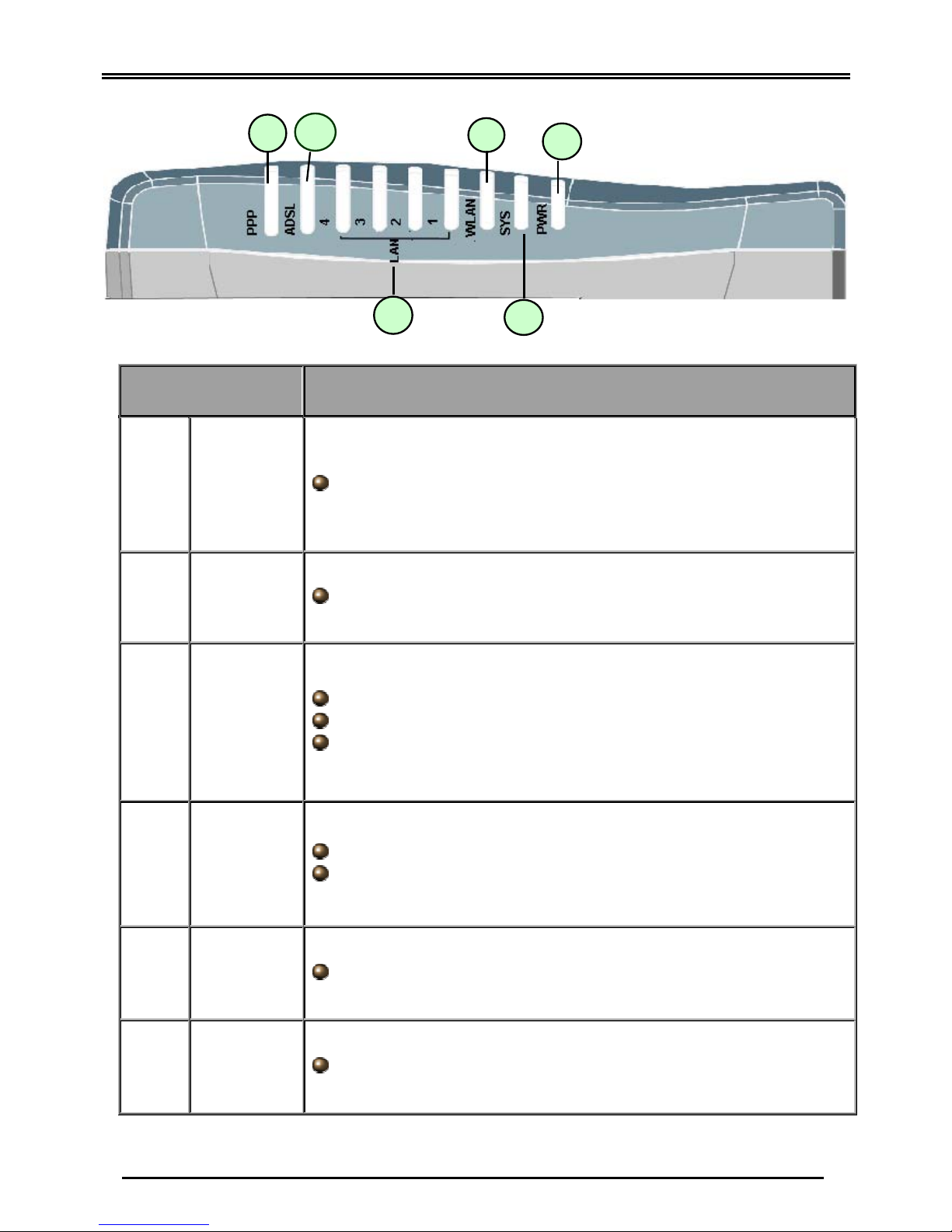

The Front LEDs

LED Meaning

1 PPP : Lit steady when there is a PPPoA / PPPoE connection.

2 ADSL: Lit when successfully connected to an ADSL DSLAM (“linesync”).

3 LAN Port

1-4:

Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps.

Blinking when data is Transmitted / Received.

4 WLAN :

(5100W

only)

Lit green when the wireless connection is established.

Flashes when sending/receiving data.

5 SYS : Lit when the system is ready.

6 PWR : Lit when power is ON.

1 2

Billion BIPAC-5100 / 5100W ADSL Router

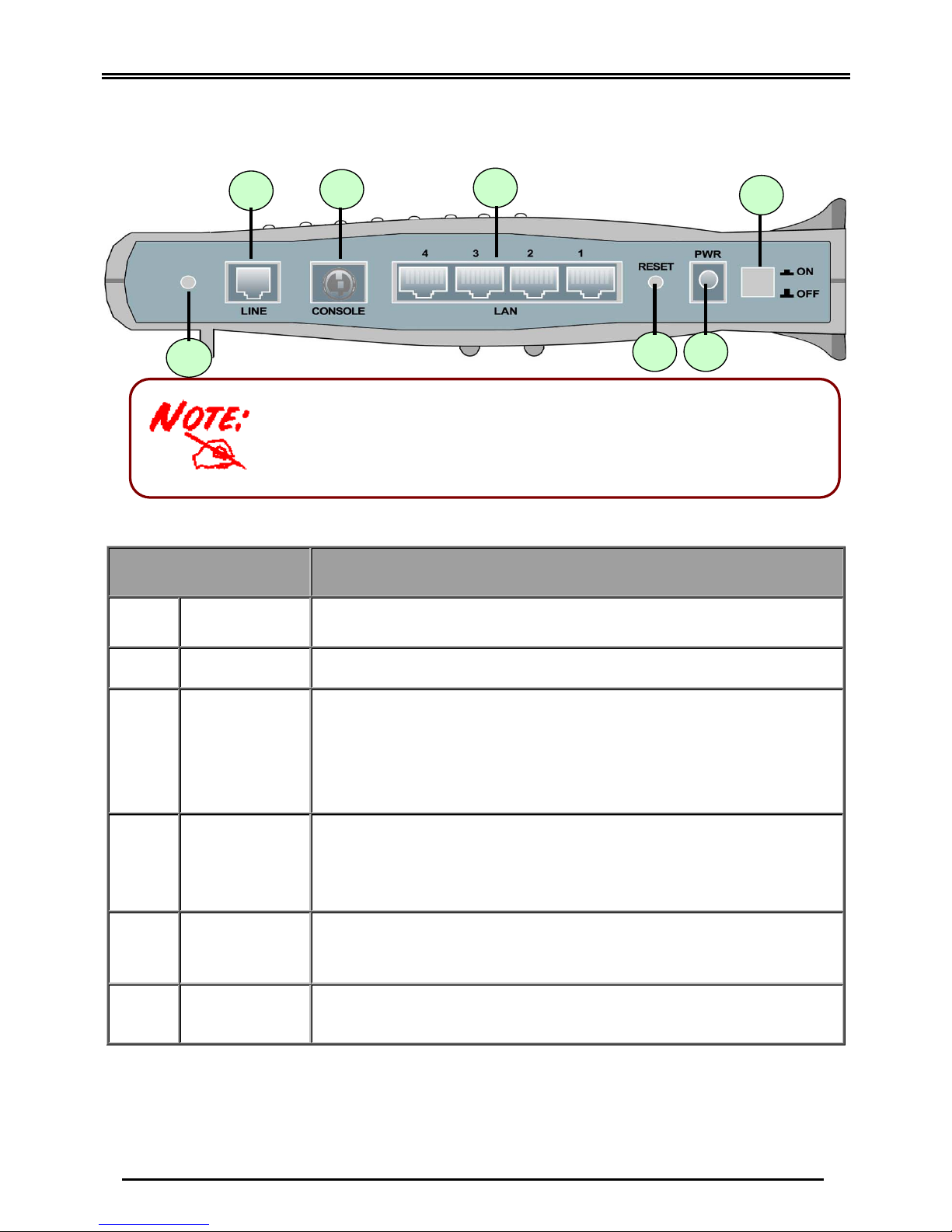

The Rear Ports

Port Meaning

1 Power Switch Power ON/OFF switch

2 PWR Connect the supplied power adapter to this jack.

3 RESET

After the device is powered on, press it to reset the device or

restore to factory default settings.

0-3 seconds: reset the device

6 seconds above: restore to factory default settings (this is used

when you can not login to the router, e.g. forgot the password)

LAN

1X — 4X

(RJ-45

connector)

Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four

LAN ports when connecting to a PC or an office/home network of

10Mbps or 100Mbps.

5 CONSOLE Console port is used for technical support purpose only.

6 LINE Connect the supplied RJ-11 (“telephone”) cable to this port when

connecting to the ADSL/telephone network.

＊

＊ Only the BIPAC-5100W has a wireless interface and antenna. BIPAC-5100

router does NOT have an antenna or wireless interface.

Quick Start Guide

Connecting Your ADSL Router

1. Connect the Router to a LAN (Local Area Network) and the ADSL/telephone (LINE) network.

2. Power on the device.

3. Make sure the PWR and SYS LEDs are lit steadily and that the relevant LAN LED is lit.

(For 5100W only: the WLAN LED will be lit steadily).

Billion BIPAC-5100 / 5100W ADSL Router

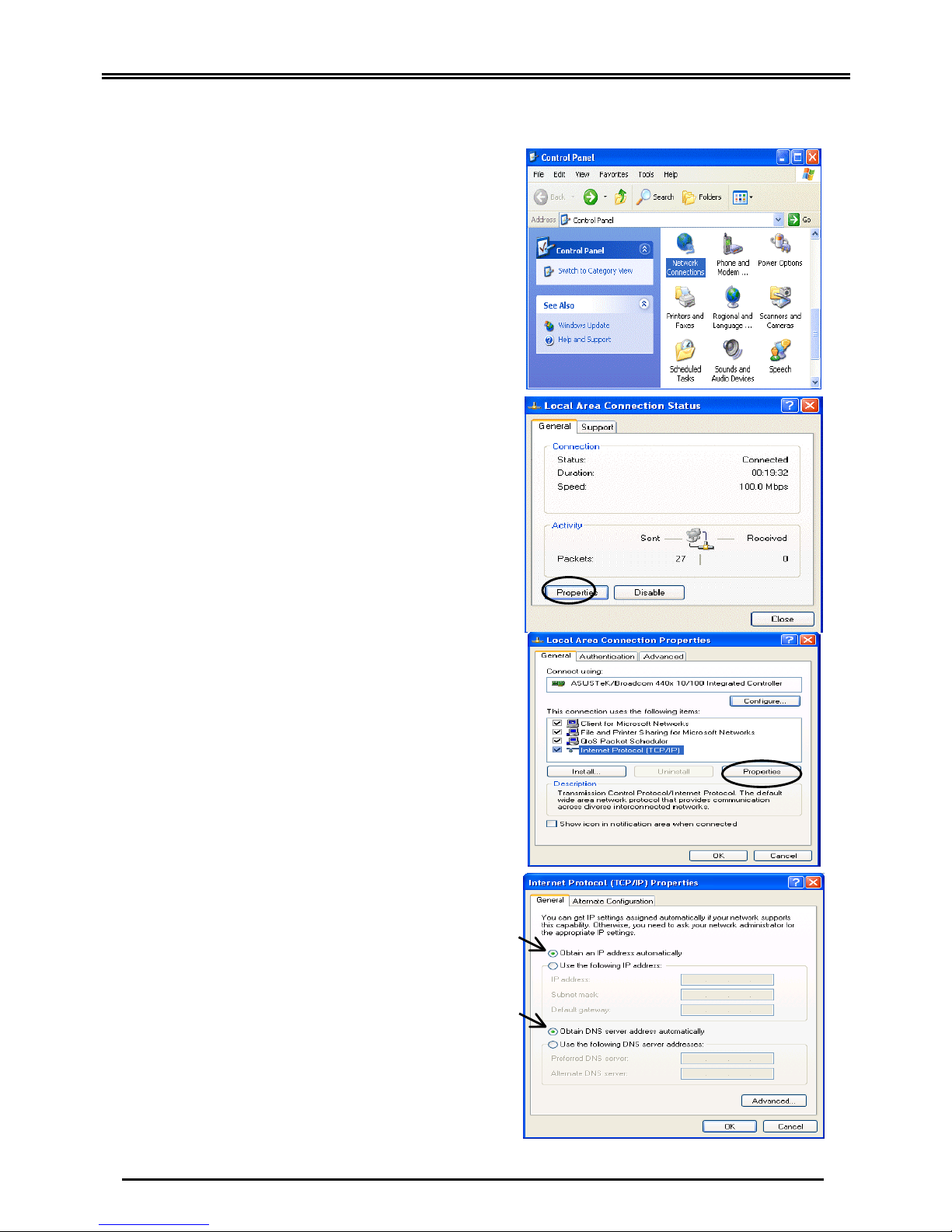

Configuring PC in Windows XP

1. Go to Start / Control Panel (in Classic

View). In the Control Panel, double-click on

Network Connections

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window, click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Quick Start Guide

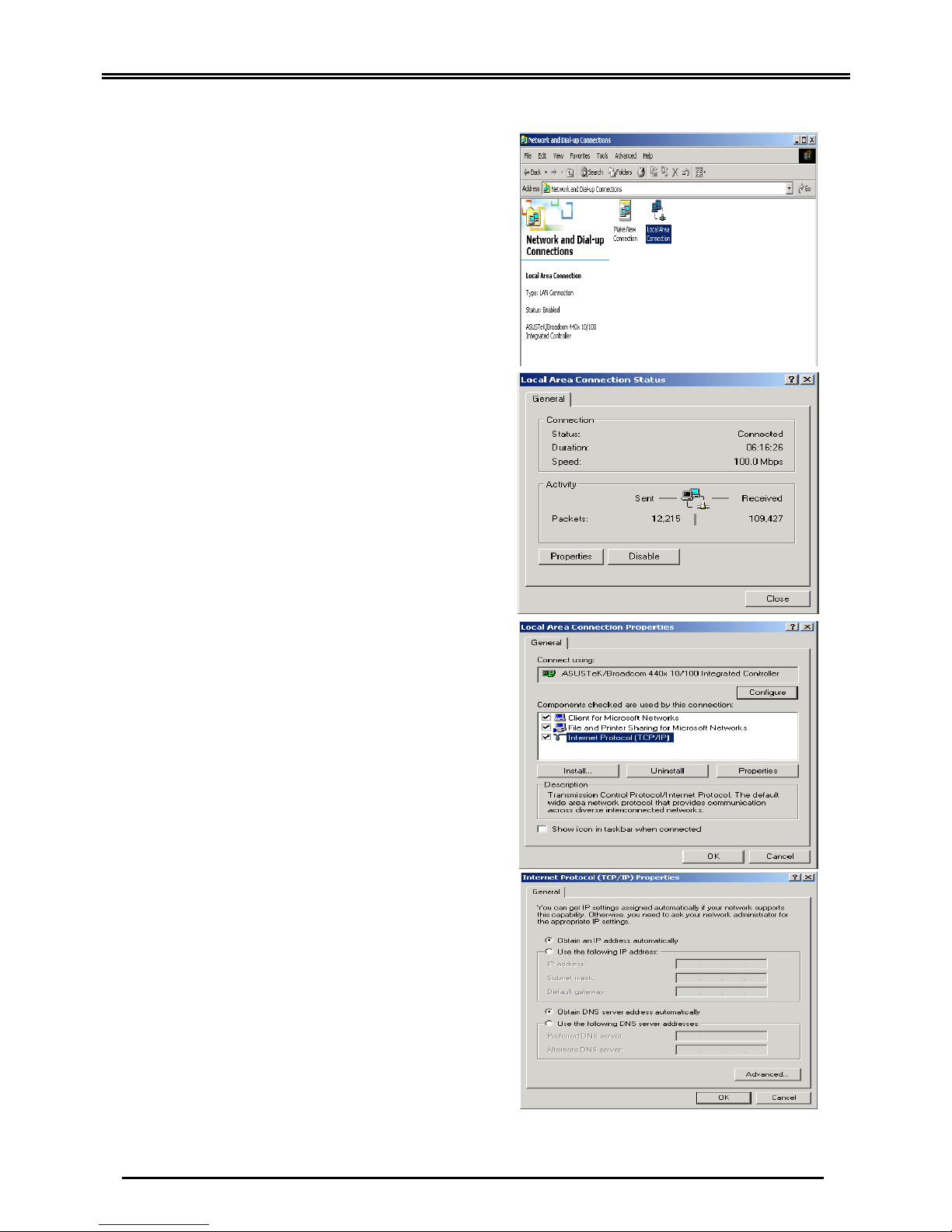

Configuring PC in Windows 2000

1. Go to Start / Settings / Control Panel. In the Control

Panel, double-click on Network and Dial-up

Connections.

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Billion BIPAC-5100 / 5100W ADSL Router

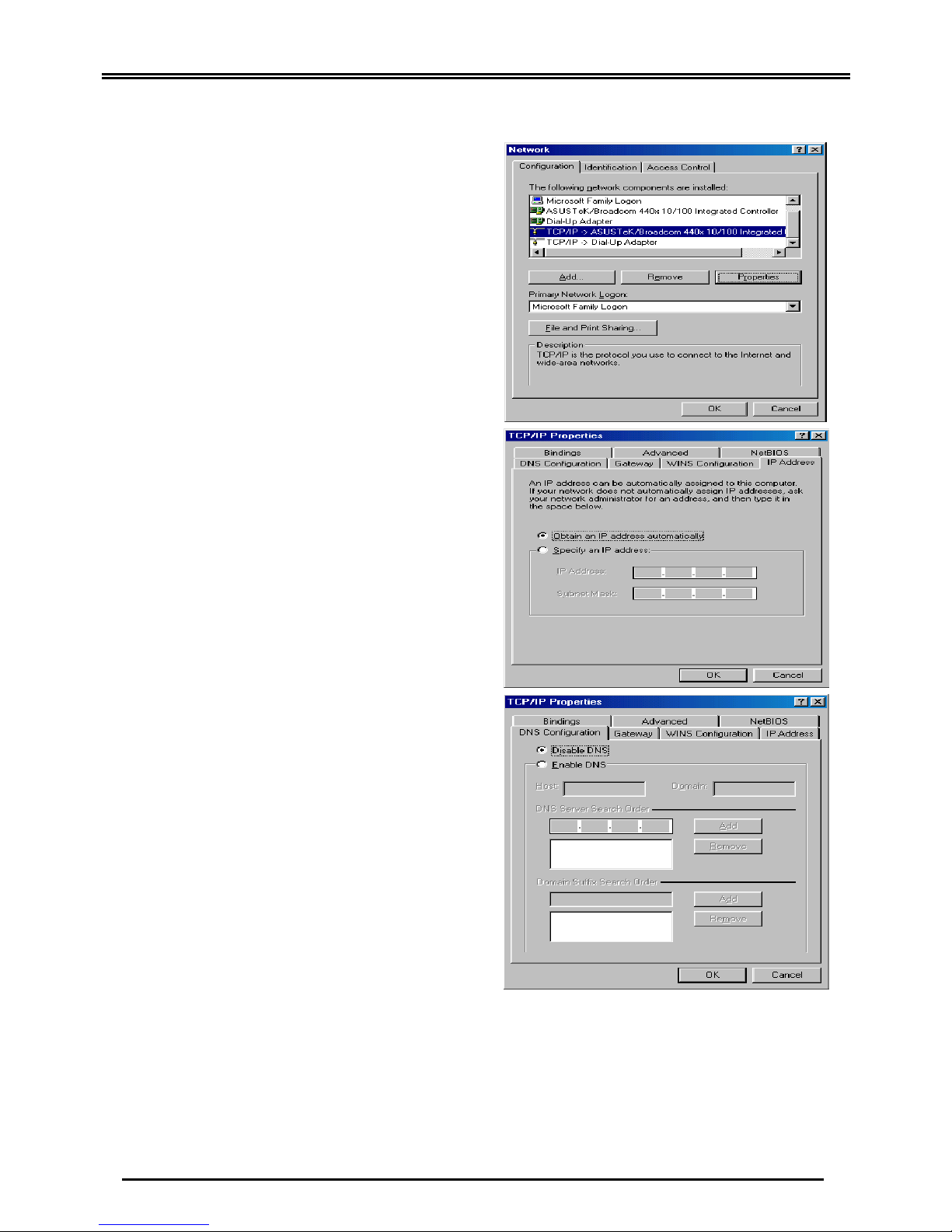

Configuring PC in Windows 98/Me

1. Go to Start / Settings / Control Panel. In

the Control Panel, double-click on Network

and choose the Configuration tab.

2. Select TCP/IP ->

NE2000 Compatible, or the name of your

Network Interface Card (NIC) in your PC.

3. Select the Obtain an IP address

automatically radio button.

4. Then select the DNS Configuration tab.

5. Select the Disable DNS radio button and

click OK to finish the configuration.

Quick Start Guide

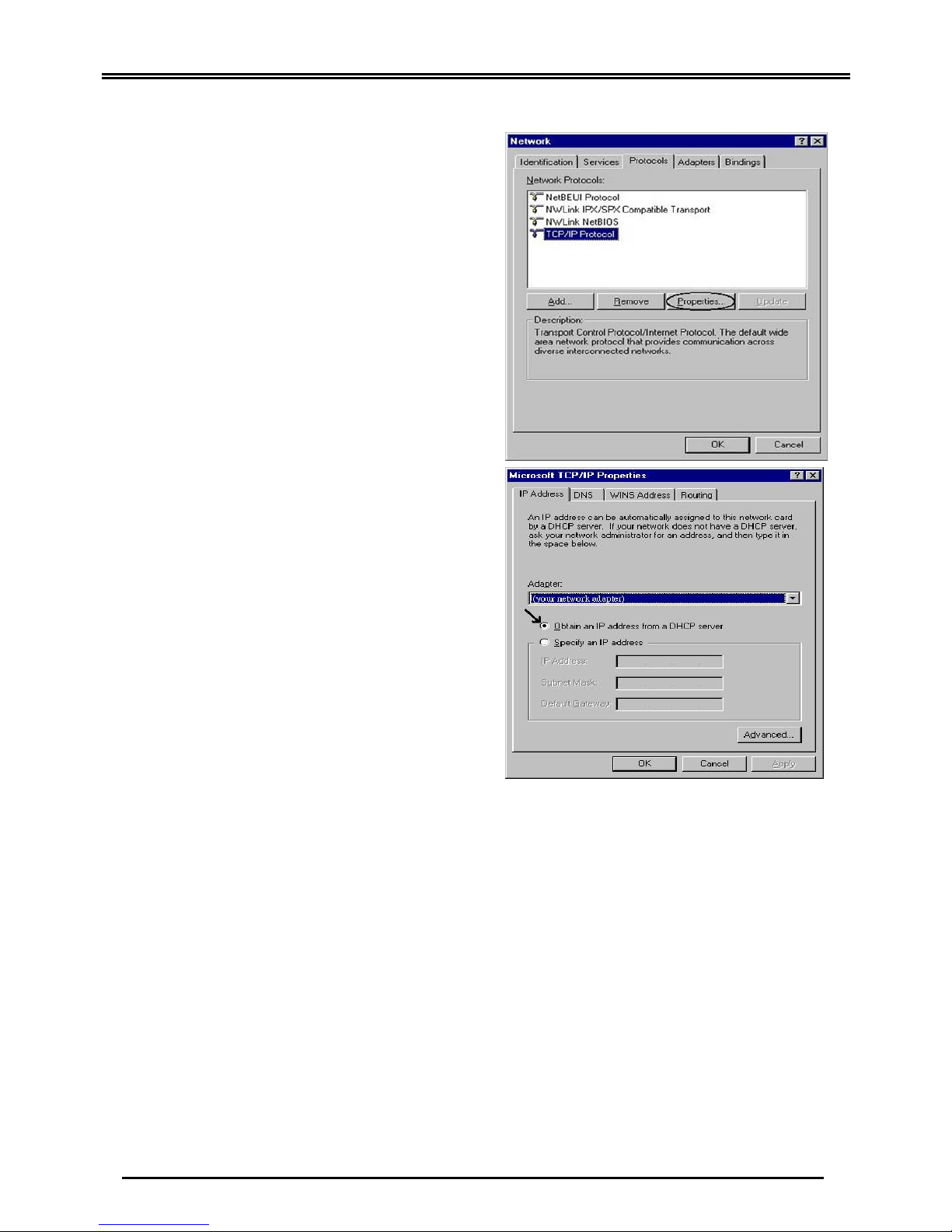

Configuring PC in Windows NT4.0

1. Go to Start / Settings / Control Panel. In

the Control Panel, double-click on Network

and choose the Protocols tab.

2. Select TCP/IP Protocol and click

Properties.

3. Select the Obtain an IP address from a

DHCP server radio button and click OK.
