Billion BiPAC 7100 Manuale utente

BIPAC-7100S / 7100

ADSL Modem/Router

Quick Start Guide

Billion BIPAC-7100S/7100 ADSL Modem/Router

Package Contents

Billion BIPAC-7100S/7100 ADSL Modem/Router

One CD-ROM containing the driver and online manual

One Quick Start Guide

One RJ-11 ADSL/telephone cable

One CAT-5 straight LAN cable

One power adapter (12VDC, 1A)

 Do not use the BIPAC-7100S / 7100 in high humidity or high

temperatures.

 Do not use the same power source for the BIPAC-7100S / 7100

as other equipment.

 Do not open or repair the case yourself. If the BIPAC-7100S /

7100 is too hot, turn off the power immediately and have it

repaired at a qualified service center.

Warning

 Place the BIPAC-7100S/7100 on a stable surface.

 Only use the power adapter that comes with the package. Using

a different voltage rating power adaptor may damage the router.

ttention

For more detailed instructions on configuring and using

the ADSL Modem/ Router, please refer to the on-line

manual.

Quick Start Guide

The Front Panel LEDs

 7100S

7 4 1

5 2

LED Meaning

1 PWR Lit green when power adapter is connected.

2 SYS When flash, it indicates that the device is working properly.

4 LNK Lit green when the LAN link is connected.

5 COL Flashes green when collision happens

7 ADSL When lit, it indicates that the ADSL (Line) port is connected to the

DSLAM and working properly.

Billion BIPAC-7100S/7100 ADSL Modem/Router

 7100

LED Meaning

2 PWR Lit green when power adapter is connected.

3 SYS When lit, it indicates that the device is working properly.

LAN1 Lit green when the LAN1 link is connected.

LAN2 Lit green when the LAN2 link is connected.

LAN3 Lit green when the LAN3 link is connected.

LAN4 Lit green when the LAN4 link is connected.

6 ADSL When lit, it indicates that the ADSL (Line) port is connected to the

DSLAM and working properly.

Quick Start Guide

The Rear Ports

 7100S

5 3 1

4 2

Port Meaning

1 Power Switch Power ON/OFF switch

2 PWR Connect the supplied power adapter to this jack.

3 LAN

(connector

RJ-45)

Connect the supplied crossover cable to this port when

connecting to a NIC (Network Interface card) in PC.

Connect an UTP Ethernet cable to this port when connecting to a

LAN such as an office or home network.

4 RESET Press it to restore the factory default setting back

5 LINE

(connector

RJ-11)

Connect the supplied RJ-11 cable to this port when connecting to

the ADSL

BIPAC-7100 has 4 LAN Ports, each of them has the same function as

that of 7100S

Billion BIPAC-7100S/7100 ADSL Modem/Router

Connecting Your ADSL Router

Through Ethernet Port

1. Connect the Router to a LAN (Local Area Network) and the ADSL/telephone (LINE) network.

2. Power on the device.

3. Make sure the PWR and SYS LEDs are lit steadily and that the relevant LAN LED is lit.

4. Follow the “Configuring the Network Properties on a PC” section on page 8 to modify the

network settings.

 7100S

 7100

Quick Start Guide

Configuring PC in Windows XP

1. Go to Start / Control Panel (in Classic

View). In the Control Panel, double-click on

Network Connections

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window, click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Billion BIPAC-7100S/7100 ADSL Modem/Router

Configuring PC in Windows 2000

1. Go to Start / Settings / Control Panel. In the

Control Panel, double-click on Network and

Dial-up Connections.

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Quick Start Guide

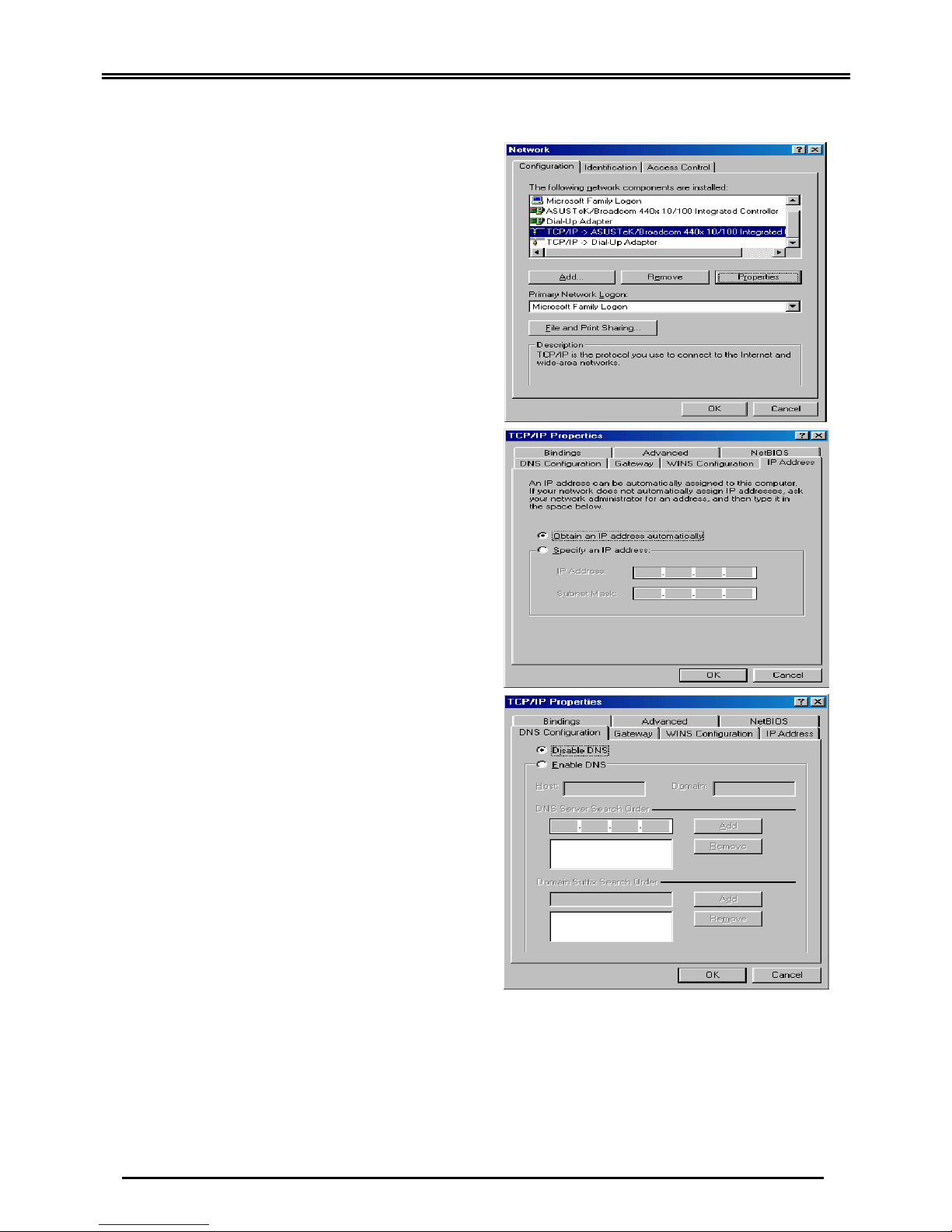

Configuring PC in Windows 98/Me

1. Go to Start / Settings / Control Panel. In

the Control Panel, double-click on Network

and choose the Configuration tab.

2. Select TCP/IP ->

NE2000 Compatible, or the name of your

Network Interface Card (NIC) in your PC.

3. Select the Obtain an IP address

automatically radio button.

4. Then select the DNS Configuration tab.

5. Select the Disable DNS radio button and

click OK to finish the configuration.
