Billion BiPAC 6300NXL Manuale utente

How to setup your Billion 6300NXL Radio Router

What is in the box:

•1 Welcome letter including a setup guide

•1 Router

•1 Power Lead

•1 Yellow Ethernet Lead

•1 Blue Ethernet Lead

Setting up

1) Take your router out of the box and you will need to screw on the two aerials. Once this has

been completed, connect the power lead to the router, please do not turn it on until you

have all other leads connected.

Please see image below:

2) Connect your Blue Ethernet Lead into the

blue

EWAN port on the back of the router.

Please see image below:

3) The

blue

lead then connects into the Radio’s power supply (Also known as an IDU).

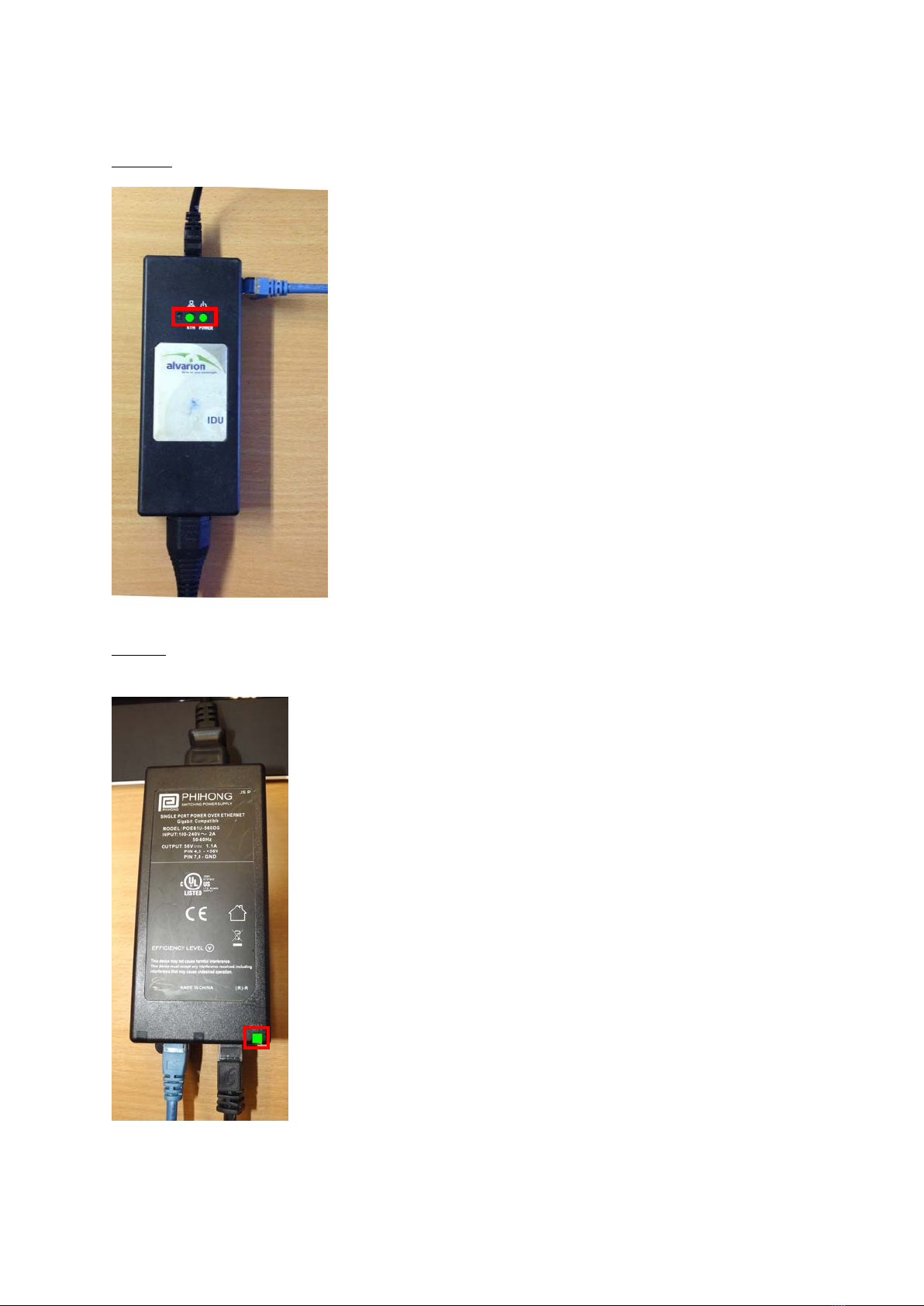

Alvarion

The

black Ethernet

cable goes off to the aerial and must be in the

‘Radio’ port in the end of the power supply, this is placed at the top.

The

power cable

is connected at the bottom and the

blue cable

plugs into the ‘Ethernet’ port on the Radio’s power supply, this is

placed at the side.

When fully functional you will have 2 lights on the power supply as

highlighted

in the image.

Radwin

The

black lead

at the bottom right goes off to the aerial and must be in

the ‘out’ port in the end of the Radio power supply, this is placed at the

bottom of the power supply. The

blue cable

connects to the ‘in’ port and

the

power cable

is connected at the top of the power supply.

When fully functional, you will have one light on the power supply as

highlighted

in the image.

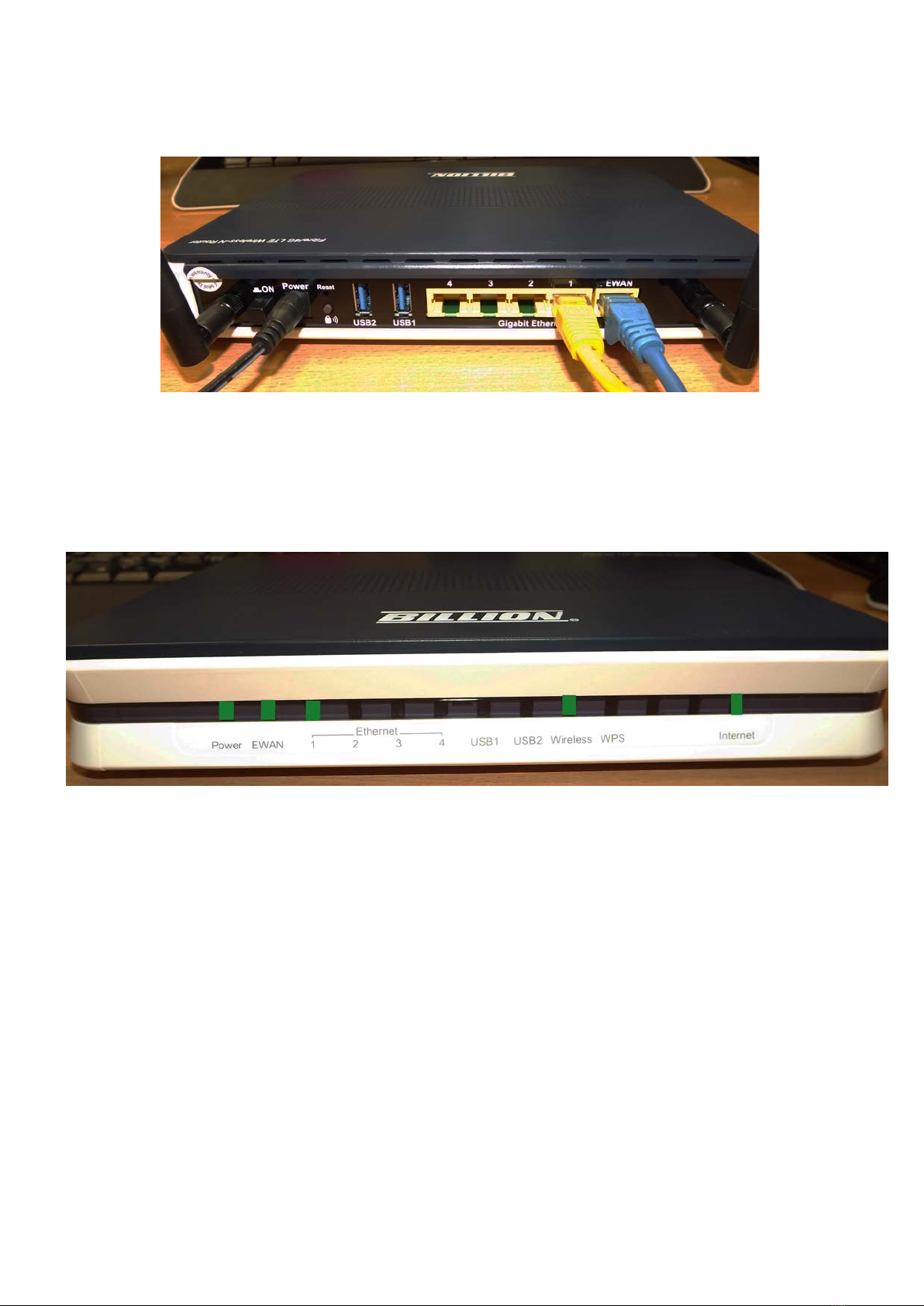

4) If you wish to connect a device hardwired, you will need to use the Yellow Ethernet Lead

provided with the router and connect it to one of the 4 Yellow ETH ports available.

5) Once all of the cables have been connected, you are now able to switch on the power on the

router, leave the router for 10-15 minutes and once all of the lights are on like shown below,

you are able to start using your broadband with Call Flow.

Please Note:

1) The

blue

Ethernet port labelled EWAN must only be used for the connection to the IDU.

2) It is recommended that for your main computer you use the main Ethernet port which is

labelled ETH1.
