BiPAC 7402VL/VGL/VGP

VoIP/(802.11g) ADSL2+ Router

Quick Start Guide

Billion VoIP/(802.11g) ADSL2+ Router

For more detailed instructions on configuring and usin

the Billion VoIP/(802.11g) ADSL2+ Router, please refer to

the on-line manual.

Package Contents

VoIP/(802.11g) ADSL2+ Router

CD-ROM containing the online manual

RJ-11 ADSL/telephone Cable

Ethernet (CAT-5 LAN) Cable

Console (PS2-RS232) Cable

AC-DC power adapter (12VDC, 1.2A)

This Quick Start Guide

Warning

 Do not use this router in high humidity or high

temperatures.

 Do not use the same power source for this router as othe

equipment.

 Do not open or repair the case yourself. If this router is too

hot, turn off the power immediately and have it repaired at a

qualified service center.

 Avoid using this product and all accessories outdoors.

ttention

 Place this router on a stable surface.

 Only use the power adapter that comes with the package.

Using a different voltage rating power adaptor may damage

this router.

Quick Start Guide

The Front LEDs

LED Meaning

1 PWR Lit when power is ON.

2 SYS Lit when the system is ready.

3 - 5 LAN Port

1X — 3X

(RJ-45 connector)

Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps.

Blinking when data is Transmitted / Received.

7 WLAN

(BiPAC 7402VGL/VGP only) Lit green when the wireless connection is established.

Flashes when sending/receiving data.

8 – 9 Phone

1X — 2X

(RJ-11 connector) Lit green when the phone is off-hook.

10 LINE

(BiPAC 7402VGP only) Lit when the inbound and outbound calls transmitted

through PSTN.

11 VoIP Lit when SIP registration is OK.

12 PPP / MAIL

Lit steady when there is a PPPoA / PPPoE connection.

Lit and flashed periodically when there is email in the Inbox.

13 ADSL Lit when successfully connected to an ADSL DSLAM

(“linesync”).

Billion VoIP/(802.11g) ADSL2+ Router

The Rear Ports

BiPAC 7402VL

BiPAC 7402VGL

BiPAC 7402VGP

Quick Start Guide

Port Meaning

1 Power Switch Power ON/OFF switch

2 PWR Connect the supplied power adapter to this jack.

3 RESET

After the device is powered on, press it to reset the

device or restore to factory default settings.

0-3 seconds: reset the device

6 seconds above: restore to factory default settings (this

is used when you can not login to the router, e.g. forgot

the password)

4 LAN

1X — 3X

(RJ-45 connector)

Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one

of the four LAN ports when connecting to a PC or an

office/home network of 10Mbps or 100Mbps.

5 CONSOLE Connect a PS2/RS-232 cable to this port when

connecting to a PC’s RS-232 port (9-pin serial port).

Phone

1X ─2X

(RJ-11 connector)

Connect RJ-11 cable to this port when connecting to an

analog phone set.

7 ADSL Connect the supplied RJ-11 (“telephone”) cable to this

port when connecting to the ADSL/telephone network.

Antenna

(BiPAC 7402VGL/VGP only)

Connect the detachable antenna to this port.

LINE

(BiPAC 7402VGP only)

Connect RJ-11 cable to this port when connecting to the

telephone wall jack.

Billion VoIP/(802.11g) ADSL2+ Router

Connecting Your ADSL Router

1. Connect this router to a LAN (Local Area Network) and the ADSL/telephone (ADSL) network.

2. Power on the device.

3. Make sure the PWR and SYS LEDs are lit steadily and that the LAN LED is lit.

4. Connect an RJ11 cable to VoIP port when connecting to an analog phone set.

5. Connect RJ-11 cable to LINE Port when connecting to the telephone wall jack (BiPAC

7402VGP only).

BiPAC 7402VL/VGL

(802.11g is not supported in BiPAC 7402VL)

Connect more

computers

Switching/

HUB

Analog Phone

BiPAC 7402VGP

Analog Phone

ADSL

Splitte

ADSL Phone

Line

Connect more

computers

Switching/

HUB

Quick Start Guide

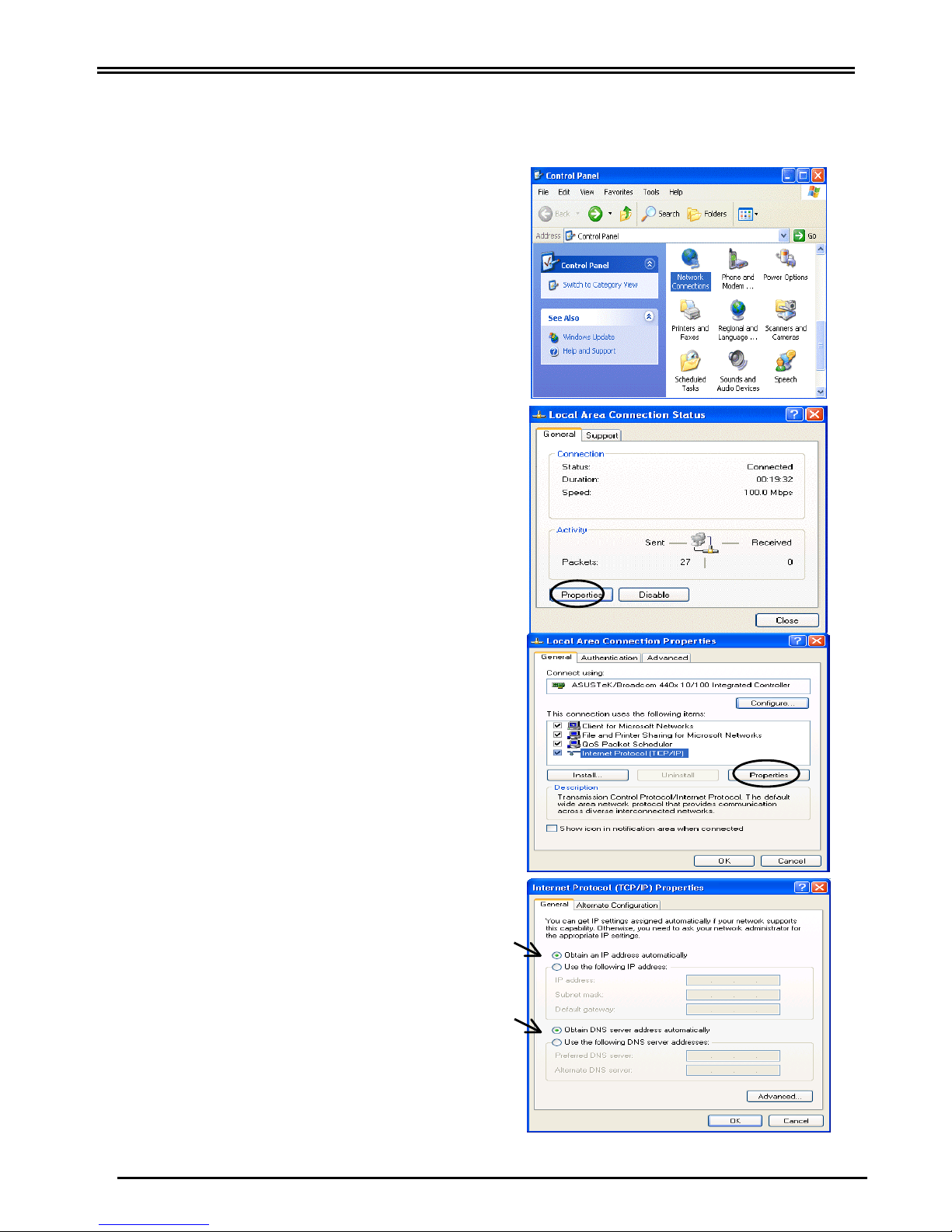

Configuring PC in Windows XP

1. Go to Start / Control Panel (in Classic

View). In the Control Panel, double-click on

Network Connections

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window, click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Billion VoIP/(802.11g) ADSL2+ Router

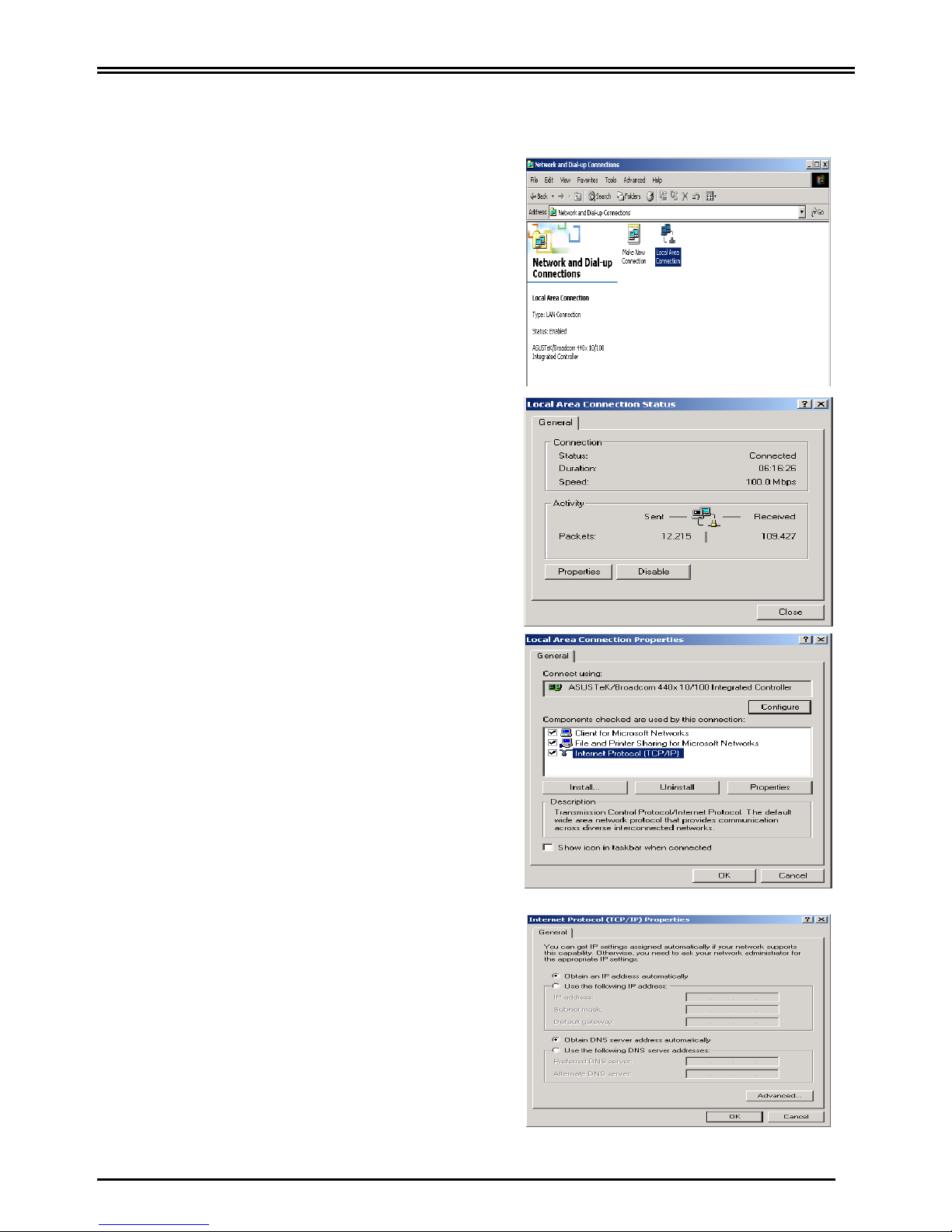

Configuring PC in Windows 2000

1. Go to Start / Settings / Control Panel. In the

Control Panel, double-click on Network and

Dial-up Connections.

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Quick Start Guide

Configuring PC in Windows 98/Me

1. Go to Start / Settings / Control Panel. In

the Control Panel, double-click on Network

and choose the Configuration tab.

2. Select TCP/IP ->

NE2000 Compatible, or the name of your

Network Interface Card (NIC) in your PC.

3. Select the Obtain an IP address

automatically radio button.

4. Then select the DNS Configuration tab.

5. Select the Disable DNS radio button and

click OK to finish the configuration.
