Binatone BB3200 Manuale utente

Charging batteries for the first time:

. Before you start to use your telephone make sure that all batteries are fully

charged for 15 hours.



Unpacking your BB3200 system

In the box, you will find:

Ƶthe base unit telephone

Ƶa telephone line cable for the base unit

Ƶa mains power adapter for the base unit

Ƶthe cordless handset (up to five, depending on which BB3200 system you’ve bought)

Ƶthis user guide

Ƶup to five charger pods, each with a mains power supply for multi handset systems

Keep the packaging materials in a safe place in case you later need to transport the unit.

Keep your sales (till) receipt, which is your guarantee.

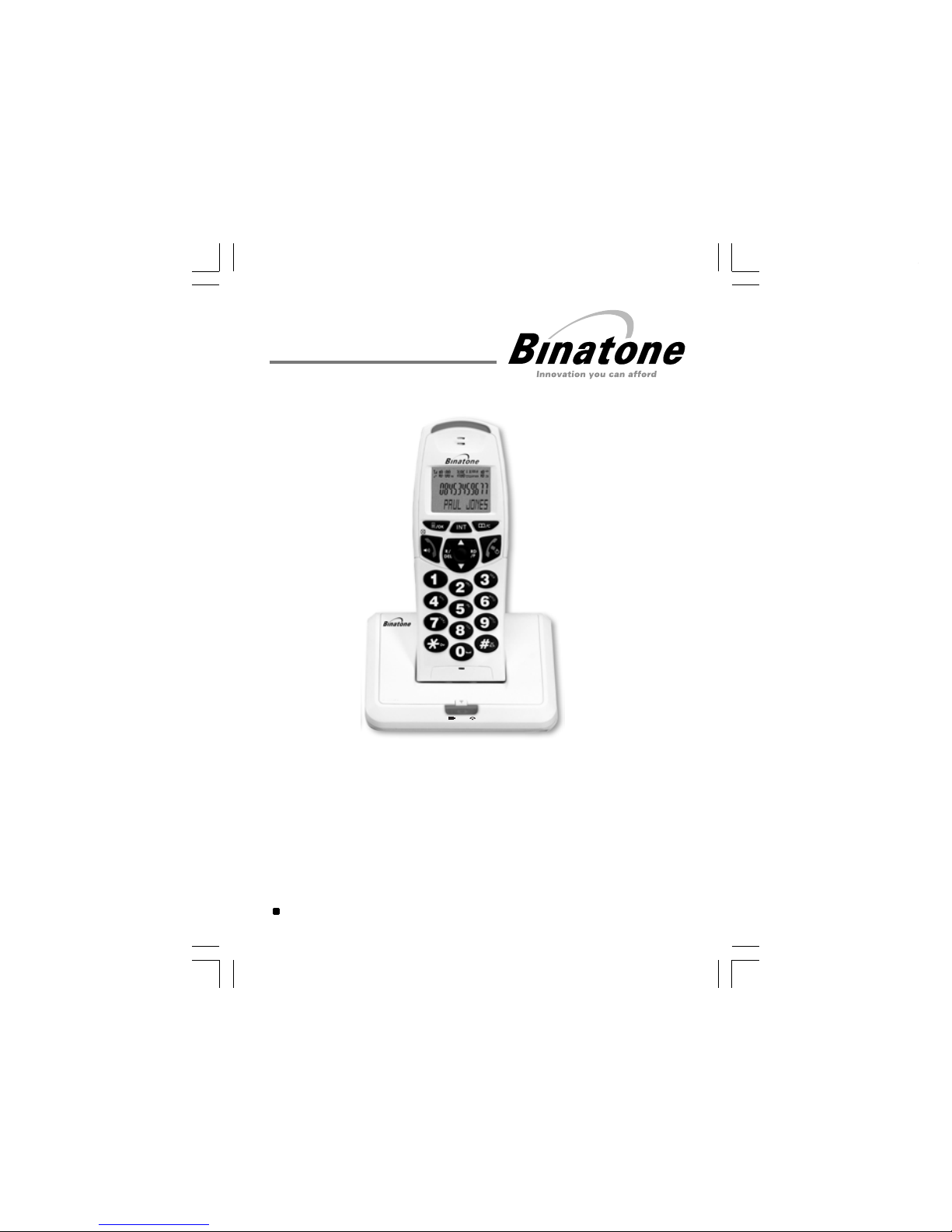

User Guide for

BB3200 Digital Cordless Telephone with Caller Display



Binatone Helpline (for UK only)

Monday to Friday from 9:00am to 5:00pm

Tel: 0845 345 9677

**Please note that all calls are charged at local rate

Or visit our website:

http://www.binatoneonline.com

Important note — emergency calls

The BB3200 cordless handset is not designed for making emergency calls

when the mains power fails.

*** Before operating this set, please read these instructions carefully.

For Emergency calls you should have a basic phone that does not need

a mains power, connected to your line so that you can make calls during

a power failure.

If you need help …..

Phone Function Keys

Recall/Delete button

Press to delete memory while

memory being checked

Press to erase a digit or letter while

editing a number or name

You may need the Recall (Flash) function if

UP/CID

Press to scroll up through the

During talk mode, press to

Press to review the Caller ID list

DOWN/ CID

Press to scroll down through the

During talk mode, press to decrease

volume in the earpiece / loudspeaker

Press to review the Caller ID list

lists and menu options

your phone is connected to a PBX,

or if you use BT Calling Features.

•

••

•

EAR PIECE

Redial/Pause

During talk mode, press to redial

the last dialled number

Press while dialling a number

Press to review last number redial list

HANG UP /Power on/off /C

During talk mode, press to end

the call and go back to idle mode

Press and hold for 3 seconds to

switch handset power on/off

Ring on/ off

Press and hold to switch

the handset external call ringer on/off

Phonebook/Exit

Press to access phonebook records

Press to exit present menu

to insert a pause(3s)

•

LCD

Display

TALK/Handsfree

Press to make or answer phone

calls in the earpiece

During talk mode, press to turn

on/off speakerphone

STAR/Lock

Press and hold for 1.5seconds to

switch the key lock on/off

Press when setting

up conference call

Press when in Pulse dialling

mode to change to Tone dialling

Press to mute the

microphone

during a call

MOUTH PIECE

Menu/OK/Mute

Press to enter menu functions from

idle mode & to confirm selections

Intercom

Press to call other handsets

During talk mode, press

transfer

call

another

handset

for the rest of that call.

•

lists and menu options

increase volume in the earpiece /

loudspeaker

PAGE

Press to make all registered

•

HANDSET CHARGING light

handsets ring (this is useful if you've

forgotten where you put a handset).

IN USE light

•

Turnson yellow when you have a

connection to the telephone line,

and flashes when you have new

Caller Display* records or the base

is paging or in registration mode.

•

Turnson red when the handset is put

on charge

What's on the display?

The display of your telephone contains one line of icons

and the time/date at the top, one line of text ,and one line of numbers.

Character field : shows the

Menu, names and status of a call

Number field : shows the telephone

numbers and the call timer

Icons and time/date

Display in standby mode

1. Current time and date

2. Antenna signal level

3. Battery level

4. Handset name

5. Status of phone

What the symbols mean?

Antenna-signal level

•Shows the strength of the signal between the handset

and base unit, and flashes when you are out of range

of the base unit (the display will also flash "BASE 1")

•If the level is low, or the symbol is flashing,

move closer to the base unit.

Battery level Whenever this shows nearly 'empty'( ) put the

handset on the charge cradle to charge the batteries.

While the battery is being charged,the level

shown will keep changing.

Talk •

This will display when you are on a call with

the handset

Key lock •Keypad locked

Alarm • This will display when you have set an alarm

•This will flash when the alarm is triggered

Ring Off •

This will display when the handset ringer

is set OFF

Phonebook •This will display when you are in the phonebook

menu or are reviewing the phonebook memory

Voicemail •

This will display when you have a new Voice Mail

message. (This is a caller id service and is

not usually available from UK network providers.)

New CID •

This will display when there is a new CID entry or

if one is being viewed

Repeated

NEW CID

•This will display when the same caller has

called more than once and not been read yet.

Hands free •

This will display when the speakerphone is in

use

•

Sequence •Indicates the sequence number of the CID or

Redial record being displayed.

Your Phone Function Keys

What’s on thedisplay?

What the symbols mean?

Read First before Use

Radio signals handset and base set

Interference

‘ Out of range warning’

Battery safety

•To switch on/off

•To lock/unlock

•To set time and date

•To set alarm

Making and answering calls

•Making calls

•Making calls from redial list

•Making calls from CID list

•Answering calls

•Muting the mouthpiece

Phone Book/(Memory dialing)

•

•Store last number redial in phonebook 1

•

•1

Using multi handset 1

•Making intercom call 1

•Transfer a call 1

•Making a three way conference call

Handset Registration

•Registering a handset to base

1. Contents

Review phonebook memory

Add to phonebook memory

Modify phonebook memories 11

Delete a contact in phonebook

Delete all contacts in phonebook

•Review phonebook memory status 12

Handset tones and volume setting 16

Adjust the earpiece volume

Adjust handset ringing melodies

Adjust handset ringer volume

Set handset TONES

Handset basic settings

•

Battery installation

Fit the batteries

Charge the batteries

Binatone Help Line - 0845 345 9677

De-registering a handset

Troubleshooting

Cleaning and Care

Declaration of Conformity

Guarantee and Service

Technical Details 3

Select base

Customising your phone

Change the handset name

HandsetAuto answer

Select handset display language

Select handset call barring function

Reset handset to default settings

Base basic setting 23

Set dial mode (tone or pulse)

Set flash time

Modify pin code

Reset base to default settings

Choosing a site for the base unit and

charger pod

Mains power connection

If you have a Broadband line 4

•

Caller Display (CID)

•New CID list 1

•Review CID list 1

•Delete a CID 1

Delete all CID list 1

•Store a CID in phonebook 1

list

•

•9

Find the Handset

tabehtegra

Before you use the cordless handset(s) for the

first time, it's important to charge the batteries

fully.

You hear a 'beep' when the handset is correctly in

To keep the batteries charged, whenever you

don' t need to use the handset (such as overnight

or when you go out ), leave it on the base unit or

Leave the handset(s) on charge for 15 hours.

esdna

drocehtn

tabehttiF

Insert the two

2. Battery installation

position on the base unit or charging cradle.

rechargeable

batteries as

shown

Drop in the battery

compartment cover,

then slide it forward

until it clicks firmly

into place

charger pod.

The CHARGE light

comes on

The bars on the battery

level symbol continuously

are being cahrged

change as the batteries

3. Read First Before Use

Choosing a site for the base unit and charger pod

The base unit and charger pod(s) should be placed on a level surface, in a position where:

x the mains adapter plug will reach an easily accessible 230-VAC switched mains

supply socket - never try to lengthen the mains power cable

x the base unit's telephone line cable will reach your telephone line socket or

extension socket

x it is not close to a sink, bath or shower, or anywhere else where it might get wet

x it is not close to other electrical equipment - fridges, washing machines,

microwave ovens, fluorescent lights, televisions etc.

x if the base comes into contact with liquids, disconnect it promptly and use a soft

cloth to dry it; if you believe that the liquid has seeped into the unit, do not

reconnect the base station. Contact the Binatone helpline.

x it is away from hot, humid conditions and strong sunlight

Mains power connection

IMPORTANT - The BB3200 base unit must be used with the mains adapter supplied

with the unit.

Using any other adapter will result in non-compliance with EN60950, and will

invalidate any approval given to this apparatus.

If you have a Broadband line

If you connect your telephone to a line with a broadband connection, you will need to

insert a micro-filter between the telephone and the telephone line; otherwise you may

get interference between the telephone and the broadband, which could cause

problems.

In a home with broadband, every telephone must have a micro-filter connected, not

just the one at the telephone point that your modem is connected to. If you need more

broadband micro-filters, contact your broadband supplier.

Binatone Help Line - 0845 345 9677

Radio signals between handset and base unit

To use your cordless handset and base unit together, you must be able to establish a radio

The signal range between the handset and the base station is in accordance with the

approved standard for Binatone phones:

•Maximum range: 300metres outdoors

•Maximum range: 50metres indoor

The signal range could become lower during normal use. Any large metal object, like a

refrigerator, a mirror, a filing cabinet, metallic doors or reinforced concrete, between the

For the best radio signal, it is recommended that your telephone is at the highest possible

If there is no radio signal reception, Base 1 message and the signal level icon will flash

Interference

If the sound quality gets worse as you move around while on a call, this is probably caused by

interference between the handset and the base unit, perhaps because you are too near to

another phone or other electrical equipment.

Move to a different position to clear the interference. If you do not move, it might cause a short

break or your call may be cut off.

"Out of range" warning

If you hear a warning tone during a call, or the sound in the earpiece becomes faint or distorted,

you may be going out of range of the base unit.

Move nearer to the base unit within 20 seconds, until the earpiece sound improves. Otherwise,

your call may be cut off.

Battery safety

ONLY use the rechargeable batteries supplied with the handset.

DO NOT use non-rechargeable batteries

they may burst and cause damage to your telephone.

handset and the base unit may block the radio signal. The signal strength may also be reduced

by other solid structures, like walls, or by other radio or electrical interference.

link between them.

on the display.

position.

Installation and Set-up

1/ Choose a suitable site for the

base unit (see page 3)

2/ Connect the mains power lead

and the telephone line cord into the

base unit

Plug one end of the telephone line

cord into the jack on the back of the

base (the other end will plug into the

3/ Plug the mainsadaptor into your

wall socket. If you have one or more

charger pods, plug the mains

adaptors accordingly

Make sure that the 230VAC, 50hz mains

socket is switched OFF when you plug

the mains adapter into the socket.

4/ Connect the base unit to the telephone line

Insert the telephoneline plug into the socketthen switch

See the note

on page 3

See the note

on page 3

mains power back ON.

Make sure the mains socket is switched on —

the phone won’t work without electrical power

telephone wall socket later)

5Binatone Help Line - 0845 345 9677

Indice

Altri manuali Binatone Telefono senza fili

Binatone

Binatone E3300 Manuale utente

Binatone

Binatone E800 Manuale utente

Binatone

Binatone Brick 4home edition Manuale utente

Binatone

Binatone iDECT Q2i System Manuale utente

Binatone

Binatone IDECT V2I Manuale utente

Binatone

Binatone Vesta 1305 Call Blocker Manuale utente

Binatone

Binatone iDECT X1i Manuale utente

Binatone

Binatone Concept Combo 3525 Twin Manuale utente

Binatone

Binatone DP270 Manuale utente

Binatone

Binatone Activity 2600 Manuale utente

Binatone

Binatone Eclipse Plus Manuale utente

Binatone

Binatone SYMPHONY 2200 Manuale utente

Binatone

Binatone Elite 2025 Manuale utente

Binatone

Binatone VEVA 1520 Triple Manuale utente

Binatone

Binatone 1505 Manuale utente

Binatone

Binatone SPEAKEASY COMBO 2005 TRIPLE Manuale utente

Binatone

Binatone Solas 1520 Triple Manuale utente

Binatone

Binatone ICARUS 200 SYSTEM Manuale utente

Binatone

Binatone SYMPHONY 3325 Manuale utente

Binatone

Binatone Ultra XD1220 Manuale utente

Binatone

Binatone BIG BUTTON 510 SYSTEM Manuale utente

Binatone

Binatone iDECT C10i Single Manuale utente

Binatone

Binatone FUSION 2200 Manuale utente

Binatone

Binatone Zest Plus Manuale utente

Manuali Telefono senza fili popolari di altre marche

3Com

3Com NBX Manuale utente

Panasonic

Panasonic KX-TGK210HK Manuale utente

Panasonic

Panasonic KX-TCA181EX Manuale utente

BT FREESTYLE 3200 Manuale utente

AT&T

AT&T CL84102 Manuale utente

BREZZICNI

BREZZICNI CL-3622 Manuale utente

Panasonic

Panasonic KX-TG1831NZ Manuale utente

Panasonic

Panasonic KX-TG7301E Manuale utente

Furuno

Furuno FM-4721 Manuale utente

Sanyo

Sanyo CLT-J70 Manuale utente

Amplicomms

Amplicomms BigTel 201 Manuale utente

GE 26992 Manuale utente

AT&T

AT&T E1812B Manuale utente

Sanyo

Sanyo CLT-670 Manuale utente

GE 15432970 Manuale utente

Curtis

Curtis TC595 Manuale utente

Gigaset

Gigaset Gigaset 3000 Micro Manuale utente

Poly

Poly VVX D230 Guida all'installazione
