BINATONE “ Big Button 510 System”

User Guide - Front Page

1)White background and black letters

2)Material: 100lb Double face art paper

3) Size: 105mm(w) x 148mm(H) A6

BINATONE “ Big Button 510 System ”

User Guide - Back Page

Ver. 1, Mar, 05

USER GUIDE

Before operating this set,

please read these instructions carefully.

Digital Cordless

Telephones Extra

large buttons

and display

THIS EQUIPMENT IS NOT DESIGNED FOR

MAKING EMERGENCY TELEPHONE CALLS

WHEN THE POWER FAILS. ALTERNATIVE

ARRANGEMENTS SHOULD BE MADE FOR

ACCESS TO DIAL EMERGENCY SERVICES.

Big Button 510 System

Important note — emergency calls

The Big Button 510 is not designed for making

emergency calls when the mains power fails. So you

should make alternative arrangements for access to

Emergency Services.

(This means that you should also have a basic

phone that does not need mains power, connected

to your line so that you can make calls during a

power failure.)

If you need help …

The Binatone Help Line is available from 9.00 am to

5.00 pm, Monday to Friday, on

0845 345 9677

Calls are charged at Local Call rate.

Unpacking your Big Button 510

system

In the box are:

■the cordless handset (up to six, depending on

which Big Button 510 system you have bought)

■the base unit

■three rechargeable batteries and a battery

compartment cover for each handset

■atelephone line cable for the base unit

■amains power lead and adapter for the base

unit

■up to five charger pods, each with a separate

mains power lead and adapter

Keep the packaging materials in a safe place in

case you later need to transport the unit.

Keep your sales (till) receipt, which is your

guarantee.

E:\Binatone2005\BigButton510\BigButton510_01.vp

28 February 2005 04:58:40

Color profile: Generic CMYK printer profile

Composite Default screen

If the display is blank

Press the button to switch the handset on

PROG button

Press to start programming.

Press during a call to make a note

of a number in the Notebook.

/INT (Intercom) button

Press to make an intercom call

(if you have more than one

handset). SCROLL ( ) buttons#

When a long number (more

than 16 digits) is shown on

the display, press these to

scroll along the digits.

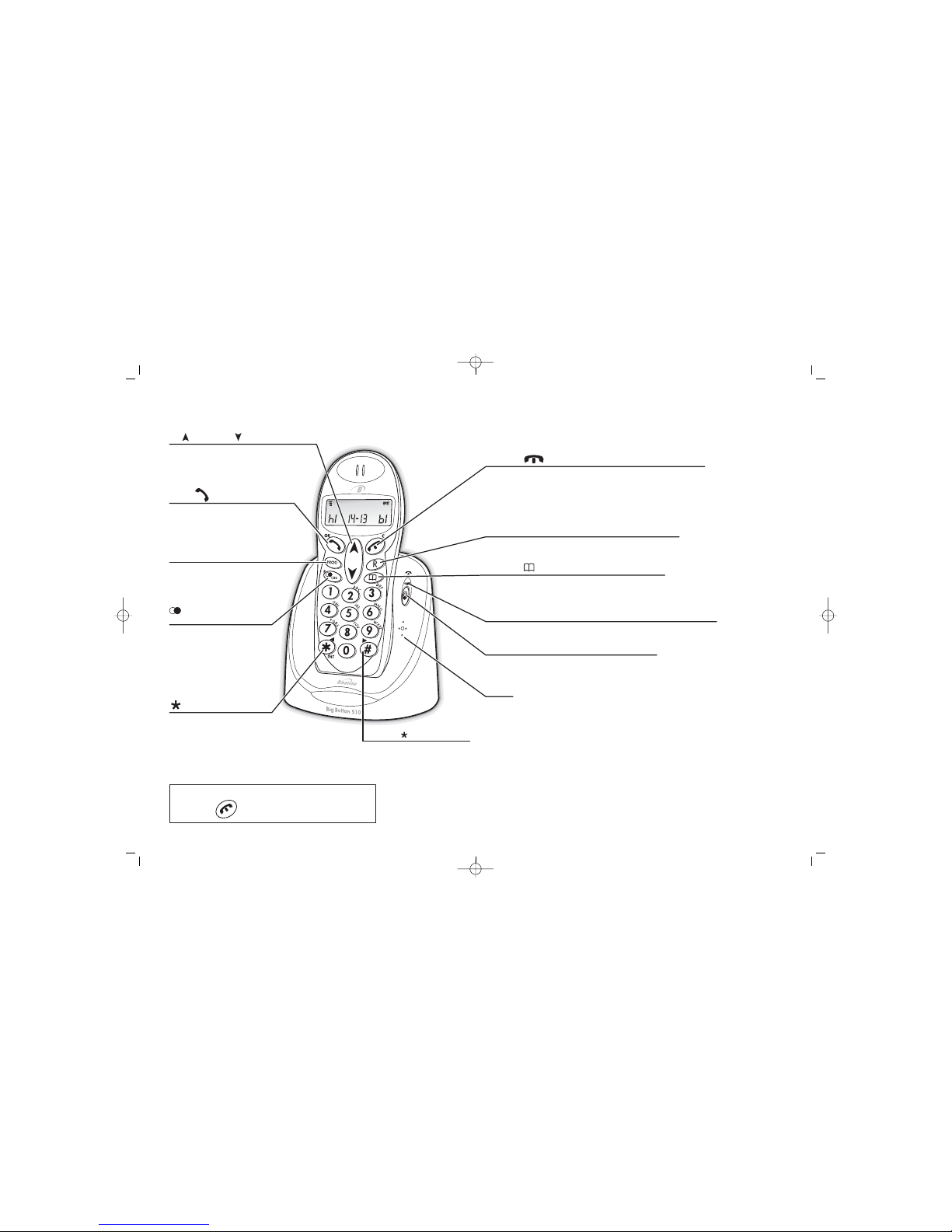

Where to find it

PHONE /OK button

Press to begin or answer a

telephone call.

Press while programming to confirm

your selection.

UP and DOWN buttons

Press during a call to adjust the volume in

the earpiece.

Press to move through the list of stored

numbers or Caller Display records.

(Last Number Redial)/

CDS/ PAUSE button

Press ONCE to make a repeat

call to one of the last five

numbers you dialled.

Press TWICE to see a list of

Caller Display records.

Press to generate pauses when

using the phone on a PBX.

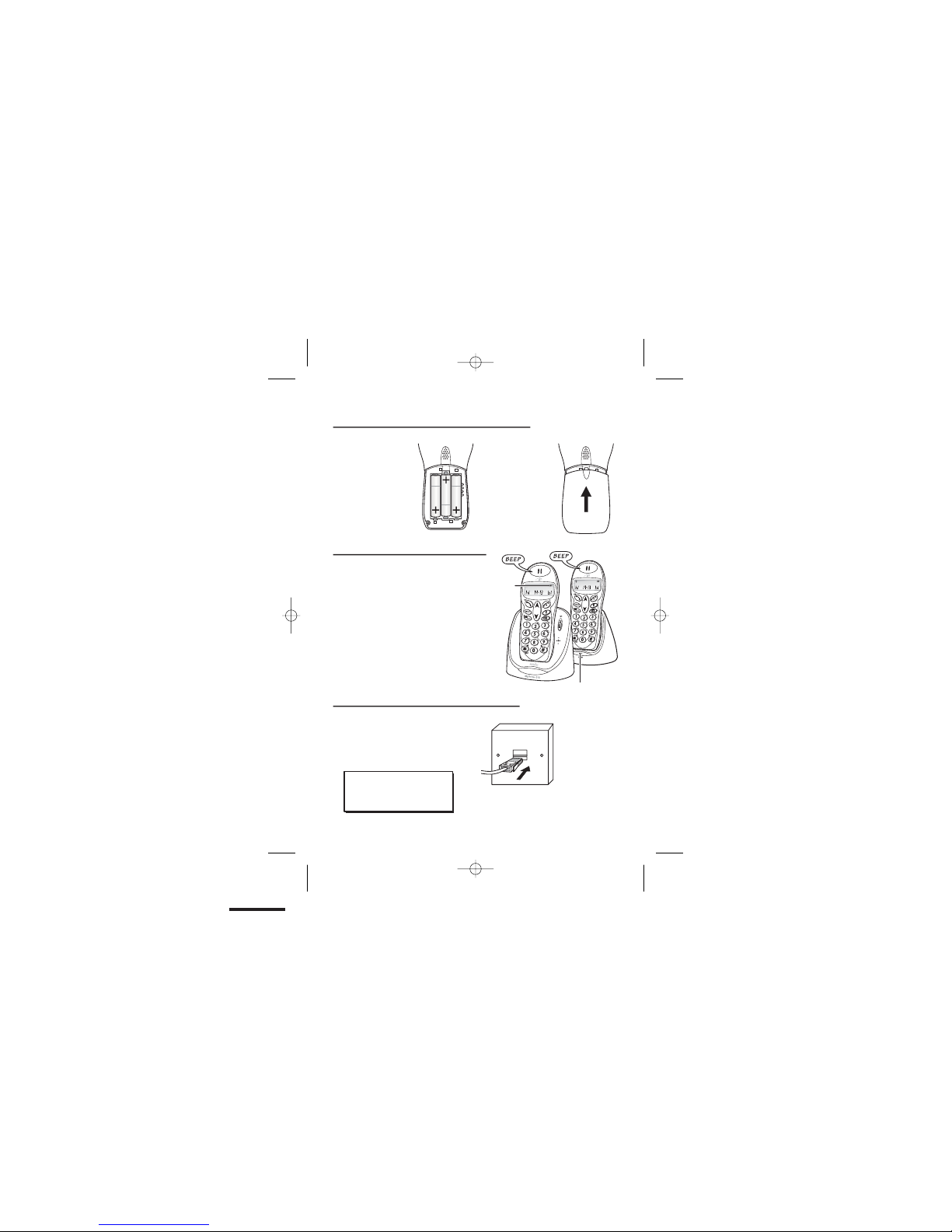

Before you can use the handset to make calls you

will need to fit and fully charge the batteries, as

described on pages 6 and 7.

Please read the notes on pages 3 and 4 before you

install the base unit.

HANG UP / C (Cancel) button

Press to hang up at the end of a call.

Press and hold for 1 second to lock the keypad.

Press and hold for 3 seconds to turn the handset on and off.

While dialling or programming, press BRIEFLY to delete digits from

the display; or press and HOLD to clear the display.

HANDSET LOCATOR button

Press to make all registered handsets ring, (useful

if you've forgotten where you put a handset).

R (Recall) button

You may need this during a call if your Big Button 510

is connected to a PBX, or if you use BT’s Select Services.

IN USE light

This comes on when you have a connection to the telephone line.

MEMORY button

Press to store numbers in memory and to make

calls to stored numbers.

Ringer

E:\Binatone2005\BigButton510\BigButton510_01.vp

27 February 2005 16:58:00

Color profile: Generic CMYK printer profile

Composite Default screen

Binatone Help Line: 0845 345 9677 (Local Call rate) 1

When this shows ‘nearly empty’ ( ), put the handset onto

the base unit or charger pod as soon as possible, to charge the

batteries. While the batteries are being charged, this symbol

blinks.

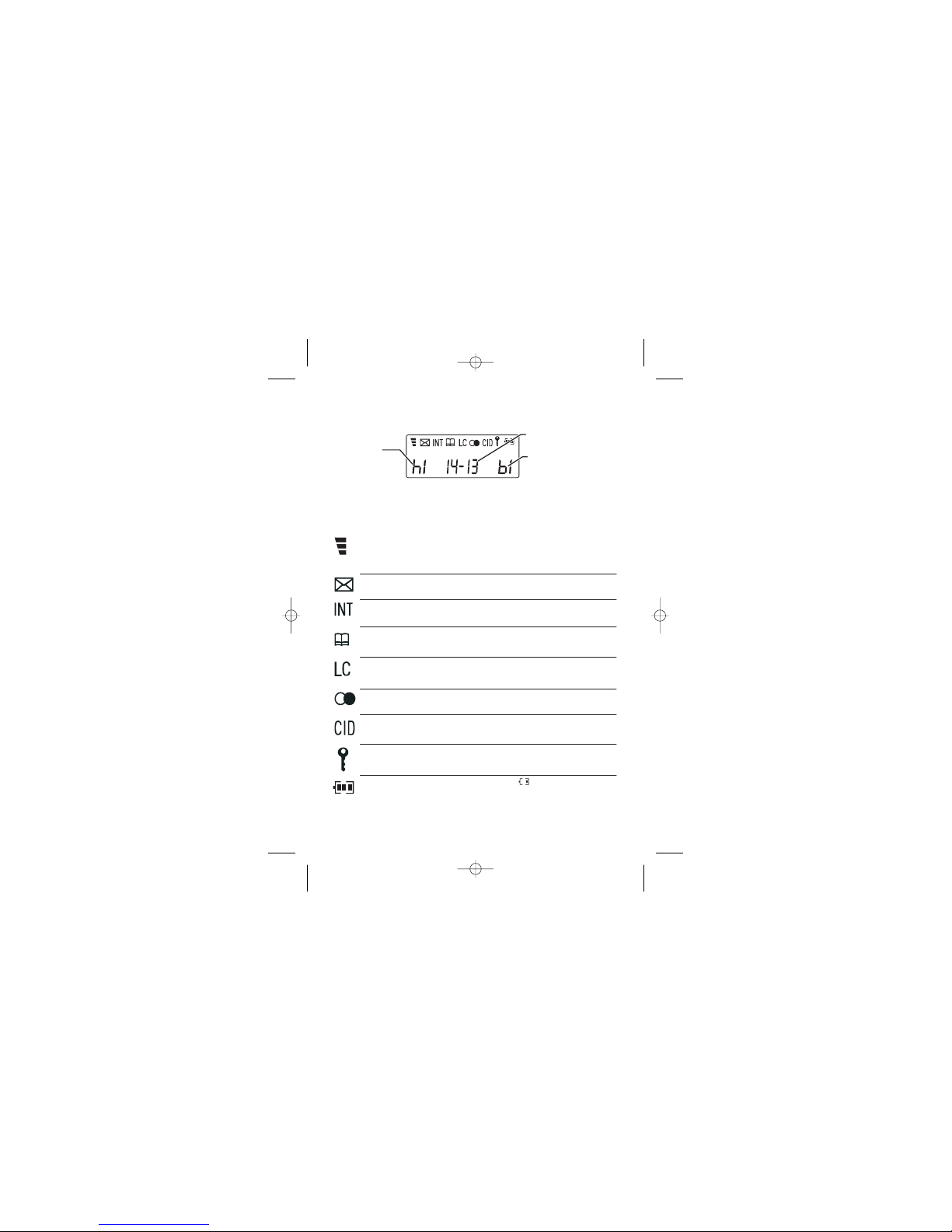

Symbols on the display

The handset’s

number (1 if you

have a single system,

1, 2 or 3 if you have

a Twin or Triple

system)

The time is shown if you’ve

set the handset’s clock

The base unit’s number (1,

unless you have registered

your handset to more than

one base unit)

Intercom

call

Memory/

store

Indirect

network

Redialling

Caller

Display

This appears when the handset is dialling a non-local number

via an alternative network.provider’s

This appears when you’re using Last Number Redial.

This appears when you’re checking, or dialling from, the list of

Caller Display records.

This appears when the keypad is locked, or when you’re trying

to dial a barred number.

This flashes while your handset is ringing for an intercom call,

and comes on steadily when the call’s connected.

This comes on when you’re storing numbers in memory, and

when you’re making calls to stored numbers.

Keypad

locked

Signal

level This shows the strength of the signal between the handset and

base unit. It flashes while the handset is trying to establish a

radio link . .

to the base unit If this symbol flashes while you’re

on a call, move closer to the base unit

Battery

charge

level

New call This appears when you missed incoming calls (even if you do

not use Caller Display).

What the symbols mean

The duration of each call is shown on the display from 20 seconds

after you press the PHONE button for a line, until 5 seconds after

you end the call.

E:\Binatone2005\BigButton510\BigButton510_01.vp

27 February 2005 16:59:06

Color profile: Generic CMYK printer profile

Composite Default screen

Contents

Read these notes first 4

Choosing a site for the base unit and

charger pod 4

Radio signals between handset and

base unit 4

Mains power connection 4

Battery safety 4

Installation and set-up 5

Before you start 7

Electrical safety 7

Interference 7

‘Out of range’ warning 7

Switching on and off 8

To switch the handset on and off 8

To lock the keypad 8

Making and answering calls 9

To make a call 9

To answer a call 9

To end a call 9

Earpiece volume 9

Last Number Redial (LNR) 10

Memory dialling 11

To store a number 11

To make a memory call 11

Chain dialling 12

To change a stored number 12

To delete a stored number 12

To use the notebook 13

To store an LNR number in memory

Caller Display 14

To check Caller Display records 14

To return a call 15

To delete Caller Display records 15

To store a Caller Display number in

memory 15

Using a multi-handset system 16

To make an intercom call 16

To answer an intercom call 17

To end an intercom call 17

To transfer a call 17

To shuttle between two calls 18

To set up a three-way conference

New Call tone 19

To page all handsets from the

base unit 19

To register a new handset to your

base unit 20

To de-register a handset 21

To select a base unit 21

To register to a different brand of

base unit 22

Customising your handset 23

General points 23

Auto-answer 23

Ringer volume and melody 24

Key tone 24

Direct Call 25

To clear all memories 26

To reset the handset 26

E:\Binatone2005\BigButton510\BigButton510_01.vp

27 February 2005 16:59:06

Color profile: Generic CMYK printer profile

Composite Default screen

Customising your base unit 27

General points 27

Emergency numbers 27

Ringer volume and melody 28

Call barring 28

Date and time 30

To clear all Caller Display memories

To reset the base unit 31

Indirect Network 32

To set the network access code 32

To set additional ‘local’ dialling codes

To turn Indirect Network on and off

Troubleshooting 34

Cleaning and care 40

Declaration of conformity 40

Guarantee and service 41

Technical details 42

Index 43

Contents

Binatone Help Line: 0845 345 9677 (Local Call rate) 3

Connection and conditions for use

You can connect your Big Button 510 to a direct exchange line (DEL) —

a line connected to a local exchange, with its own phone number; to an

extension socket connected to a DEL; or to an extension on an

approved compatible PBX. Do not connect the Big Button 510 as an

extension to a payphone.

The ringer equivalence numbers (RENs) of all instruments (phones,

fax machines, etc.) connected to an exchange line must not add up to

more than 4 — otherwise, one or more of them may not ring and/or

answer calls correctly. The Big Button 510 has a REN of 1, and most

other telephones have a REN of 1 unless marked otherwise.

E:\Binatone2005\BigButton510\BigButton510_01.vp

27 February 2005 16:59:06

Color profile: Generic CMYK printer profile

Composite Default screen

Read these notes first

Choosing a site

for the base

unit and

charger pod

The base unit and charger pod(s) should be placed on a

level surface, in a position where:

■the mains adapter plug will reach an easily accessible

230-V AC switched mains supply socket — never try

to lengthen the mains power cable

■the base unit’s telephone line cable will reach your

telephone line socket or extension socket (the charger

pod does not have a telephone line connection)

■it is not close to another telephone — this can cause

radio interference

■it is not close to a sink, bath or shower, or anywhere

else where it might get wet

■it is not close to other electrical equipment — fridges,

washing machines, microwave ovens, fluorescent

lights, TVs etc.

Radio signals

between

handset and

base unit

To use your handset and base unit together, you must

be able to establish a radio link between them. Be

aware that:

■Any large metal object — like a refrigerator, a mirror

or a filing cabinet — between the handset and the

base unit may block the radio signal.

■Other solid structures, like walls, may reduce the

signal strength.

Mains power

connection IMPORTANT — The Big Button 510 base unit and

charger pod must be used with the mains adapter

supplied with the unit. Using any other adapter will

result in non-compliance with EN60950, and will

invalidate any approval given to this apparatus.

Battery safety Only use the rechargeable batteries supplied with the

handset. DON’T use non-rechargeable batteries — they

may burst, causing damage.

E:\Binatone2005\BigButton510\BigButton510_01.vp

27 February 2005 17:16:29

Color profile: Generic CMYK printer profile

Composite Default screen

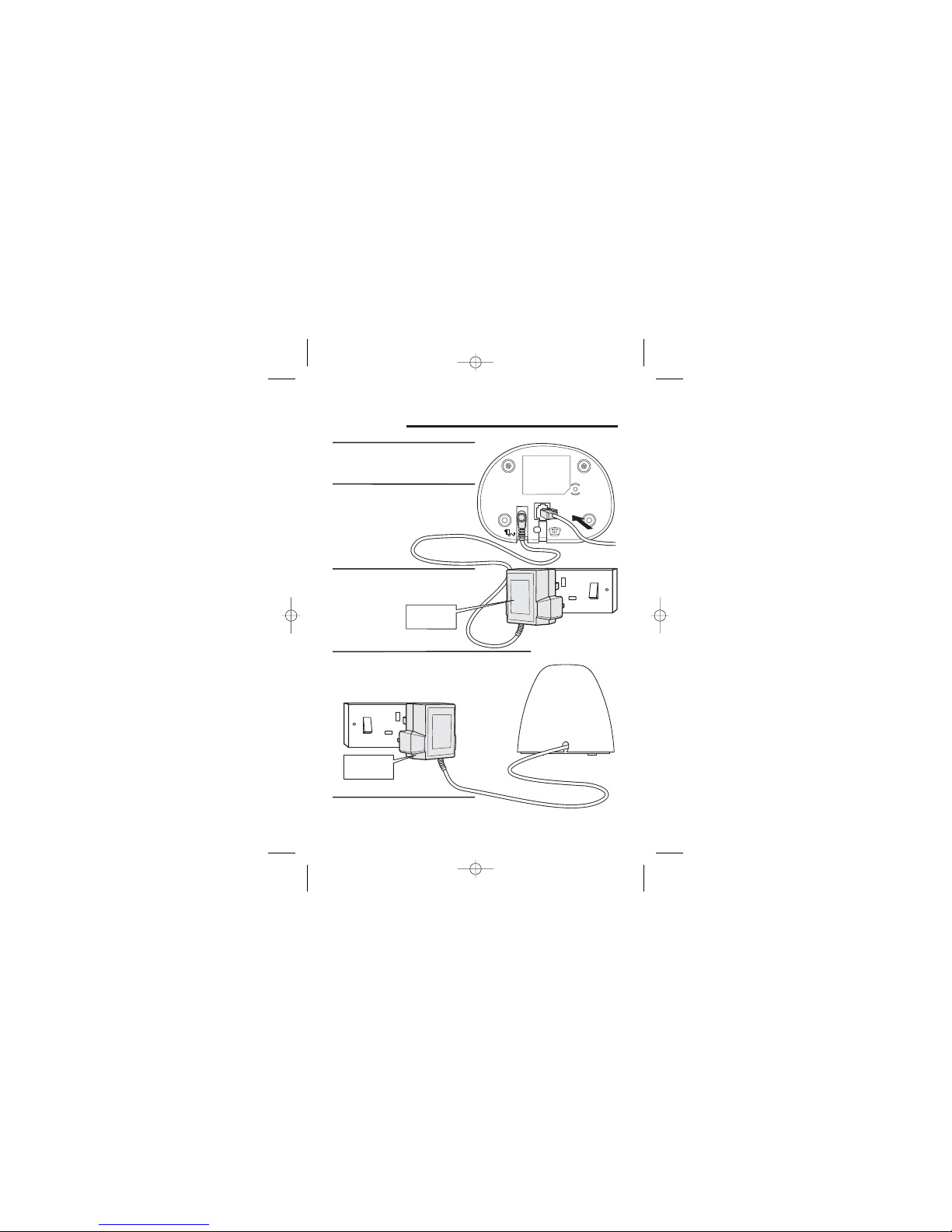

Installation and set-up

Binatone Help Line: 0845 345 9677 (Local Call rate) 5

Choose a suitable site for the

base unit See page 4

Plug the mains adapter into a

230 V AC, 50 Hz mains socket,

with the switch on the socket

set to OFF

Plug the mains adapter into a 230 V AC,

50 Hz mains socket, with the switch on

the socket set to OFF

Switch on at the mains socket(s)

If you have one or more charger pods …

Connect the mains power lead

and the telephone line cord into

the underside of the base unit

Use the telephone line cord

supplied with your

Big Button 510 —

do not use any other

telephone line cord

See the note

on page 4

See the note

on page 4

E:\Binatone2005\BigButton510\BigButton510_01.vp

27 February 2005 16:59:08

Color profile: Generic CMYK printer profile

Composite Default screen

Fit the rechargeable batteries in each handset

+–

. Fit the three

batteries as

shown, making

sure you match

the and ends

to the markings

in the battery

compartment

B. Fit the

battery

compartment

cover, sliding it

into place and

pressing firmly

to make sure it

is secure

Charge the batteries for 15 hours

The battery charge level symbol should increase

by one bar every half hour when you’re charging

an empty battery. If you think that the symbol

isn’t showing the correct battery charge level,

remove and refit the batteries.

Before you use the handset for

the first time, it’s important to

charge the batteries fully.

The handset ‘beeps’ when it’s

correctly in position on the

charging cradle.

Leave the handset on the charging cradle

for 15 hours.

The battery

level symbol

blinks

Make sure the mains socket is

switched on if you want to use

the phone — it will not work

without electrical power

Connect the base unit to the telephone line

Switch off power at the mains socket

Insert the telephone line plug into

the socket as shown

Switch mains power back on

Use the plug to

raise the shutter

before pushing

it into the socket

NOTE: the charger pod does not have

a connection to the tele

hone line.

DON’T use non-rechargeable batteries in the handset.

The Charge

light comes on.

E:\Binatone2005\BigButton510\BigButton510_01.vp

27 February 2005 16:59:11

Color profile: Generic CMYK printer profile

Composite Default screen

Before you start

Electrical

safety ◆DO NOT let the base unit or charger pod get wet.

Electrical equipment can cause serious injury if used

while you are wet or standing in water.

◆If the base unit or charger pod ever falls into water, DO

NOT retrieve it until you have unplugged the power

lead from the mains and the telephone line plug from

the telephone socket (base unit only); then pull it out by

the unplugged cables.

◆NEVER use your Big Button 510 outdoors during a

thunderstorm — unplug the base unit from the

telephone line and the mains socket when there are

storms in your area. Damage caused by lightning is not

covered by the guarantee.

Interference If the sound quality gets worse as you move around

while on a call, this is probably caused by interference

between the handset and the base unit, perhaps

because you are too near to another phone or other

electrical equipment.

Move to a different position to clear the interference.

If you do not move, your call may be cut off.

!Radio interference in the environment may occasionally

cause a short break in the link between the handset

and the base unit while you are on a call. The

handset’s display will flash briefly, while the unit

automatically restores the link.

‘Out of range’

warning If you hear a warning tone during a call, and/or the

sound in the earpiece becomes faint or distorted, you

may be going out of range of the base unit. Move

nearer to the base unit within 20 seconds, until the

tone stops. Otherwise, your call may be cut off.

Binatone Help Line: 0845 345 9677 (Local Call rate) 7

E:\Binatone2005\BigButton510\BigButton510_01.vp

27 February 2005 16:59:11

Color profile: Generic CMYK printer profile

Composite Default screen

Indice

Altri manuali Binatone Telefono senza fili

Binatone

Binatone Brick 4home edition Manuale utente

Binatone

Binatone SYMPHONY 3325 Manuale utente

Binatone

Binatone ICARUS 1500 Manuale utente

Binatone

Binatone Lifestyle 100 Manuale utente

Binatone

Binatone E800 Manuale utente

Binatone

Binatone Zest Manuale utente

Binatone

Binatone iDECT Q2i System Manuale utente

Binatone

Binatone Style 1820 Manuale utente

Binatone

Binatone iDECT X1i Manuale utente

Binatone

Binatone iDECT C5i System Manuale utente

Binatone

Binatone iDECT Eclipse Plus Single Manuale utente

Binatone

Binatone DP270 Manuale utente

Binatone

Binatone 1210 Manuale utente

Binatone

Binatone VEVA 1520 Triple Manuale utente

Binatone

Binatone SYMPHONY 2600 Manuale utente

Binatone

Binatone Concept Combo 3525 Twin Manuale utente

Binatone

Binatone Vantage 6020 Quad Manuale utente

Binatone

Binatone SPEAKEASY COMBO 2005 TRIPLE Manuale utente

Binatone

Binatone Elite 2025 Manuale utente

Binatone

Binatone iDECT C10i Single Manuale utente

Binatone

Binatone e820 System Manuale utente

Binatone

Binatone Zest Plus Manuale utente

Binatone

Binatone ICARUS 2010 system Manuale utente

Binatone

Binatone iDECT C3i system Manuale utente

Manuali Telefono senza fili popolari di altre marche

3Com

3Com NBX Manuale utente

Panasonic

Panasonic KX-TGK210HK Manuale utente

Panasonic

Panasonic KX-TCA181EX Manuale utente

BT FREESTYLE 3200 Manuale utente

AT&T

AT&T CL84102 Manuale utente

BREZZICNI

BREZZICNI CL-3622 Manuale utente

Panasonic

Panasonic KX-TG1831NZ Manuale utente

Panasonic

Panasonic KX-TG7301E Manuale utente

Furuno

Furuno FM-4721 Manuale utente

Sanyo

Sanyo CLT-J70 Manuale utente

Amplicomms

Amplicomms BigTel 201 Manuale utente

GE 26992 Manuale utente

AT&T

AT&T E1812B Manuale utente

Sanyo

Sanyo CLT-670 Manuale utente

GE 15432970 Manuale utente

Curtis

Curtis TC595 Manuale utente

Gigaset

Gigaset Gigaset 3000 Micro Manuale utente

Poly

Poly VVX D230 Guida all'installazione
