QUICK USER GUIDE

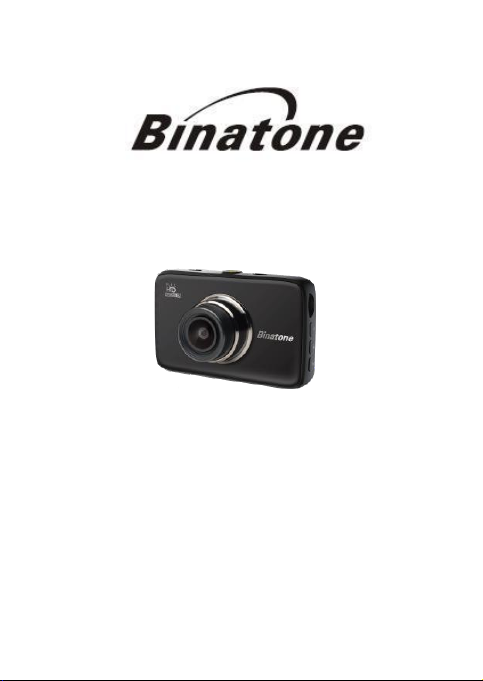

Dashboard Camera Model: FHD300GW
The features described in this user’s guide are
subject to modifications without prior notice.
Thank you for purchasing the Dashboard Camera.
Please keep your original dated sales receipt for your
records. For warranty service of your Binatone
product, you will need to provide a copy of your
dated sales receipt to confirm warranty status.
Registration is not required for warranty coverage.
Please make sure that you read all of the information
contained within this user guide before operating this
unit.
If you have any problems, please read through the
user guide before contacting the customer service
helpline.
Contact the helpline: +44 (0) 844 557 0890 (UK
only)*
Mon - Fri 8:00am to 8:00pm
Sat 8:30am to 2:00pm
Or for more information regarding you product go to
www.binatoneglobal.com
Note: Calls cost 7p per minute plus your telephone
company's access charge.
1
1. Table of Contents
1. Table of Contents
2
2. Important
3
3. Safety Instruction
4
3.1 Using Your Dash Camera in the Car
4
3.2 Battery
4
3.3 Warning
5
4. Overview of your Dashcam
6
5. Getting Started
8
5.1 Installing your Device
8
5.2 First Use
9
6. Using your Dashboard Camera
10
6.1 Recording and Saving
10
6.2 Switching Modes
10
7. Settings
11
7.1 Main Settings
11
7.2 Video Settings
13
7.3 Playback Settings
15
8. Playback on PC
16
9. Connect your device to Dashcam
16
9.1 System Requirements
16
9.2 Install HubbleClub Dashcam APP
16
9.3 How to Connect Device to Dashcam
17
10. Disposal of the Device (Environment)
18
11. Technical Specifications
19
12. UK Declaration of Conformity
20
2
2. Important
Before using the dash cam, please insert a Micro SD
card into the device in correct direction and ensure it
is fixed in the card slot.
If you are adding a new SD card to the device, we
recommend you format it before use.
Micro SD card requirement: 4GB or above, Class 10
or above.
During recording, please do not pull out the SD card
directly, otherwise the current video cannot be saved.
In the box you will find:
•Dashboard Camera x1
•Windshield Mount with GPS module x1
•Car Adapter x1
•Quick User Guide x1
Keep the packaging materials in a safe place in case
you later need to transport the unit.
Warning:
When using the dash camera device in your car, we
recommend that you always use the cigarette
charger in order to maintain the battery level.
The unit is not designed to be run on battery power
alone, the battery is there for backup purposes only.
3
3. Safety Instruction
3.1 Using Your Dash Camera in the Car
1). Do not install the device within the driver’s or
passenger airbag operation range. Please refer to
your car’s service manual for details about the
operation range of your car’s airbags.
2). Never modify modes, settings, or program your
device while your car is in motion.
3). Ensure the device and its power cordage installed
as per the instructions “5.1 Installing your Device”,
and do not obstruct the driver’s line of sight or
impede the operation of any driving controls.
3.2 Battery
Your dash camera device uses a Li-polymer battery.
1). Do not use it in humid, wet or corrosive
environments.
2). Do not operate or store your dash camera in high
temperatures (>60°) or in direct sun light.
3). Do not pierce or break the battery casing. Failure
to follow these cautions will invalidate the warranty
and may cause the battery to leak acid, become hot,
explode or ignite and cause injury or damage. If you
come into contact with leaked battery acid wash the
contact area thoroughly and seek medical attention.
4
The Li-polymer battery contained in this unit must be
recycled or disposed of properly.
4). Do not dispose of in household waste or burn.
3.3 Warning:
Before using the dash cam, the user shall check the
applicable laws on the use of dash cams.
In some jurisdictions, the use of dash cams can be
considered as an invasion of privacy. Furthermore,
the mounting of the dash cam on the windshield
might be regulated by law in some jurisdictions.
It is the user’s responsibility to check the applicable
laws before using the dash cam. We do not take any
responsibility for wrong or unlawful use of the dash
cam.
5

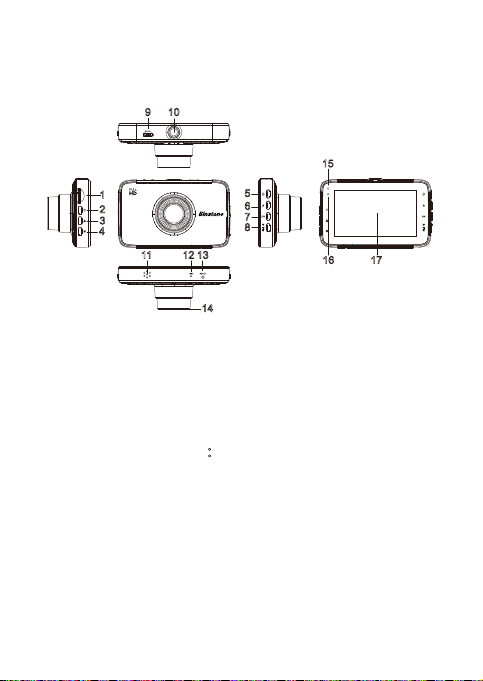

4. Overview of your
Dashcam
1
2
9 10
3
4
11 12 13
14
5
15
16 17
6
7
8
1. Micro SD Card Slot
2. Menu/Back Button
Setting switcher
Back button
3. Lock Button:Lock/unlock current video
when short press in recording
Turn on/off Wi-Fi when long press in
recording
4. Mode Button
Video/playback mode switcher
5. Power on/off button: LCD on/off when
short press in power-on state.
6. Up Button:
Rewind during playback.
6
Take photo when short press in recording
7. OK Button:
Start/Stop recording
Confirm the setting
8. Down Button:
Forward during playback.
Mute/unmute when short press in video
mode.
9. Micro USB Socket: Connect car adaptor
provided to get electricity
10. Connection to suction mount provided
11. Speaker
12. Microphone: Audio recording
13. Reset Button: Press to restart device. (if
unresponsive)
14. Camera Lens
15. Charge Indicator:
Red: Charging
Green/yellow: Full charged
16. Status Indicator:
Blue: Power on
Flashing blue: Video recording
17. GPS Connector
18. Colour Screen
7
5. Getting Started
5.1 Installing your Device

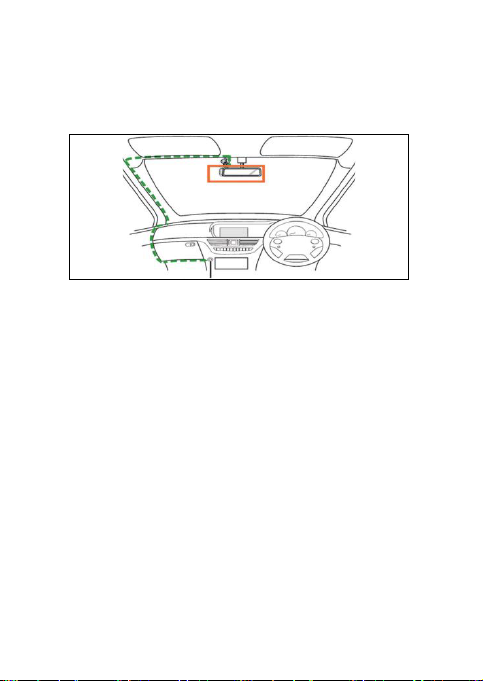

The above illustration refers to a right-hand drive car.
For left -hand drive cars, please flip the position of
the cable installation accordingly.
1). Install your device within the rear-view mirror area
and within the wiper cleaning area to get the clearest
possible view.
2). Your device comes with a 3.6m USB power cable.
Organise the power cord so that it does not interfere
with the driver's vision. Use cable clips to secure the
power cord if necessary.
3). Place the device on the windshield mount first.
Press the suction cup of the mount to the windshield
and press the lever to lock. Ensure the mount is
safely attached to the windshield.
4). When using the dashboard camera device in your
car, we recommend that you always use the cigarette
8
