BIOS User Guide
H310MHG / H310MDG2
2 | BIOS Update
BIOS Update
The BIOS can be updated using either of the following ulies:
• BIOSTAR BIOS Flasher: Using this ulity, the BIOS can be updated from a le on a hard disk, a
USB drive (a ash drive or a USB hard drive), or a CD-ROM.
• BIOSTAR BIOS Update Ulity: It enables automated updang while in the Windows
environment. Using this ulity, the BIOS can be updated from a le on a hard disk, a USB
drive (a ash drive or a USB hard drive), or a CD-ROM, or from the le locaon on the Web.
BIOSTAR BIOS Flasher
Note
» This ulity only allows storage device with FAT32/16 format and single paron.
» Shung down or reseng the system while updang the BIOS will lead to system boot failure.
Updang BIOS with BIOSTAR BIOS Flasher
1. Go to the website to download the latest BIOS le for the motherboard.
2. Then, copy and save the BIOS le into a USB ash (pen) drive.(Only supported FAT/FAT32
format)
3. Insert the USB pen drive that contains the BIOS le to the USB port.
4. Power on or reset the computer and then press <F12> during the POST process.
5. Aer entering the POST screen, the BIOS-
FLASHER ulity pops out. Choose <fs0> to search
for the BIOS le.
6. Select the proper BIOS le, and a message asking
if you are sure to ash the BIOS le. Click “Yes” to
start updang BIOS.
BIOS Update | 3
H310MHG / H310MHG2
7. A dialog pops out aer BIOS ash is completed,
asking you to restart the system. Press the <Y> key
to restart system.
8. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS
setup.
Aer entering the BIOS setup, please go to the <Save & Exit>, using the <Restore Defaults>
funcon to load Opmized Defaults, and select <Save Changes and Reset> to restart the
computer. Then the BIOS Update is completed.
BIOS Update Ulity (through the Internet)
1. Installing BIOS Update Ulity from the DVD Driver.
2. Please make sure the system is connected to the internet before using this funcon.

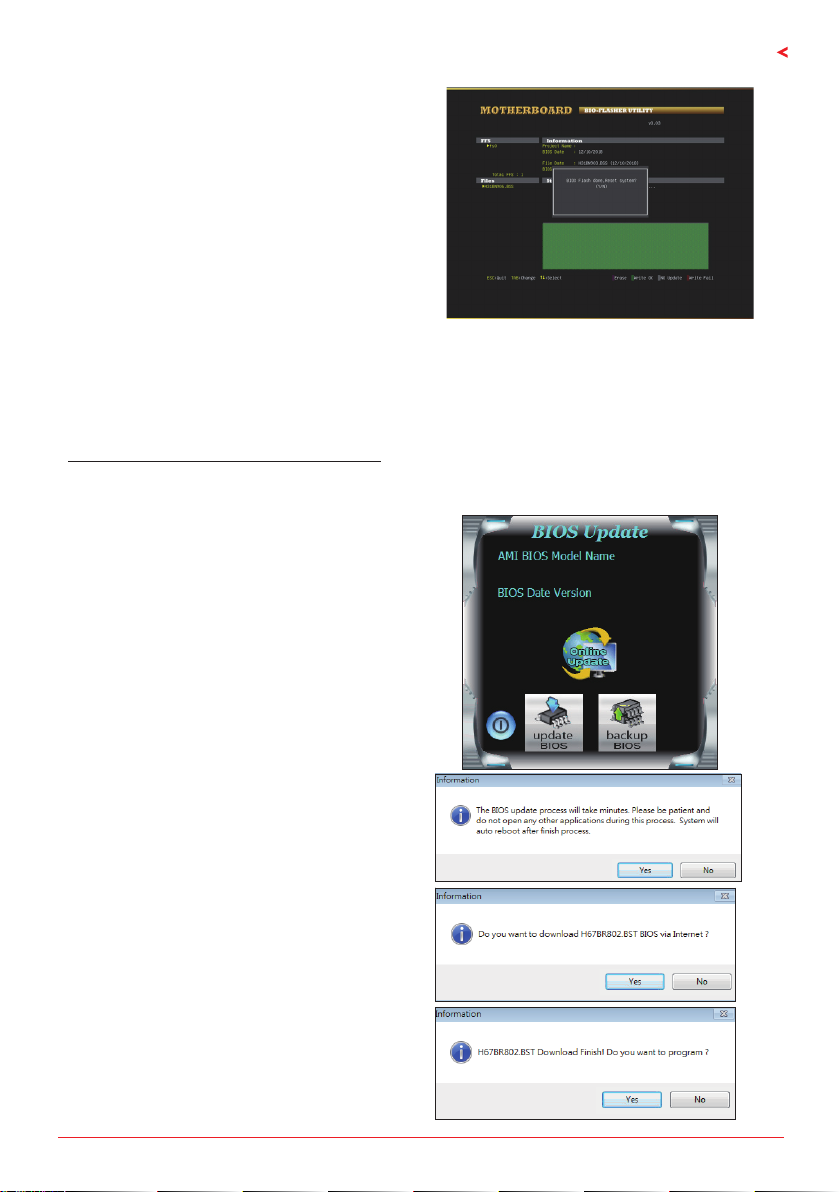

3. Launch BIOS Update Ulity and click the
“Online Update” buon on the main screen.
4. An open dialog will show up to request your
agreement to start the BIOS update. Click “Yes”
to start the online update procedure.
5. If there is a new BIOS version, the ulity will
ask you to download it. Click “Yes” to proceed.
6. Aer the download is completed, you will be
asked to program (update) the BIOS or not. Click
“Yes” to proceed.
4 | BIOS Update
7. Aer the updang process is nished, you
will be asked you to reboot the system. Click
“OK” to reboot.
8. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS
setup.
Aer entering the BIOS setup, please go to the <Save & Exit>, using the <Restore Defaults>
funcon to load Opmized Defaults, and select <Save Changes> and <Reset> to restart the
computer. Then, the BIOS Update is completed.
BIOS Update Ulity (through a BIOS le)
1. Installing BIOS Update Ulity from the DVD Driver.
2. Download the proper BIOS from hp://www.biostar.com.tw/
3. Launch BIOS Update Ulity and click the “Update
BIOS” buon on the main screen.
4. A warning message will show up to request your
agreement to start the BIOS update. Click “OK” to
start the update procedure.
5. Choose the locaon for your BIOS le in the
system. Please select the proper BIOS le, and
then click on “Open”. It will take several minutes,
please be paent.
UEFI BIOS Setup | 5
H310MHG / H310MHG2
6. Aer the BIOS Update process is nished, click
on “OK” to reboot the system.
7. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS
setup.
Aer entering the BIOS setup, please go to the <Save & Exit>, using the <Restore Defaults>
funcon to load Opmized Defaults, and select <Save Changes and Reset> to restart the
computer. Then, the BIOS Update is completed.

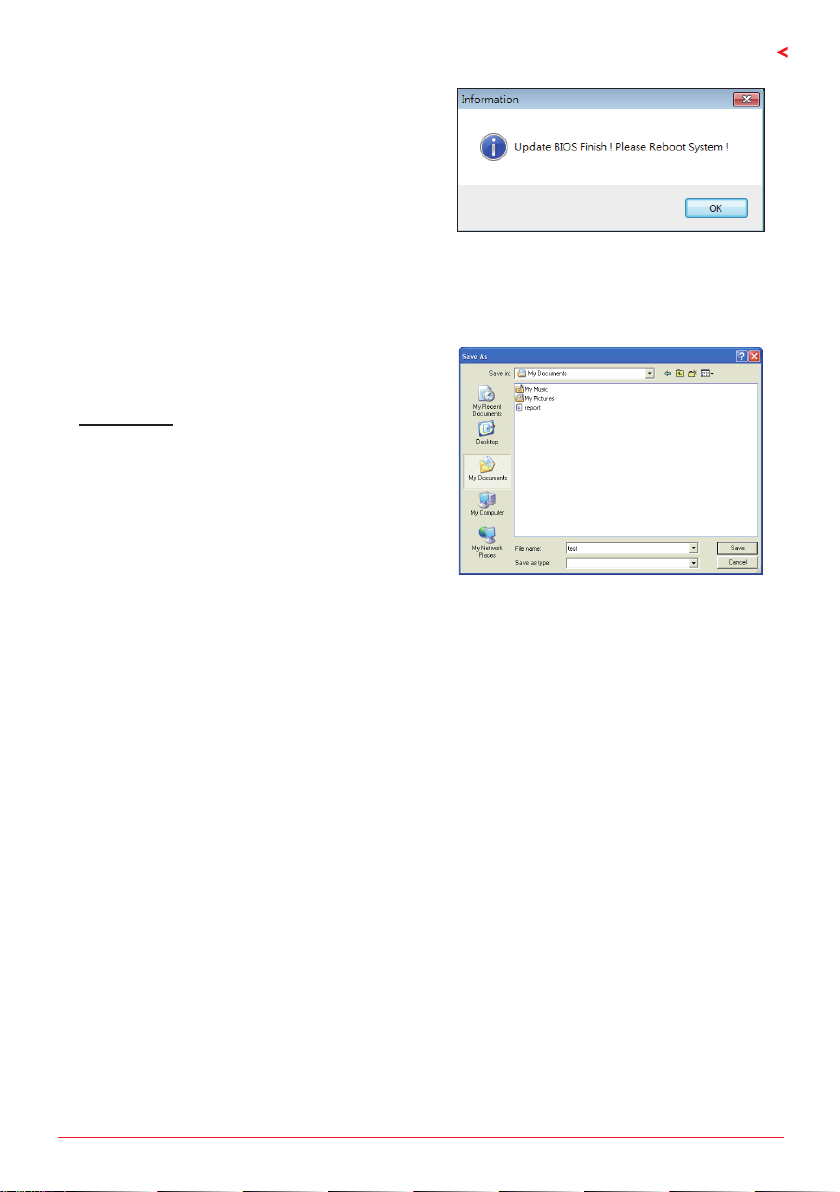

Backup BIOS
Click the Backup BIOS buon on the main screen
for the backup of BIOS, and select a proper
locaon for your backup BIOS le in the system,
and click “Save”.
6 | UEFI BIOS Setup
UEFI BIOS Setup
Introduction
The purpose of this manual is to describe the sengs in the AMI UEFI BIOS Setup program on this
motherboard. The Setup program allows users to modify the basic system conguraon and save
these sengs to NVRAM.
UEFI BIOS determines what a computer can do without accessing programs from a disk. This
system controls most of the input and output devices such as keyboard, mouse, serial ports and
disk drives. BIOS acvates at the rst stage of the boong process, loading and execung the
operang system. Some addional features, such as virus and password protecon or chipset
ne-tuning opons are also included in UEFI BIOS.
The rest of this manual will to guide you through the opons and sengs in UEFI BIOS Setup.
Plug and Play Support
This AMI UEFI BIOS supports the Plug and Play Version 1.0A specicaon.
EPA Green PC Support
This AMI UEFI BIOS supports Version 1.03 of the EPA Green PC specicaon.
ACPI Support
AMI ACPI UEFI BIOS support Version 1.0/2.0 of Advanced Conguraon and Power interface
specicaon (ACPI). It provides ASL code for power management and device conguraon
capabilies as dened in the ACPI specicaon, developed by Microso, Intel and Toshiba.
PCI Bus Support
This AMI UEFI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component Interconnect)
local bus specicaon.
Using Setup
When starng up the computer, press <Del> during the Power-On Self-Test (POST) to enter the
UEFI BIOS setup ulity.
In the UEFI BIOS setup ulity, you will see General Help descripon at the top right corner, and
this is providing a brief descripon of the selected item. Navigaon Keys for that parcular menu
are at the boom right corner, and you can use these keys to select item and change the sengs.
Note
»The default UEFI BIOS sengs apply for most condions to ensure opmum performance of the
motherboard. If the system becomes unstable aer changing any sengs, please load the default
sengs to ensure system’s compability and stability. Use Load Setup Default under the Exit Menu.
»For beer system performance, the UEFI BIOS rmware is being connuously updated. The UEFI BIOS
informaon described in this manual is for your reference only. The actual UEFI BIOS informaon and
sengs on board may be slightly dierent from this manual.
»The content of this manual is subject to be changed without noce. We will not be responsible for any
mistakes found in this user’s manual and any system damage that may be caused by wrong-sengs.
SMART FAN Control | 7
H310MHG / H310MHG2
SMART FAN Control
Press <F5> to display the SMART FAN Control menu.
1� CPU1/2 RPM & SYSTEM1/2 RPM: Click buon to set the status value of CPU and system fan.
2� PWM/Temperature Panel: According to the fan PWM value corresponding to CPU and system
temperature to adjust the fan speed.
»Allows you to adjust according to your preferences.
3� Temperature: Shows the current CPU and system temperature.
4� Control Mode: Allows you to control mode of the fans.
• Quiet: Enable Quiet mode.
• Aggressive: Enable Aggressive mode.
• Manual: Enable Manual mode.
• Full on: Enable Full On mode.
Note
»Menu contents will be dierent slightly, depending on dierent motherboard of users’ computers.
»Once you are nished making your selecons, choose the <Save & Exit> menu to save.
8 | 1. Main Menu
1� Main Menu

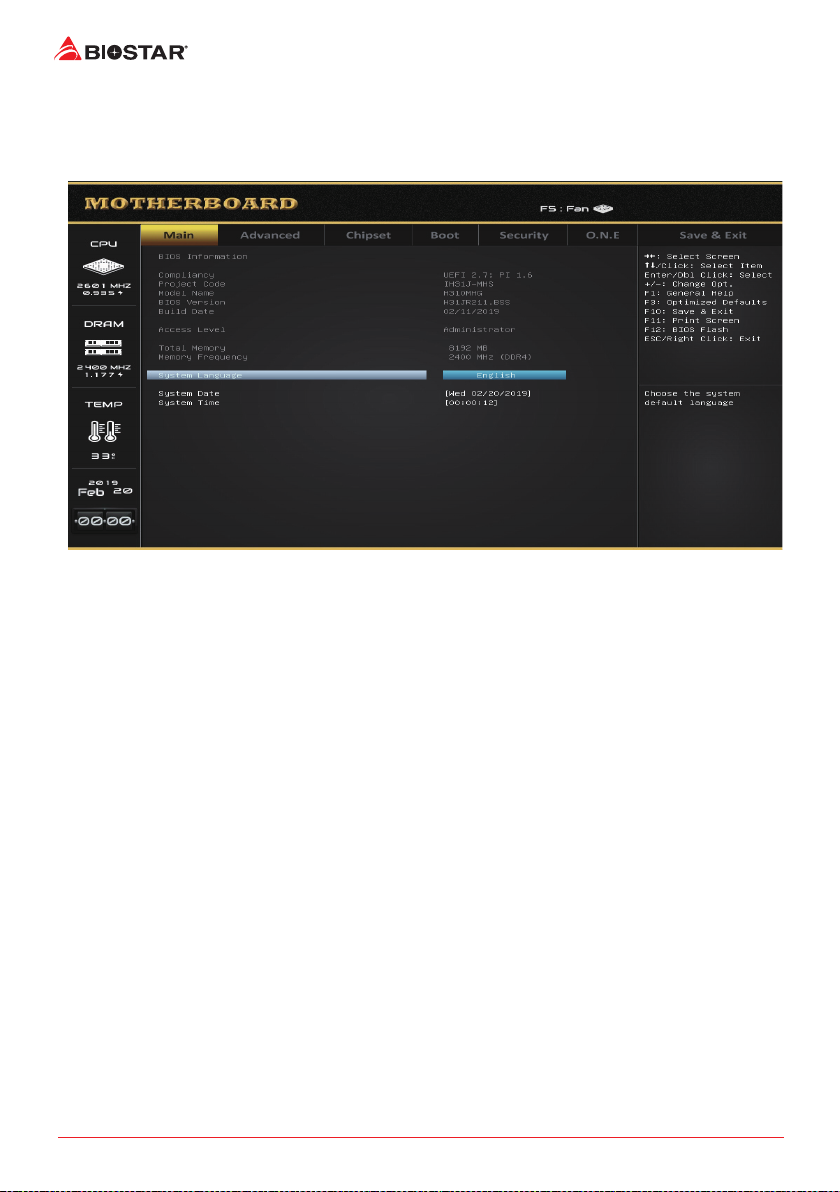

Once you enter AMI UEFI BIOS Setup Ulity, the Main Menu will appear on the screen providing
an overview of the basic system informaon.
BIOS Information
It shows system informaon including UEFI BIOS version, Project Code, Model Name, Build Date
and etc.
Total Memory
Shows system memory size, VGA shard memory will be excluded.
Memory Frequency
Shows the system memory frequency.
System Language
Choose the system default language.
System Date
Set the system date. Note that the ‘Day’ automacally changes when you set the date.
System Time
Set the system internal clock.
2. Advanced Menu | 9
H310MHG / H310MHG2
2� Advanced Menu
The Advanced Menu allows you to congure the sengs of CPU, Super I/O, Power Management,
and other system devices.
Note
»Beware of that seng inappropriate values in items of this menu may cause system to malfuncon.

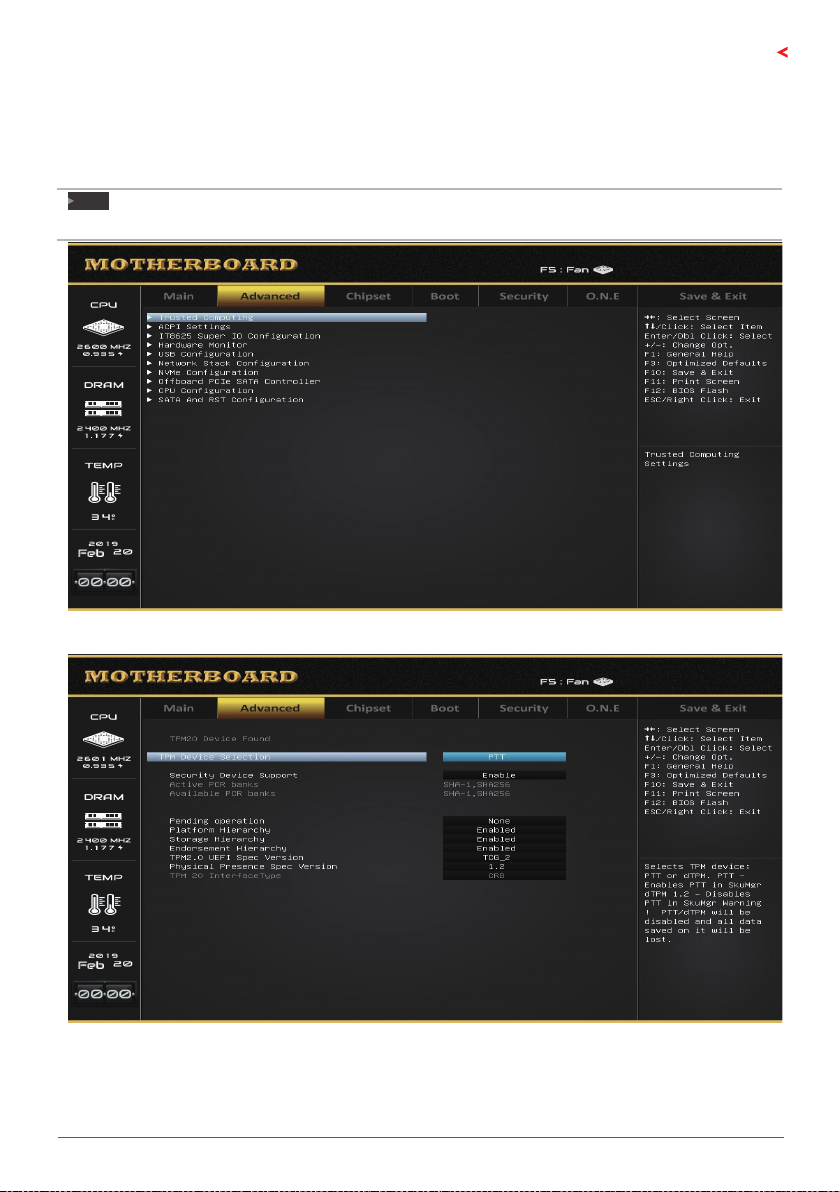

Trusted Computing
TPM Device Selecon
This item allows you to selects TPM device: PTT or dTPM. PTT - Enables PTT in SkuMgr dTPM 1.2 -
Disables PTT in SkuMgr Warning! PTT/dTPM will be disabled and all data saved on it will be lost.
Opons: PTT (Default) / dTPM
10 | 2. Advanced Menu
Security Device Support
This item enables or disables BIOS support for security device. O.S will not show Security Device.
TCG EFI protocol and INT1A interface will not be available.
Opons: Enabled (Default) / Disabled
Pending operaon
This item schedule an operaon for the security device.
Opons: None (Default) / TPM Clear
»Note: Your comuter will reboot during restart in order to change state of security device.
Plaorm Hierarchy
This item enables or disables Plaorm Hierarchy.
Opons: Enabled (Default) / Disabled
Storage Hierarchy
This item enables or disables Storage Hierarchy.
Opons: Enabled (Default) / Disabled
Endorsement Hierarchy
This item enables or disables Endorsement Hierarchy.
Opons: Enabled (Default) / Disabled
TPM2�0 UEFI Spec Version
This item allows you to select the TCG2 Spec Version Support. TCG_1_2: the compable mode for
Win8/ Win10; TCG_2: Support new TCG2 protocol and event format for Win10 or later.
Opons: TCG_2 (Default) / TCG_1_2
Physical Presence Spec Version
This item select to tell O.S. to support PPI Spec Version 1.2 or 1.3.
Opons: 1.2 (Default) / 1.3
»Note some HCK tests might not support 1.3.
