P45D2-A7/P43-A7 Setup Manual

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. There is no guarantee

that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the

contents here and specially disclaims any implied warranties of merchantability

or fitness for any purpose. Further the vendor reserves the right to revise this

publication and to make changes to the contents here without obligation to

notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first

obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and

we will not be responsible for any mistakes found in this user’s manual. All the

brand and product names are trademarks of their respective companies.

Table of Contents

Chapter 1: Introduction ............................................................ 1

1.1 Before You Start......................................................................................... 1

1.2 Package Checklist..................................................................................... 1

1.3 Motherboard Features.............................................................................. 2

1.4 Rear Panel Connectors.............................................................................. 3

1.5 Motherboard Layout................................................................................. 4

Chapter 2: Hardware Installation ............................................. 5

2.1 Installing Central Processing Unit (CPU) ............................................... 5

2.2 FAN Headers.............................................................................................. 7

2.3 Installing System Memory ........................................................................ 8

2.4 Connectors and Slots................................................................................ 10

Chapter 3: Headers & Jumpers Setup ..................................... 12

3.1 How to Setup Jumpers............................................................................. 12

3.2 Detail Settings .......................................................................................... 12

Chapter 4: Useful Help ............................................................ 19

4.1 Driver Installation Note.......................................................................... 19

4.2 Software .................................................................................................... 20

4.3 Extra Information.................................................................................... 24

4.4 AMI BIOS Beep Code............................................................................... 26

4.5 Troubleshooting....................................................................................... 27

Appendix: SPEC In Other Languages ...................................... 28

German.................................................................................................................. 28

France .................................................................................................................... 30

Italian..................................................................................................................... 32

Spanish ................................................................................................................... 34

Portuguese ............................................................................................................ 36

Polish...................................................................................................................... 38

Russian ................................................................................................................... 40

Arabic..................................................................................................................... 42

Japanese ................................................................................................................ 44

P45D2-A7/P43-A7

CHAPTER 1: INTRODUCTION

1.1 BEFORE YOU START

Thank you for choosing our product. Before you start installing the

motherboard, please make sure you follow the instructions below:

Prepare a dry and stable working environment with

sufficient lighting.

Always disconnect the computer from power outlet

before operation.

Before you take the motherboard out from anti-static

bag, ground yourself properly by touching any safely

grounded appliance, or use grounded wrist strap to

remove the static charge.

Avoid touching the components on motherboard or the

rear side of the board unless necessary. Hold the board

on the edge, do not try to bend or flex the board.

Do not leave any unfastened small parts inside the

case after installation. Loose parts will cause short

circuits which may damage the equipment.

Keep the computer from dangerous area, such as heat

source, humid air and water.

1.2 PACKAGE CHECKLIST

IDE Cable X 1

Serial ATA Cable X 1

Rear I/O Panel for ATX Case X 1

User’s Manual X 1

Fully Setup Driver CD X 1

FDD Cable X 1 (optional)

USB 2.0 Cable X1 (optional)

Serial ATA Power Cable X 1 (optional)

Note: The package contents may differ by area or your motherboard version.

Motherboard Manual

1.3 MOTHERBOARD FEATURES

P45D2-A7 P43-A7

CPU

LGA 775

Intel Core2Duo / Core2Quad /

Pent iu m D ua l-Co re / C e lero n Du al-Co re /

Celeron 4xx processor

Supports Execute Disable Bit / Enhanced Intel

SpeedStep® / Intel Architecture-64 / Extended

Memory 64 Technology / Virtualization

Technology

LGA 775

Intel Core2Duo / Core2Quad /

Pent iu m D ua l-Co re / C e lero n Du al-Co re /

Celeron 4xx processor

Supports Execute Disable Bit / Enhanced Intel

SpeedStep® / Intel Architecture-64 / Extended

Memory 64 Technology / Virtualization

Technology

FSB Support 800 / 1066 / 1333 / 1600 MHz Support 800 / 1066 / 1333 / 1600 MHz

Chipset Intel P45

Int el ICH1 0

Intel P43

Int el ICH1 0

Super I/O

ITE 8718F

Provides the most commonly used legacy Super

I/O functionality.

Low Pin Count Interface

Env iro nm ent Co ntrol in it iat ives ,

Hardware Monitor Controller

Fan Speed Contro ller

ITE's "S mart Guard ian" funct ion

ITE 8718F

Provides the most commonly used legacy Super

I/O functionality.

Low Pin Count Interface

Env iro nm ent Co ntrol in it iat ives ,

Hardware Monitor Controller

Fan Speed Contro ller

ITE's "S mart Guard ian" funct ion

Main

Memory

DIMM Slots x 4

Each DIMM supports 256MB / 512MB / 1GB /

2GB DDR2

Max Memory Capicity 8GB

Dual Channel Mode DDR2 memory modu le

Supports DDR2 1066 / 800 / 667

Registered DIMM and ECC DIMM is not

supported

DIMM Slots x 4

Each DIMM supports 256MB / 512MB / 1GB /

2GB DDR2

Max Memory Capicity 8GB

Dual Channel Mode DDR2 memory modu le

Supports DDR2 1066 / 800 / 667

Registered DIMM and ECC DIMM is not

supported

IDE

JMicro JMB368

Ultra DMA 33 / 66 / 100 / 133 Bus Master Mode

supports PIO Mode 0~4

JMicro JMB368

Ultra DMA 33 / 66 / 100 / 133 Bus Master Mode

supports PIO Mode 0~4

SATA 2

Integrated Serial ATA Controller

Data transfer rates up to 3.0 Gb/s.

SATA Version 2.0 specif icat ion co mp liant

Integrated Serial ATA Controller

Data transfer rates up to 3.0 Gb/s.

SATA Version 2.0 specif icat ion co mp liant

LAN

Realtek RTL 8111C

10 / 100 / 1000 Mb/s auto negotiation

Half / Full duplex capability

Realtek RTL 8111C

10 / 100 / 1000 Mb/s auto negotiation

Half / Full duplex capability

Sound

Codec

ALC662

5.1 channels audio out

High Definition Audio

ALC662

5.1 channels audio out

High Definition Audio

P45D2-A7/P43-A7

P45D2-A7 P43-A7

PCI slot x3 PCI slot x3

PCI Express Gen2 x 16 slot x1 PCI Express Gen2 x 16 slot x1

Slots

PCI Express x 1 slot x1 PCI Express x 1 slot x1

Floppy connector x1 Floppy connector x1

Printer Port Connector x1 Printer Port Connector x1

Serial port Connector x1 Serial port Connector x1

IDE C onn ector x 1 IDE Co nn ect or x 1

SATA Connector x6 SATA Connector x6

Front Panel Connector x1 Front Panel Connector x1

Front Audio Connector x1 Front Audio Connector x1

CD-in Connector x1 CD-in Connector x1

CPU Fan header x1 CPU Fan header x1

System Fan header x1 System Fan h eader x1

Clear C MOS header x1 Clear CMOS header x1

USB connector x3 USB connector x3

Power Connector (24pin) x1 Power Connector (24pin) x1

On Board

Connector

Power Connector (4pin) x1 Power Connector (4pin) x1

Back Panel

I/O

PS/2 Keyboard x1

PS/2 Mouse x1

LAN port x1

USB Port x6

Audio Jack x3

PS/2 Keyboard x1

PS/2 Mouse x1

LAN port x1

USB Port x6

Audio Jack x3

Board Size 205 (W) x 305 (L) mm 205 (W) x 305 (L) mm

OS Support

Windows 2000 / XP / VISTA

Biostar Reserves the right to add or remove

support for any OS with or without notice

Windows 2000 / XP / VISTA

Biostar Reserves the right to add or remove

support for any OS with or without notice

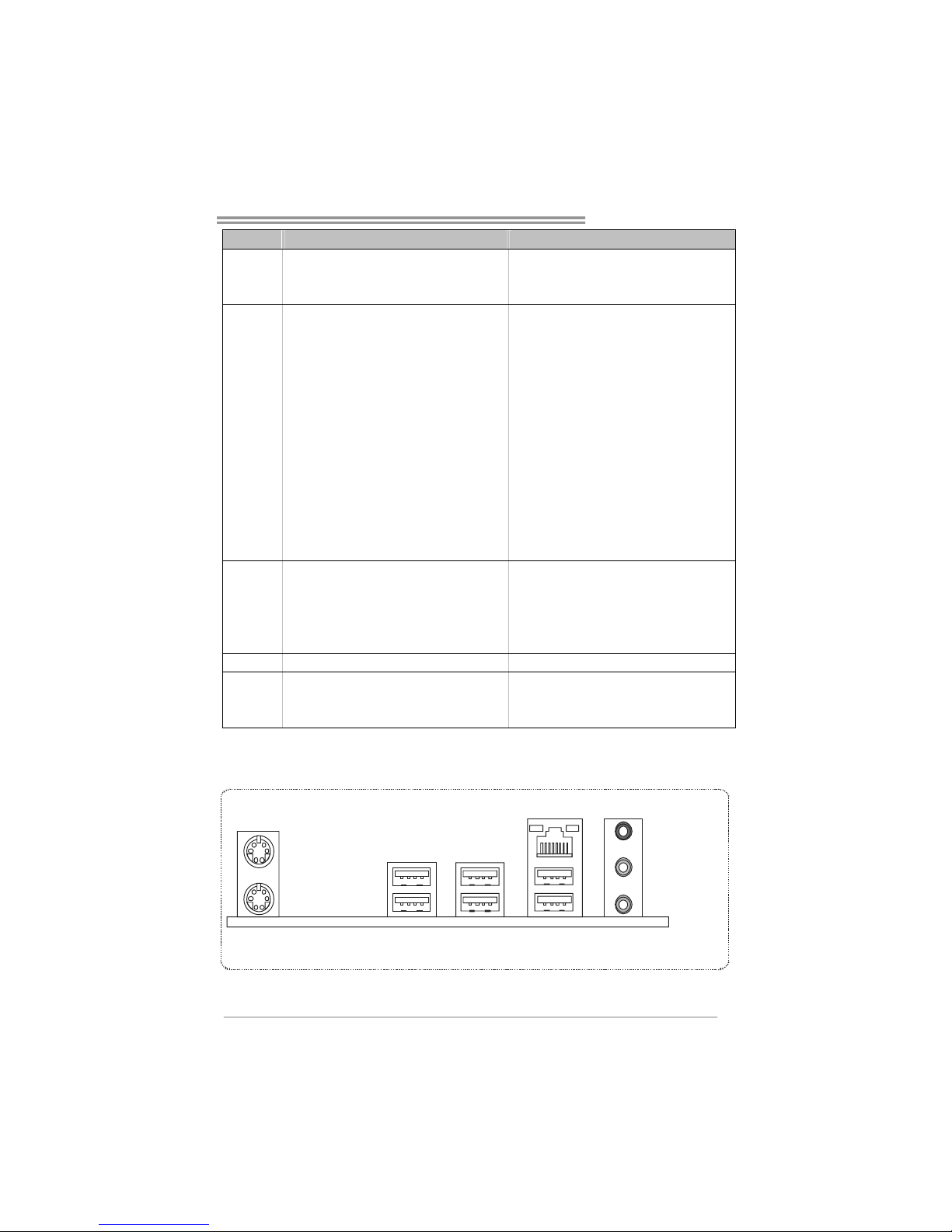

1.4 REAR PANEL CONNECTORS

PS/2

Mouse

PS/2

Keyboard

USBX2 USB X2

LAN

USBX2

Line In/

Surround

Line Out

Mic In 1/

Bass/ Center

Motherboard Manual

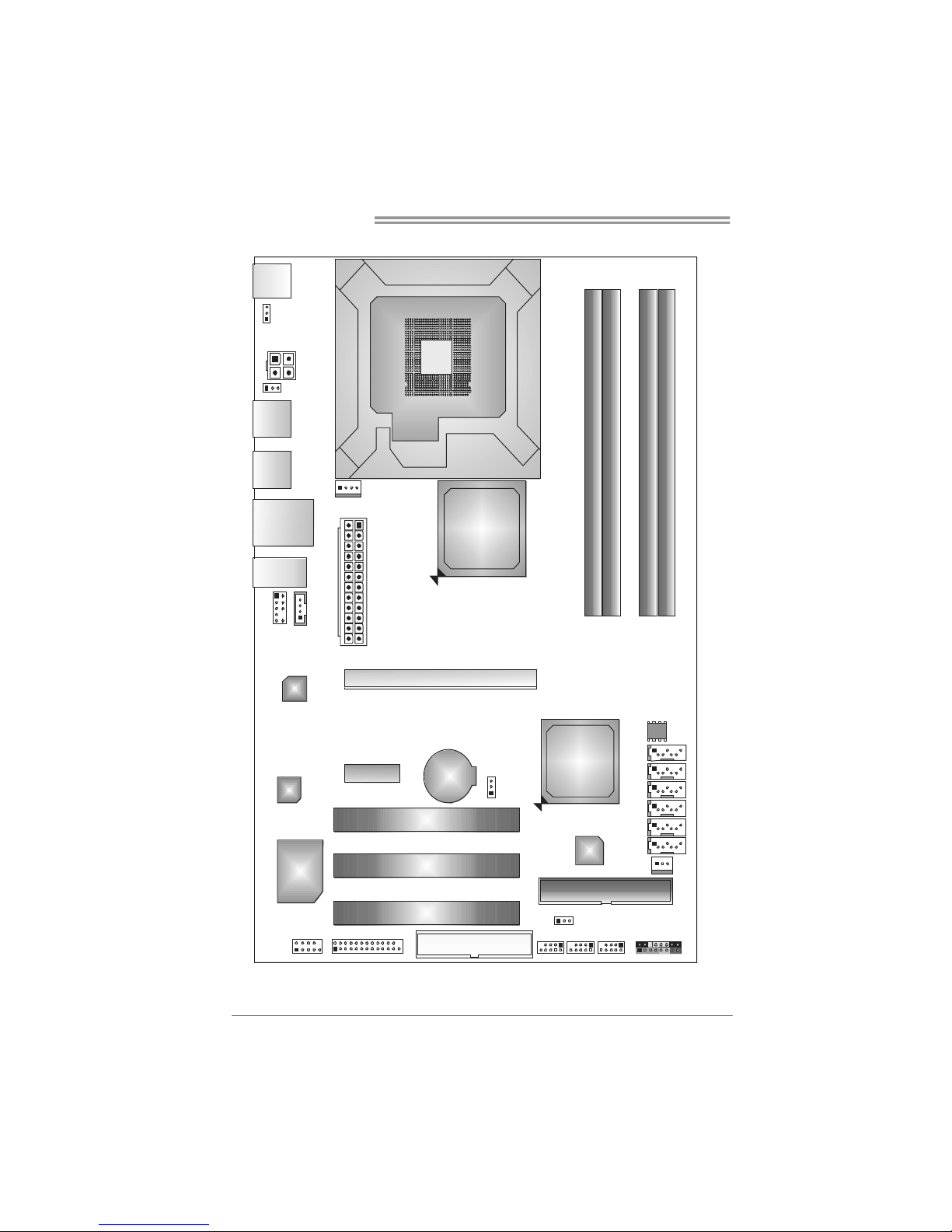

1.5 MOTHERBOARD LAYOUT

BIOS

FDD1

PEX16_1

PCI1

PCI2

JATXPWR2

JCFAN1

JAT XP WR1

SATA1

SATA5

CODEC

JSFAN1

BAT1

LGA775

CPU1

JKBMS1

JUSB2

JRJ45USB1

IDE1

SATA2

SATA6

DDR2_A1

DDR2_B1

DDR2_A2

DDR2_B2

IDE

Super

I/O

JUSB1

PEX1_1

PCI3

JC MOS1

JPRNT1

JUSB4

JC OM 1

JA UDI O F1

JUSB 3

JPANEL1

JUSB5

Intel

P45/P43

Intel

ICH10

JAUDIO1

LAN

SATA4

SATA3

JKBV1

JU SBV 1

JCDIN1

JUSBV2

Note: represents the 1■st pin.

P45D2-A7/P43-A7

CHAPTER 2: HARDWARE INSTALLATION

2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)

Special Notice:

Remove Pin Cap before installation, and make good preservation

for future use. When the CPU is removed, cover the Pin Cap on the

empty socket to ensure pin legs won’t be damaged.

Pin Cap

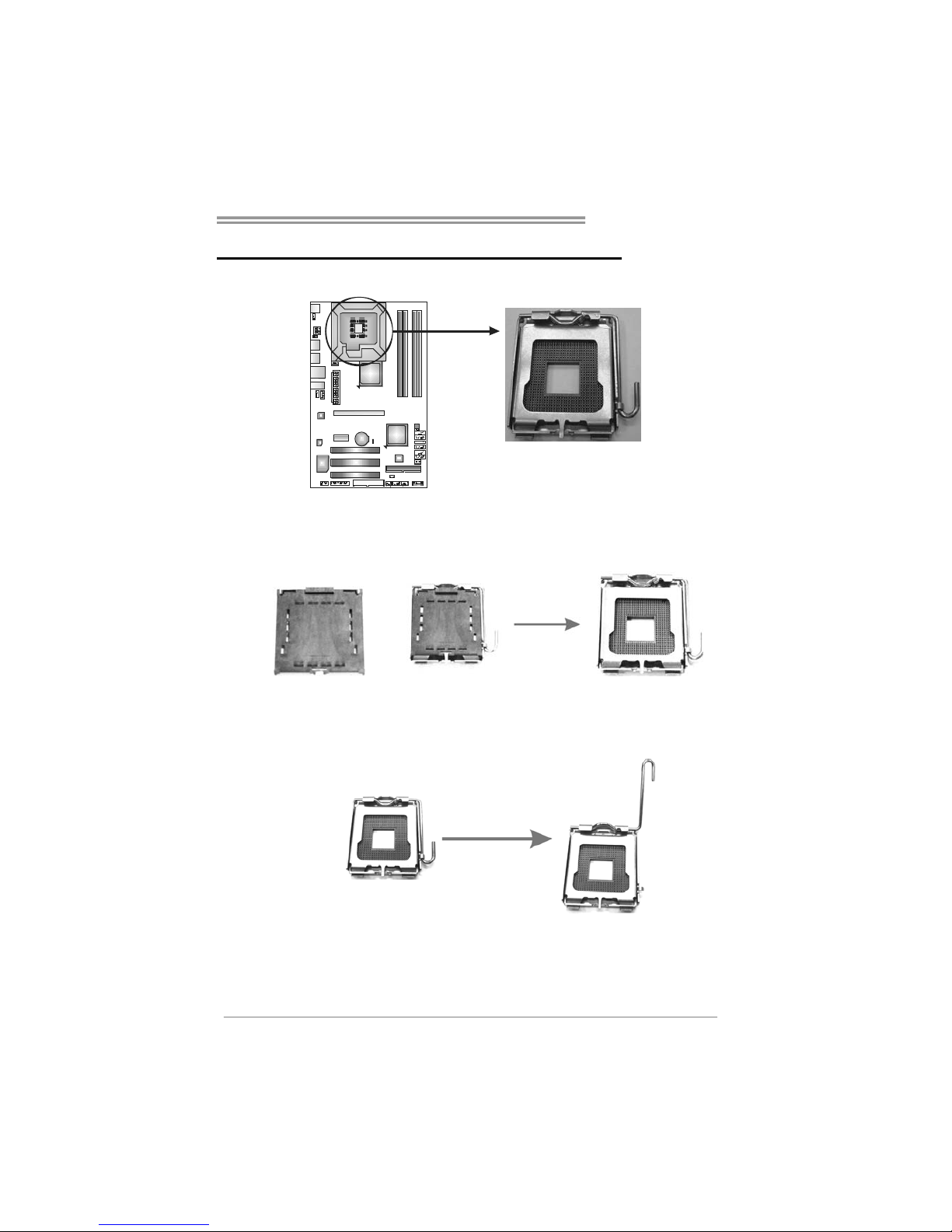

Step 1: Pull the socket locking lever out from the socket and then raise

the lever up to a 90-degree angle.

Motherboard Manual

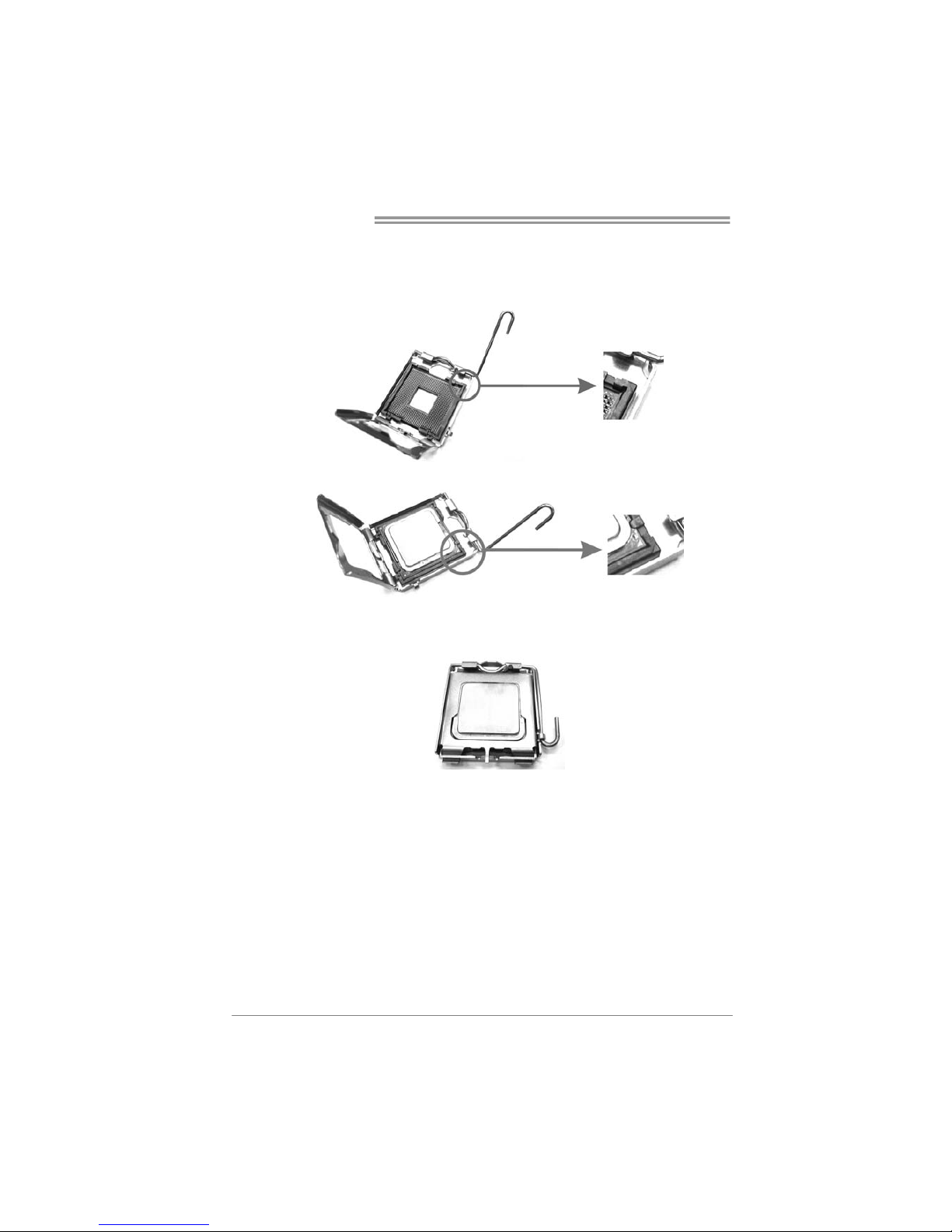

Step 2: Look for the triangular cut edge on socket, and the golden dot on

CPU should point forwards this triangular cut edge. The CPU will

fit only in the correct orientation.

Step 2-1:

Step 2-2:

Step 3: Hold the CPU down firmly, and then lower the lever to locked

position to complete the installation.

Step 4: Put the CPU Fan and heatsink assembly on the CPU and buckle it

on the retention frame. Connect the CPU FAN power cable into

the JCFAN1. This completes the installation.

P45D2-A7/P43-A7

2.2 FAN HEADERS

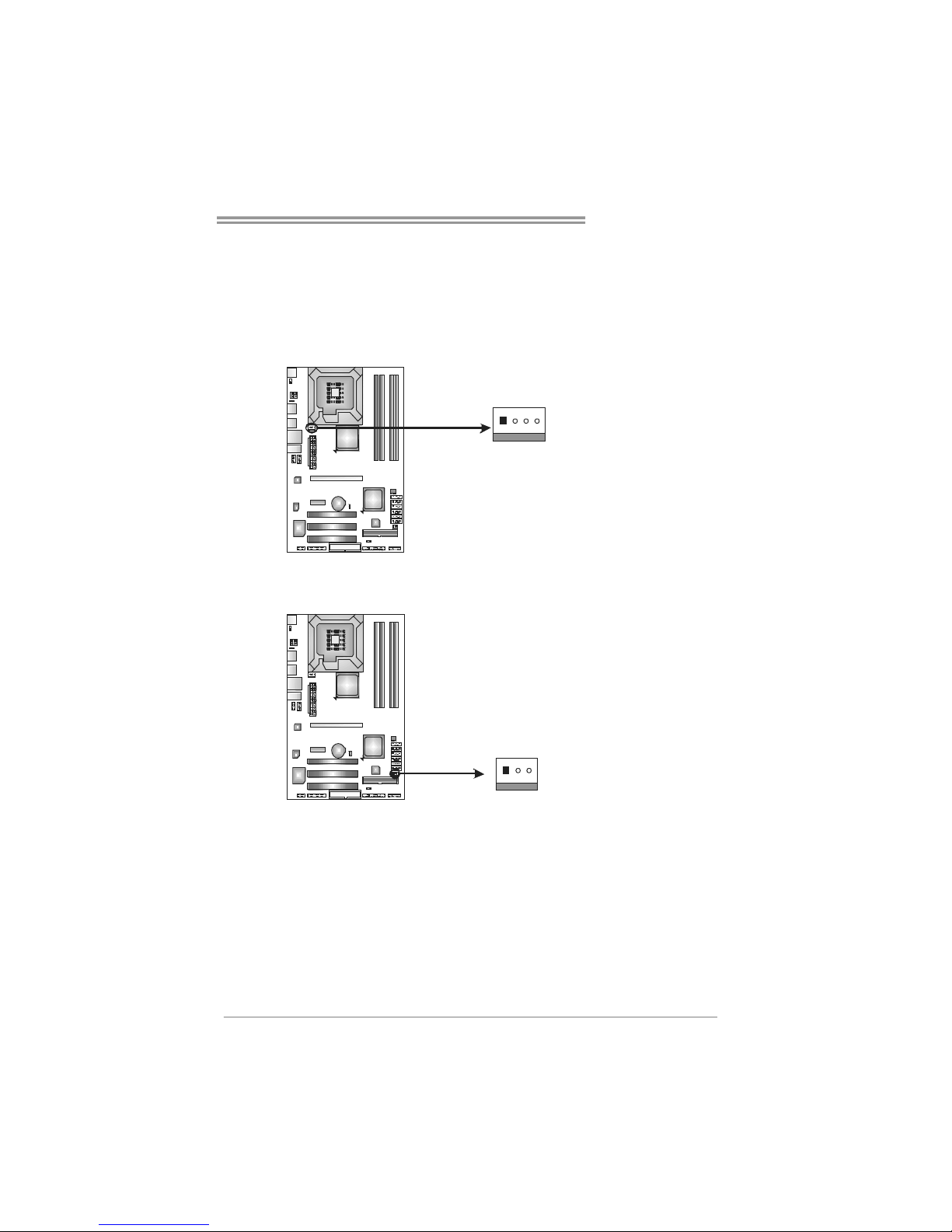

These fan headers support cooling-fans built in the computer. The fan

cable and connector may be different according to the fan manufacturer.

Connect the fan cable to the connector while matching the black wire to

pin#1.

JCFAN1: CPU Fan Header

Assignment

1 Ground

2 +12V

3 FAN R PM rate

sense

4 Smart Fan

Control

JSFAN1: System Fan Header

Assignment

1 Ground

2 +12V

3 FAN RPM rate

sense

Note:

The JSFAN1 support 3-pin head connector, and the JCFAN1 supports 4-pin head

connector. When connecting with wires onto connectors, please note that the red wire is

the positive and should be connected to pin#2, and the black wire is Ground and should

be connected to GND.

Motherboard Manual

2.3 INSTALLING SYSTEM MEMORY

A. Memory Modules

DDR2_A1

DDR2_B1

DDR2_A2

DDR2_B2

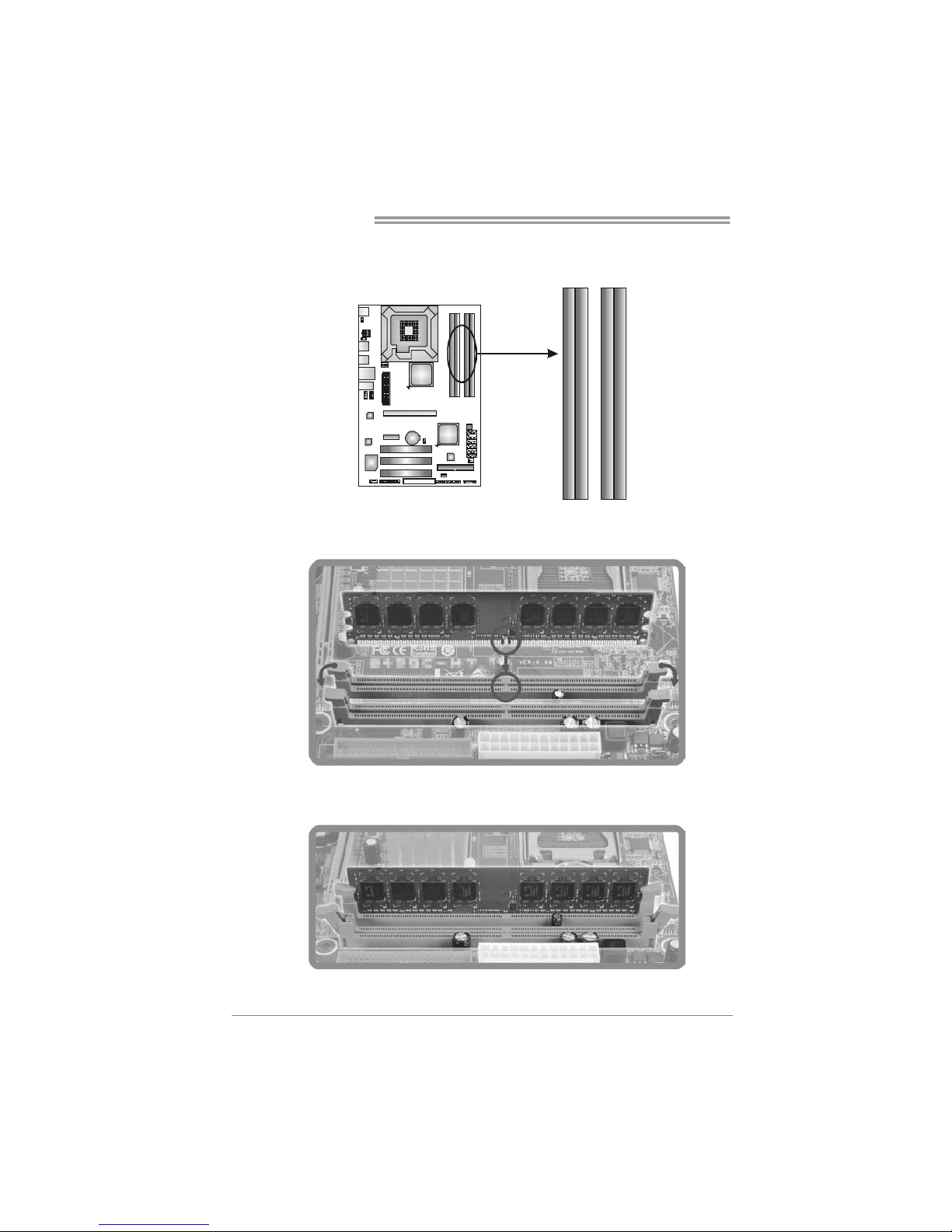

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a

DIMM on the slot such that the notch on the DIMM matches the

break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining

chip snap back in place and the DIMM is properly seated.

Altri manuali per P43-A7

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Biostar Scheda madre

Biostar

Biostar H81MDC-LSP Guida utente

Biostar

Biostar A55MH Guida utente

Biostar

Biostar M7VKB Manuale utente

Biostar

Biostar H61MGE Guida utente

Biostar

Biostar G41 HD Guida utente

Biostar

Biostar TP61A Manuale utente

Biostar

Biostar N4SLI-A9 Guida utente

Biostar

Biostar P4 TPT Guida utente

Biostar

Biostar K8M800 MICRO AM2 Guida utente

Biostar

Biostar TA760G M2+ Guida utente

Biostar

Biostar B365MHC Manuale utente

Biostar

Biostar P4M890-M7 TE Guida utente

Biostar

Biostar A770E - BIOS Guida utente

Biostar

Biostar P4VMA-M Istruzioni per l'uso e l'installazione

Biostar

Biostar M6TSS Manuale utente

Biostar

Biostar TA790GX3 A2 PLUS - BIOS Manuale utente

Biostar

Biostar H410MHG Manuale utente

Biostar

Biostar B365GTQ Manuale utente

Biostar

Biostar P4 TPT Manuale utente

Biostar

Biostar TA760GE - SETUP Guida utente

Biostar

Biostar P4 TDQ Istruzioni per l'uso e l'installazione

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Biostar

Biostar G41U3G Guida utente

Biostar

Biostar H67MH Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
