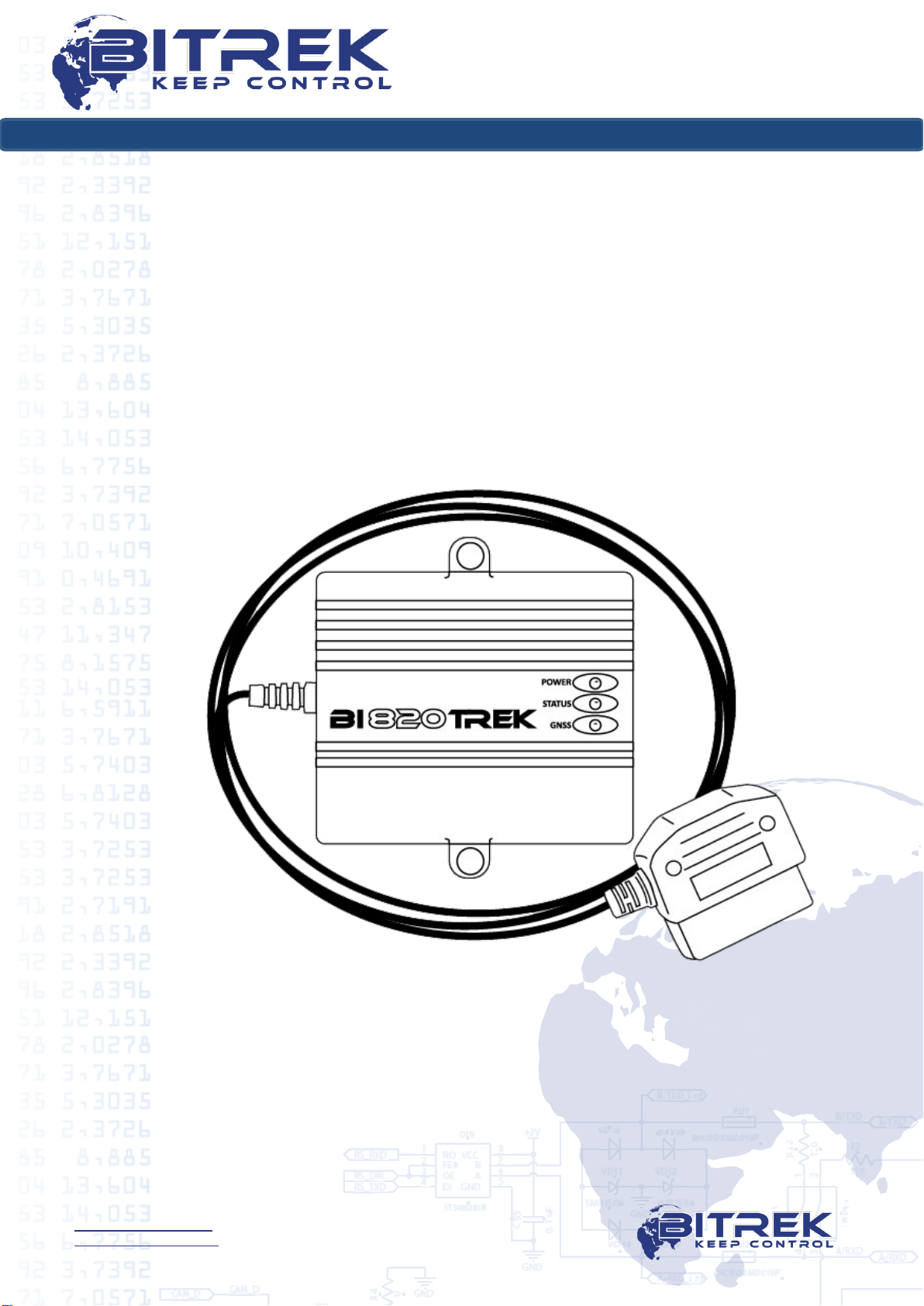

Vehicles Tracking Device

BI-820OBD TREK

Operating Manual

Version 2018.11.1

2


www.bitrek.com.ua
[email protected]om.ua
+380 44 507 02 07

Table of Contents
Introduction............................................................................................3
Safety Requirements for Installation and Maintenance of Tracking
Device "BI-820OBD TREK".....................................................................3
Transportation and Storage ...................................................................3
Warranty............................................................................................. 3
Device.................................................................................................... 3
Intended Use of the Device.................................................................... 3
Principle of Operation ...........................................................................4
Specifications ......................................................................................4
Tracking device design..........................................................................5
Scope of Delivery .................................................................................6
Preparation for Operation .........................................................................6
Inserting SIM–Card ..............................................................................6
Contact assignment .............................................................................. 7
Installation and Commissioning .................................................................7
Installation Guide .................................................................................7
Connection to a Computer ..................................................................... 8
Indicators Description ........................................................................... 9
List of SMS Commands.............................................................................9
Structure of the SMS Commands............................................................9
Configuring the Device........................................................................ 10
Detailed Description of Information Commands ...................................... 12
Detailed Description of Controlling Commands ....................................... 13
Basic Device Configuration .................................................................. 15
Security Settings ................................................................................... 15
Configuring I/O Components................................................................... 16
Configuring Alarms ................................................................................ 20
Description of Operator Selection Modes................................................... 21
Configuring Roaming Settings ................................................................. 21
Use of Backup Server............................................................................. 23
Addendum 1. Device parameters ............................................................. 24
Addendum 2. List of I/O Components....................................................... 31
Addendum 3. List of available OBD-II parameters...................................... 35






www.bitrek.com.ua

[email protected]om.ua

+380 44 507 02 07

Introduction

Safety Requirements for Installation and Maintenance of

Tracking Device "BI-820OBD TREK"

Compliance with the safety precautions is the responsibility of

technical personnel installing the tracking device, as well as employees in

charge of equipment on site.

To avoid damage to the device, please, keep it in a stress-resistant

case. Before using the device, please, place it so that its status LED

indicators are clearly visible. Prior to dismantling outputs of the device,

please, disconnect its power supply unit.

Transportation and Storage

The tracking device in the manufacturer's package can be

transported by any closed land and sea transport mode (in railroad cars,

containers, closed trucks, cabins, etc.). It can also be transported in

heated aircraft cabins.

When transporting and storing the device, the package instructions

on the labels must be observed.

Warranty

The warranty period for the tracking device shall be 12 months of

the date of commissioning. The commissioning date must be recorded

per requirements set forth in the certificate for the tracking device; if no

such data are available in the certificate, the warranty period shall be

counted starting with the tracking device shipment to the customer.

Manufacturer's warranty shall only be valid provided that the

customer complies with the requirements of this Manual. In the event of

their violation, or in the presence of mechanical or electrical damage

caused by the factors that are not covered in this Manual, the Warranty

shall be deemed void.

Device

Intended Use of the Device

Tracking device BI-820OBD TREK is used to solve problems of

navigation and control over the transport standard. The device is

intended for use on moving objects equipped with OBD-II diagnostic

connector and is used to solve problems:

• Determination of geographic coordinates, speeds and directions of

movement;

• Data collection from the on-board computer of cars through the

OBD-II interface;

www.bitrek.com.ua

[email protected]om.ua

+380 44 507 02 07

• Data transfer to a server for processing data processing in

specialized software.

GSM 900/1800 mobile or GSM 850/900/1800/1900 carrier network

is used as a medium for data transfer. To determine the coordinates,

NAVSTAR GPS system is used. To detect vehicle movement, the data

obtained from GPS or GPS/GLONASS and internal acceleration meter are

used.

Principle of Operation

In real time, the tracking device:

using an in-built GPS or GPS/GLONASS receiver, determines the

location and motion parameters of an object (time, geographical

coordinates, speed, direction of travel);

• determines with the help of the built-in GPS or GPS / GLONASS

receiver of the data and time of the object (time, geographical

coordinates, speed, direction of movement);

• collects and processes information from the on-board computer

of the car;

The data obtained are recorded and stored in the internal log that

is based on a non-volatile memory chip. Records from this log are

transferred to the operator panel through a GSM channel with a

predetermined frequency or on an event basis. Information exchange is

done via GPRS and SMS. Voice communication is also supported.

On-line terminal operation is only possible provided there is GSM

coverage. Beyond the GSM network coverage area, the tracking device is

in the mode of a "black box", i.e. it records all logged information to the

non-volatile memory and transfers it when a vehicles enters into a GSM

coverage area.

Specifications

Table 1. Device Specifications

Item

Specification

Data transfer standard

GSM 900/1800 or GSM

850/900/1800/1900

GSM network communication

channel

GPRS, SMS

GPRS klass

GPS and GSM antennas

Внутренние

Navigation system type

GPS или GPS/ГЛОНАСС

Connection standard to the onboard

computer of the vehicle

OBD-II

www.bitrek.com.ua

[email protected]om.ua

+380 44 507 02 07

Item

Specification

Motion sensor

Accelerometer

Number of SIM cards

Supported protocols

ISO 15765-4 (CAN);

ISO 14230-4 (KWP2000);

ISO 9141-2 (Asian, European,

Chrysler vehicles)

Voltage

12 V or 24 V

Normal input current (12 V)

60 mA

Max. current (12 V)

350 mА

Non-volatile memory capacity

2 MB (65 000 records)

Internal battery Li-Ion

1 000 mАh

Operating temperature

От -30°С до +80°С

Dimensions (W х L х H)

85 х 95 х 33 mm

Weight

200 gr.

Housing protection class

IP65

Tracking device design

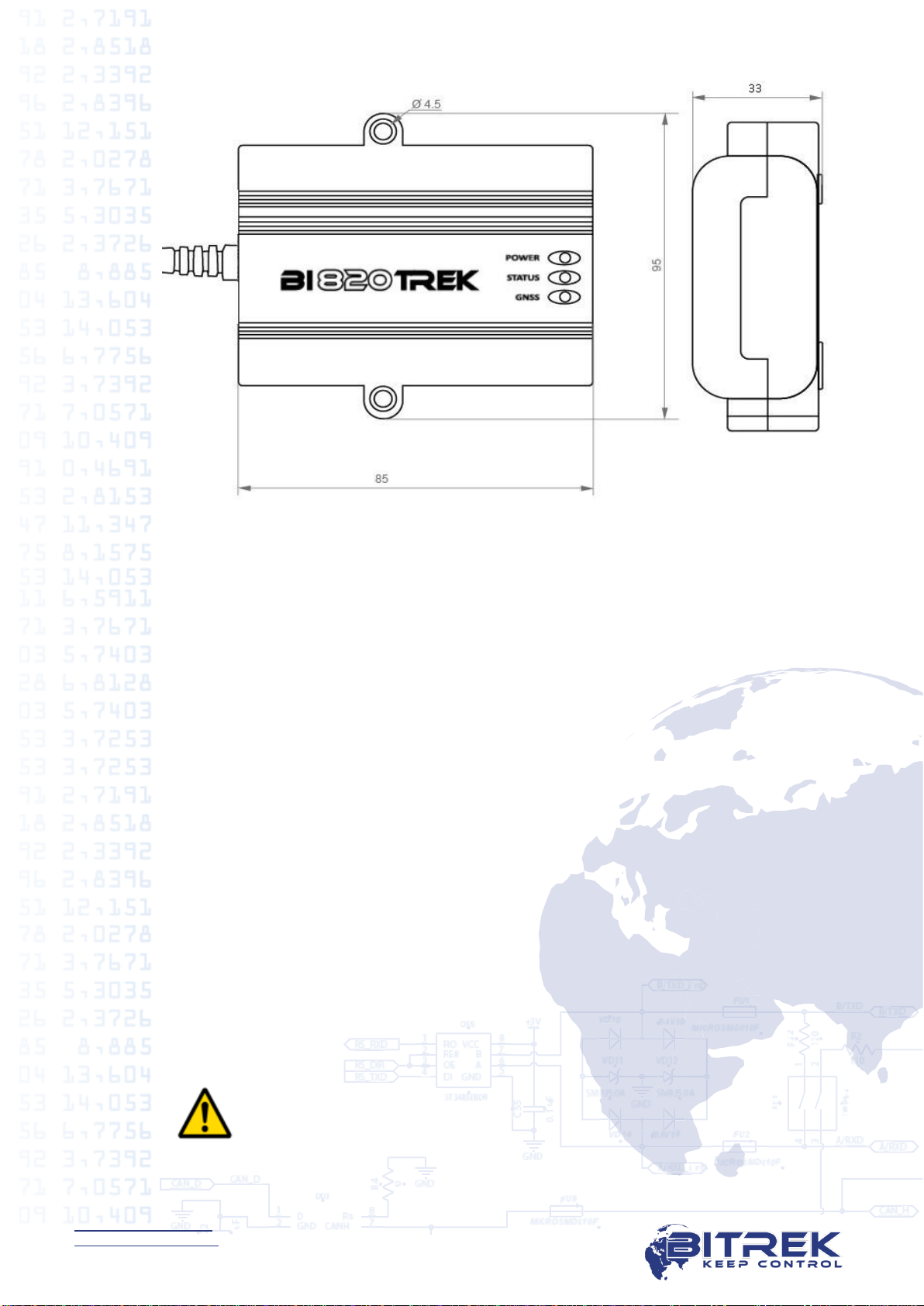

Fig. 1. Appearance and Dimensions of Tracking Device BI-820OBD TREK.

www.bitrek.com.ua

[email protected]om.ua

+380 44 507 02 07

Scope of Delivery

1. Tracking Device BI-820OBD TREK - 1 pc.

2. Certificate –1 pc.

3. Warranty sheet –1 pc.

4. Packing box –1 pc.

Preparation for Operation

Inserting SIM–Card

To operate on a GSM network, a SIM-card has to be inserted into

the device. Contacts of the SIM-card must not be saved, PIN-code must

be disabled (a SIM-card with an enabled PIN-code can be used provided

that the PIN-code has been entered into the device settings).

To insert a SIM-card all device connectors must be disconnected

and its top cover must be removed. There is a slot on the top of the

circuit board. Then the device has to be reassembled in the reversed

order.

ATTENTION! The manufacturer does not supply a SIM-

card necessary for connecting to a GSM network!

www.bitrek.com.ua

[email protected]om.ua

+380 44 507 02 07

Contact assignment

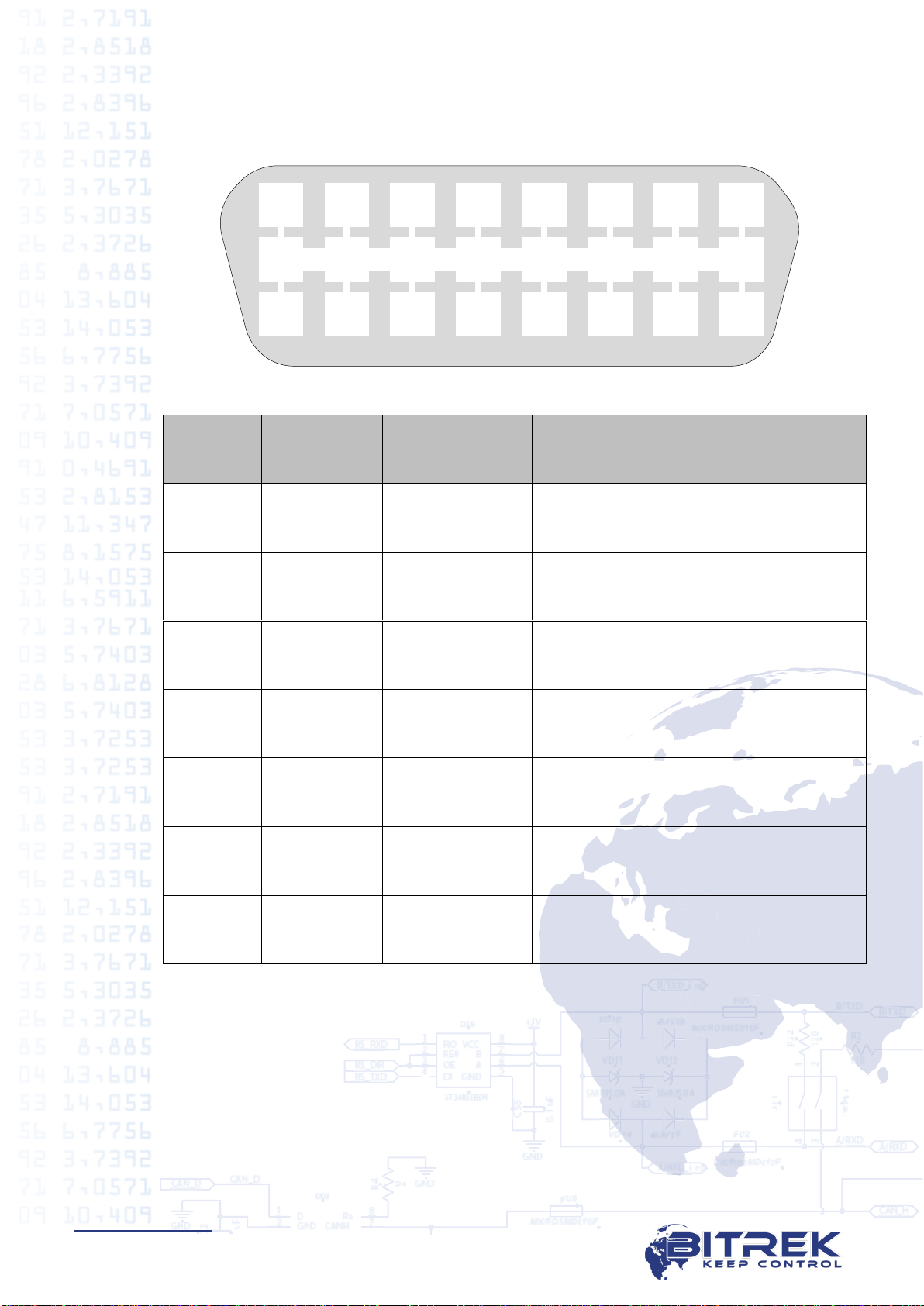

Fig. 2. BI-820OBD TREK Contact Pins

87654321

16 15 14 13 12 11 10 9

Table 2. Pin legends

number

legend

Signal type

Purpose

P-GND

Power

Common wire (ground)

GND

Power

Signal ground

CAN-H

Input/Output

«CAN_H» signal

(J-2284)

K Line

Input/Output

Data transmission/reception line

(SAE)

CAN-L

Input/Output

«CAN_L» signal

(J-2284)

Line ISO

Input/Output

Diagnostic line

(SAE)

+Vin

Power

"+" on-board power terminal

(nominal voltage is 12 VDC or 24

VDC)

Installation and Commissioning

Installation Guide

Tracking device location must ensure connections of OBD-II sockets

and avoid potential of accidental damage; it also must eliminate

exposure to direct sunlight, moisture, etc.

www.bitrek.com.ua

[email protected]om.ua

+380 44 507 02 07

Cables must be located and clamped along the entire length with

straps clamped to the clamping sites. Cabling must be done so as to

avoid any damage during the operation, when closing doors/hatches.

Connection to a Computer

The tracking device can be connected to a computer for

configuration and servicing. The device has UART output interface for

that purpose. In order to connect the device to a computer a USB-UART

adapter should be used that can be purchased from the dealer as an

option.

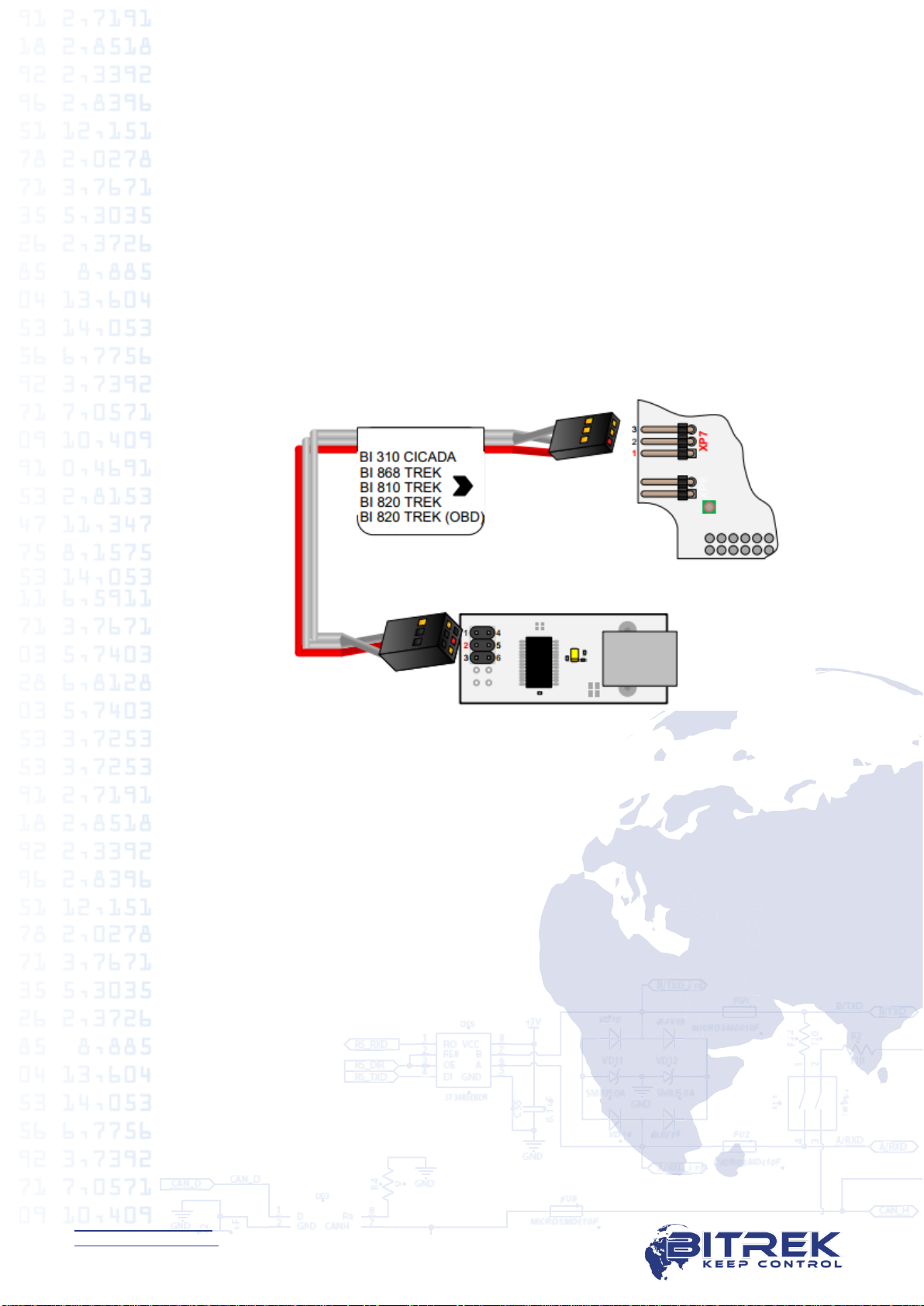

Fig. 3. BI-820OBD TREK Connection Diagram

A terminal program can be used for data exchange with the device.

Terminal configuration settings: bit rate –115,200 bps, data bit –8, stop

bit –1, without parity check, without stream control.

Once the link is up, the device will start sending its status data to

the terminal. Using the terminal program, a user can send commands to

the device and receive responses to them. But the device first needs to

send access password to the terminal in the following format:

TPASS: password;

where password is an access password for the terminal (by default,

11111 is used).

Once sent, the password will be valid for 60 seconds. After this

timeout, the password needs to be sent again so that the data can be

exchanged with the device.

www.bitrek.com.ua

[email protected]om.ua

+380 44 507 02 07

Indicators Description

The top panel of the tracking device has 3 LEDs that indicate

current status of the device.

No.

LED mode

Red

Yellow

Green

Permanently

External

power is on

The devices is

connected to the

server and the data

are transmitted

Off

No external

power

No satellites

available

Blinks once

every 0.5

seconds

Trying to connect

to the server

Blinks once

every 0.1

seconds

Failure to connect

to the server, the

attempt will be

repeated in 2

minutes

Blinks once

every 2

seconds

Satellites are

available,

coordinates

have been

established

List of SMS Commands

SMS commands are used for getting current state of the device,

troubleshooting potential errors, configuring the settings, etc. An SMS

command should be sent together with login and password; the sender's

number must be included to the list of authorized contacts (when such

list is used).

Structure of the SMS Commands

Any SMS with commands includes login/password pair (when

configured) and a list of different commands. The commands are

delimited with semicolon delimiter.

SMS commands entered to the tracking device should be of the

following format:

<login><space><password><space><command1>;<space><co

mmand2>;<space><commandN>;

Example of an SMS command:

abcd 1234 getgps; getstatus;

www.bitrek.com.ua

[email protected]om.ua

+380 44 507 02 07

ATTENTION! Total length of an SMS command string

should not exceed 160 Latin characters. Number of

commands per one SMS is only limited by the maximum

length of an SMS.

It is also essential to observe the order of the commands, when

they are sent in one SMS message. The device reads and performs the

commands in sequential order. E.g.,: once the cpureset; command is

received the device processor will reset and the commands will not be

further performed.

Correct:

setparam 0242 <APN>;

setparam 0245 <HOST>;

Incorrect:

setparam 0246 <PORT>;

cpureset;

setparam 0242 <APN>;

cpureset;

setparam 0245 <HOST>;

setparam 0246 <PORT>;

When login and passwords pairs are configured for access using

SMS, they must be included to each SMS with the commands. If a

commands, such SMS will be ignored. If a login/password pair option is

not enabled, it will not be checked.

In the event that one of the authorized phone numbers is enabled,

SMS commands will only be performed provided that they have been

sent from one of the authorized phone numbers (login/password is also

required, if enabled). If there is no authorized phone number enabled,

SMS with commands will be received from any phone number.

Configuring the Device

The BI-820OBD TREK Tracking Device can be configured by one of

the methods below:

1. Using a direct connection between the device and a computer.

2. Remotely, using SMS commands.

Configuration of the device by any of the methods available only

requires configuring necessary device parameters. Each parameter has

its own unique ID. Special commands are used to read/record the values

of a selected parameter.

In case of remote configuration of the device using SMS, one

should bear in mind that the total length of an SMS should not exceed

160 Latin characters. Number of commands per one SMS is only limited

by the maximum length of an SMS.

All commands for device manipulation can be divided into the

controlling and information ones.

Indice

Altri manuali BITREK GPS

BITREK

BITREK BI-530P TREK Manuale utente

BITREK

BITREK BI 810 TREK Manuale utente

BITREK

BITREK BI-520L TREK Manuale utente

BITREK

BITREK BI-910 TREK Manuale utente

BITREK

BITREK BI-810 TREK Manuale utente

BITREK

BITREK BI-868 TREK HW2 Manuale utente

BITREK

BITREK BI 868 TREK Manuale utente

BITREK

BITREK BI-530C TREK Manuale utente

BITREK

BITREK BI 530R TREK Manuale utente

BITREK

BITREK BI 820 TREK OBD Manuale utente

Manuali GPS popolari di altre marche

Raven

Raven Cruizer II Manuale

Hama

Hama 53118 Manuale utente

Garmin

Garmin SOUNDER 125 Manuale utente

Garmin

Garmin DEZL 580 Manuale utente

Jigabot

Jigabot EX Manuale utente

Pointer

Pointer Cellocator CelloTrack XT LTE Guida all'installazione

Queclink

Queclink GV55LITE Manuale utente

Voxson

Voxson Voxtrack GPS500 Manuale di istruzioni

Garmin

Garmin ECHOMAP PLUS Manuale utente

Starcom Systems

Starcom Systems Kylos Compact Manuale utente

Garmin

Garmin 15 H Series Manuale utente

Cobra

Cobra Marine MC 600Ci Manuale utente

Cellocator

Cellocator CelloTrack T Manuale utente

Enfora

Enfora Mini-MT GSM2228UG001 Manuale utente

Magellan

Magellan eXplorist 100 Manuale utente

LTE

LTE G50B Manuale utente

Garmin

Garmin DEZL OTR500 Manuale utente

SkyGolf

SkyGolf SkyCaddie SG1 Manuale utente
