TITAN X_2.0 Installation Guide

BPTA-O11D-AK_AMD_A2.0-BK

B-1 B-2

A-1

※The allowable variance in tube length is ± 2mm

252

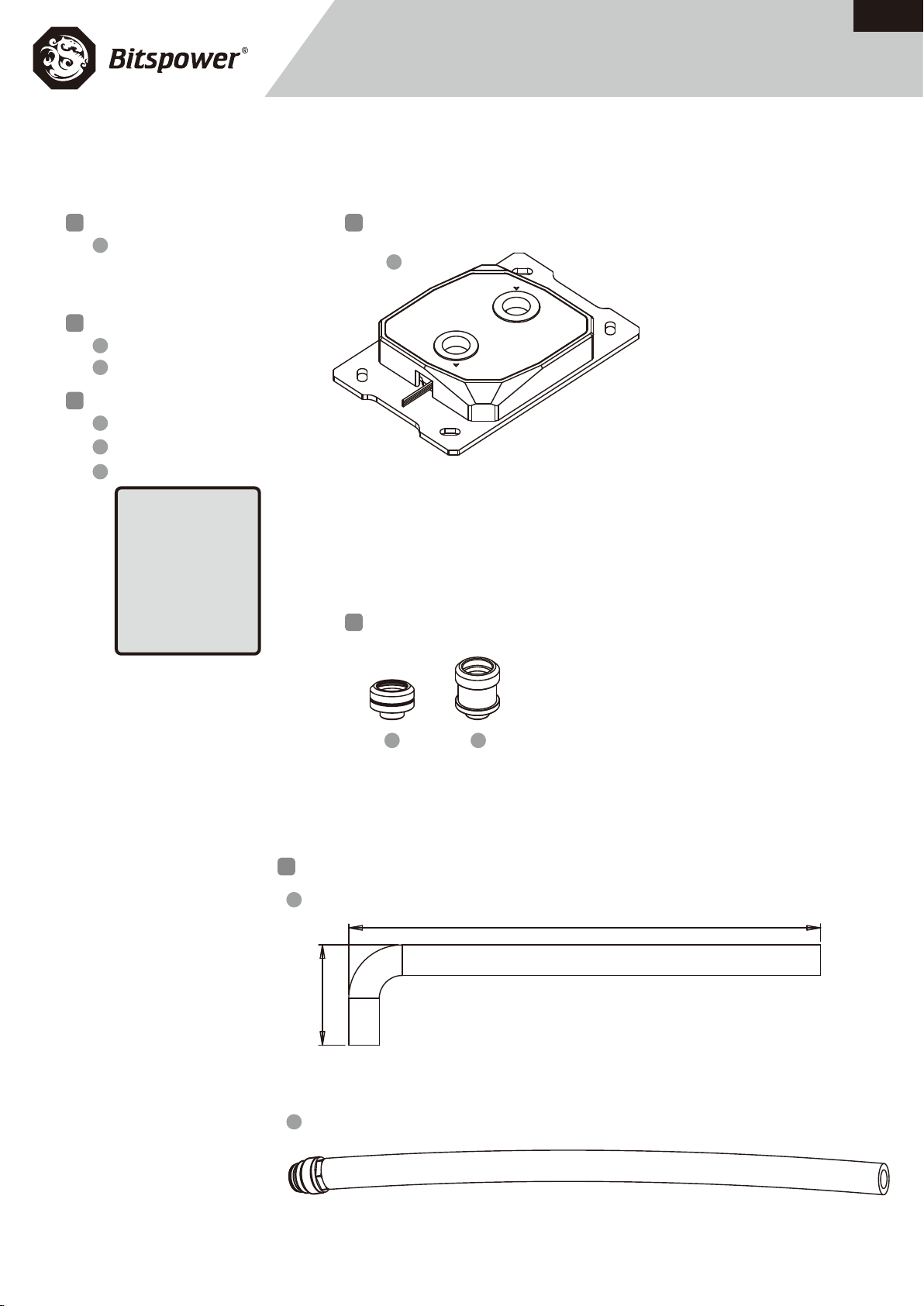

Fittings

.................2 pcs

BPTA-DOTFH1622

B-1

....................2 pcs

BPTA-15ATFH16

B-2

Accessory

................................2 pcs

Hard tube

C-1

....................1 pc

Fitting + soft tube

C-2

CPU set

C-3

Hard Tube

C-1

Fitting + soft tube

C-2

Thumb screw

SPRING

Thumb nut

1mm Spacer

M3x32mm Screw

SC6-32M3

Nylon cup washer

Φ:16

CPU Water Block

..........1 pc

BPTA-CPUMS-V2-SKA

A-1

I. AMD Motherboard system

— 2—

AMD SOCKET AM4

AMD SOCKET AM3 / AM3+

AMD SOCKET AM2 / AM2+

AMD SOCKET FM1 / FM2+

AMD SOCKET 939 / 754 / 940

AMD SOCKET AM4

AMD SOCKET AM3 / AM3+

AMD SOCKET AM2 / AM2+

AMD SOCKET FM1 / FM2+

DRGB LED

OUT

DRGB PIN on Motherboard or other equipment.

 

Motherboard

Fan and DRGB RF Remote

Controller Hub (Not included)

BPTA-RFCHUB

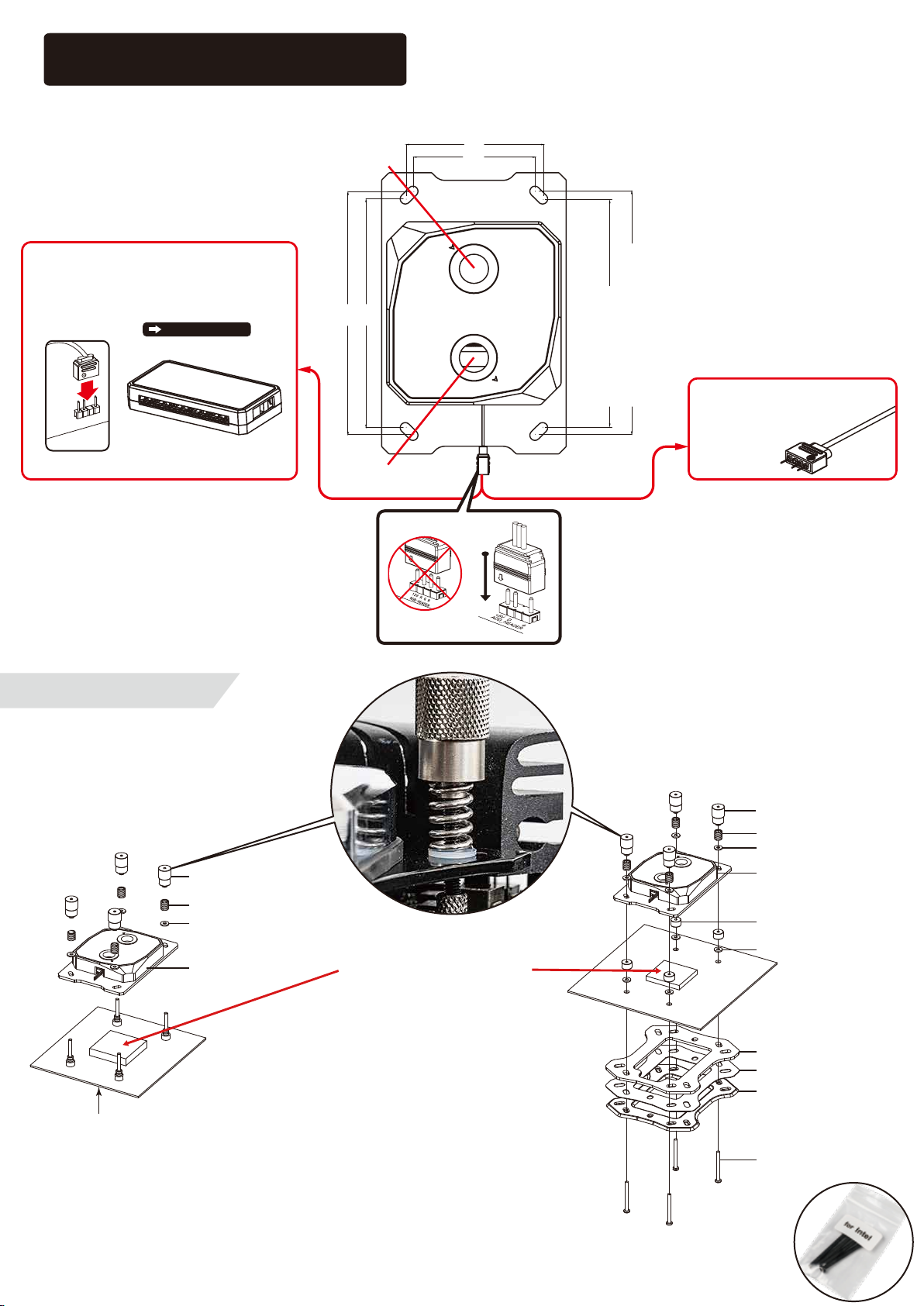

The CPU water block has a DRGB cable, which

can be connected to the DRGB extension

cable of the radiator fans.

Bitspower Fan and DRGB RF Remote Controller Hub

(Not included) are now available at microcenter.com

SCM3FL20

CPU Block

SPRING

1mm SPACER

Installation

M3x32mm SCREW

(for Intel)

1mm SPACER

Back Pad

3M Paste Pad

Metal Backplane

SCM3FL20

SPRING

CPU Block

1mm SPACER

SCM3F6

EX.

Do not over-tighten the thumb screws

(SCM3FL20). The springs should be

slightly compressed, with visible gaps

in the spring coils. Over-tightening

may result in poor contact between the

water block and CPU.

Use an appropriate amount

of Thermal Compound, - high-end

Bitspower cooling products are now

available at microcenter.com.

(Pre-installed with

ASUS X570-E

AM4 Motherboard)

ASUS X570-E AM4 Motherboard and

EVGA 850 Watt Power Supply has

been Installed on TITAN X A1.2.

Check your AMD Accessory box for original

Motherboard brackets and screws.

This step has already

been assembled for

AMD Motherboard

installation.

Titan One 2.0 is compatible with most motherboards.

If not compatible, please contact Bitspower directly,

thank you.

— 3—

PUMP HEADER

②FULL SPEED

AIO_PUMP

PUMP HEADER

① PWM CONTROL

CPU_FAN

II. AMD Chipset Installation

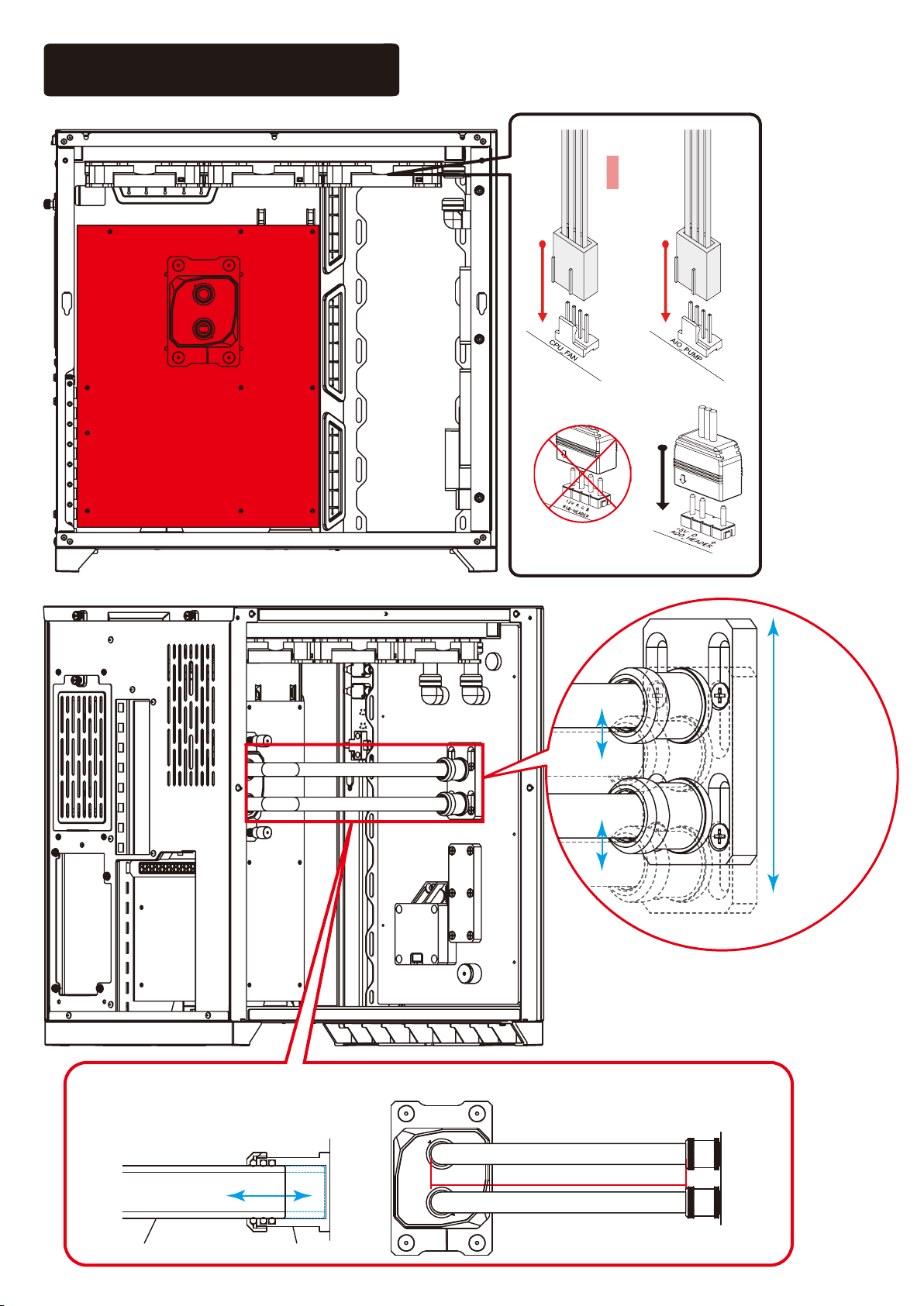

Step 1

Step 2

Loosen the screws.

Adjust the slider according to the CPU block position.

Adjust the hard pipe to the same level as the CPU Block inlet.

227~240mm

Hard tube BPTA-15ATFH16

When installing the hard pipe from the CPU

block to the water distribution reservoir,

You can move the hard pipe left and right to

get the proper installation length.

After the hard pipe is installed, please keep the

total length between 227-240mm to ensure

that the waterway will function properly.

— 4—

Pour the coolant into the reservoir via the water filling hole. Once the reservoir is 90% full,

turn on the power supply for the pump to run and let the air exit the loop. Turn off the

power supply when the reservoir is near empty. Repeat until all the air has exited the loop.

Notice : Do not turn on the pump if the reservoir is empty.

Bitspower recommends that consumers add the Bitspower coolant or

purified water for their water-cooling liquid. If the consumer chooses

different water-cooling liquids , the resulting impurities may cause

peeling of the coating on some of the hardware, water channels block-

age by built-up residue, improper operation of the water pump, water

tank tube breakage, and o-rings deformation leading to leakage. Any

issues related to the use of inappropriate water-cooling liquid will be

the responsibility of the consumer.

In order to make the internal circulation of the water cooling system

cleaner, and avoid the pump stuck by the precipitate, we advise you to

rinse the water cooling system with distilled water in several times until

the excluded water is clean.

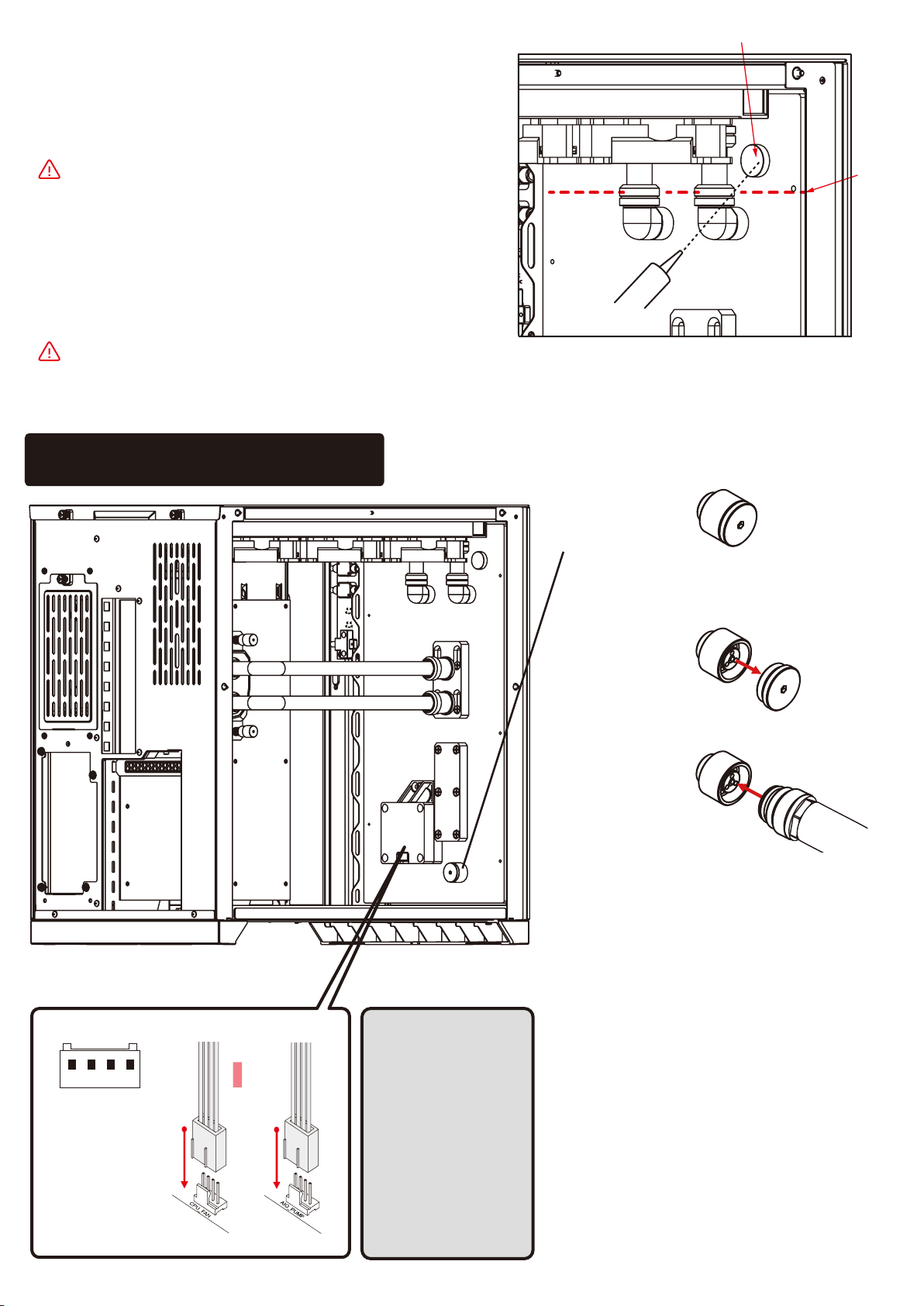

BPTA-EFW

It is recommended to install the water-exhaust

fitting at the lowest point of the water cooling

system.

Step 1

Unscrew the top of the water-exhaust fitting.

AIO_PUMP

PUMP HEADER

① PWM CONTROL

CPU_FAN

PUMP HEADER

②FULL SPEED

AIO_PUMP

CPU_FAN

A Negative electrode -

B positive electrode +

C Speed signal

A B C D

Step 2

Replace with the water-exhaust part. When

screwing in the part, water will start to

discharge, it is recommended to connect

tubing beforehand to control the water outflow.

III. BPTA-WDPO11D-AK-LITE

Pump Spec.

Rated voltage：12V DC

Power consumption：8.4W

Maximum flow：460±15%L/h

Noise：≦24dBA

PWM：Yes

MTBF：≦15,000 hours

Warranty：2 years

Water filling hole

90% full
