Wireless Video Presentation System II Quick Start Guide

Page 1

Quick Start Guide

What’s Included

Your package should include the following items. If anything is missing or

damaged, contact Black Box Technical Support at 724-746-5500.

• Wireless Presentation Adapter

• This printed Quick Start Guide

• User’s manual on flash drive

• Token

• Antenna

• Power supply

What You Need to Supply

• Projector

• VGA cable

Getting Started

Follow the steps in this Quick Start Guide to get started with the Wireless Video

Presentation System II (WVPS) (AC1131A). For more information, please refer to the

user’s manual PDF on the flash drive that you received with your AC1131A.

1. Connect the projector’s VGA cable to the WVPS box’s VGA connector and

power on the projector. See Figure 1.

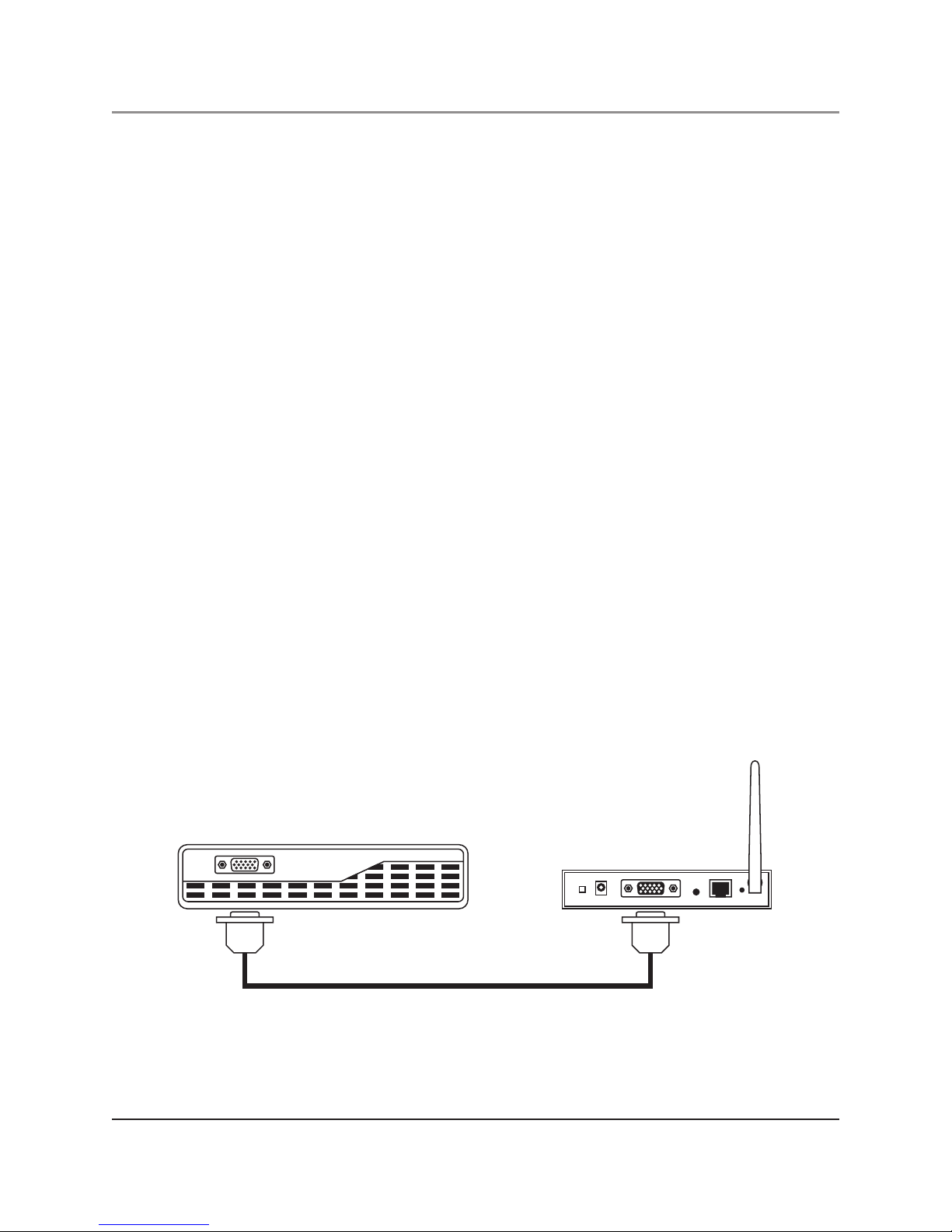

Figure 1. Connecting a projector to the Wireless Presentation Adapter.

Projector

AC1131A

VGA VGA

724-746-5500 | blackbox.com

Wireless Video Presentation System II Quick Start Guide

Page 2

2. Turn on the WVPS box. The projector displays the default menu on the screen

shown in Figure 2.

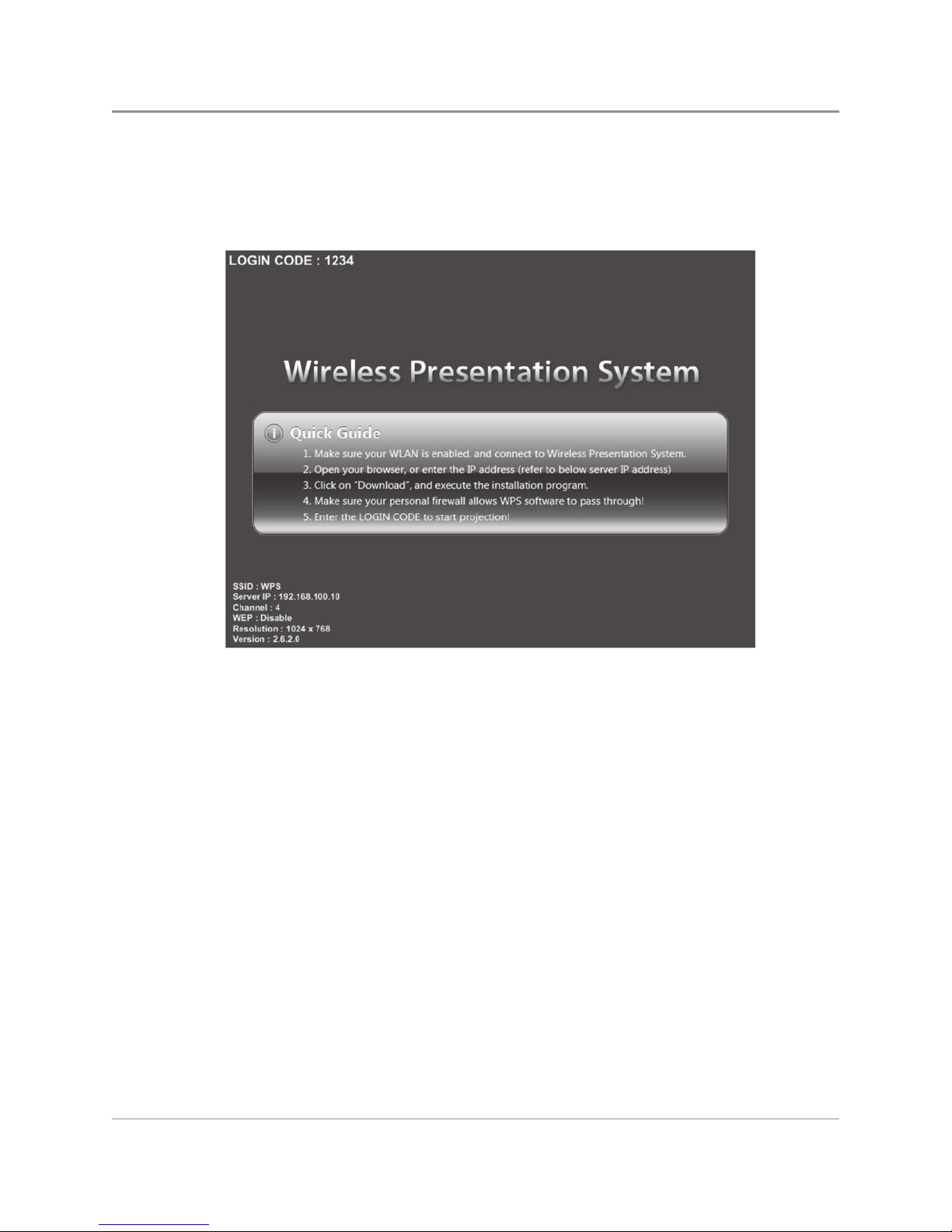

Figure 2. Default menu.

3. Make sure that your PC WLAN is enabled, and connect your PC to the WVPS

box.

724-746-5500 | blackbox.com

Wireless Video Presentation System II Quick Start Guide

Page 3

4. Open your browser. It will redirect you to the WVPS main page automatically,

or you can enter the IP address to access the WVPS Web home page. The

default IP address is 192.168.100.10 and refers to the IP address shown on the

left corner of the projector screen.

Figure 3.

724-746-5500 | blackbox.com

Wireless Video Presentation System II Quick Start Guide

Page 4

5. Download the client software. Select ”Windows® Vista/ XP/2000” or

”Windows Mobile 5.0” and run the installation program. After the program

installs, a WVPS shortcut appears on the PC screen.

Figure 4. Client software download screen.

724-746-5500 | blackbox.com

Wireless Video Presentation System II Quick Start Guide

Page 5

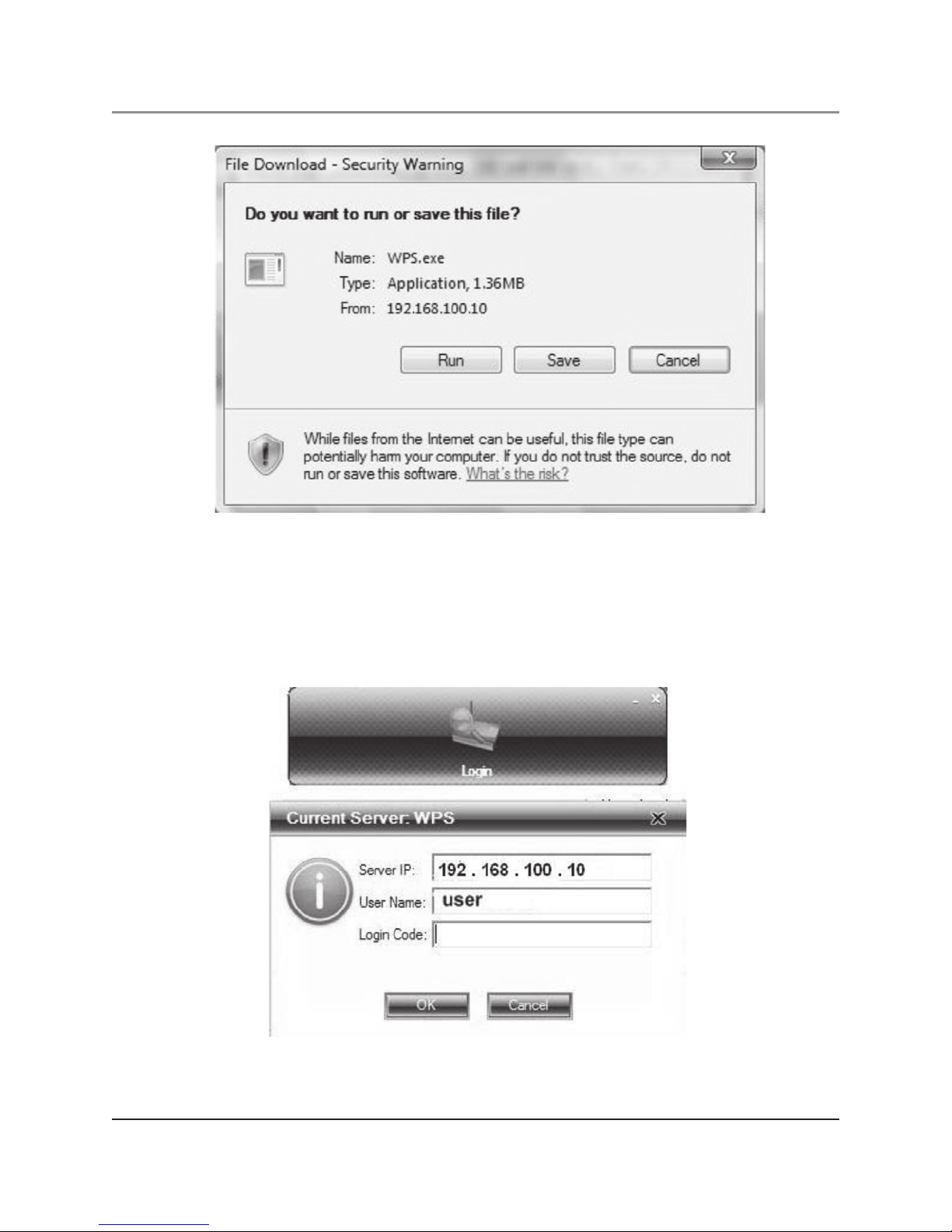

Figure 5. Run or save file screen.

6. Make sure your personal firewall allows WVPS software to pass through.

7. Enter the LOGIN CODE. You will see the login code on the projector screen.

Figure 6. Login code screen.

724-746-5500 | blackbox.com

Wireless Video Presentation System II Quick Start Guide

Page 6

8. Click on the “Play” button to start projection.

Figure 7. Play button.

Figure 8. Client utility.

TRADEMARKS USED IN THIS MANUAL

Black Box and the Double Diamond logo are registered trademarks of

BB Technologies, Inc.

Windows Vista/XP/2000 and Windows Mobile 5.0 are registered trademarks of

Microsoft Corporation.

Any other trademarks mentioned in this manual are acknowledged to be the

property of the trademark owners.
