Black Box AVSW-VGA4X1A Manuale utente

BL A C K B O X®

Share a VGA display output (monitor, projector,

or TV) between multiple device VGA inputs.

Both models have serial and 3.5-mm audio.

4 x 1 and 8 x 1 VGA Switches with Audio

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax

724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,

PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com

Customer

Support

Information

AVSW-VGA4X1A

AVSW-VGA8X1A

Page 2 724-746-5500 | blackbox.com

FCC and IC RFI Statements and NOM Statement

FEDERAL COMMUNICATIONS COMMISSION AND

INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio-frequency energy,

and if not installed and used properly, that is, in strict accordance with the

manufacturer’s instructions, may cause interference to radio communication.

It has been tested and found to comply with the limits for a Class A computing

device in accordance with the specifications in Subpart B of Part 15 of FCC rules,

which are designed to provide reasonable protection against such interference

when the equipment is operated in a commercial environment. Operation of

this equipment in a residential area is likely to cause interference, in which case

the user at his own expense will be required to take whatever measures may be

necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise

emission from digital apparatus set out in the Radio Interference Regulation

of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les

limites applicables aux appareils numériques de la classe A prescrites dans le

Règlement sur le brouillage radioélectrique publié par Industrie Canada.

Normas Oficiales Mexicanas (NOM)

Electrical Safety Statement

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes

de que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para

referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de

operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

Page 3

724-746-5500 | blackbox.com

NOM Statement

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la

tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean

recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea

recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá

lo descrito en las instrucciones de operación. Todo otro servicio deberá ser

referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no

interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,

alfombra o superficie similar puede bloquea la ventilación, no se debe colocar en

libreros o gabinetes que impidan el flujo de aire por los orificios de ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor como

radiadores, registros de calor, estufas u otros aparatos (incluyendo amplificadores)

que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo

descrito en el instructivo de operación, o como se indique en el aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del

equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean

pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo

particular atención a los contactos y receptáculos donde salen del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las

recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las

lineas de energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado

por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean

derramados sobre la cubierta u orificios de ventilación.

Page 4 724-746-5500 | blackbox.com

NOM Statement

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su

desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

Page 5

724-746-5500 | blackbox.com

Trademarks Used in this Manual

Black Box and the Double Diamond logo are registered trademarks

of BB Technologies, Inc.

Xbox is a registered trademark of Microsoft Corporation.

Wii is a registered trademark of Nintendo of America, Inc.

Any other trademarks mentioned in this manual are acknowledged to be

the property of the trademark owners.

Page 6 724-746-5500 | blackbox.com

Table of Contents

1. Specifications ............................................................................................. 7

2. Overview ............................................................................................. 8

2.1 Introduction....................................................................................... 8

2.2 Features ............................................................................................. 8

2.3 What’s Included................................................................................. 8

2.4 Hardware Description ........................................................................ 9

2.4.1 AVSW-VGA4X1A Front and Back Panels............................... 9

2.4.2 AVSW-VGA8X1A Front and Back Panels..............................11

3. Installation ............................................................................................13

3.1 Connection Pattern...........................................................................13

3.2 Installation Steps...............................................................................14

4. Operation (AVSW-VGA4X1A)......................................................................15

4.1 Front-Panel Indicators and Push Buttons...........................................15

4.2 IR Remote Control ............................................................................15

4.3 Serial Control ....................................................................................16

5. Operation (AVSW-VGA8X1A)......................................................................18

5.1 Front-Panel Indicators and Push Buttons...........................................18

5.2 EDID Copy ........................................................................................19

5.3 Remote Control ................................................................................19

6. Troubleshooting ......................................................................................... 22

6.1 Contacting Black Box....................................................................... 22

6.2 Shipping and Packaging .................................................................. 22

Page 7

724-746-5500 | blackbox.com

Chapter 1: Specifications

1. Specifications

Maximum Video Resolution — 1920 x 1080, WUXGA (1920 x 1200)

Number of A/V Inputs — Video: AVSW-VGA4X1A: (4);

AVSW-VGA8X1A: (8);

Audio: AVSW-VGA4X1A: (4);

AVSW-VGA8X1A: (8)

Number of A/V Outputs — Video: (1);

Audio: (1)

Remote Control Support — Yes

Serial Control Support — Yes

Enclosure — Metal

User Controls — AVSW-VGA4X1A: (4) push buttons;

AVSW-VGA8X1A: (4) push buttons, (1) “S” button, (1) EDID copy button,

Connectors — AVSW-VGA4X1A: Input: (4) VGA female, (4) audio jacks;

Output: (1) VGA female, (1) audio jack, (1) 2.5-mm RS-232 serial;

AVSW-VGA8X1A: Input: (8) VGA female, (8) audio jacks;

Output: (1) VGA female, (1) audio jack, (1) 2.5-mm RS-232 serial

Indicators — AVSW-VGA4X1A: (5) LEDs: (1) Power (green), (4) Video input

(yellow);

AVSW-VGA8X1A: (9) LEDs: (1) Power (green and yellow), (8) Video input

(yellow)

Power Consumption (Maximum) — 4.5 W

Size — 1.3"H x 8.7"W x 3.9"D (3.4 x 22 x 10 cm)

Weight — 1.5 lb. (0.7 kg)

Page 8 724-746-5500 | blackbox.com

Chapter 2: Overview

2. Overview

2.1 Introduction

The 4- and 8-Port VGA Switches enable users to quickly and easily share a single

VGA display with several sources from your device inputs to one output device

(monitor, projector, or TV). You can select the desired input source via the remote

control within the range of 15 feet (5 m) or by using a push button on the switch.

Because you don’t need to plug and unplug video sources, it’s more convenient,

more affordable, and more efficient to use your A/V equipment.

The built-in serial interface on the AVSW-VGA4X1A and AVSW-VGA8X1A also

enables users to control the unit via an RS-232/serial device.

2.2 Features

• Switch between (4) or (8) sources.

• Switch audio and video.

• Use front-panel buttons for easy switching.

• Supports IR remote control.

• Supports serial remote control.

• LEDs show the status of input video and audio.

• Supports VGA monitors at resolutions up to 1920 x 1200.

2.3 What’s Included

Your package should contain the following items. If anything is missing

or damaged, contact Black Box Technical Support at 724-746-5500

or info@blackbox.com.

AVSW-VGA4X1A:

• 4 x 1 VGA/Audio Switch

• Universal power supply with power cord

• IR remote control

• Serial cable (DB9 F to 2.5-mm plug)

• 19" rackmount kit wth mounting hardware

• (1) set of foot pads

• Screw pack

• This user’s manual

Page 9

724-746-5500 | blackbox.com

Chapter 2: Overview

AVSW-VGA8X1A:

• 8 x 1 VGA Video Switch with Audio

• Universal power supply with power cord

• IR remote control

• Serial cable (DB9 F to 2.5-mm plug)

• 19" rackmount kit wth mounting hardware

• (1) set of foot pads

• Screw pack

• This user’s manual

For both models, you might also need:

• Audio cable (EJ110)

• 6-ft. (1.8-m) VGA Cable (M-to-M) for VGA A/V source connection (EVNPS06).

2.4 Hardware Description

2.4.1 AVSW-VGA4X1A Front and Back Panels

Figure 2-1 shows the front panel of the AVSW-VGA4X1A. Figure 2-2 shows the

back panel. Table 2-1 describes its components.

Figure 2-1. AVSW-VGA4X1A front panel.

Page 10 724-746-5500 | blackbox.com

Chapter 2: Overview

5 6 7 8

9 10

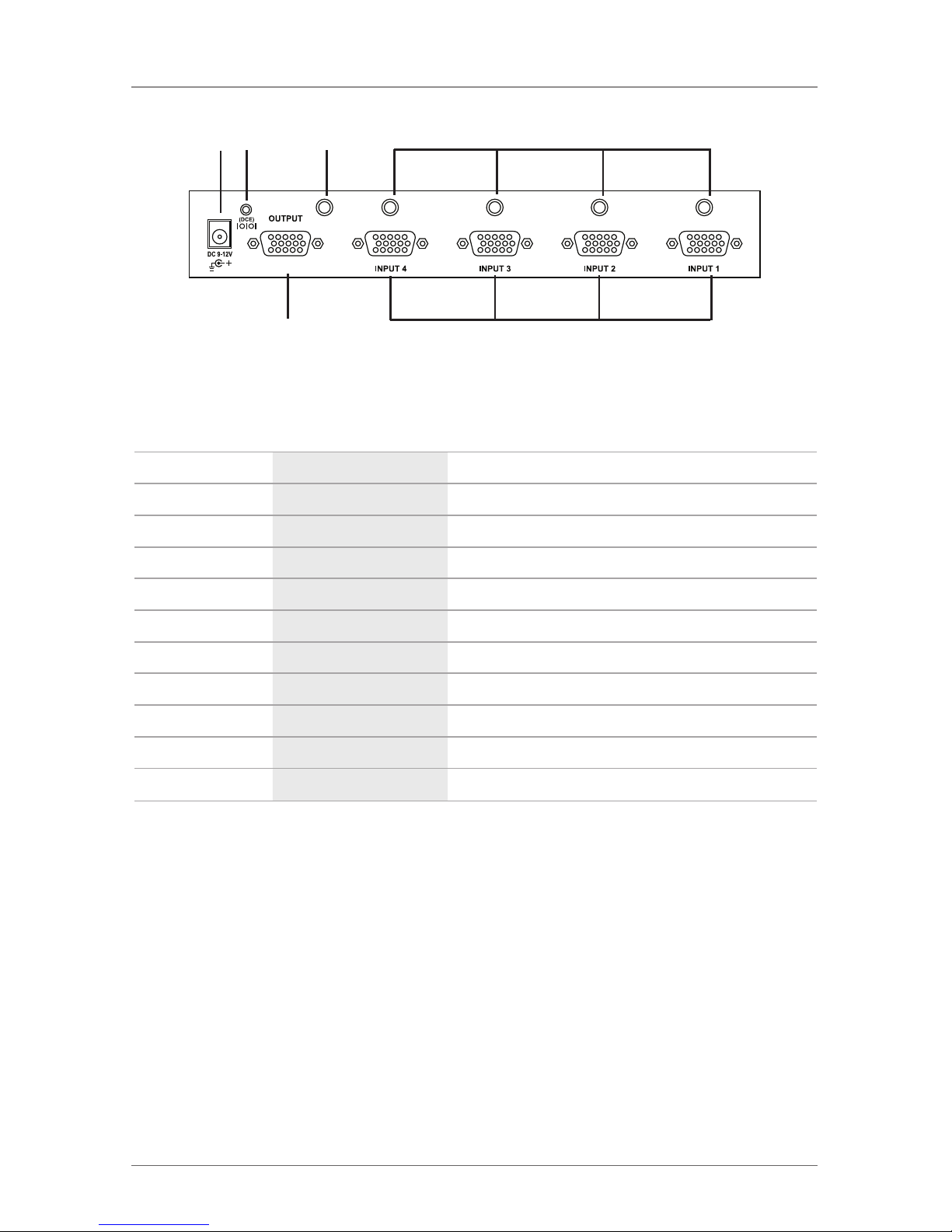

Figure 2-2. AVSW-VGA4X1A back panel.

Table 2-1. AVSW-VGA4X1A components.

Number Component Description

1LEDs Lights when the corresponding input is selected.

2Push buttons Press to select input 1, 2, 3, or 4.

3LED Lights when power is on.

4Sensor IR sensor accepts remote control signal.

5Barrel connector Connects to power.

6DCE 2.5-mm serial control port.

73.5-mm connector Links to audio out.

83.5-mm connectors Link to audio inputs 1, 2, 3, and 4.

9VGA connector Connects to VGA output.

10 VGA connectors Connects to VGA inputs 1, 2, 3, and 4.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Black Box Interruttore

Black Box

Black Box PSE518SA Manuale utente

Black Box

Black Box LGB708A-R4 Manuale utente

Black Box

Black Box ServSelect III KV22016A Manuale utente

Black Box

Black Box SW1042A-MM Manuale utente

Black Box

Black Box LE2601A Manuale utente

Black Box

Black Box SWI030A Manuale utente

Black Box

Black Box LB8418A Manuale utente

Black Box

Black Box ServSwitch 4site II Manuale utente

Black Box

Black Box SERVSWITCH PANTHER KV1116A Manuale utente

Black Box

Black Box IDM-AP-100 Manuale utente

Black Box

Black Box ServSwitch CX Uno KV0161A Manuale utente

Black Box

Black Box LB620C Manuale utente

Black Box

Black Box SW202A Manuale utente

Black Box

Black Box ServSwitch SW2007A-USB Manuale utente

Black Box

Black Box SWI083A Manuale utente

Black Box

Black Box LP004A Manuale utente

Black Box

Black Box ServSwitch DT Pro II KV7020A Manuale utente

Black Box

Black Box AVSC-HDMI2-8X2 Manuale utente

Black Box

Black Box LH8000A-M Manuale utente

Black Box

Black Box KV9204A Manuale utente

Black Box

Black Box LGB5028A Manuale utente

Black Box

Black Box ServSwitch SW721A-R5 Manuale utente

Black Box

Black Box EMS1G-48 Manuale utente

Black Box

Black Box SS1P-SH-DVI-UCAC Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
