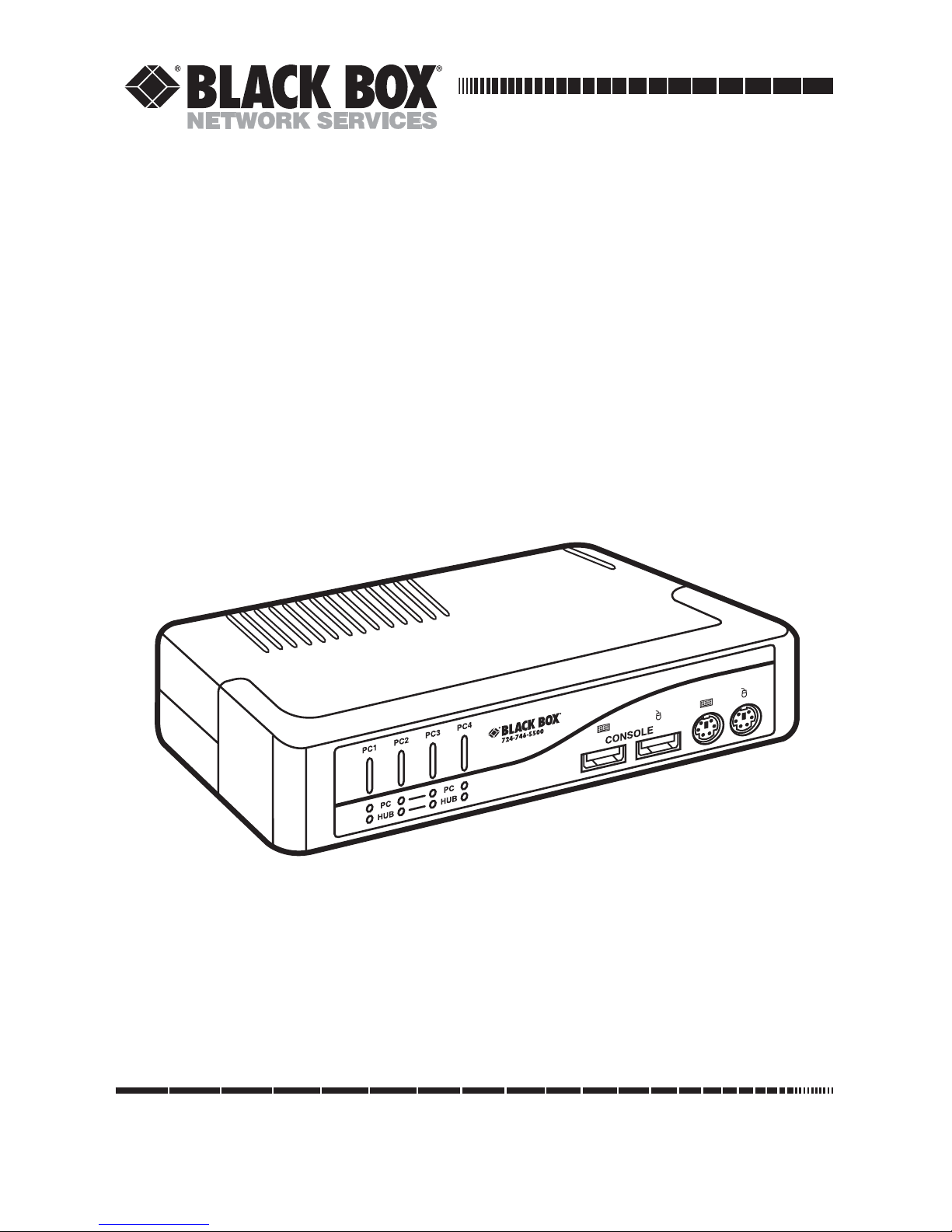

Black Box ServSwitch DT Pro II KV7020A Manuale utente

CUSTOMER

SUPPORT

INFORMATION

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746

Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: www.blackbox.com • E-mail: [email protected]

OCTOBER 2007

KV7020A

KV7021A

2- and 4-Port ServSwitch DT Pro II

FCC AND IC RFI STATEMENTS

FEDERAL COMMUNICATIONS COMMISSION

and INDUSTRY CANADA

RADIO FREQUENCY INTERFERENCE STATEMENTS

Class B Digital Device. This equipment has been tested and found to comply with

the limits for a Class B computing device pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference in a residential installation. However, there is no guarantee that

interference will not occur in a particular installation. This equipment generates,

uses, and can radiate radio frequency energy, and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. If this equipment does cause harmful interference to radio or

telephone reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Consult an experienced radio/TV technician for help.

CAUTION

Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate

the equipment.

To meet FCC requirements, shielded cables and power cords are required to

connect this device to a personal computer or other Class B certified device.

This digital apparatus does not exceed the Class B limits for radio noise emission from digital

apparatus set out in the Radio Interference Regulation of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites

applicables aux appareils numériques de classe B prescrites dans le Règlement sur le brouillage

radioélectrique publié par Industrie Canada.

2- AND 4-PORT SERVSWITCH DT PRO II

NORMAS OFICIALES MEXICANAS (NOM)

ELECTRICAL SAFETY STATEMENT

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de

que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para

referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de

operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca

de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc..

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que

sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea

recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá

a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser

referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no

interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,

alfombra o superficie similar puede bloquea la ventilación, no se debe colocar

en libreros o gabinetes que impidan el flujo de aire por los orificios de

ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor

como radiadores, registros de calor, estufas u otros aparatos (incluyendo

amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del

tipo descrito en el instructivo de operación, o como se indique en el aparato.

NOM STATEMENT

12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización

del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no

sean pisados ni pellizcados por objetos colocados sobre o contra ellos,

poniendo particular atención a los contactos y receptáculos donde salen del

aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las

recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas

de energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea

usado por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean

derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su

desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

2- AND 4-PORT SERVSWITCH DT PRO II

TRADEMARKS USED IN THIS MANUAL

iMac, Mac, Macintosh, and Mac OS are registered trademarks of Apple Computer,

Inc.

BLACK BOX and the Double Diamond logo are registered trademarks, and

ServSwitch is a trademark of BB Technologies, Inc.

PS/2 is a registered trademark of International Business Machines Corporation.

Linux is a registered trademark of Linus Torvalds.

IntelliMouse, Microsoft, Windows, and Windows NT are either registered

trademarks or trademarks of Microsoft Corporation in the United States and/or

other countries.

NetWare and Novell are registered trademarks of Novell, Inc.

Any other trademarks mentioned in this manual are acknowledged to be the property of the

trademark owners.

CONTENTS

Contents

Chapter Page

1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2. Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.2 Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.2.1 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.2.2 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.3 What’s Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.4 What You’ll Need to Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.1 ServSwitch Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.2 Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.2.1 Connecting the Console. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.2.2 Powering On the ServSwitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.2.3 Connecting the Computers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.2.4 Connecting the USB Peripherals. . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4.1 Powering Up the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4.2 Selecting Computers Using Front-Panel Buttons . . . . . . . . . . . . . . . . . . 17

4.3 Selecting Computers Using Keyboard Hotkey Commands . . . . . . . . . . 17

Appendix. Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

A.1 Calling Black Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

A.2 Shipping and Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2- AND 4-PORT SERVSWITCH DT PRO II

1. Specifications

Resolution: 2048 x 1536

Supported Operating Systems: Windows®98/Me/2000/XP and Windows NT®,

Linux®, NetWare®, Mac OS®

Hotkeys: Yes

User Controls: KV7020A: (2) port selection buttons;

KV7021A: (4) port selection buttons

Connectors: KV7020A: Computer end: PS/2®keyboard, PS/2 mouse, VGA Video:

(2) HD15 female,

USB keyboard, mouse, and peripherals: (2) USB Type B female,

Microphones/speakers: (4) 3.5-mm jacks;

Console end: Keyboard: (1) 6-pin mini-DIN female or (1) USB Type A female,

Mouse: (1) 6-pin mini-DIN female or (1) USB Type A female,

Monitor: (1) HD15 female,

USB peripherals: (2) USB Type A female,

Microphone/speaker: (2) 3.5-mm jacks,

Power: (1) barrel connector;

KV7021A: Computer end: PS/2 keyboard, PS/2 mouse, and VGA video:

(4) HD15 female,

USB keyboard, mouse, and peripherals: (4) USB Type B female,

Microphones/speakers: (8) 3.5-mm jacks;

Console end: Keyboard: (1) 6-pin mini-DIN female or (1) USB Type A female,

Mouse: (1) 6-pin mini-DIN female or (1) USB Type A female,

Monitor: (1) HD15 female,

USB peripherals: (2) USB Type A female,

Microphone/speaker: (2) 3.5-mm jacks,

Power: (1) barrel connector

Indicators: KV7020A: (2) Port LEDs, (2) Hub LEDs;

KV7021A: (4) Port LEDs, (4) Hub LEDs

Temperature Tolerance: Operating: 32 to 104°F (0 to 40°C);

Storage: -4 to +140°F (-20 to +60°C)

Relative Humidity: Up to 80%, noncondensing

CHAPTER 1: Specifications

Power: 9-VDC power supply

Size: KV7020A: 1.8"H x 5.4"W x 3.5"D (4.5 x 13.8 x 9.1 cm);

KV7021A: 1.8"H x 8.7"W x 4.1"D (4.5 x 22 x 10.5 cm)

Weight: KV7020A: 1.8 lb. (0.8 kg);

KV7021A: 2 lb. (0.9 kg)

2- AND 4-PORT SERVSWITCH DT PRO II

2. Overview

2.1 Introduction

The 2- or 4-Port ServSwitch™DT Pro II KVM Switch is the most comprehensive

desktop switch to date. It’s flexible: Use it to connect a PS/2 keyboard, video, and

mouse to PS/2 CPUs, USB KVM to PS/2 CPUs, PS/2 KVM to USB CPUs, or USB

KVM to USB CPUs. Supported mice include Microsoft®IntelliMouse®and other

mice, and the ServSwitch unit’s USB ports comply with USB 2.0 requirements.

Plus, you can connect audio and USB 2.0 peripherals to the KVM switch.

Using a hotkey command sequence (see Section 4.3), you can asynchronously

switch the KVM control and the USB devices. And the ServSwitch works with

common operating systems, including Windows 98/Me/2000/XP, Windows NT®,

Linux, Novell® NetWare, and Mac OS.

Setup is fast and simple, and there’s no software to configure. Its small desktop

footprint is ideal for on or under your desktop. Use either front-panel buttons on

the ServSwitch or hotkeys (which are key sequences on your keyboard) to select

ports or start AutoScan. The front-panel buttons include integral LEDs. The LED

will light with the corresponding active port when manually switching between the

computers. The ServSwitch beeps to confirm that it’s in hotkey mode. The

AutoScan function enables you to automatically scan and monitor all computers,

one by one, that are connected to the ServSwitch.

CHAPTER 2: Overview

2.2 Components

2.2.1 F

RONT

ANEL

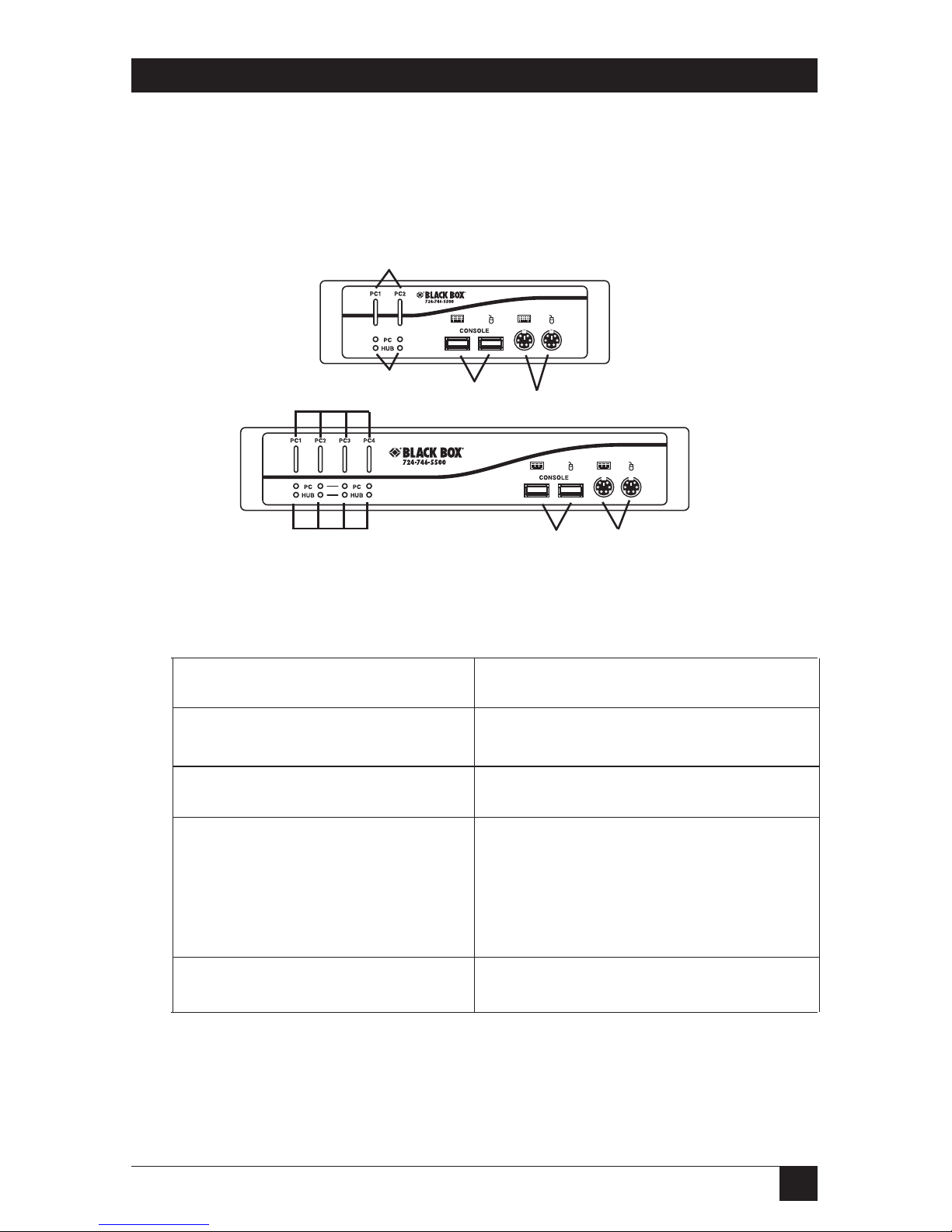

Figure 2-1 shows the 2- and 4-Port ServSwitch front views. Table 2-1 describes the

components numbered in the illustration.

Figure 2-1. The ServSwitch front-panel views.

Table 2-1. Front-panel components.

Component Description

6-pin mini-DIN connectors PS/2 keyboard and mouse ports.

Direct-access port buttons Press to select a computer.

Port LEDs and Hub LEDs Port LEDs located below the port

buttons light when the connected

computer is selected. Hub LEDs light to

indicate which port has the hub control.

USB ports USB keyboard and mouse ports.

❶

❷

❸

❹

❹❶

❶

❷

❹

❸

Altri manuali per ServSwitch DT Pro II KV7020A

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Black Box Interruttore

Black Box

Black Box LB8505A Manuale utente

Black Box

Black Box SW1042A-MM Manuale utente

Black Box

Black Box LGB1002A Manuale utente

Black Box

Black Box IC253A-US Manuale utente

Black Box

Black Box ServSwitch II ACS250A Manuale utente

Black Box

Black Box LIG1014A Manuale utente

Black Box

Black Box LHB8050A Manuale utente

Black Box

Black Box PS/2 Manuale utente

Black Box

Black Box INVISAPC DTX1002-R Manuale utente

Black Box

Black Box LPB2910A Manuale utente

Black Box

Black Box ServSwitch 4site Manuale utente

Black Box

Black Box LGB304A Manuale utente

Black Box

Black Box IC240A-R2 Manuale utente

Black Box

Black Box SW1030A Manuale utente

Black Box

Black Box CATX DVI-D Series Manuale utente

Black Box

Black Box CAT5 ClassWork Plus Multiloop Manuale utente

Black Box

Black Box ServSwitch CX Quad IP Manuale utente

Black Box

Black Box ABC Manuale utente

Black Box

Black Box SW490A Manuale utente

Black Box

Black Box 40418 Manuale utente

Black Box

Black Box ServSwitch KV0004A Manuale utente

Black Box

Black Box Code Operated Switch-16 Manuale utente

Black Box

Black Box ServSwitch Octet KV1700 Manuale utente

Black Box

Black Box LGB2002A-R2 Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
