Black Box ServSwitch KV9612A Manuale utente

BL A C K B O X®

Control up to two or four PCs, or G3/G4 Mac or Mac Pro computers

from a single console (USB keyboard, USB mouse, and DVI [Digital Visual

Interface] monitor, plus audio).

Share two peripherals between two or four computers.

Include a built-in hub.

ServSwitch DT Series USB/DVI/Audio KVM Switches

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) •

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax

724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,

PA 15055-1018 • Web site: www.blackbox.com • E-mail: [email protected]

Customer

Support

Information

KV9612A

KV9614A

Page 1

724-746-5500 | blackbox.com

FCC and NOM Statements

FEDERAL COMMUNICATIONS COMMISSION AND

INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio-frequency energy,

and if not installed and used properly, that is, in strict accordance with the

manufacturer’s instructions, may cause interference to radio communication.

It has been tested and found to comply with the limits for a Class A computing

device in accordance with the specifications in Subpart B of Part 15 of FCC rules,

which are designed to provide reasonable protection against such interference

when the equipment is operated in a commercial environment. Operation of

this equipment in a residential area is likely to cause interference, in which case

the user at his own expense will be required to take whatever measures may be

necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise

emission from digital apparatus set out in the Radio Interference Regulation

of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant

les limites applicables aux appareils numériques de la classe A prescrites dans le

Règlement sur le brouillage radioélectrique publié par Industrie Canada.

Normas Oficiales Mexicanas (NOM)

Electrical Safety Statement

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes

de que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para

referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de

operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

Page 2 724-746-5500 | blackbox.com

2- and 4-Port ServSwitch DT Series USB/DVI/Audio KVM Switches

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,

cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,

etc.

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales

que sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea

recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá

lo descrito en las instrucciones de operación. Todo otro servicio deberá ser

referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no

interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,

alfombra o superficie similar puede bloquea la ventilación, no se debe

colocar en libreros o gabinetes que impidan el flujo de aire por los orificios

de ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor

como radiadores, registros de calor, estufas u otros aparatos (incluyendo

amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del

tipo descrito en el instructivo de operación, o como se indique en el

aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la

polarización del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no

sean pisados ni pellizcados por objetos colocados sobre o contra ellos,

poniendo particular atención a los contactos y receptáculos donde salen

del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las

recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las

lineas de energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea

usado por un largo periodo de tiempo.

Page 3

724-746-5500 | blackbox.com

NOM Statement

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean

derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su

desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

Page 4 724-746-5500 | blackbox.com

2- and 4-Port ServSwitch DT Series USB/DVI/Audio KVM Switches

TRADEMARKS USED IN THIS MANUAL

Black Box, the Double Diamond logo, and ServSwitch are trademarks or regis-

tered trademarks of BB Technologies, Inc.

Linux is a registered trademark of Linus Torvalds.

IntelliMouse, Microsoft, Windows, Windows NT, and Windows Vista are either

registered trademarks or trademarks of Microsoft Corporation in the United

States and/or other countries.

Mac is a registered trademark of Apple Computer, Inc.

Any other trademarks mentioned in this manual are acknowledged to be the

property of the trademark owners.

Page 5

724-746-5500 | blackbox.com

Table of Contents

Chapter Page

1. Specifications ..............................................................................................6

2. Overview ..............................................................................................7

2.1 Introduction ........................................................................................7

2.2 Features ..............................................................................................7

2.3 Components.......................................................................................8

2.3.1 KV9612A Front Panel ............................................................8

2.3.2 KV9612A Rear Panel .............................................................9

2.3.3 KV9614A Front Panel ..........................................................10

2.3.4 KV9614A Back Panel...........................................................11

2.4 What’s Included................................................................................12

2.5 What You’ll Need to Supply..............................................................12

3. Installation ............................................................................................13

3.1 ServSwitch Placement .......................................................................13

3.2 Hardware Installation........................................................................14

3.2.1 Connecting the Console Keyboard, Mouse, and Monitor ...14

3.2.2 Connecting the Computers .................................................15

3.2.3 Initial Power On...................................................................16

4. Operation ............................................................................................17

4.1 Powering Up the System...................................................................17

4.2 Selecting Computers Using Front-Panel Buttons...............................17

4.3 Selecting Computers Using Hotkey Commands................................17

4.4 Alternate Hotkey Commands............................................................19

4.5 Function Button (4-Port Only)...........................................................19

Appendix. Troubleshooting...............................................................................21

A.1 Problems/Causes/Solutions...............................................................21

A.2 Calling Black Box...............................................................................23

A.3 Shipping and Packaging....................................................................23

Page 6 724-746-5500 | blackbox.com

2- and 4-Port ServSwitch DT Series USB/DVI/Audio KVM Switches

1. Specifications

Hotkeys: Yes

Resolution: 1920 x 1200 @ 60 Hz

Supported Operating Systems: Windows®98 SE/Me/2000/XP, Windows

Vista®, Mac®OS X, Linux®

User Controls: KV9612A: (1) port button;

KV9614A: (4) port buttons (labeled 1–4) also used for Scan time buttons

and AutoScan, (1) function button

Connectors: Both models: (1) Power;

KV9612A: Console end: (1) DVI-I, (4) USB Type A, (2) 3.5-mm jacks for audio

(speaker and microphone);

Computer end: (2) DVI-I, (2) USB Type B, (4) 3.5-mm jacks for audio

(speaker and microphone);

KV9614A: Console end: (1) DVI-I, (4) USB Type A, (2) 3.5-mm jacks for audio

(speaker and microphone);

Computer end: (4) DVI-I, (4) USB Type B, (8) 3.5-mm jacks for audio

(speaker and microphone)

Indicators: KV9612A: (2) Port, (2) Power;

KV9614A: (4) Port, (4) Power for CPUs, (1) Power for switch

Temperature Tolerance: Operating: +32 to +104° F (0 to +40° C);

Storage: -4 to +140° F (-20 to +60° C)

Power: From the interface or via a 9-12-VDC, 1.5-A power supply (included)

Size: KV9612A: 1.6"H x 4.9"W x 2.8"D (4 x 16 x 7 cm);

KV9614A: 1.7"H x 8.7"W x 5.1"D (4.3 x 22 x 12.8 cm)

Weight: KV9612A: 1.5 lb. (0.7 kg)

KV9614A: 2.2 lb. (1 kg)

Page 7

724-746-5500 | blackbox.com

Chapter 2: Overview

2. Overview

2.1 Introduction

The 2- or 4-Port ServSwitch™USB/DVI/Audio KVM Switch enables you to con-

trol up to two or four PCs, or G3/G4 Mac or Mac Pro computers from a single

console (USB keyboard, USB mouse, and DVI [Digital Visual Interface] monitor,

plus audio). You can use it to share two peripherals—plus a keyboard and

mouse—among up to four computers. It supports Microsoft®IntelliMouse®and

other mice.

Setup is fast and simple, and no configuration software is needed. Its small

desktop footprint makes it ideal for on or under your desktop. Use the front-panel

buttons on the ServSwitch™ to select ports or start AutoScan. The front-panel

LEDs will light with the corresponding active port when switching between the

computers. The AutoScan function allows you to automatically scan and monitor

all computers, one by one, that are connected to the ServSwitch.

2.2 Features

• Supports DVI single link with resolutions up to 1920 x 1200 @ 60 Hz.

• Two or four computers share up to four different USB peripherals

(keyboard and mouse are included in this count).

• Select computers via front-panel buttons or hotkeys.

• Adjust the video signal strength using the front-panel FUNC button (4-port

only).

• Select the audio via hotkeys.

• Needs no drivers for keyboard and mouse operation.

• Supports keyboard and mouse plug-and-play.

• Buzzer sound confirms computer switching.

• Press front-panel buttons to activate AutoScan (4-port only).

• Selectable scan time interval.

• Supports one DVI monitor.

• Self-powered USB operation.

• No software required.

• Hotkey functions allow easy computer access.

• Supports Windows, Mac, and Linux®host systems.

Page 8 724-746-5500 | blackbox.com

2- and 4-Port ServSwitch DT Series USB/DVI/Audio KVM Switches

2.3 Components

2.3.1 KV9612A Front Panel

Figure 2-1 shows the 2-Port ServSwitch DT Series front view. Table 2-1 describes

the components numbered in the illustration.

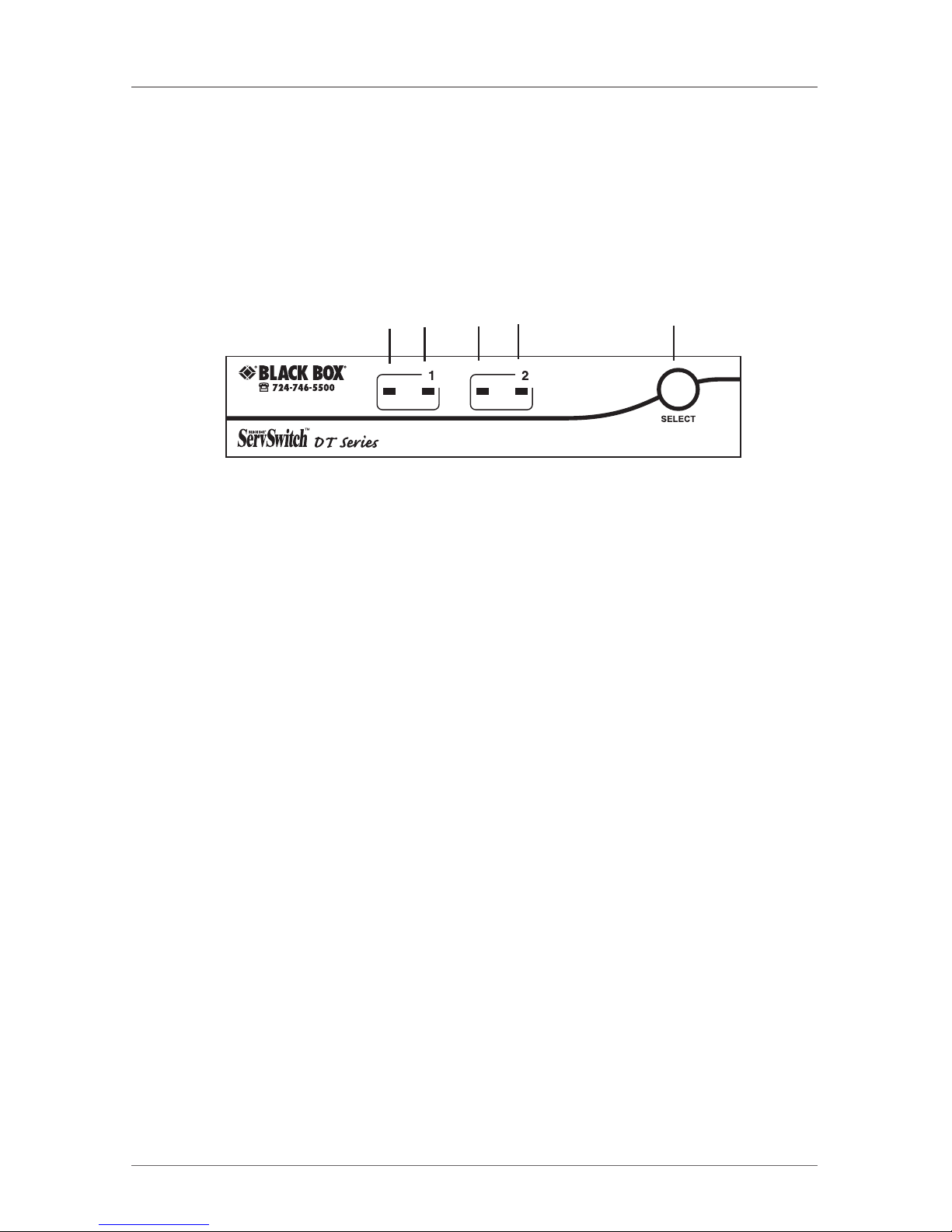

Figure 2-1. The 2-Port ServSwitch DT Series front-panel view.

Table 2-1. KV9612A front panel components.

No. Component Description

1 Port selection button Press button to select a computer.

2 Port LEDs The right LEDs light to show the port that is

currently selected.

3 Power LED Lights when the connected computer is pow-

ered on.

332

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Black Box Interruttore

Black Box

Black Box MODULAR SMART SWITCH SW925AE Manuale utente

Black Box

Black Box LB9020A Manuale utente

Black Box

Black Box IC265A Manuale utente

Black Box

Black Box SC120A-R2 Manuale utente

Black Box

Black Box LB8405A-R3-US Manuale utente

Black Box

Black Box KVS4-1002HV Manuale utente

Black Box

Black Box LIG1014A Manuale utente

Black Box

Black Box INTEL EXPRESS 410T Scheda tecnica

Black Box

Black Box LPB200A Manuale utente

Black Box

Black Box DISPLAYPORT KV4402A Manuale utente

Black Box

Black Box LGB1108A Manuale utente

Black Box

Black Box ACU5051A Manuale utente

Black Box

Black Box KV130A Manuale utente

Black Box

Black Box ServSwitch SW627A-R2 Manuale utente

Black Box

Black Box PSE544 Manuale utente

Black Box

Black Box ServSwitch CX Quad IP KV4161A Manuale utente

Black Box

Black Box KV0416A Manuale utente

Black Box

Black Box 26592 Manuale utente

Black Box

Black Box SW1007A Manuale utente

Black Box

Black Box LB9002A-SC-R3 Manuale utente

Black Box

Black Box KVS4-8004VPX Manuale utente

Black Box

Black Box KV2004A Manuale utente

Black Box

Black Box ServSwitch Multi KV150A-R2 Manuale utente

Black Box

Black Box ServSwitch Plus Series Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
