Black Box CCTVTEST Manuale utente

BL A C K B O X®

Tests camera video output, signal strength, and

PTZ functions. Also acts as a video pattern

generator, cable mapper, and multimeter.

CCTV Tester

June 2010

CCTVTEST

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.

call 724-746-5500) • FREE technical support 24 hours a day, 7 days a

week: Call 724-746-5500 or fax 724-746-0746 • Mailing address:

Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: www.blackbox.com • E-mail: [email protected]

Customer

Support

Information

Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com

Page 2

CCTV Tester

FEDERAL COMMUNICATIONS COMMISSION

AND INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE

STATEMENTS

This equipment generates, uses, and can radiate radio-frequency energy, and if

not installed and used properly, that is, in strict accordance with the manufacturer’s

instructions, may cause interference to radio communication. It has been tested

and found to comply with the limits for a Class A computing device in accordance

with the specifications in Subpart B of Part 15 of FCC rules, which are designed

to provide reasonable protection against such interference when the equipment

is operated in a commercial environment. Operation of this equipment in a residen-

tial area is likely to cause interference, in which case the user at his own expense

will be required to take whatever measures may be necessary to correct the i

nterference.

Changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise emission

from digital apparatus set out in the Radio Interference Regulation of Industry

Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant

les limites applicables aux appareils numériques de classe A prescrites dans le

Règlement sur le brouillage radioélectrique publié par Industrie Canada.

Normas Oficiales Mexicanas (NOM)Electrical Safety Statement

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes

de que el aparato eléctrico sea operado.

Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com Page 3

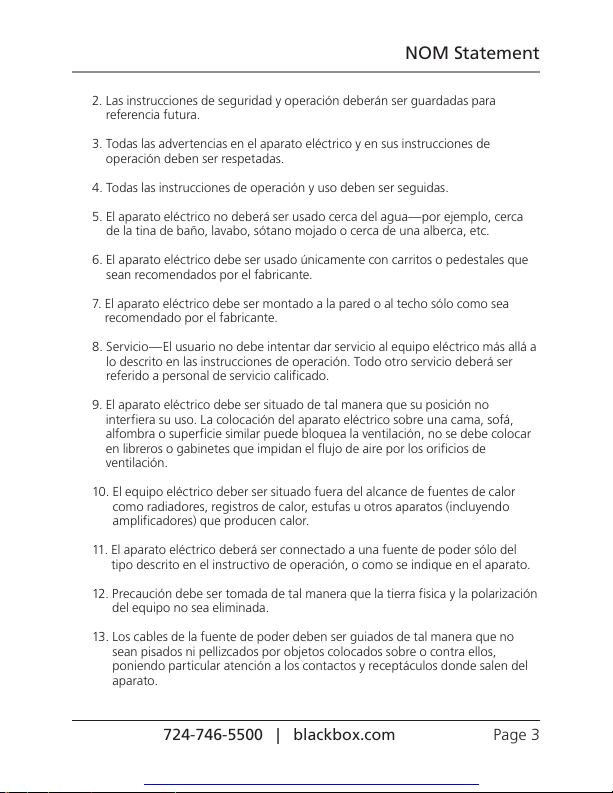

NOM Statement

2. Las instrucciones de seguridad y operación deberán ser guardadas para

referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de

operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca

de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que

sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea

recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá a

lo descrito en las instrucciones de operación. Todo otro servicio deberá ser

referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no

interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,

alfombra o superficie similar puede bloquea la ventilación, no se debe colocar

en libreros o gabinetes que impidan el flujo de aire por los orificios de

ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor

como radiadores, registros de calor, estufas u otros aparatos (incluyendo

amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del

tipo descrito en el instructivo de operación, o como se indique en el aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización

del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no

sean pisados ni pellizcados por objetos colocados sobre o contra ellos,

poniendo particular atención a los contactos y receptáculos donde salen del

aparato.

Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com

Page 4

CCTV Tester

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las

recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas

de energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea

usado por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean

derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su

desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com Page 5

Trademarks Used in this Manual

Black Box and the Double Diamond logo are registered trademarks of

BB Technologies, Inc.

Any other trademarks mentioned in this manual are acknowledged to be the

property of the trademark owners.

Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com

CCTV Tester

Page 6

Safety Information

Precautions when using the CCTV Tester

A. Please read this manual before using the product.

B. Always be cautious when working around voltage.

C. Do not use the tester in damp or explosive environments.

D. Areas of strong electromagnetism can cause incorrect measurements.

E. Do not expose the tester to dirt or liquid.

F. Do not disassemble the tester.

G. Operating environment:

Temperature: -22 to 158° F (-30 to +70° C)

Relative humidity: 30 to 90%

Recharging voltage:5 VDC

Precautions when charging the battery

A. Use only the original, chargeable battery that came with the tester. When

charging, use the original power adapter.

B. Make sure the batteries are installed correctly (polarity).

C. Do not short-circuit or disassemble batteries.

Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com

Table of Contents

Page 7

Table of Contents

1. Specifications .......................................................................................... 8

2. Overview ........................................................................................ 10

2.1 Introduction .................................................................................. 10

2.2 Features ........................................................................................ 10

2.3 What’s Included .............................................................................11

2.4 Hardware Description ....................................................................11

3. Operation ........................................................................................ 14

3.1 Power and Battery ........................................................................ 14

3.2 Main Menu Introduction............................................................... 14

3.3 Quick Test...................................................................................... 15

3.4 Main Menu.................................................................................... 15

3.4.1 System Setup................................................................... 15

3.4.2 Video, Signal Strength, and PTZ Test.............................. 16

3.4.3 UTP Cable Testing........................................................... 18

3.4.4 Video Generator ............................................................. 19

3.4.5 RS-485 Data Test ............................................................ 20

3.4.6 Multimeter ...................................................................... 22

3.5 Provide Power to a 12V Camera................................................... 23

3.6 Screen Brightness Adjustment...................................................... 23

Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com

1. Specifications

Table 1-1. CCTV Tester specifications.

Feature Description

Video testing Signal mode NTSC/PAL compatible

LCD display 2.5" LCD screen, 960 x 240 resolution

Signal strength Max. Vpp, ave. Vpp, and Sync V

Video input 1 channel BNC

Video output 1 channel BNC

LCD brightness Adjustable from keypad

PTZ test and Communication RS-232, RS-422 simplex and RS-485

control protocol Includes 20 manufacturer’s protocols

Baud rate 2400, 4800, 9600, 19200

Built-in DC voltage test Max.: 1000 V, Precision: 0.1 mV

multimeter AC voltage test Max: 750 V, Precision: 0.1 mV

Resistance test Max.: 40 Mohm, Precision: 0.1 ohm

Power to camera Voltage 12 VDC

Working time 4-5 hours to normal camera

Max. current 200 mA

Other functions UTP cable test Test UTP (CAT5/6) cables

Signal generator Test security monitors

RS-485 data test Display RS-485 data from device

OSD menu English OSD menu

Keypad Easy to operate. Uses number buttons.

Power and battery Power adapter 5 VDC

Battery 3000 mAh rechargeable battery inside

Rechargeable 6 hours recharging time

Low consumption Sleep mode. Power status display.

Operating time 10 hours

Page 8

CCTV Tester

Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com Page 9

Chapter 1: Specifications

Table 1-1 (Continued). CCTV Tester specifications.

Feature Description

Other Work temperature -22 to +158° F (-30 to +70° C)

Work humidity 30 to 90%

Size 6.5"H x 3.6"W x 1.9"D

(16.6 x 9.1 x 4.8 cm)

Weight 0.6 lb. (0.3 kg)

Get other manuals https://www.bkmanuals.com

724-746-5500 | blackbox.com

CCTV Tester

Page 10

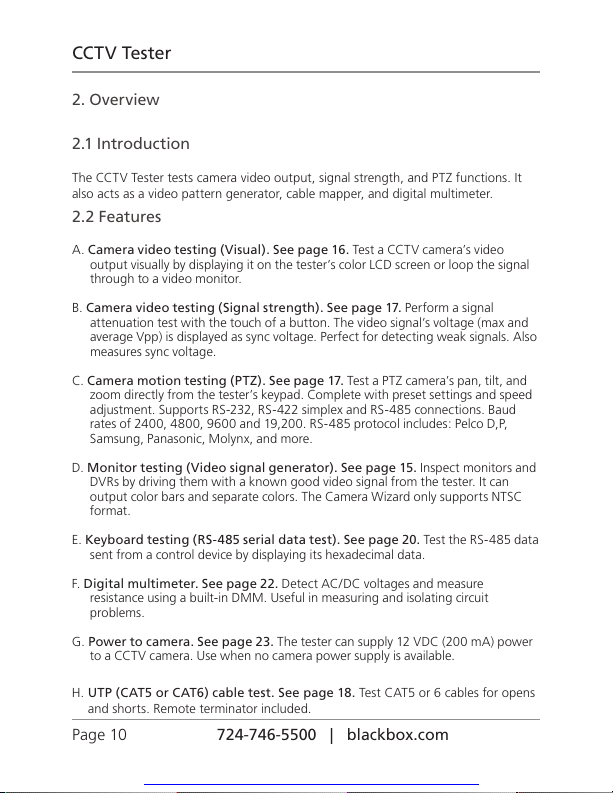

2. Overview

2.1 Introduction

The CCTV Tester tests camera video output, signal strength, and PTZ functions. It

also acts as a video pattern generator, cable mapper, and digital multimeter.

2.2 Features

A. Camera video testing (Visual). See page 16. Test a CCTV camera’s video

output visually by displaying it on the tester’s color LCD screen or loop the signal

through to a video monitor.

B. Camera video testing (Signal strength). See page 17. Perform a signal

attenuation test with the touch of a button. The video signal’s voltage (max and

average Vpp) is displayed as sync voltage. Perfect for detecting weak signals. Also

measures sync voltage.

C. Camera motion testing (PTZ). See page 17. Test a PTZ camera’s pan, tilt, and

zoom directly from the tester’s keypad. Complete with preset settings and speed

adjustment. Supports RS-232, RS-422 simplex and RS-485 connections. Baud

rates of 2400, 4800, 9600 and 19,200. RS-485 protocol includes: Pelco D,P,

Samsung, Panasonic, Molynx, and more.

D. Monitor testing (Video signal generator). See page 15. Inspect monitors and

DVRs by driving them with a known good video signal from the tester. It can

output color bars and separate colors. The Camera Wizard only supports NTSC

format.

E. Keyboard testing (RS-485 serial data test). See page 20. Test the RS-485 data

sent from a control device by displaying its hexadecimal data.

F. Digital multimeter. See page 22. Detect AC/DC voltages and measure

resistance using a built-in DMM. Useful in measuring and isolating circuit

problems.

G. Power to camera. See page 23. The tester can supply 12 VDC (200 mA) power

to a CCTV camera. Use when no camera power supply is available.

H. UTP (CAT5 or CAT6) cable test. See page 18. Test CAT5 or 6 cables for opens

and shorts. Remote terminator included.

Get other manuals https://www.bkmanuals.com

Indice

Altri manuali Black Box Apparecchiature di prova

Black Box

Black Box TS560A Manuale utente

Black Box

Black Box FT825A Manuale utente

Black Box

Black Box OMNIScanner Manuale utente

Black Box

Black Box PIN POINT TS020A Manuale utente

Black Box

Black Box CertiFiber TS655A Manuale utente

Black Box

Black Box NET-PING Manuale utente

Black Box

Black Box VT-101 Manuale utente

Black Box

Black Box TD115V-R4 Manuale utente

Black Box

Black Box TS022A Manuale utente

Black Box

Black Box FOQLS Manuale utente

Black Box

Black Box SCAN-LAN VI Manuale utente

Black Box

Black Box Multi Quick Check RJ-11 Manuale utente

Black Box

Black Box SCAN-LAN Vt TS Series Manuale utente

Black Box

Black Box FOLS-SM-100 Manuale utente

Black Box

Black Box IT1000 Manuale utente

Black Box

Black Box TS029A-R4 Manuale utente

Black Box

Black Box FOLS-SM-100 Manuale utente

Black Box

Black Box TS027A-R3 Manuale utente

Black Box

Black Box TS875A Manuale utente

Manuali Apparecchiature di prova popolari di altre marche

SMART

SMART KANAAD SBT XTREME 3G Series Manuale utente

Agilent Technologies

Agilent Technologies BERT Serial Manuale utente

Agilent Technologies

Agilent Technologies N3280A Manuale utente

Vernier

Vernier Go Direct Voltage Manuale utente

Lifeloc

Lifeloc R.A.D.A.R. Manuale utente

Fluke

Fluke T5-600 Istruzioni per l'uso e l'installazione

Mercury

Mercury TSL01 Manuale utente

MAHA

MAHA MBT Series Manuale utente

Fuji Electric

Fuji Electric P-61 Manuale utente

ETC

ETC SealerAtor Manuale utente

Skyfine

Skyfine ETHYWAY V2 Manuale utente

Appion

Appion G5 Twin Manuale utente

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuale utente

BW Technologies

BW Technologies MicroDock II Manuale utente

Sun Nuclear

Sun Nuclear 1027 Manuale utente

Biomark

Biomark HPR LITE READER Manuale utente

Hioki

Hioki 3169-20 Manuale utente

Ashcroft

Ashcroft ATE-100 Manuale utente
