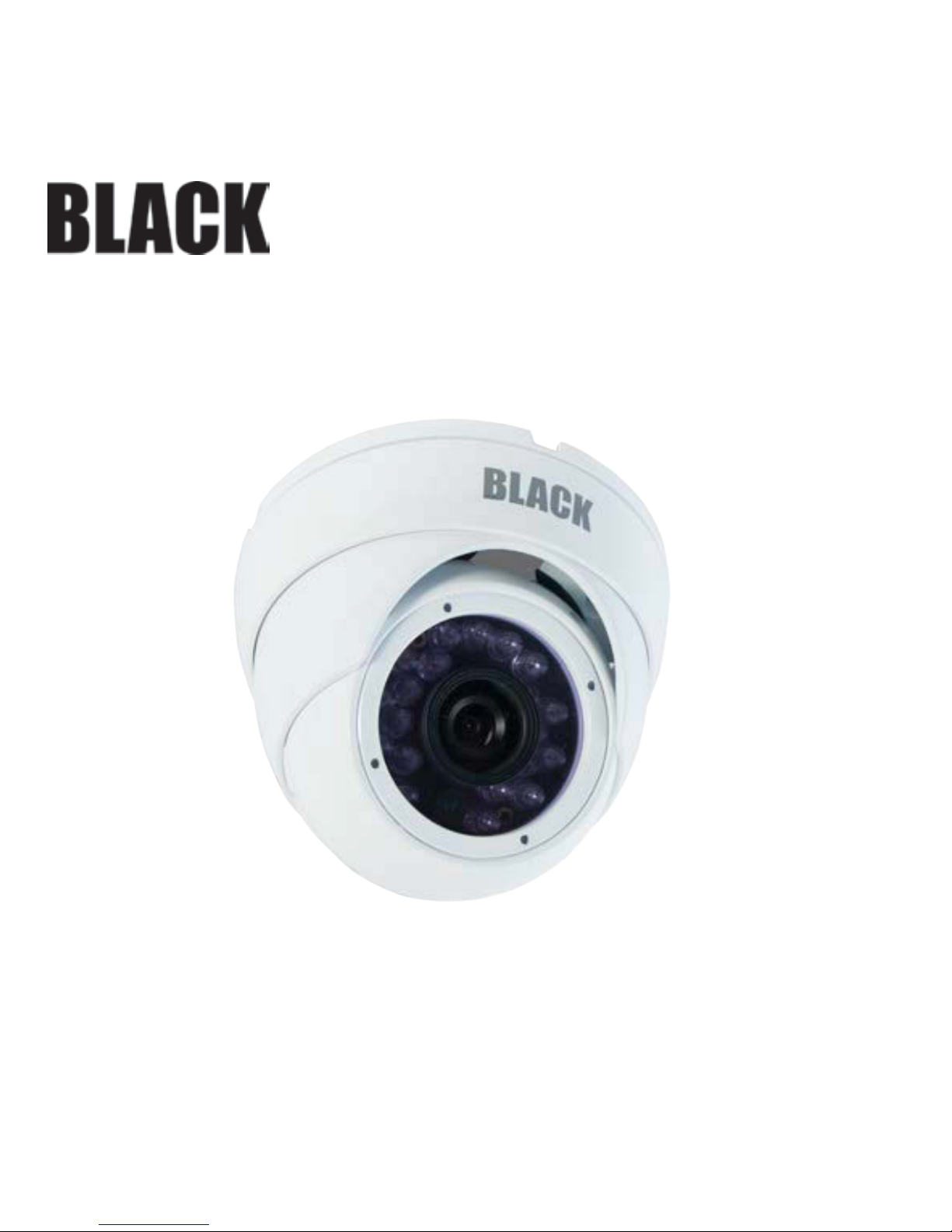

Black BLK-HD33IR Manuale utente

BLK-HD33IR HD-SDI Digital Video IR LED

Dome Camera User Manual

Please read this manual before using your camera, and always follow the instructions

for safety and proper use. Save this manual for future reference.

BLK-HD33IR_CM 5/29/13

CONTENTS

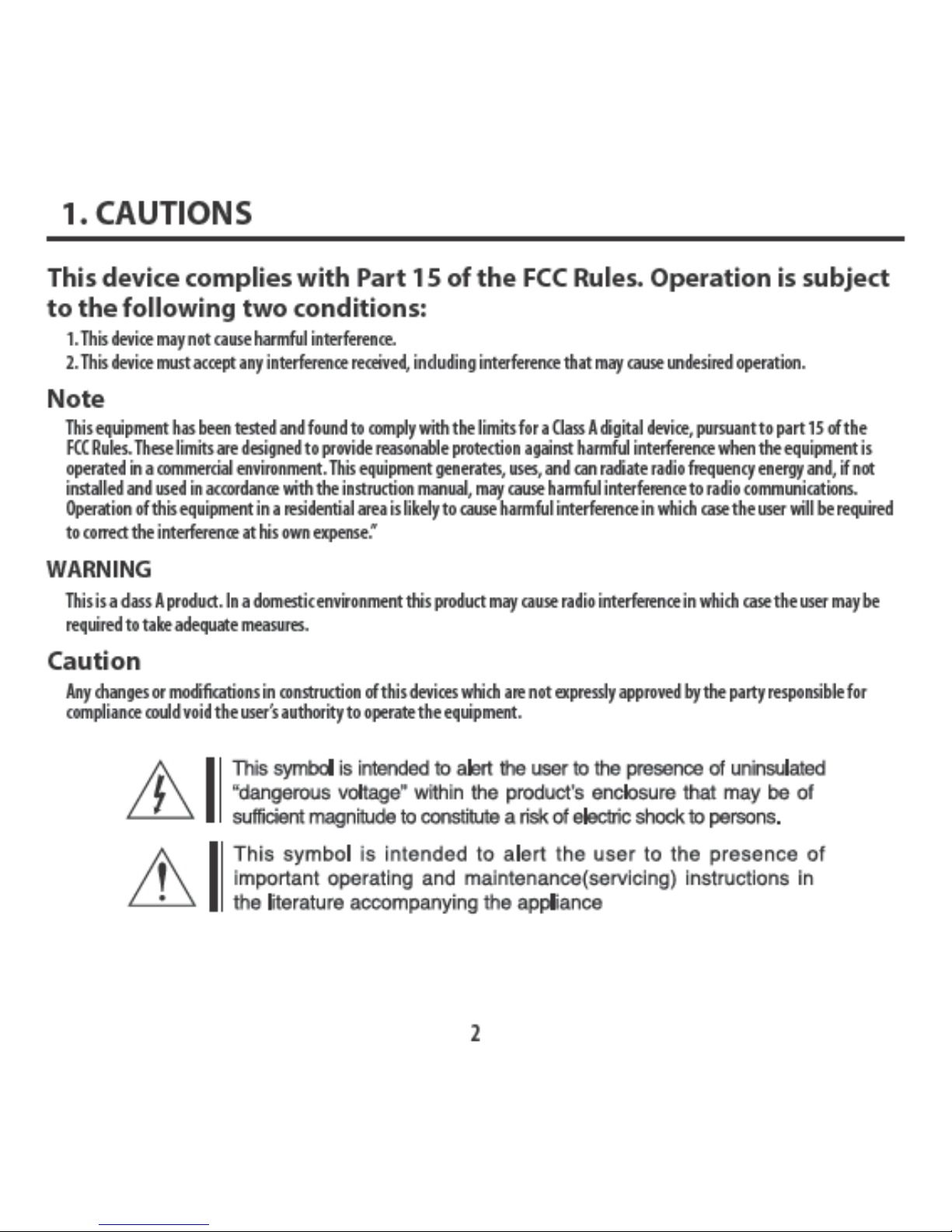

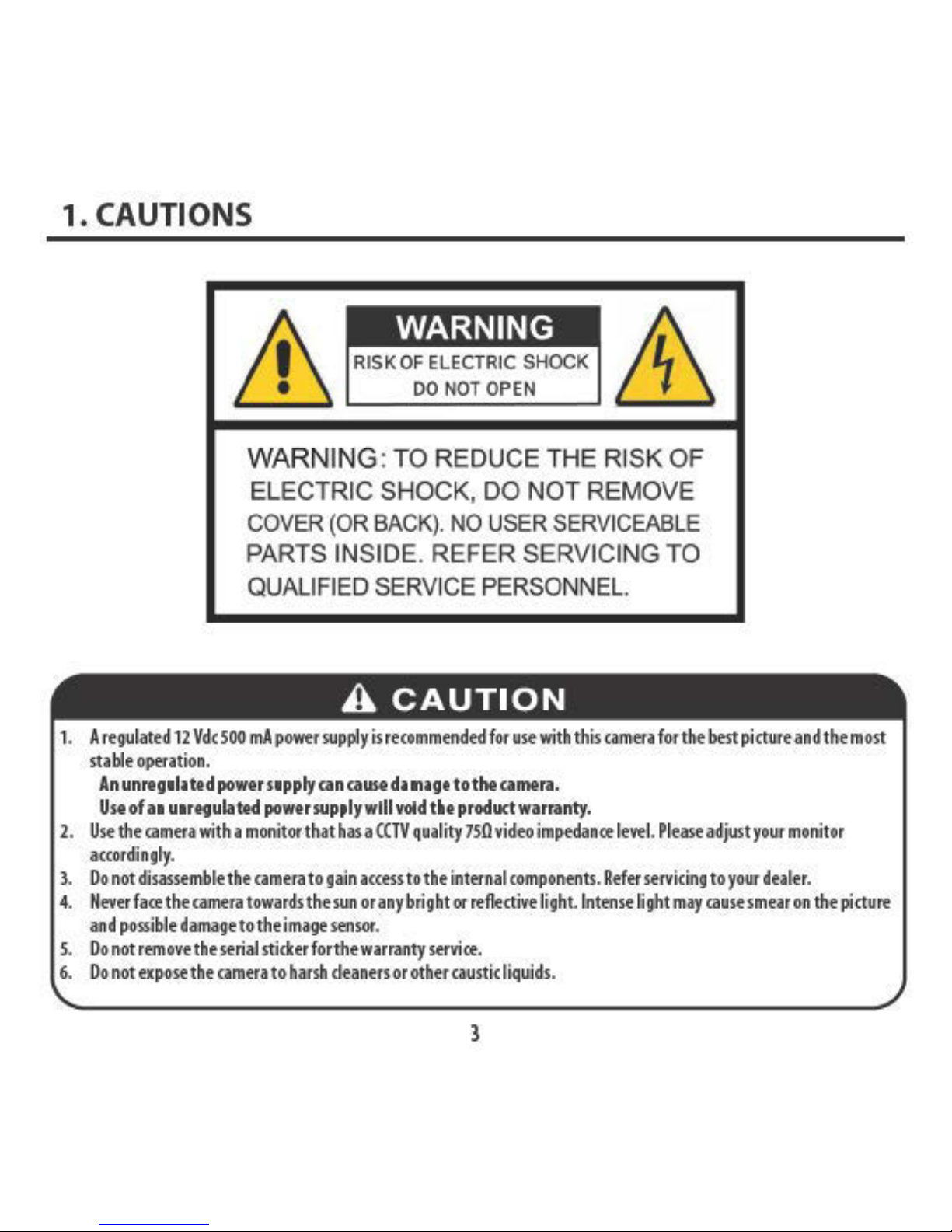

1. CAUTIONS

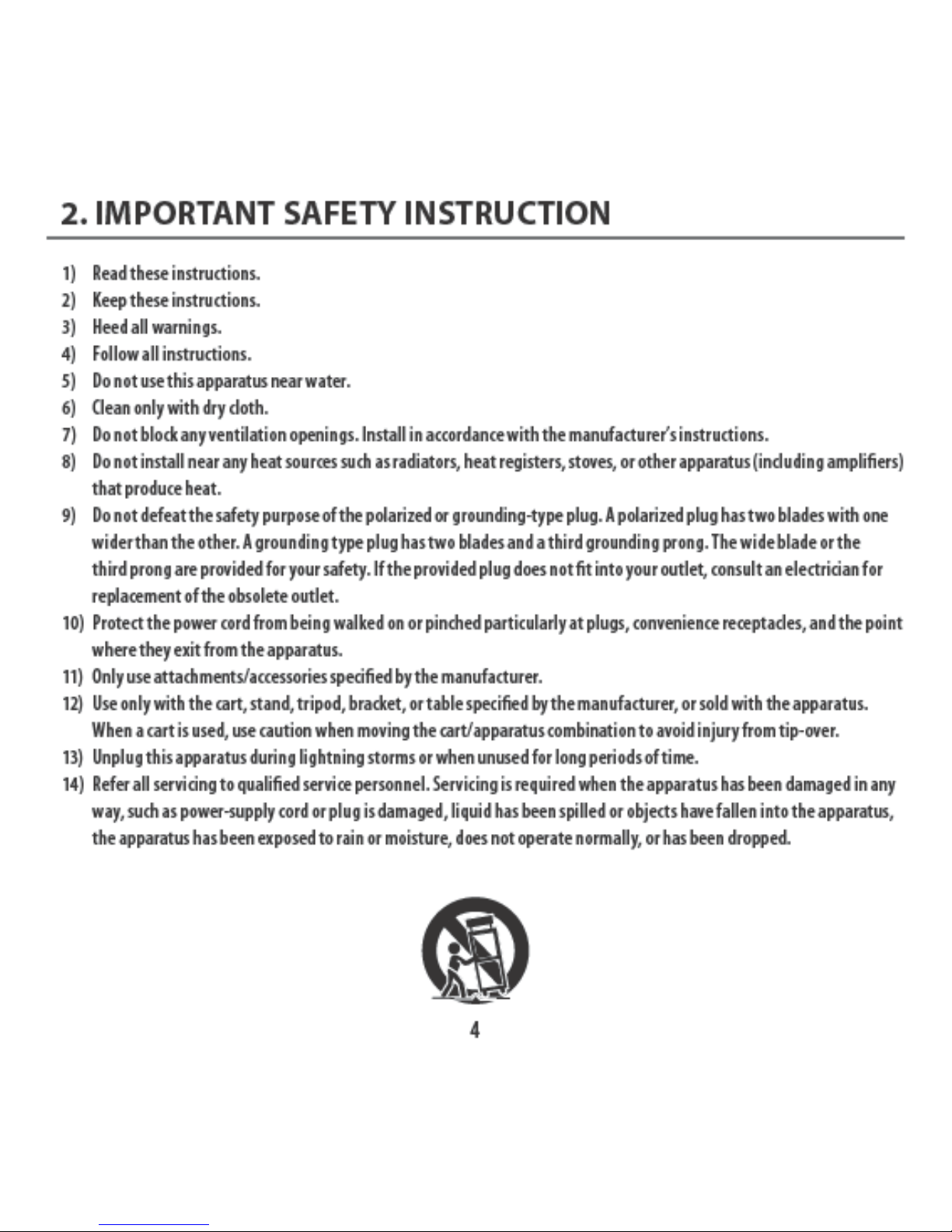

2. IMPORTANT SAFETY INSTRUCTION

3. FEATURES

4. EQUIPMENT AND ACCESSORIES

5. CAMERA COMPONENT DESCRIPTIONS

6. INSTALLATION

7. DIMENSIONS

8. SPECIFICATION

9. OSD MANUAL

5

6

3. FEATURES

• High resolution

SONY 1 / 3” 2.1 M progressive color CMOS image sensor

1920x1080 30 fps

• Support various digital video output

720p60, 720p50, 1080p30, 1080p25

• Video Outputs

Primary HD-SDI (BNC)

Test / Setup TV Out (test point-adapter to BNC included)

NTSC / PAL selectable

• OSD menu for setup and conguration

• Provides True Day / Night capability with motorized IR cut filter

• 20 long life IR illuminations for 0 Lux viewing performance and range to 32 feet

• Lens: board lens

• Power source: 12 Vdc

• 3-Axis gimbal

• IP66 weather resistant

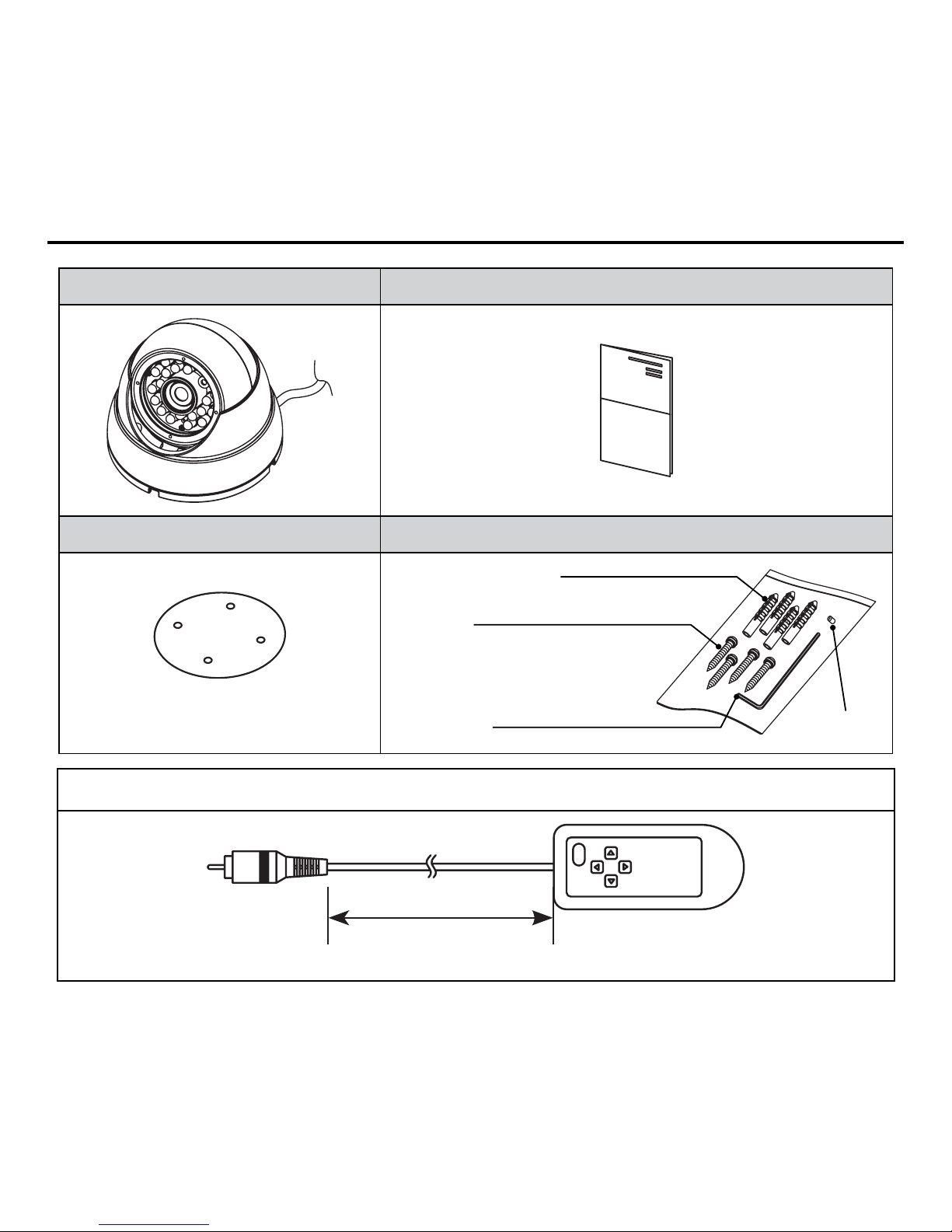

4. EQUIPMENT AND ACCESSORIES

Camera Manual

Template Screws, Set Screw / L-Wrench / Plastic Anchors

Screws

L-Wrench

Plastic Anchors

Set Screw

Option - Remote Control (OSD Key)

114 ft max.

7

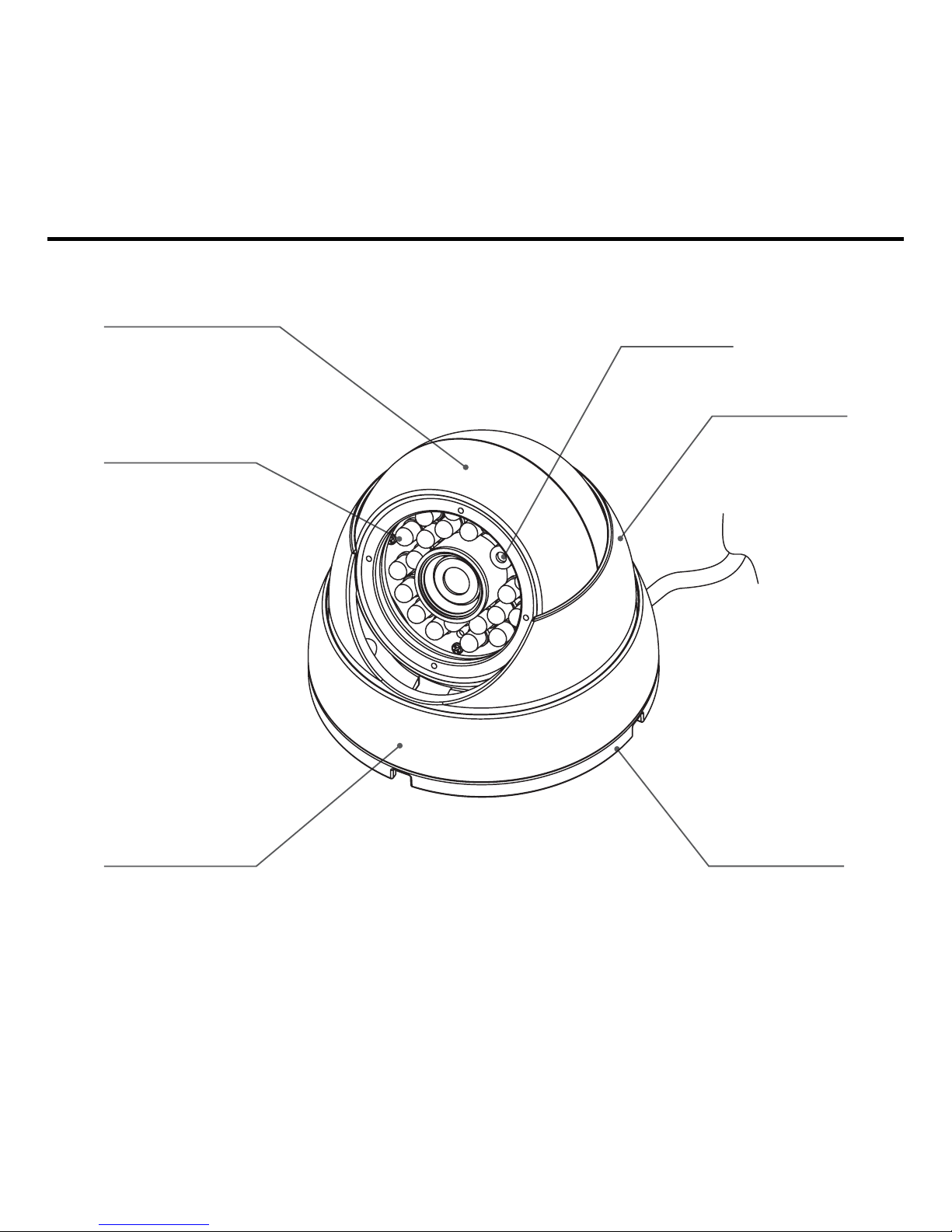

5. CAMERA COMPONENT DESCRIPTIONS

8

IR LED

Housing Ball

Housing Ball Bracket

Housing Bottom

Housing Top

Photo Cell

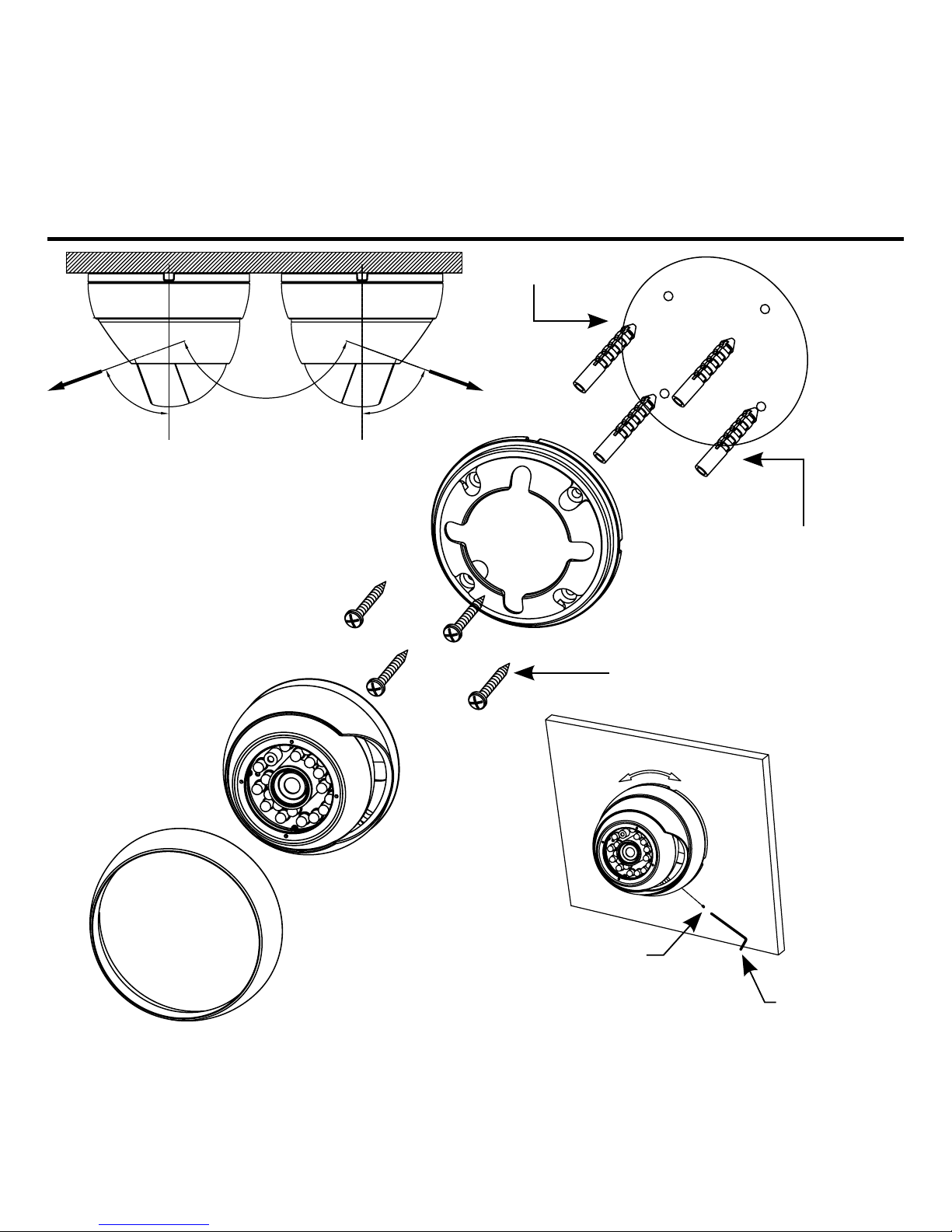

6. INSTALLATION

Plastic anchors (4)

Tapping screws - 4x25L (4)

Template

L-Wrench

Set screw - M2.5x3L

Open Close

140° 70°

70°

9

6. INSTALLATION

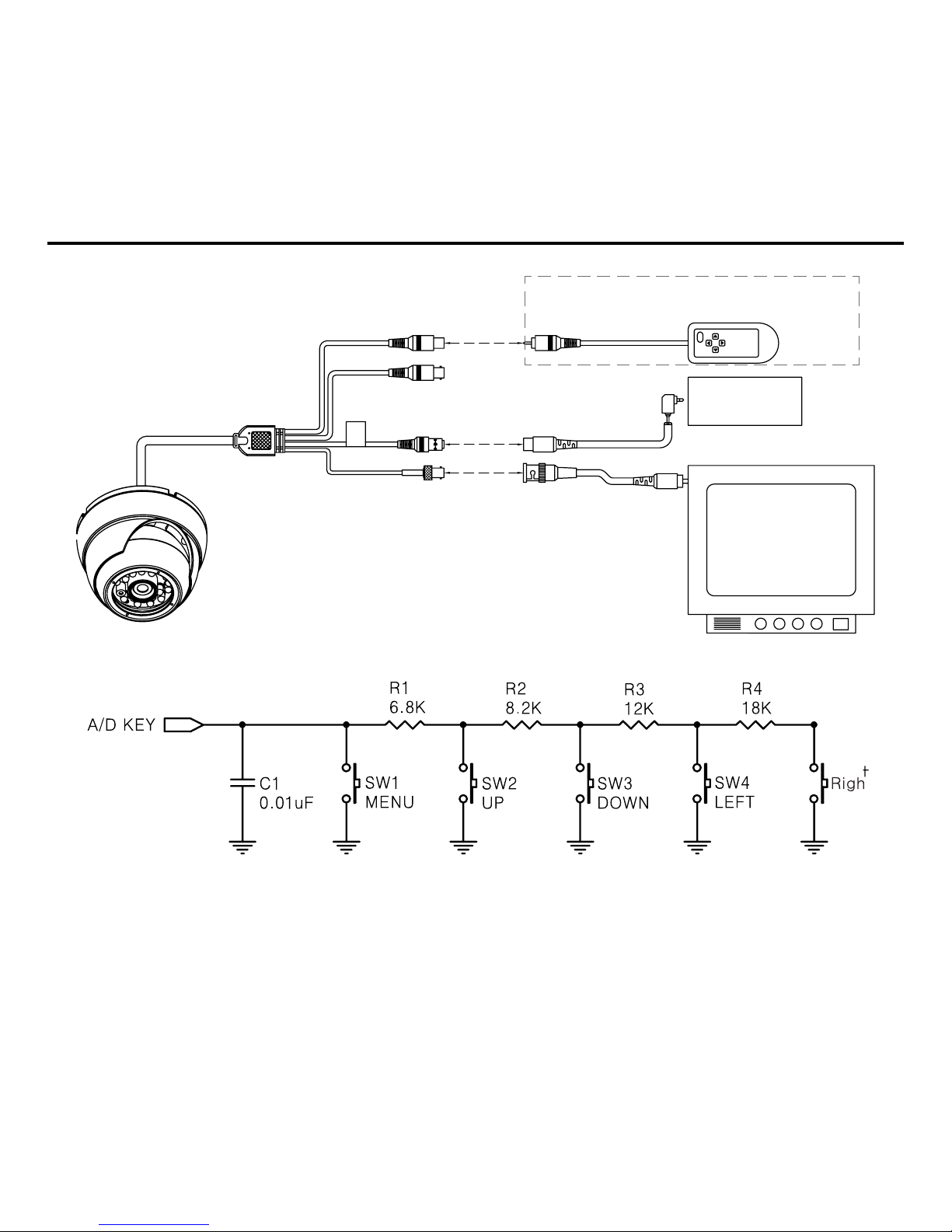

* Remote Control - Circuit Diagram (Option)

Function

SW1: menu OSD menu on / off, selection.

SW2: up OSD menu up.

SW3: down OSD menu down.

SW4: left OSD menu left.

SW5: right OSD menu right.

RCA jack (OSD key jack)

12 Vdc IN (black)

BNC female

(HD-SDI jack) HD-SDI IN

Monitor

* Option: remote control (OSD key)

12 Vdc adapter

BNC female

(2'nd video)

MONITOR CONNECTION

10

NOTE: Cable connections may not be weatherproof.
