BLAUBERG Ventilatoren Auto Manuale utente

User's manual

Auto

BLAUBERG Company is happy to offer your attention a new

generation product, the BLAUBERG Auto fan. The solid team of

high-qualified professionals with many years of working

experience, technological innovations in design and production,

high-quality components and materials from the top worldwide

producers have become the precondition for the best

fan in its class.

INTRODUCTION

The present service instruction contains a technical description,

technical data sheets, operation and mounting guidelines, safety

precautions and warnings for safe and correct operation of the fan

BLAUBERG Auto.

USE

The BLAUBERG Auto fan is designed for exhaust ventilation of

residential and public premises heated during winter season. The fan is

designed for wall or ceiling mounting (fig. 3-5). The fan is equipped

with automatic shutters to prevent air back drafting during the fan

standby.

COMPLETE SET

- fan - 1 item;

- screws and dowels - 4 items;

- plastic screwdriver (for the models with timer) - 1 item;

- service instruction;

- packing box.

The fan design is regularly improved, so some models can slightly

differ from those ones described in this service instruction.

Table 1

Switch (S) - built-in pull cord switch;

Timer (T) - turn-off time range from 2 to 30 min;

Humidity sensor (H) - humidity level range from 60% to 90%;

Motion sensor (IR) - reach distance from 1 to 4 m and sensor

viewing angle up to 100°.

The fan does not cause interference with radio-, TV- or video-

equipment.

Service life is not less than 5 years.

Model

Auto ___

Auto ___ S

Auto ___ T

Auto ___ ST

Auto ___ H

Auto ___ SH

Auto ___ IR

Switch Timer Humidity

sensor

Motion

sensor

Table 2

BASIC CHARACTERISTICS

The fan designations, parameters, outer view, overall and connecting

dimensions are shown in tables 1, 2, 3 and in fig. 1 and 2.

Model

Max.

air flow

[m /h]

Power

[W]

Noise level,

3 m

[dBA]

RPM

-1

[min ]

Auto 100 18 2300

98 34

Auto 125 22 2400185 35

Auto150 26 2400

295 39

Table 3

Fig. 2

Fig. 1

1 - cover; 2 - casing;

3 - motor; 4 - impeller.

166

186

210

b 1

150

128

150

115

100

125

150

Dimensions [mm]

0,56

0,73

0,9

Weight

[kg]

Model

Auto 100

Auto 125

Auto 150

b 2

150

173

195

b 3

150

174

196

OPERATION RULES

The fan is rated for connection to 220...240 V / 50 Hz power mains

and is designed for continuous operation always connected to

power mains. The air motion direction in the system must match

the pointer on the fan casing. The fan is rated for operation at

ambient temperature from +1 °C up to +45 °C. The unit is rated as a

Class II electrical appliance.

SAFETY RULES

All operations related to the fan electrical connections, servicing

and repair works are allowed only after the fan disconnection from

power mains. All mounting and servicing operations are allowed for

duly qualified electricians with valid electrical work permit for

electric operations at the units up to 1000 V after careful study of

the present user's manual. The single-phase power grid must

comply with the acting local electrical norms and standards. The

fixed electrical wiring must be equipped with an automatic switch

that is used for connection of the fan to power mains with gap on all

poles at least 3 mm.

Make sure the impeller and the casing are not damaged before

starting installation. The casing internals must be free of any foreign

objects which can damage the impeller blades. Misuse of the

product or any unauthorized modification are not allowed.

The product is not allowed for use by children and persons with reduced

physical, mental or sensory capacities, without proper practical

experience or expertise, unless they are controlled or instructed on the

product operation by the person(s) responsible for their safety.

Supervise the children and do not let them play with the product. Take

steps to prevent ingress of smoke, carbon monoxide and other

combustion products into the room through open chimney flues or

other fire-protection devices. Sufficient air supply must be provided for

proper combustion and exhaust of gases through the chimney of fuel

burning equipment to prevent back drafting. The maximum permitted

pressure difference per living units is 4 Pa. Operating medium must not

contain any dust or other solid impurities, sticky substances or fibrous

materials. The fan is not rated for operation in a media that contains

hazardous or explosive materials and vapours, i.e. spirits, gasoline,

insecticides, etc. Do not close or block the fan intake or exhaust vent

not to disturb the natural air passage. Do not sit on the fan and do not

put objects on the fan. Follow the guidelines of this service instructions

to ensure durable operation of the product.

MOUNTING AND SETUP

The fan is designed for ceiling or wall mounting to extract air into a

ventilation shaft or matching air duct of respective diameter (fig. 3-7).

The fan mounting sequence is shown in fig. 8-9. The fan wiring diagrams

are shown in fig. 10-16.

Fig. 3 Fig. 4

Fig. 5

Fig. 7Fig. 6

Fig. 9

Fig. 8

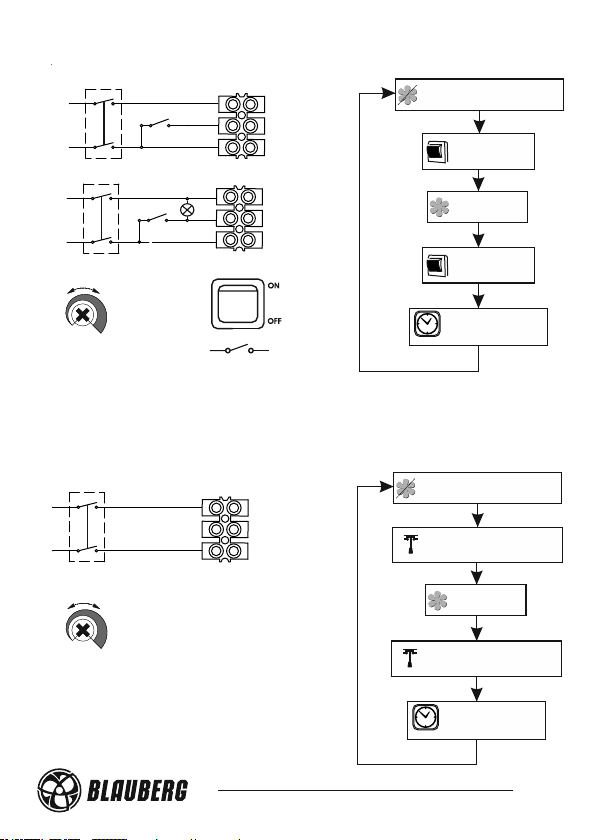

WIRING DIAGRAMS AND FAN OPERATING LOGIC

Auto _____

S - external switch

QF - automatic circuit breaker

Auto _____S

QF - automatic circuit breaker

Fan does not run

Switch

is closed

Fan runs

Switch

is opened

QF Fan does not run

Pull the cord switch

Fan runs

Pull the cord switch

Fig. 10

Fig. 11

Fan does not run

Fan runs

Turn-off delay timer

starts (2 to 30 min)

Pull the cord switch

Fan does not run

Switch

is closed

Fan runs

Switch

is opened

Turn-off delay timer

starts (2 to 30 min)

Auto _____T

S - external switch

QF - automatic circuit breaker

Auto _____ST

QF - automatic circuit breaker

Fig. 12

Fig. 13

2min 30min
