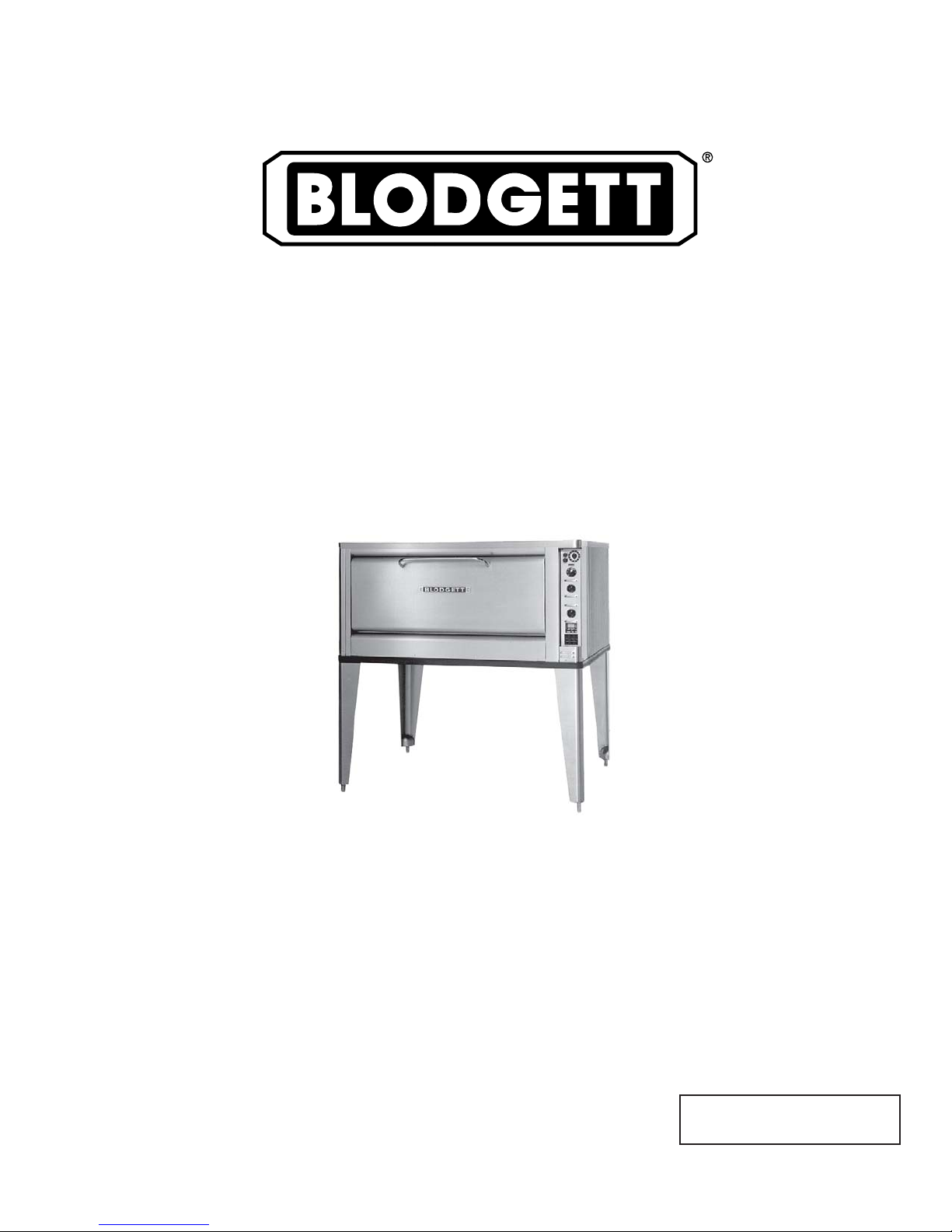

1200 SERIES

ELECTRIC PIZZA OVEN

REPLACEMENT PARTS LIST

EFFECTIVE JULY 11, 2011

Superseding All Previous Parts Lists.

The Company reserves the right to make substitution in the event that items specified are not available.

ERRORS: Descriptive and/or typographic errors are subject to correction.

www.blodgett.com

BLODGETT OVEN COMPANY, 44 Lakeside Avenue, Burlington, Vermont 05401 USA

Telephone: (802) 658-6600 Fax: (802) 860-3732

www.blodgett.com

P/N 53033

JULY 11, 2011 2 1200 SERIES

ASAP Distributor Required Stocking Parts

Doors Are Not Returnable

* Item Is Too Large For UPS

IMPORTANT: When ordering parts, please provide the model, gas type

and serial number of the oven. The identification plate is located on

the left side of the combustion compartment and, also, above the control

panel under the ledge.

BAKING COMPARTMENT

COMPONENTS-CONT'D.

Ref. Part

No. No. Description

3840 Retainer Ring, Door

3652 Hinge Assy, Door Link

11694 Door Washer (Set of 10)

* 8353 Steel Deck Assy.

* 35058 Ultra Rokite Deck Assy

ELEMENTS

Ref. Part

No. No. Description

18956 Element, 208V

19527 Element, 208V "L" Shape

8914 Element, 220V

10229 Element, 220V "L" Shape

8915 Element, 240V

10230 Element., 240V "L" Shape

8918 Element, 480V

10240 Element, 480V "L" Shape

20569 Element Jumper, with low cold end junction

(used with 208, 230, 240V)

ELECTRICAL COMPONENTS

Ref. Part

No. No. Description

10559 Transformer 480/240V to 120V

15549 Indicator Light 125V, Red Rect.

9086 Fuse, 2 AMP, Class G

11267 Fuseholder, Class G

17469 Knob, only (for heater switch)

5279 Thermostat, KX-38-36 (140-550°)

11224 Dial, Fahrenheit (For 5279)

9062 Thermostat, KX-268-24 (200-650°)

(Thermostat to 700° no longer available)

19262 Dial, Fahrenheit (For 9062)

9630 Dial, Centigrade (For 9062)

15956 Timer, 60 Min. Rhodes

16030 Knob, Black

20349 Buzzer & Terminals, 120V

16820 Dial, Timer 1HR Cook

20350 Buzzer & Terminals, 240V

11427 Timer, 6 HR

3574 Terminal Block 65AMP, 600V

11203 Circuit Breaker, 60AMP

90588 Contactor w/ Hardware

5147 Timer, 60 Min. Mechanical w/Bell

34483 Dial, Timer 60 Min. Mechanical

34484 Knob, Timer 60 Min. Mechanical

21430 Axial Fan 230V

33095 Terminal Block, 6 Pole CE

BAKING COMPARTMENT

COMPONENTS

Ref. Part

No. No. Description

10233 Handle, Door 21" (After 7/77)

9038 Handle, Door 20" (Before 7/77)

8342 Arm Assy, Door LH Support

8343 Arm Assy, Door RH Support

8338 Hinge Pin, Door RH

NOTE: Hinge Pin, Door LH is a welded/non-

replaceable part.

JULY 11, 2011 3 1200 SERIES

EXTERIOR COMPONENTS

Ref. Part

No. No. Description

7842 Legs, 7", S/S w/Bolts (Set of 4)

18693 Legs, 19" S/S w/ Bolts (Set of 4)

17831 Legs, 32" S/S w/Bolts (Set of 4)

7846 Legs, 27 1/2" S/S w/Bolts (Set of 4)

30822 Legs w/ Casters, 7" w/ Bolts (Set of 4) Black

31588 Legs w/ Casters, 12" w/ Bolts (Set of 4) Black

30823 Legs w/ Casters, 19" w/ Bolts (Set of 4) Black

30824 Legs w/ Casters, 27" w/ Bolts (Set of 4) Black

20462 Bottom, Louvered Trim

11255 Nameplate, BLODGETT 12 3/4"
