Pendant Speaker

Model: 700286198 / 700286206

(Black) (White)

Installation and Use Manual

Issue 1, August 2003

54-2101-01A.qxd 8/4/2003 1:57 PM Page 1

Product Description

You have purchased one of the finest pendant loudspeakers available today. Please

familiarize yourself with this product by reading and reviewing the following descrip-

tions and diagrams.

These loudspeakers include a "spiderless" woofer that utilizes a high-gauss ferroflu-

id to guide the voice coil through the magnetic field.The benefits over conventional

woofers with cloth spiders are several, including the ability to constantly adjust voice

coil alignment, extend linear excursion, and the most efficient path for cooling the

voice coil.

In addition, the use of metal-alloy cone structures provides several benefits over the

usual paper or plastic cone, such as elimination of cone flex or "break-up" in the

operating ranges, additional thermal path for the voice coil to stay cool, and an

extremely stable cone structure unaffected by the environment.

The pendant loudspeaker is a full-range, wide dispersion system providing overhead

sound coverage where ceiling structures are high but the sound needs to be closer

to the audience/listener. Cable kits are provided for use as safety and main drop

cables.

Settings for 70V and 100V high-impedance systems, as well as a low-impedance

(16-ohm) position, are provided.

All models feature a removable snap-lock input connector, providing easy wire con-

nection for input as well as loop-through to the next speaker.

54-2101-01A.qxd 8/4/2003 1:57 PM Page 2

Product Diagrams

Front Drawing

1.Tap Selection Switch

2. Coaxial Driver Assembly

3. Grille Retention Slot

4. Bass Tuning Vent (x2)

5. Perforated Steel Grille

Rear Drawing

1. Snap-Lock Input Connector

2. Suspension Points (x3)

3. Safety Cable Suspension Point

Package Contents

(1) Pendant Speaker

(1) Installation and Use Manual

(1) Snap-Lock Input Connector

(1) Quick-Snap Clip

(2) Cable Kits

(3) Suspension Cables with Forged Eye Bolts

(3) Nuts (maybe installed onto eyebolts)

Front Drawing

(grille partially shown)

Rear Drawing

54-2101-01A.qxd 8/4/2003 1:57 PM Page 3

Speaker Installation

If the power level is known, then select it using the front-mounted selector switch

prior to installing the speaker. See section Selecting Power Levels.

Speaker Grille Removal

Insert a pocket knife blade between the grille and the

bezel about a 1/4" deep and then gently pry the grille

upwards. Do this in multiple places around the circum-

ference of the grille to free the grille.

Speaker Grille Installation

The speaker grilles fit tightly! Make sure the tap set-

tings are correct prior to installing grille. Push the

speaker grille in until it can go no further. Then, slap

around the edge of the grille to seat the grille. The

grille is properly seated when it is flush with the edge

of the bezel.

Suspension Cable Assembly

1. Screw nuts onto the eye bolts all the way to

the flange.

2. Screw in eye bolts with captured cable sec-

tions in to the three suspension points.

Do not overtighten.

3. Snap loops of free end of cable sections into

quick-snap clip.

4. Connect quick-snap clip to drop cable. The

supplied cable kit is suitable for use as the

drop cable.

Safety Cable

The speaker includes a safety cable suspension

point for extra protection. The included cable kit

must be used as a safety cable. Refer to instruc-

tions with cable kits for proper use.

IMPORTANT

The anchor point and any hardware used

to anchor the speaker must be able to

support the speaker’s weight under all

conditions. IF YOU ARE NOT SURE OF

THE PROPER CAPACITY OF THESE

ITEMS TO USE, CONSULT A STRUCTUR-

AL ENGINEER. Mount only one speaker

per supplied quick-snap clip.

54-2101-01A.qxd 8/4/2003 1:57 PM Page 4

Speaker Wiring

Wiring is terminated at a snap-lock input con-

nector. There are two positive and two nega-

tive terminals to accommodate daisy chaining

of speakers in a system. All wiring should be

done prior to installation and then plugged

into the rear of the speaker.

Daisy Chaining

The speaker’s snap-lock input connector

allows for easy daisy chaining of speakers by

providing a second terminal of each polarity.

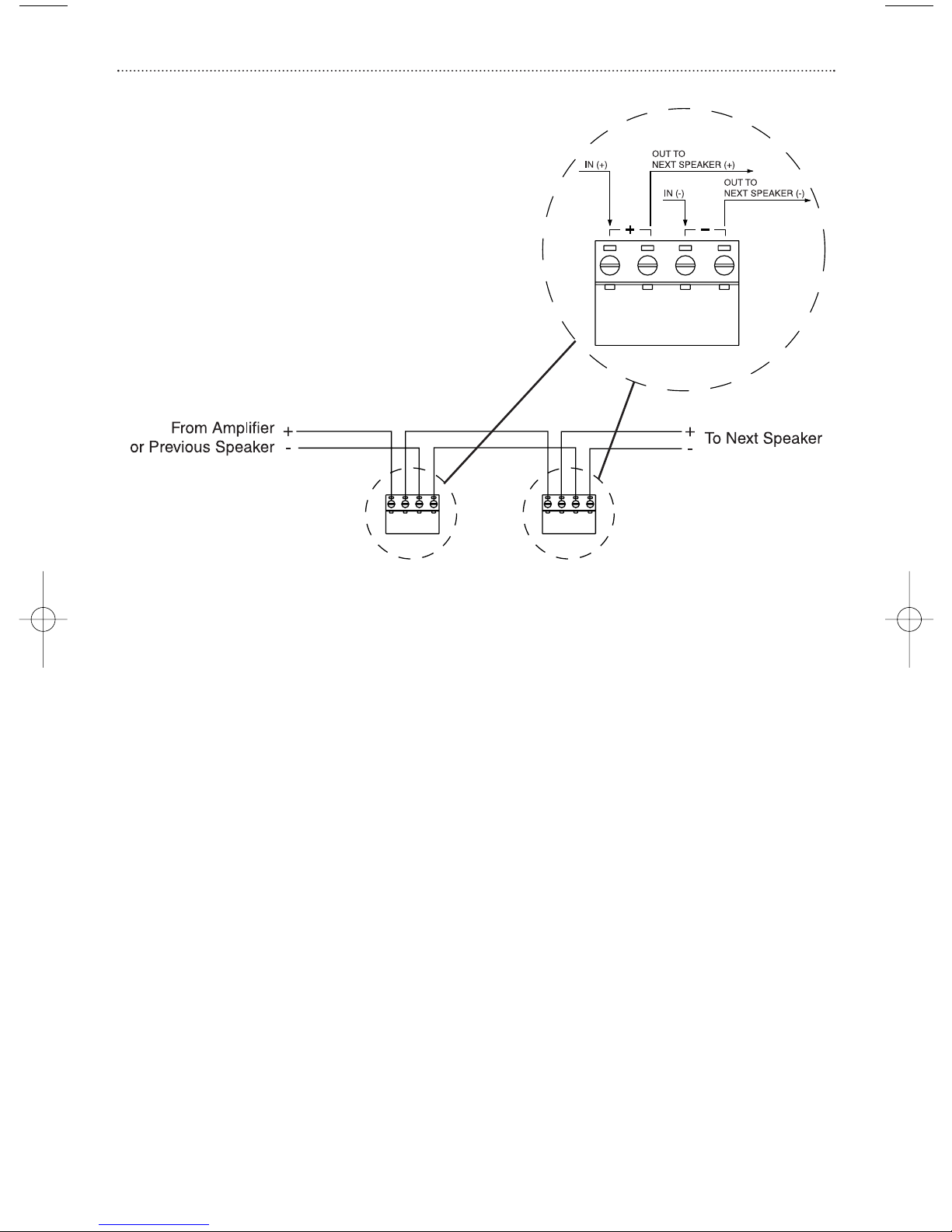

Refer to the figures for proper wiring for daisy

chaining of terminals.

Speaker Phasing

Keep the same polarity terminals wired together to ensure correct phasing. In order

to provide the best possible sound, all of the speakers in a system need to be

pushing out and pulling in at the same time.

If the connections to one speaker in a system are reversed from the others, that

speaker’s movement will be out of sync with the other speakers.This will result in a

loss of low frequency response and will effect the overall performance of the

system.

54-2101-01A.qxd 8/4/2003 1:57 PM Page 5

Selecting Power Levels

The front-mounted selector switch is used to

set the appropriate power level or impedance

for your system. Using a small flat-blade screw-

driver, turn the knob until the slot points to the

power level you require.

70V/100V Systems

Both power setting scales for 70V and 100V sys-

tems are labeled on the speakers. On the 100V

scale, the last position clockwise is marked with

a (not available) symbol. Do not use this posi-

tion in 100V systems.

ΩΩ

Systems

The fully counterclockwise position of the setting switch is the 16-ohm position.This

setting is suitable for use with low-impedance amplifiers that typically support 4- or

8-ohm speakers.The speaker’s higher, 16-ohm impedance makes it easier to combine

multiple speakers into series - parallel networks while keeping the total system

impedance at a level suitable for low-impedance amplifiers.

54-2101-01A.qxd 8/4/2003 1:57 PM Page 6

Specifications

SPECIFICATIONS 700286198 & 700286206

Frequency Response (-10 dB)*60 Hz to 19 kHz

LF Driver 6-1/2" MDT Metal-Alloy Cone

HF Driver 20 mm (3/4") Polycarbonate Dome

Sensitivity (1W/1M) 89.5 dBspl (Average 100 Hz - 10 kHz)

Impedance Ratings Low (16 ohms) / High (70V/100V)

Power Input (Max.) 100W @ 16 ohms; 32W @ 70V/100V

Power Settings (in watts)†70V: 32, 16, 8, 4, 2, 1

100V: 32, 16, 8, 4, 2

Enclosure Material ABS

Grille Material Powder-Coated Perforated Metal

Terminations 4 Terminal Snap-Lock Input Connector

Product Weight 10 lb.

Speaker Dimensions 15" dia. x 9-1/4" D

Included Accessories

(1) Snap-Lock Input Connector; (1) Quick-Snap Clip

(2) Cable Kits; (3) Nuts; and

(3) Suspension Cables with Forged Eye Bolts

Enclosure Finish & Color Textured White or Black

*Free Space Response, 16-ohm input.

† Front panel, switch-selected.

54-2101-01A.qxd 8/4/2003 1:57 PM Page 7

Specifications are subject to change without notice.

www.paging-solutions.com

1-877-852-PAGE
