Boss Audio Systems BV7348B Manuale utente

To ensure safety while driving

and to comply with laws,

drivers should not watch video or

operate the video device while driving.

Content

-1-

Safety Information.........................

Disc Note.......................................

Installation ....................................

Detaching control panel....................

Attaching control panel.....................

Electric Connection ......................

Remote Control .............................

Basic Operation.............................

Control Panel ................................

Setup Operation............................

Setting animation...........................

Setting disc....................................

Setting radio...................................

Setting BT......................................

Setting wallpaper............ ................

Version about..................................

Setting time.......... .........................

Setting audio mode.........................

Setting video mode.........................

Setting OSD language....................

Setting illumination color.................

Reset Factory Settings ...................

Rear View Camera ........................

Radio Operation............................

Listening to radio.............................

Storing stations in memory ..............

Automatic Memory Storing &

Program Scanning......................

RDS function..................................

Media Operation............................

Selecting Play Mode........................

On-Screen Display Function............

Digital Video Special Function......

Multi-subtitle language function.......

Multi-audio language function..........

Multi-angle function.........................

Title menu function ..........................

BT Operation..................................

AUX/AV Operation..........................

USB Operation...............................

Card Operation..............................

MP3/WMA/JPEG/MPEG4 Play .........

SWC Operation..............................

Specification..................................

Troubleshooting.............................

SAFETY INFORMATION

-2-

CAUTION:

THIS DIGITAL VIDEO PLAYER IS A CLASS I LASER PRODUCT. HOWEVER

THIS DIGITAL VIDEO PLAYER USES A VISIBLE/INVISIBLE LASER BEAM

WHICH COULD CAUSE .

HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE

THE DIGITAL VIDEO PLAYER CORRECTLY AS INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT

REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected

by method claims of certain U.S. Patents and other intellectual property rights

owned by Macrovision Corporation and other rights owners.Use of this

and is intended for home and other limited viewing uses only unless

otherwise authorized by Macrovision Corporation. Reverse engineering or

disassembly is prohibited.

REGION MANAGEMENT INFORMATION:

This Digital Video Player is designed and manufactured to respond to the Region

Management Information that is recorded on a Digital Video disc. If the Region

number described on the Digital Video disc does not correspond to the Region

number of this Digital Video Player, this Digital Video Player cannot play this disc.

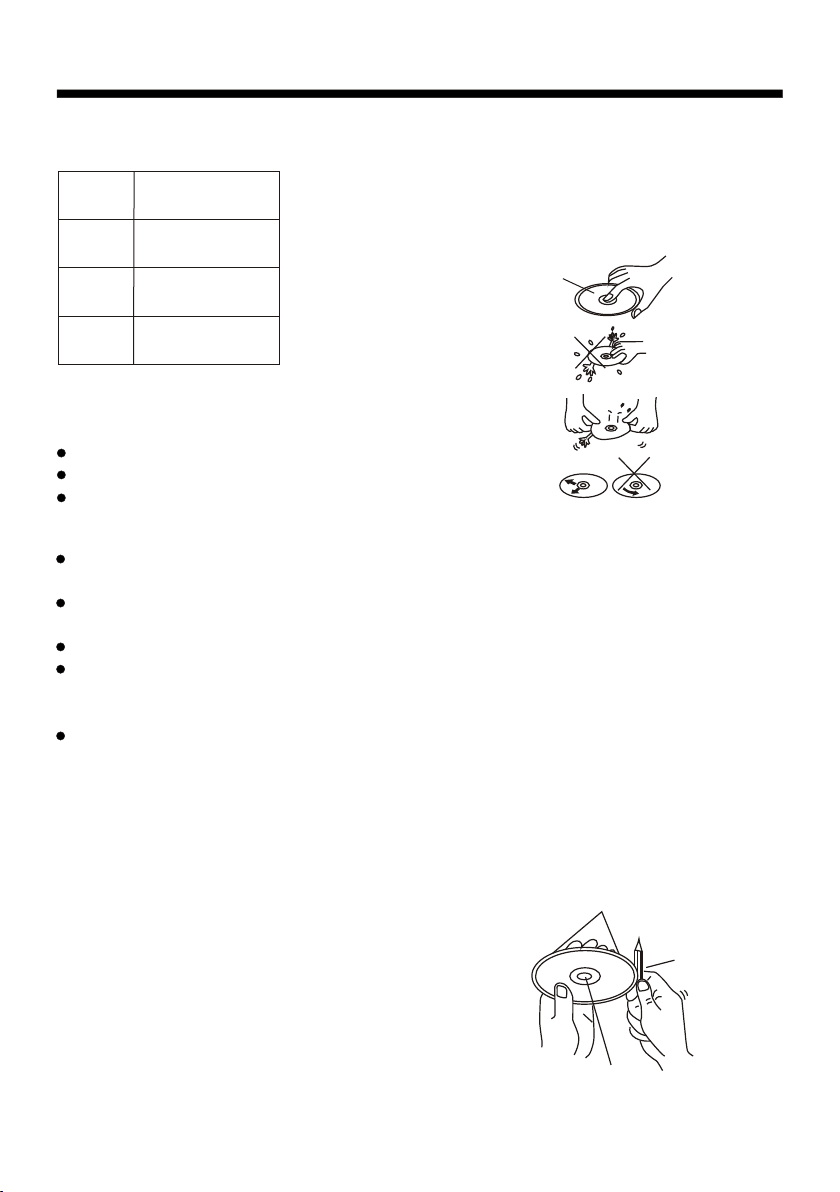

DISC NOTE

Preparing New Discs with Rough

Spots

A new disc may have rough edges on

its inside and outside edges.If a disc

with rough edges is used, the proper

setting will not be performed and the

player will not play the disc.Therefore,

remove the rou gh ed ges in adv anc e

by using a ball point pen or pencil as

shown on the right.To re mov e t he

rough edges, press the si d e of t h e pen

or pencil against the inside and outside

edges of the disc.

Rough spots

outside edge

Ball point pen

or pencil

Rough spots

on inside

edge

Label side

Do not touch

the

underside

of the disc

Do not

bend

Wipe the disc from

center

toward the outside

edge

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl

(rubbing) alcohol. Never use solvents

such as benzine, thinner or conventional

record cleaners as they may mar the

surface of the disc.

Handling and Cleaning

Dirt, dust, scratches and warping disc

will cause misoperation.

Do not place stickers or make

scratches on discs.

Do not warp discs.

A disc should always be kept in its

case when not in use to prevent from

damaging.

Do not place discs in the following

places:

1.Direct sunlight

2.Dirty, dusty and damp areas

3.Near car heaters

4.On the seats or dashboard

Discs which cannot be played

with this player

Digital Video-RAM

CDV

CD-G

Note:

A disc may become somewhat scratched

(although not enough to make it unus-

able) depending on your handling it and

conditions in the usage environment.

Note these scratches are not an indica-

tion of any problem with the player.

-3-

Disc formats supported by this

player

Digital

Video

VCD

MP3

Audio and Video

Disc size 12 cm

Audio and Video

Disc size 12 cm

Audio

Disc size 12 cm

Audio

Disc size 12 cm

NOTES:

Choose the mounting location where the

unit will not interfere with the normal

driving function of the driver.

Before finally installing the unit, connect

the wiring temporarily and make sure it

is all connected up properly and the unit

and the system work properly.

Use only the parts included with the unit

to ensure proper installation. The use of

unauthorized parts can cause

malfunctions.

Consult with your nearest dealer if insta-

llation requires the drilling of holes or

other modifications of the vehicle.

Install the unit where it does not get in

the driver s way and cannot injure the

passenger if there is a sudden stop,

like an emergency stop.

INSTALLATION

-4-

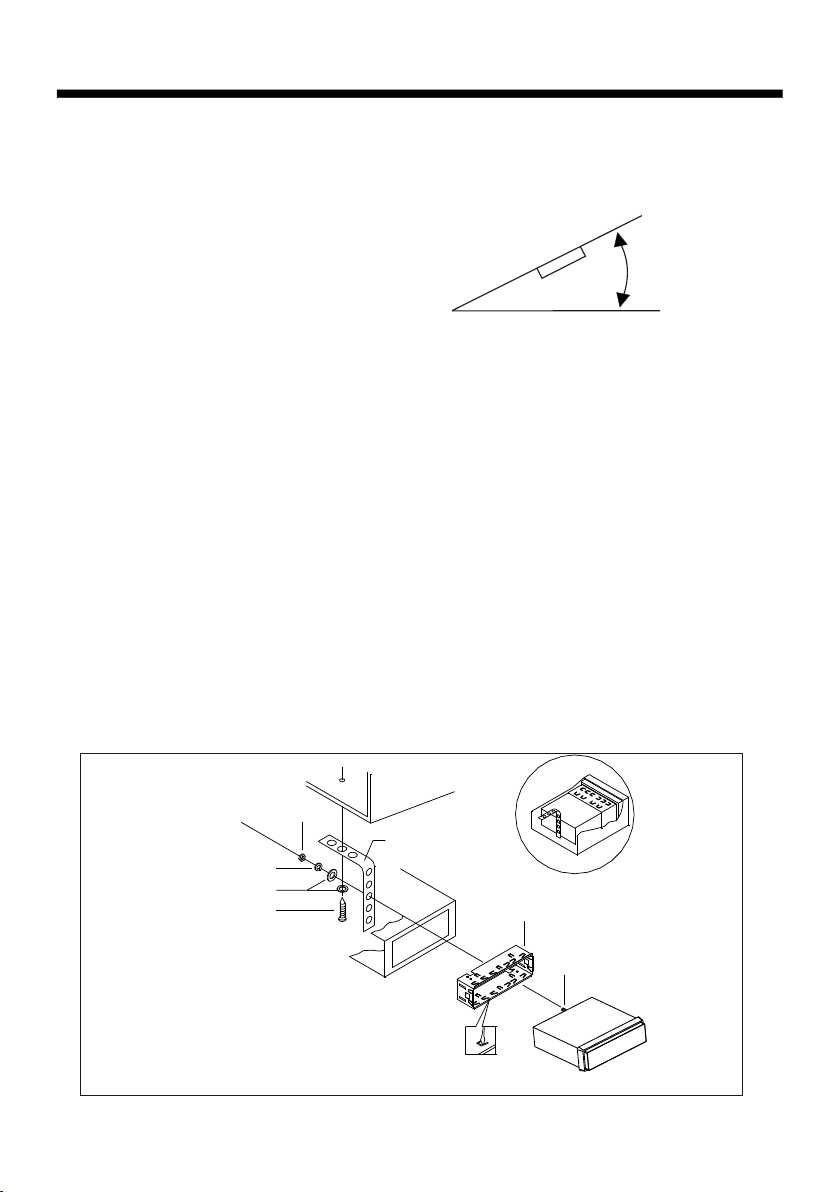

If installation angle exceeds 30 from

horizontal, the unit might not give its

optimum performance.

Avoid installing the unit where it would

be subject to high temperature, such

as from direct sunlight, or from hot air,

from the heater, or where it would be

subject to dust, dirt or excessive

vibration.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either

from "Front"(conventional DIN Front-

mount) or "Rear"(DIN Rear-mount

installation, utilizing threaded screw

holes at the sides of the unit chassis).

For details, refer to the following

illustrated installation methods.

DASH BOARD

METAL MOUNTING

STRAP

HEX NUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

CONSOLE

SLIDE BRACKET

HOUSING

HEX BOLT

INSTALLATION

-5-

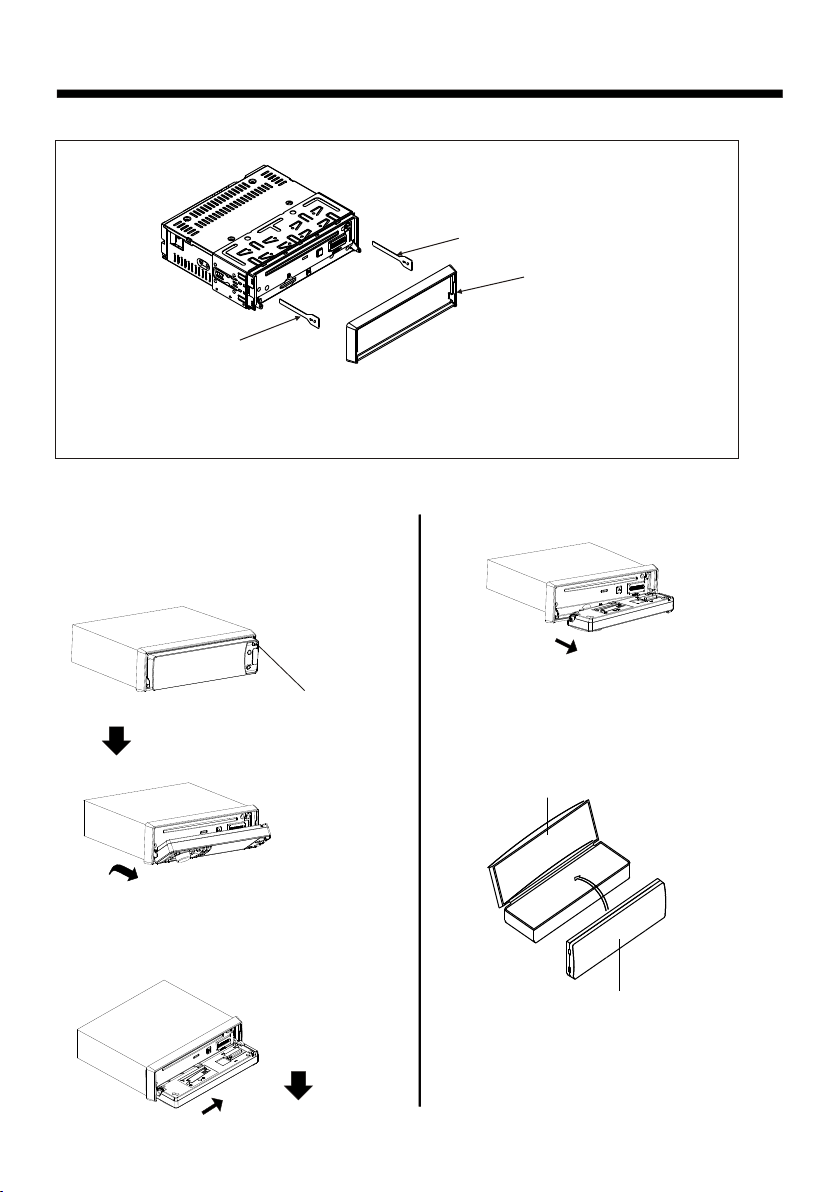

DETACHING CONTROL PANEL

1. Press the OPEN button to flip down the

front panel .

2. First slide the front panel a little to

the right, and pull it off towards you .

OPEN button

3. put it in the protective case for safe

keeping.

PROTECTIVE CASE

FRONT PANEL

KEY PLATE

PLASTIC FRAME

KEY PLATE

If you want to take CHASSIS out of the SLIDE BRACKET HOUSING , first remove

the PLASTIC FRAME of the both sides away, then insert the two KEY PLATES into

left and right sides of chassis as above illustration.

INSTALLATION

-6-

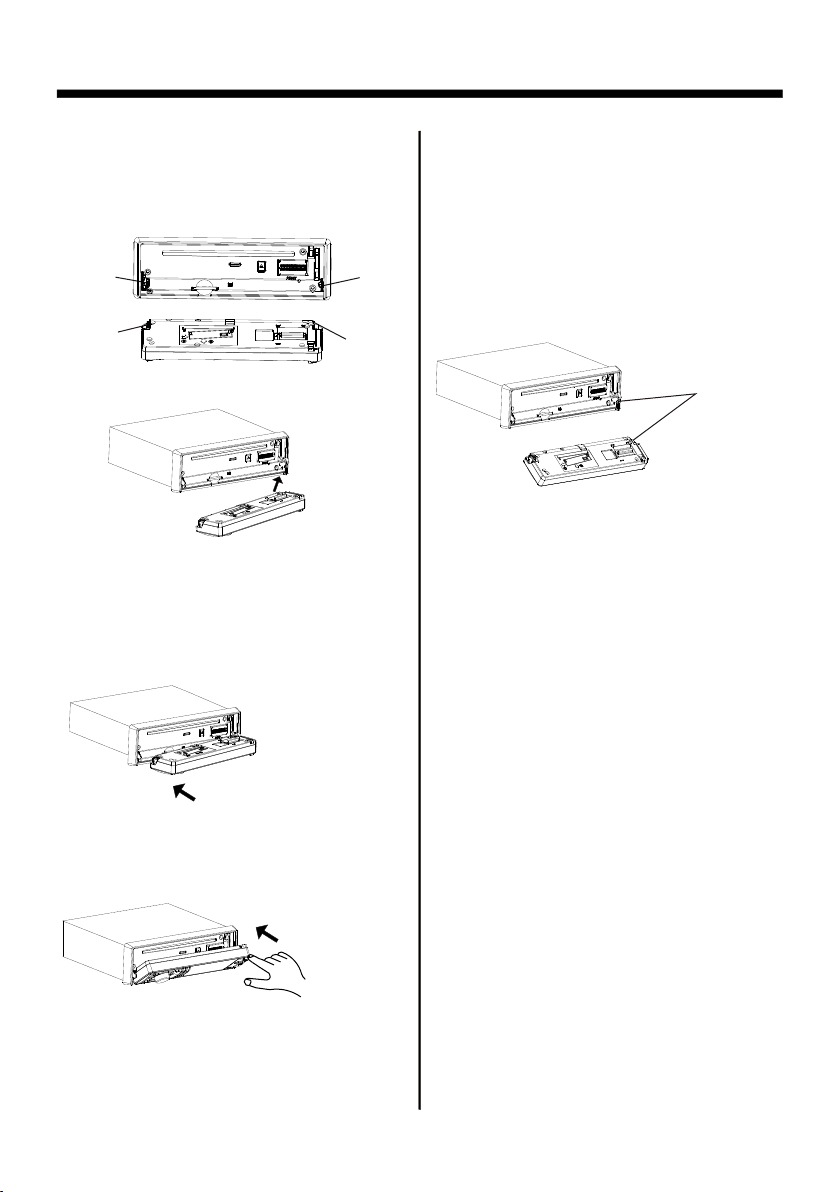

How to clean the connectors

Frequent detachment will deteriorate

the connectors.

To minimize this possibility, periodically

wipe the connectors with a clean, soft,

dry cloth only, being careful not to

damage the connectors.

Connector

ATTACHING CONTROL PANEL

1. First, insert the right side of the front

panel into the main unit.

Bulge

Hollow

Bulge

Hollow

3. Push it back to the position for playing

2. Push the right side of the front panel

until it locks firmly into the main unit, at

one time, insert the left side of the

front panel into the main unit .

-7-

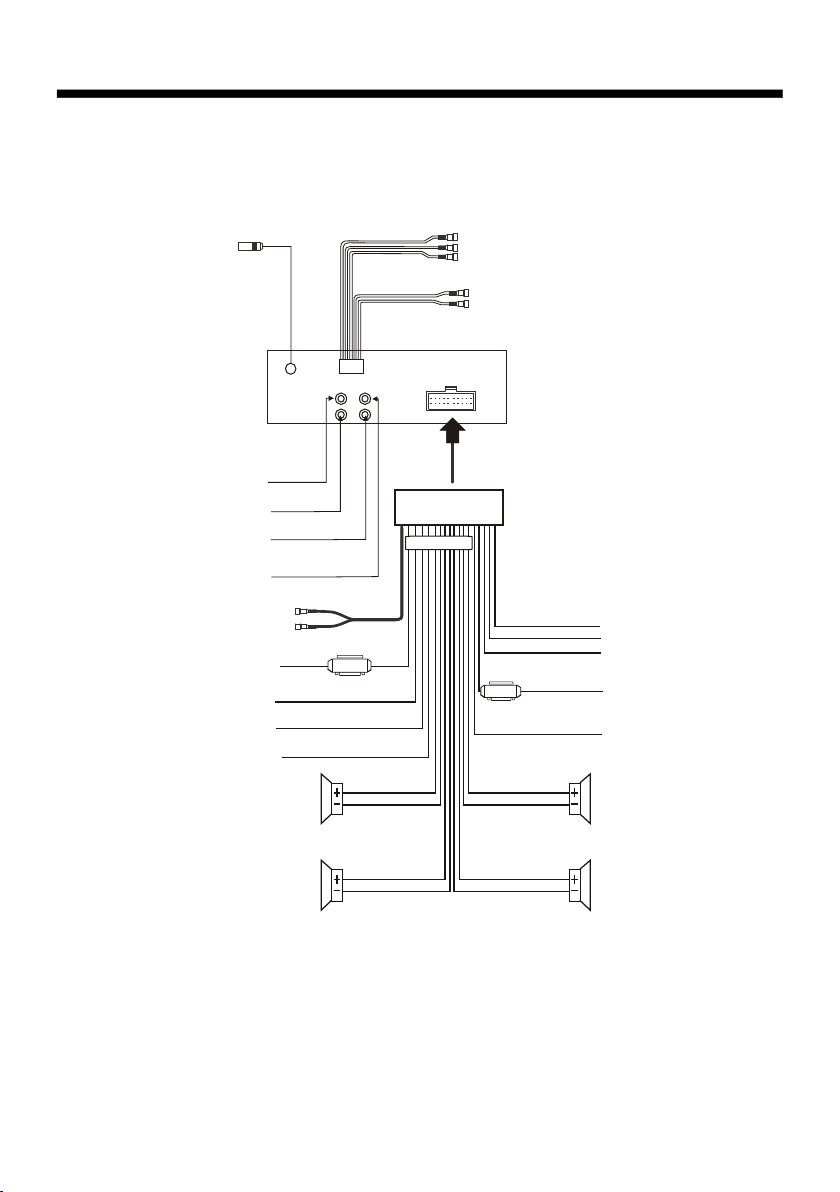

ELECTRIC CONNECTION

RADIO ANTENNA JACK

WIRE CONNECTION

FRONT RCA AUDIO OUT SOCKET

VIDEO OUTPUT SOCKET

RCH IN RED

RCH RED

LCH IN WHITE

LCH WHITE

VIDEO IN YELLOW

AV IN

REAR RCA

OUTPUT

VIOLET/WHITE

(B+)12V

REAR CAMERA SWITCH

(B-)PARKING BRAKE

GREY

GREY/BLACK

FRONT

RCH SPK.

VIOLET

VIOLET/BLACK

WHITE

WHITE/BLACK

GREEN

GREEN/BLACK

REAR

LCH SPK.

AUTO ANTENNA BLUE

GROUND(B-)

MEMORY BACK-UP(B+)

IGNITION SWITCH(B+) RED

YELLOW

BLACK

REAR

RCH SPK.

FRONT

LCH SPK.

LIGHT GREEN

FUSE

KEY GROUND(BLACK)

KEY 1(BROWN)

KEY 2(WHITE)

ISO CONNECTOR

SUBWOOFER GREY

REAR CAMERA INPUT YELLOW

Whi te Yello w

Yell ow

Red

Note:

the ground connection cable (parking brake B-) must be connected in order for

pictures to be played back to the monitor. If the cable has not been correctly

connected, appears on the monitor. warning message

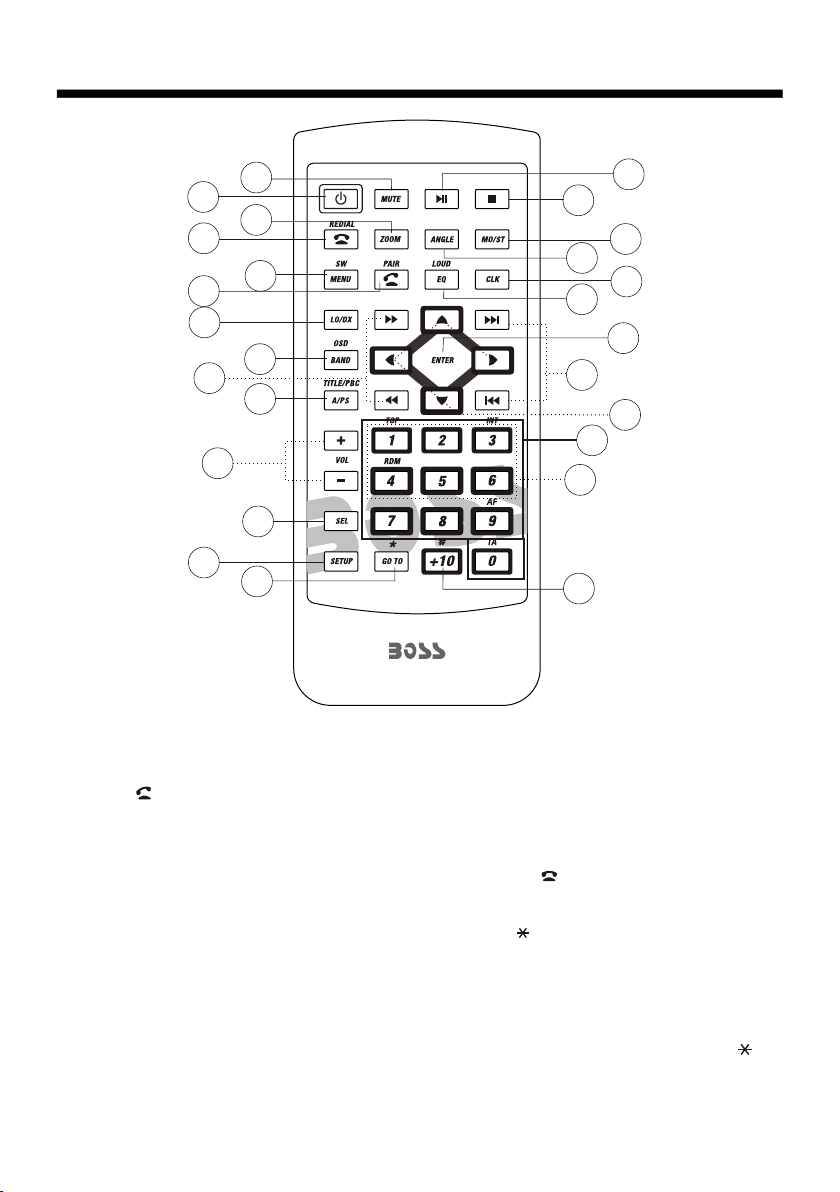

REMOTE CONTROL

-8-

1. CLK Press it briefly to show the clock

time .

2. PAIR/ Press it to use the BT

function,refer to the BT operation

3. STOP Press once to pause playback,

press PLAY/PAUSE to resume playback .

4. SETUP Press it to open the SETUP

menu.

5.MO/ST(AUDIO) In radio mode, press it

to select STEREO or MONO mode (when

a station is weak, sometimes switching

to Mono will improve sound quality ) .

In Disc playback mode, pressing it button

opens the AUDIO setup menu for making

changes to the way te soundtrack is

reproduced .

in video play mode 6. LO/DX(SUBTITLE) Changing of the

SUBTITLE language on multi-subtitle

language Digital Video disc. In radio mode,

Press this button for distance reception

when you are located at weak signal

location, depress it for stronger signal.

7. REDIAL/ Press this button to use

the BT function, refer to BT operation.

8.GOTO/ Press this button to begin

playback at a moment in the program you

designate. Use the number buttons to

enter the data that is needed, then press

ENTER to confirm the input.

In BT phone menu, it serves as the

button on your mobile handset.

15 17

Altri manuali per BV7348B

Altri manuali Boss Audio Systems Ricevitore per auto

Boss Audio Systems

Boss Audio Systems Road RS Show RS5DVD Manuale utente

Boss Audio Systems

Boss Audio Systems BV9978T Manuale utente

Boss Audio Systems

Boss Audio Systems 835UI Manuale utente

Boss Audio Systems

Boss Audio Systems BV7280 Manuale utente

Boss Audio Systems

Boss Audio Systems 622UA Guida utente

Boss Audio Systems

Boss Audio Systems BV9558 Manuale utente

Boss Audio Systems

Boss Audio Systems BV9362BI Manuale utente

Boss Audio Systems

Boss Audio Systems BV9759BD Manuale utente

Boss Audio Systems

Boss Audio Systems BV9384NV Manuale utente

Boss Audio Systems

Boss Audio Systems 648UA Manuale utente

Boss Audio Systems

Boss Audio Systems MR1465W Manuale utente

Boss Audio Systems

Boss Audio Systems BV8967B Manuale utente

Boss Audio Systems

Boss Audio Systems MR1315WUA Guida utente

Boss Audio Systems

Boss Audio Systems MR1306UA Manuale utente

Boss Audio Systems

Boss Audio Systems MR1470UW Manuale utente

Boss Audio Systems

Boss Audio Systems BV9370NV Manuale utente

Boss Audio Systems

Boss Audio Systems BV9370NV Manuale utente

Boss Audio Systems

Boss Audio Systems BV9969NY Manuale utente

Boss Audio Systems

Boss Audio Systems BV9152 Guida utente

Boss Audio Systems

Boss Audio Systems 775DI Guida utente

Boss Audio Systems

Boss Audio Systems BV9955 Manuale utente

Boss Audio Systems

Boss Audio Systems BV6000 Manuale utente

Boss Audio Systems

Boss Audio Systems BV9564BI Manuale utente

Boss Audio Systems

Boss Audio Systems 0791489116046 Manuale utente

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Sony

Sony MEX-1HD - Audio Library System Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

Sony

Sony CDX-4160 - Cd Receiver Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente
