Introducing

Classic Series Speakers

Classic Boston Performance

Classic Boston Styling

Classic Boston Value

Classic Boston speakers,

Classic Boston value

Classic Series was designed to oer Boston’s legendary sound, classic look,

exceptional quality, and value. Classic loudspeakers provide an excellent

foundation for a multi-channel home theater system or a stereo-only

music system. The Classic Series includes a high performance oorstanding

loudspeaker, two small bookshelf loudspeakers, a center channel, a 100-watt

powered subwoofer, and a satellite/center loudspeaker package. All Classic

models are nished in Black Walnut or Cherry Vinyl - a classic look

that looks great anywhere.

Key features

• BostonKortec®softdometweetersforcrystallinehigh-frequencysound

• GraphiteinjectedpolymerwoofersutilizeDeepChannel®Design(DCD)

for more bass from less amplier power

• Acousticallytunedportforimprovedbass

• MagnaGuard®magneticshieldingpreventsvideointerference

• 5-waygold-platedbindingpostsforhook-upexibilityand

the purest signal transfer

Classic speakers are available in Cherry and Black Walnut nishes.

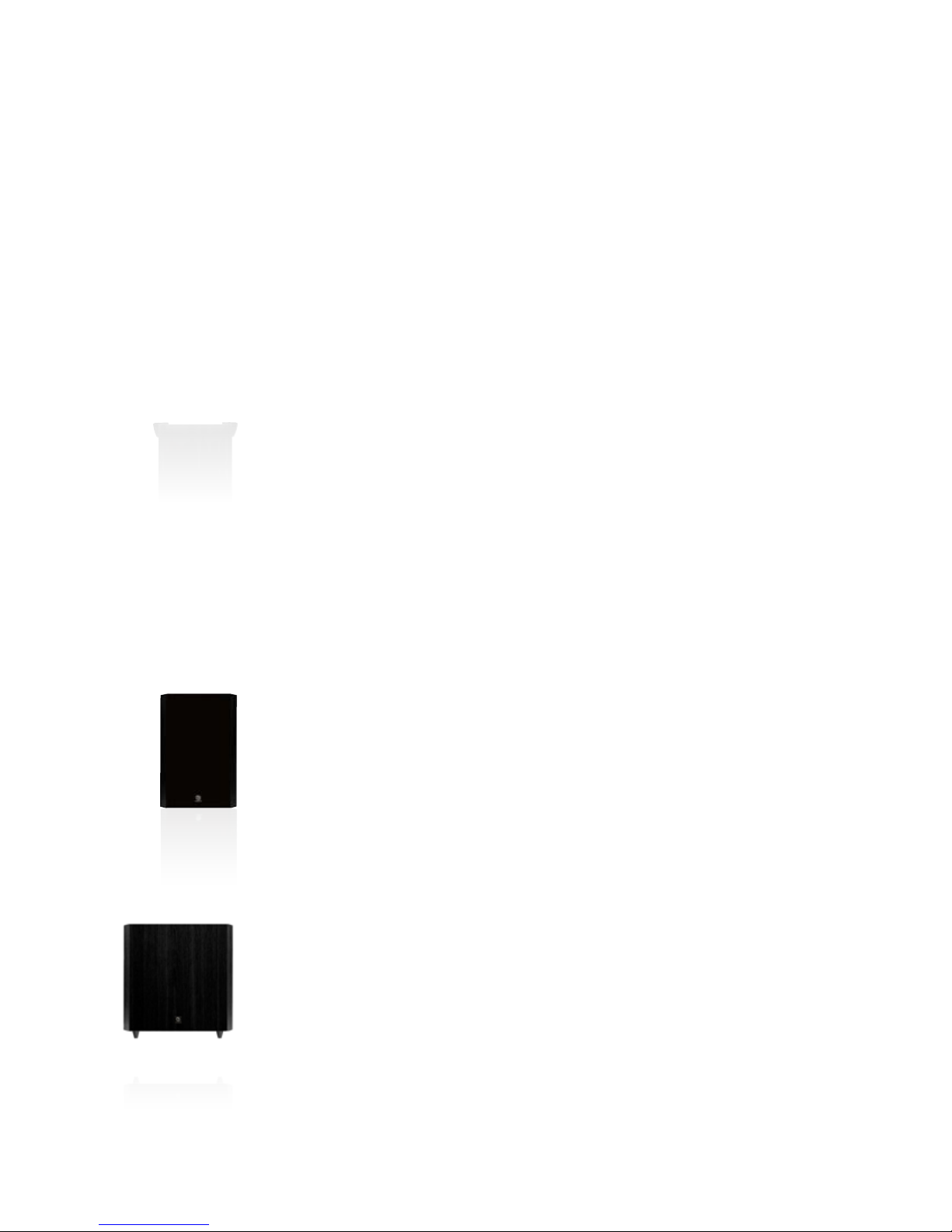

CS 226

Dual 6½” 2-Way Floorstanding Speaker

CS 225C

Dual 5¼” 2-Way Center Channel Speaker

CS Sub10

100 Watt 10” Down-ring DCD Subwoofer

CS 26

CS 26 2-Way 6½”Bookshelf Speaker

Available now.

300 Jubilee Drive, Peabody, MA 01960 bostonacoustics.com

© 2008 All rights reserved. Boston, Boston Acoustics, and BassTrac are registered trademarks, and the B/A ellipse symbol and Play Smart are trademarks of Boston Acoustics, Inc.

Boston Acoustics Benelux, Beemdstraat 11, 5653 MA Eindhoven, The Netherlands www.bostona.eu

Tel: +31 40 2507800, Fax: + 31 40 2507802, Email: [email protected]

© 2008 All rights reserved. Boston, Boston Acoustics, BassTrac, Deep Channel, Kortec, and MagnaGuard are registered trademarks, and the B/A ellipse symbol and Play Smart are trademarks of Boston Acoustics, Inc.

Specications CS 26 CS 225C CS 226

Frequency Range (±3dB) 52Hz – 25kHz 80Hz – 25kHz 46Hz – 25kHz

Recommended Amplier 10 – 150 watts 15 – 175 watts 15 – 250 watts

Sensitivity 89dB [SPL/2.8V at 1m] 89dB [SPL/2.8V at 1m] 89dB [SPL/2.8V at 1m]

Nominal Impedance 8 ohms 8 ohms 8 ohms

Crossover Frequency 2,400Hz 2,400Hz 2,800Hz

Woofers 165mm DCD Dual 133mm DCD Dual

65

mm DCD

Graphite injected Graphite injected Graphite injected

polymer woofer polymer woofer polymer woofer

Passive Radiators — — —

High-Frequency Driver 25mm Kortec 25mm Kortec 25mm Kortec

Soft Dome Soft Dome Soft Dome

Dimensions (H x W x D) 311 x 210 x 230mm 159 x 421 x 203mm 960 x 210 x 263mm

Weight: 5.7Kg 6.8Kg 15Kg

Specications CS Sub10

Frequency Range 32 – 150 Hz

Amplier Power 100 watts RMS; BassTrac® circuitry eliminates distortion

Bass Driver 254mm DCD

Dimensions (H x W x D) 381 x 381 x 381mm

Weight: 14.5kg

Boston Acoustics continually strives to update and improve its products.

The specications and construction details are subject to change without notice.

Available nishes for all models

Cherry Vinyl

Black Walnut Vinyl
