Introducing

Classic Series Speakers

Classic Boston Performance

Classic Boston Styling

Classic Boston Value

Classic Boston speakers,

Classic Boston value

Classic Series was designed to oﬀer Boston’s legendary sound, classic look,

exceptional quality, and value. Classic loudspeakers provide an excellent

foundation for a multi-channel home theater system or a stereo-only

music system. The Classic Series includes a high performance ﬂoorstanding

loudspeaker, two small bookshelf loudspeakers, a center channel, a 100-watt

powered subwoofer, and a satellite/center loudspeaker package. All Classic

models are ﬁnished in Black Walnut or Cherry Vinyl - a classic look

that looks great anywhere.

Key features

• BostonKortec®softdometweetersforcrystallinehigh-frequencysound

• GraphiteinjectedpolymerwoofersutilizeDeepChannel®Design(DCD)

for more bass from less ampliﬁer power

• Acousticallytunedportforimprovedbass

• MagnaGuard®magneticshieldingpreventsvideointerference

• 5-waygold-platedbindingpostsforhook-upexibilityand

the purest signal transfer

Classic speakers are available in Cherry and Black Walnut ﬁnishes.

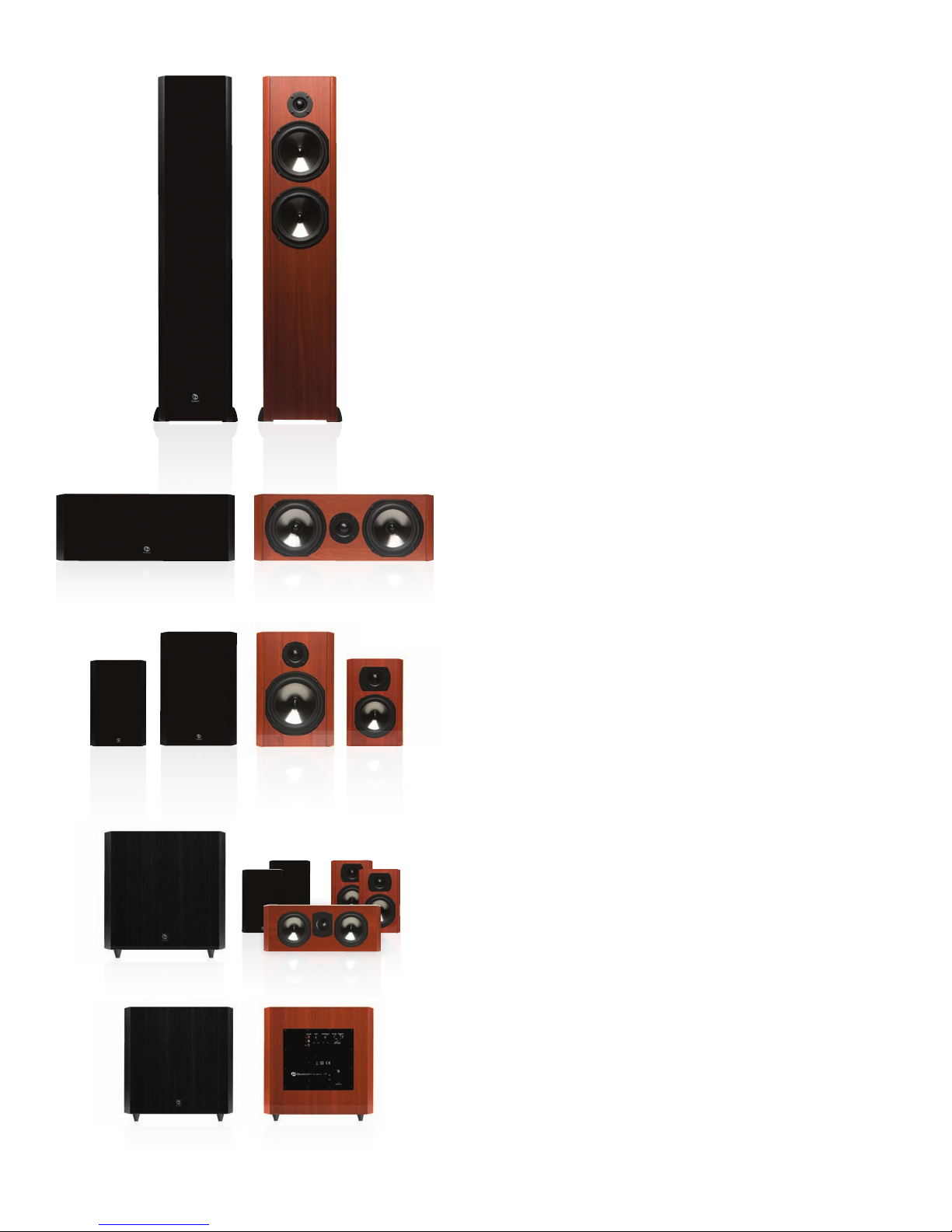

CS 226

Dual 6½” 2-Way Floorstanding Speaker

US MAP $249.99 each

CS 225C

Dual 5¼” 2-Way Center Channel Speaker

US MAP $179.99 each

CS Sub10

100 Watt 10” Down-ﬁring DCD Subwoofer

US MAP $249.99 each

CS 26 and 23

CS 26 2-Way 6½”Bookshelf Speaker

MAP $149.99 each

CS 23 2-Way 3½”Bookshelf Speaker

US MAP $119.99 each

CS 2310 System

(4) CS 23 2-Way 3½”Bookshelf Speakers

(1) CS 223C Dual 3½”2-Way Center Channel Speaker

(1) CS Sub10 100 Watt 10”Subwoofer

US MAP $849.99

Available now.

300 Jubilee Drive, Peabody, MA 01960 bostonacoustics.com

© 2008 All rights reserved. Boston, Boston Acoustics, BassTrac, Deep Channel, Kortec, and MagnaGuard are registered trademarks, and the B/A ellipse symbol and Play Smart are trademarks of Boston Acoustics, Inc.

Specications CS 23 CS 26 CS 223C* CS 225C CS 226

Frequency Range (±3dB) 120Hz – 20kHz 52Hz – 25kHz 100Hz – 20kHz 80Hz – 25kHz 46Hz – 25kHz

Recommended Amplier 10 – 150 watts 10 – 150 watts 15 – 150 watts 15 – 175 watts 15 – 250 watts

Sensitivity 89dB [SPL/2.8V at 1m] 89dB [SPL/2.8V at 1m] 89dB [SPL/2.8V at 1m] 89dB [SPL/2.8V at 1m] 89dB [SPL/2.8V at 1m]

Nominal Impedance 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms

Crossover Frequency 2,700Hz 2,400Hz 2,700Hz 2,400Hz 2,800Hz

Woofers 3

1/2”(89mm) DCD 61/2” (165mm) DCD Dual 31/2”(89mm) DCD Dual 51/4” (133mm) DCD

Dual 61/2”(165mm)

DCD

Graphite injected Graphite injected Graphite injected Graphite injected Graphite injected

polymer woofer polymer woofer polymer woofer polymer woofer polymer woofer

Passive Radiators — — — — —

High-Frequency Driver 1”(25mm) Kortec®1”(25mm) Kortec 1”(25mm) Kortec 1”(25mm) Kortec 1”(25mm) Kortec

Soft Dome Soft Dome Soft Dome Soft Dome Soft Dome

Dimensions (H x W x D) 711/16 x 5 x 415/16” 121/4x 81/4” x 91/16” 51/2x 121/2x 41/3” 6 1/4x 165/8x 8” 3713/16 x 81/4x 103/8”

(195 x 127 x 124mm) (311 x 210 x 230mm) (141 x 318 x 112mm) (159 x 421 x 203mm) (960 x 210 x 263mm)

Weight: 4 lbs (1.8Kg) 12.5 lbs (5.7Kg) 7 lbs (3.2Kg) 15 lbs (6.8Kg) 33 lbs (15Kg)

* Only available in CS 2310

Specications CS Sub10

Frequency Range 32 – 150 Hz

Amplier Power 100 watts RMS; BassTrac® circuitry eliminates distortion

Bass Driver 10”(254mm) DCD

Dimensions (H x W x D) 15 x 15 x 15”

(381 x 381 x 381mm)

Weight: 32 lbs (14.5kg)

Boston Acoustics continually strives to update and improve its products.

The speciﬁcations and construction details are subject to change without notice.

Available nishes for all models

Cherry Vinyl

Black Walnut Vinyl
