BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

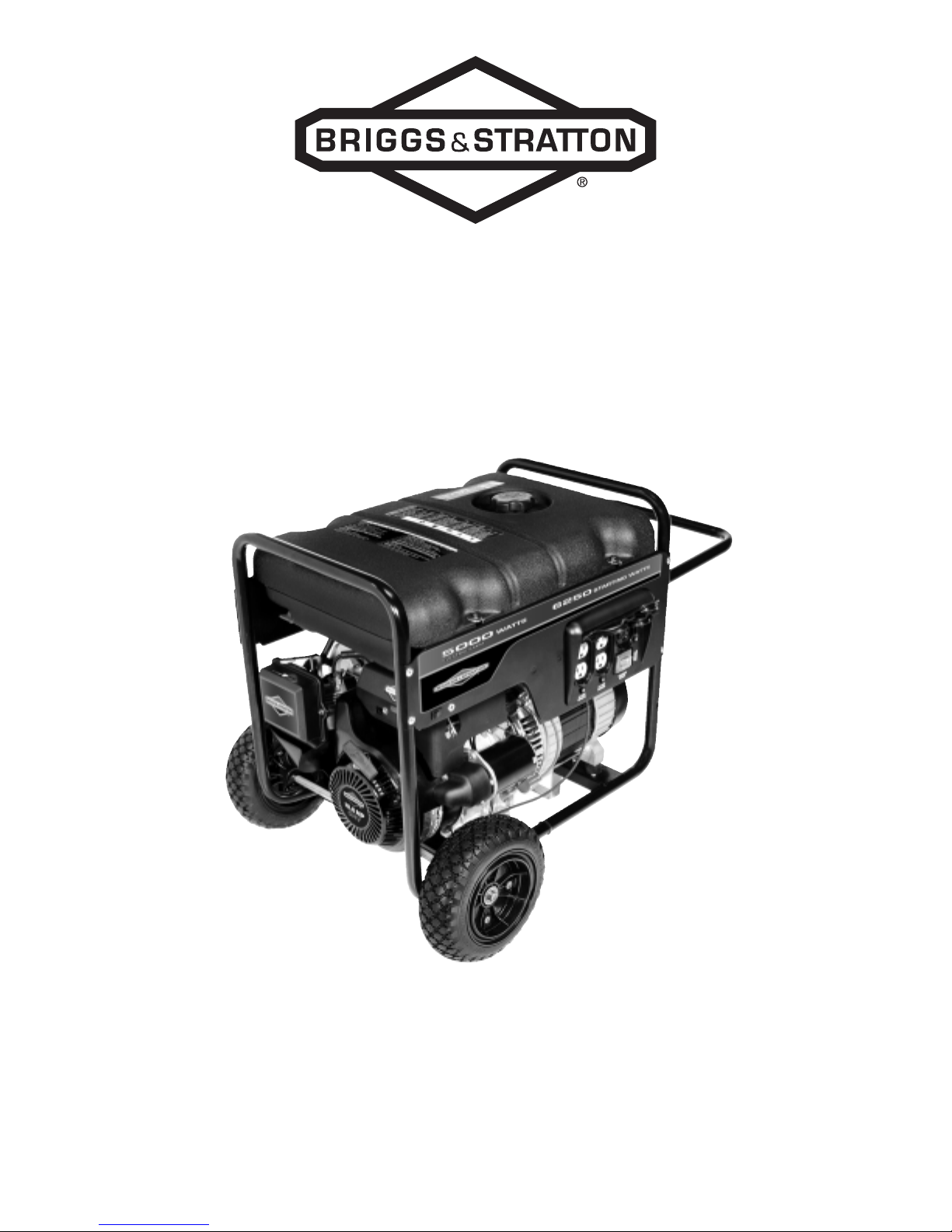

5000 Watt Portable Generator

Illustrated Parts List

030380 Manual No. 206590A Revision - (03/11/2008)

This generator is rated and certified to be compliant with CSA (Canadian Standards

Association) standard C22.2 No. 100-04 (motors and generators).

EXPLODED VIEW - MAIN UNIT

Exploded Views and Parts Lists

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

2BRIGGSandSTRATTON.COM

Item Part # Description

1 206822GS ASSY, Cradle (Includes #’s 20, 31 &

53)

2 194150GS KIT, Vibration, Mount, 45°

3 67989GS NUT, M8 Flange Serrated

4 190220GS HOUSING, Engine Adapter

5 NSP ASSY, Alt (see page 4)

6 * NUT, Hex M8 - 1.25

7 * TPHMS, M8 - 1.25 x 35

8 96796GS WASHER, 8.4 x 22.2 x 3

9 198611GS PPHS, 1/4-20 x .05 Trilobular

10 190274BGS SBHCS, 3/8 - 16 x 1

11 47480GS HHCS, 5/16-24 x 7

12 * HHCS, M8 - 1.25 x 25

13 198763GS KIT, Handle

14 189009GS BRACKET, Muffler

15 695398 GASKET, Exhaust

16 * HHCS, M6 - 1.0 x 12 w/LW

17 189008GS MUFFLER

18 * SHCS, M8 - 1.25 x 20

19 83083GS SCREEN, Spark Arrest

20 B4986GS DECAL, Ground, Green

21 194153GS KIT, Vibration Mount

22 86494GS SCREW, Wing M6 - 1.0 x 16

23 B2153GS SCREW, 12 - 14 x 7/8, Self Drill

24 197424GS SHIELD, Heat

25 191190GS CAP

26 74908GS SCREW, M5-0.8 x 10, Taptite

27 199228GS INSULATION

28 198700GS KIT, Battery Tray w/Insulation

29 199156GS INSULATION

30 199157GS INSULATION

31 200310GS DECAL, Exhaust Warning

32 * WASHER, Lock 5/16 - M8

33 187117GS STUD, Double

34 195422GS COVER, RBC, Plastic with Cap

35 791745 KIT, Fuel Hose, w/Clamps

36 * WASHER, Lock, 1/4

37 56893GS CRIMPTITE, 10-24 x 1/2

38 * NUT, 1/4-20

39 * WASHER, Shakeproof, Ext. M6 1/4

Item Part # Description

40 199433GS KIT, Fuel Tank Hardware w/U-Clips

199284GS U-CLIPS, (Optional Accessory)

41 192980GS KIT, Valve, Fuel Tank

42 * WASHER, M6 Lock

43 691656 SOLENOID

44 200814GS ASSY., Tank, Fuel (Includes items

41, 50, 51, 52, 54 & 55)

45 B4363GS CAP, Fuel Gauge

47 * NUT, Hex, M6 - 1.0

48 195373GS WIRE, Ground

49 185931KGS WIRE

50 188333GS DECAL, Gas Fill

51 194984GS DECAL, Danger

52 94480GS DECAL, Start Instructions

53 200311GS DECAL, Neutral Bonded

54 202997GS DECAL, CO Warning

55 197798GS DECAL, Shut-Off, Fuel

58 201575GS ASSY, Control Panel

59 * NUT, Palnut, 3/16"

60 198871EGS WIRE

68 199150GS KIT, Battery Cover w/Insulation

69 198711GS BATTERY

70 87799GS SWITCH, Rocker

71 198925GS ASSY, Jack Coaxial

72 198871LGS WIRE

73 198871KGS WIRE

76 185931LGS WIRE, Battery Negative

78 185931JGS WIRE, Battery Positive

900 § ENGINE

Parts Not Illustrated

206590GS MANUAL, Operator’s

B4177GS CHARGER, Battery

BB3061BGS OIL BOTTLE

206818GS KIT, Decals, Service

§ - Contact Engine Manufacturer

* - Items without part numbers are common fasteners and

are available at your local hardware store.

Exploded Views and Parts Lists

PARTS LIST - MAIN UNIT

Item Part # Description

1 186059GS ADAPTER, Mounting, Alternator

2 204105GS ASSY., Rotor (Includes Item 8)

3 203936GS STATOR

4 186060GS RBC, with O-Ring (p/n 189197)

5 86308CGS HHCS, M6 - 1.0 x 130 SEMS

6 91825GS ASSY, Holder, Rectifier/Brush

7 66849GS TAPTITE, M5 - 0.8 x 16

8 65791GS BEARING

9 91551GS PIN, Groove

4BRIGGSandSTRATTON.COM

ALTERNATOR EXPLODED VIEW & PARTS LIST

Exploded Views and Parts Lists

CONTROL PANEL EXPLODED VIEW & PARTS LIST

Item Part # Description

1 201571GS PANEL, Control

2 197472GS COVER, Outlet Flip

3 201572GS COVER, Back Panel

4 197731GS OUTLET, 120V, 15/20A Duplex

5 189164GS NUT, 3/16 Pal

6 202951GS MODULE, Led

7 * SCREW, 3 x 6, Tapping

8 202030GS BREAKER, Circuit, 20A

191481GS BOOT, Breaker Circuit (not shown)

9 43437GS OUTLET, 120/240V, 30A

10 201678GS HOUSING, Receptacle, 6 Pin

11 * PPPHS, M3 - 0.5 x 12

* - Items without part numbers are common fasteners and are

available at your local hardware store.

Exploded Views and Parts Lists

Item Part # Description

1 196517GS WHEEL

2 B1764GS SUPPORT, Wheel Kit

3 191267HGS AXLE

4 * WASHER, 5/8"

5 191265GS E-RING

6 67989GS NUT, M8 - Flange Serrated

7 * HHCS, M8 - 1.25 x 16

Parts Not Illustrated

197594GS SUBKIT, Hardware

* - Items without part numbers are common fasteners and are

available at your local hardware store.

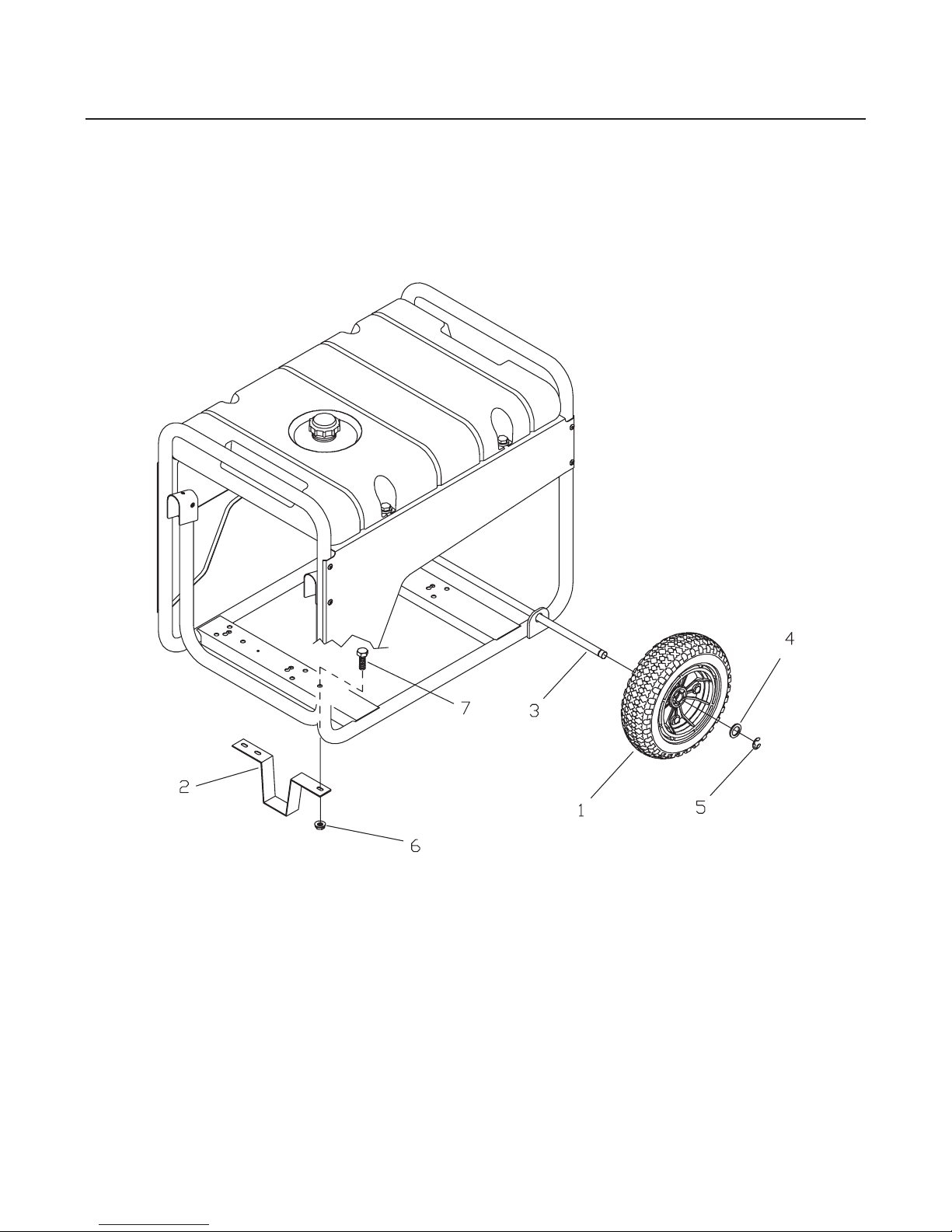

WHEEL KIT EXPLODED VIEW & PARTS LIST

Exploded Views and Parts Lists

6BRIGGSandSTRATTON.COM
