A0
快速安装手册
http://www.whkj.com.cn010‐51655555

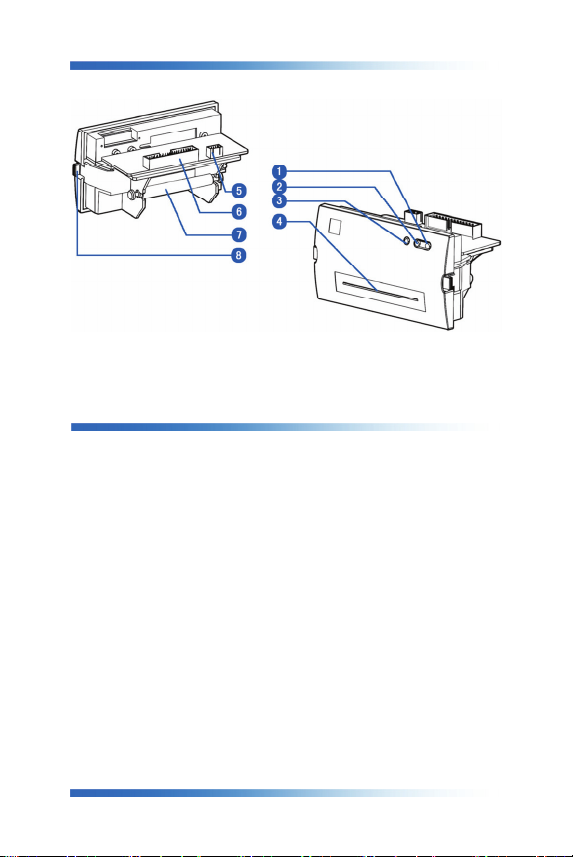

●打印机各部件一览 Printer Parts Names
1.LF 键 LF Button
2.SEL 键 SEL Button
3.指示灯 Indicator Light
4.出纸口 Outlet
5.电源接口 Power Connector
6.数据接口 Interface Connector
7.纸轴 Paper Roller
8.纸仓拉手 Handle
按钮开关的操作及指示灯
打印机上电后指示灯常亮为正常待机状态，即在线，打印机可接收数据，指
示灯灭为离线状态，不能接收数据。热敏型打印机缺纸时灯闪，不能接收数
据。
SEL 键切换打印机在线离线，离线状态下 LF 键为走纸键。
自检测方式
打印机上电后，按 SEL 键使打印机离线（新针打和热敏型省略此步骤），按
住 LF 键不放，接着按下 SEL 键，同时放开 LF 键和 SEL 键，即打出自检条。
Operation Specification
After turning on the printer, the indicator light is on, shows that
the printer is online, and it is ready to receive data. The light is
off, shows that the printer is offline, and it can not receive data.
When the light flash to show the paper is lacking, and the printer
can not receive data.
The SEL button can switch online or offline status. When the printer
is offline, press the LF button, and the printer will feed paper.
The Self Test
Turn on the printer, press the SEL button to make the printer offline
(when use new dot matrix printing and thermal printing model, no need
to refer this step), press the LF button, and don’t release, then
press the SEL button, and then release the both two buttons at the
same time, and then the printer will print out the self-check scrip.
快速安装手册
http://www.whkj.com.cn010‐51655555

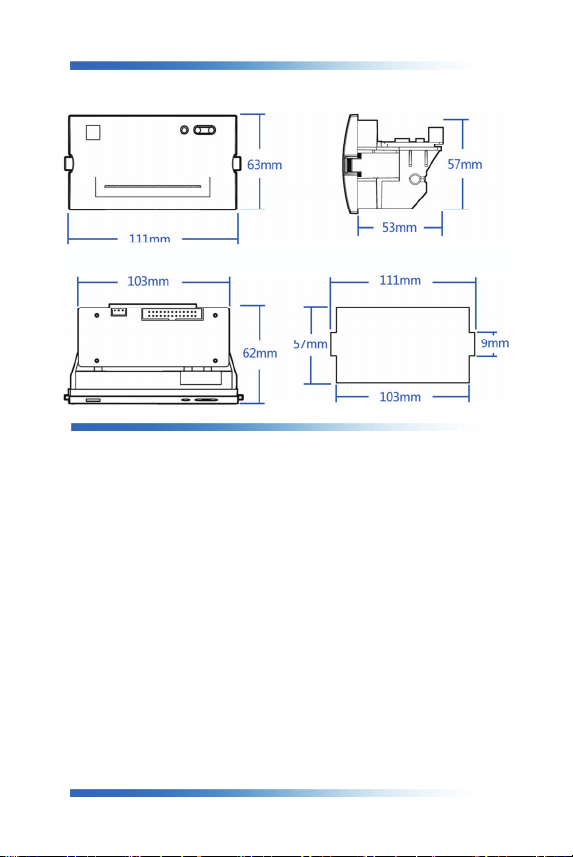

●尺寸 Size
WH-A0 型尺寸 Product Size:
外形尺寸：Outline Dimension： 111mm×63mm×62mm
开口尺寸：Installation Dimension： 103mm（W）×57mm（H）
嵌入深度：Inlaid Deepness： 53mm
快速安装手册
http://www.whkj.com.cn010‐51655555
●安装 Installation

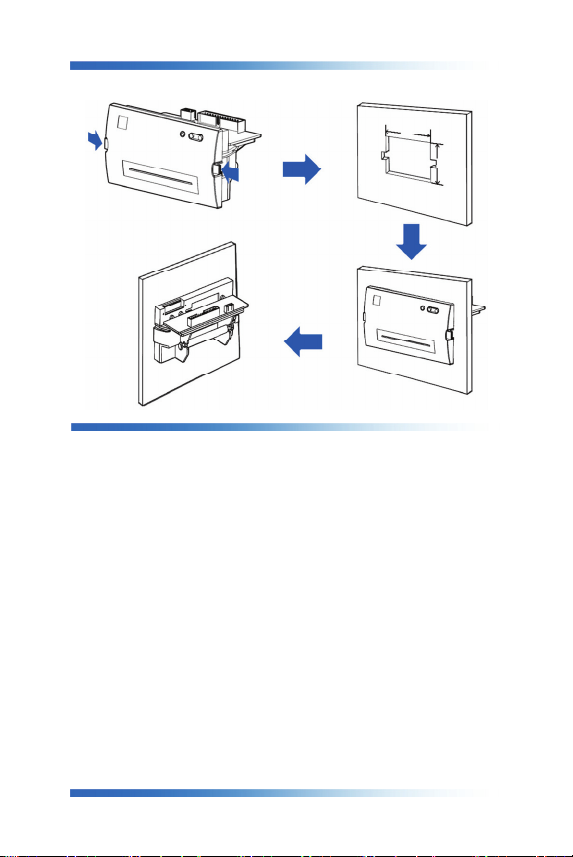

安装方法：
用手指夹住微打两侧的活动舌头,把整个打印机插入仪器或设备面板的安装孔内(如图),
并检查打印机是否已安装牢固。
对于要安装的面板厚度,建议使用 0.8～1.2mm 厚的金属板。太薄或太厚都会影响打印机安
装的牢固性。
开口尺寸：103mm+0.5×57mm+0.5
Installation Method
As the picture show, champ the movable handles both sides with fingers, fix the
whole printer in the installing orifice of instrument or equipment, and check
whether the printer has already been installed firmly.
The faceplate that will be fixed, which suggested that users would better use the
plate of the thickness from 0.8mm to 1.2mm. Both too thick and too thin would reduce
the fastness of the printers.
Installation dimension:103mm+0.5×57mm+0.5
快速安装手册
http://www.whkj.com.cn010‐51655555

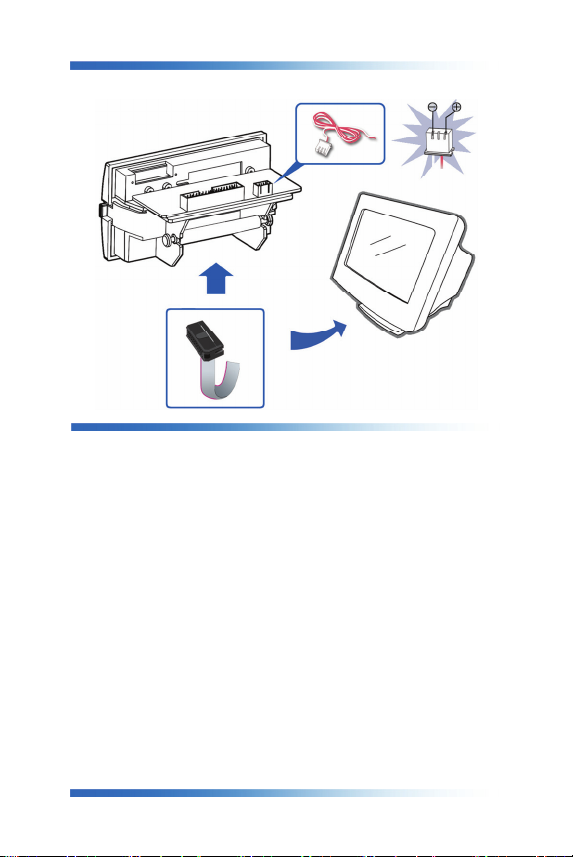

●连接 Connection
通讯连接：
请严格参照公司网站所提供说明书所示引脚定义连接。
电源连接：
WH 微打随机提供的一根带有插头的两线电源电缆,插头具有极性保护机构,电源电缆的红
色线接电源正极(+),另一线接电源负极(-)。
注意:不要将交流 220V 与打印机电源插座直接相连，工作电压应在额定电压
±5%以内,电源极性一定要接正确,否则会给打印机造成永久性损坏,炜煌公
司对此不承担保修义务。
Communication Connection
Please refer to the printer manual on company website.
Power Connection
Notice the power cable, connect the red cord to positive pole, connect the white cord to
the negative pole.
Attention: Do not connect AC to the printer directly, operating voltage should
be within 5% rated voltage. Power polarity must be correct, otherwise it will cause
permanent damage to printer, brightek company do not assume maintenance compulsory
upon this.
快速安装手册
http://www.whkj.com.cn010‐51655555

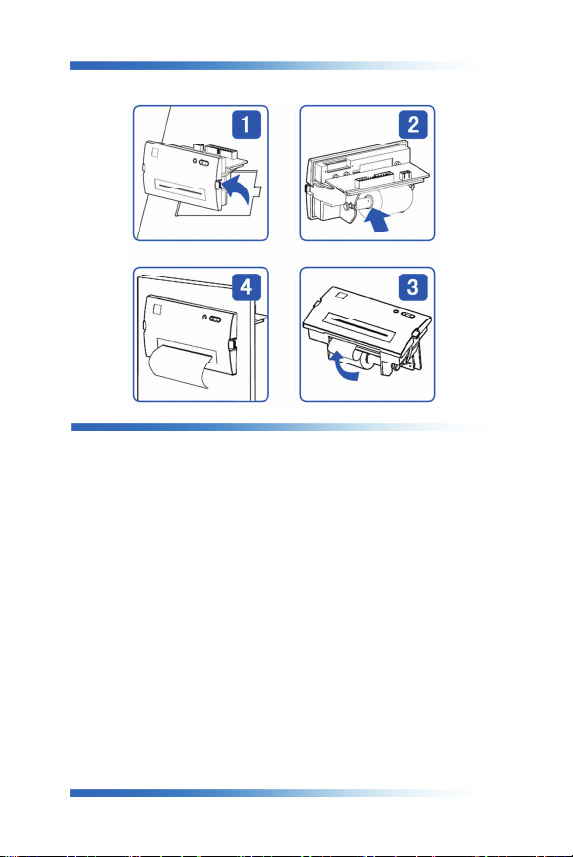

●装纸 Paper Roll
安装步骤：
1.如图 1 所示,先将打印机从面板取出。
2.从打印机后面将打印纸装上，先将打印纸套在纸轴上（44 宽的纸卷需安装固定轴在左
侧），纸的方向朝向打印头一侧(如图 2)。
3.把打印纸拉出一截，将打印纸末端插入打印口(如图 3)。
4.接通打印机的电源,按 SEL 键使 SEL 指示灯灭,然后再按 LF 键。使机头转动,打印纸徐徐
走出，这时看一下纸是否走歪。再按一下 SEL 键,或关上电源。
5.将打印机重新安装到面板上(如图 4)。
Replacing the Paper Roll
1.Take the printer out of the panel as shown in Fig. 1.
2.Put the paper on the paper roller (paper with width 44mm should fix on the left
end of the roller), and install the roller firmly (as shown in Fig. 2).
3.Pull out a small amount of paper and insert the paper into the feeder. Notice
the direction of the paper when using Thermal series according to Fig.3)
4.Power the printer on, press SEL button, make SEL indicator light off, then press
LF button, make the print head to run, and the paper will come out. Press SEL
button again or turn off the power.
5.Install the whole printer into the panel according to Fig.4.
快速安装手册
http://www.whkj.com.cn010‐51655555

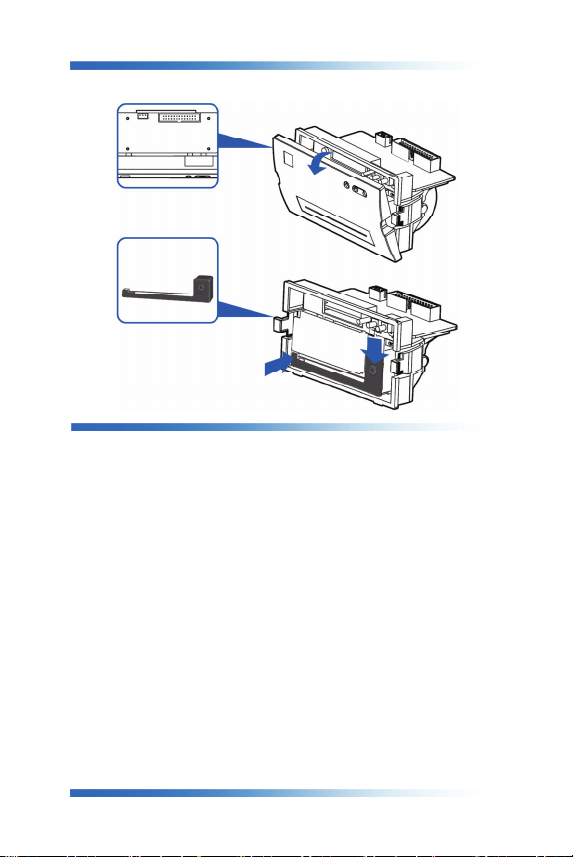

●色带 Ribbon
色带更换：
1．扣住机盖边缘并按图示箭头方向翻开前面板。
2．从打印机头上轻轻取下旧色带盒。注意:请先抬起色带盒的左端,然后再抬起色带盒的
右端,取下色带盒。
3．换新的色带盒。首先将色带盒的右端轻轻放在机头右端的齿轮轴上,左端稍微抬起不要
放下。如色带盒右端未落到底,请按住色带盒上的旋钮,顺时针方向稍微转动一下,直到
色带盒的右端落到底后再放下色带盒的左端。
请检查色带是否拉直,或色带还露在色带盒的外面,可再旋动色带盒上的旋钮,直到把
色带拉入色带盒内并拉直为止。当没有纸在机头里时,更换色带更加容易。
4．合上打印机的前面板，并推入复位。热敏打印机无需此步骤。
Ribbon Installation
1. Open the front cover of the printer as shown in the image,
2. Take down the old ribbon cassette, notice: lift up the left end of the ribbon
cassette, then lift up the right end, and then take down the ribbon cassette.
3. Installing new one: put down gently the right end of ribbon cassette on the
gear wheel in the print head, lift up the left a little, don’t put down, if the
right edge is not down to the bottom, rotate the knob of the ribbon cassette
slightly in clockwise direction as shown in the image, until the ribbon cassette
is down to the bottom, then put down the left.
4. Close the cover of printer. When use thermal series, no need to refer this step.
●产品规格一览表 Product Specification
项目 ITEMS 规格 SPECIFICATION
针式型 DOT MATRIX 热敏型 THERMAL
打印方式 Printing method 针式打印 Dot matrix printing method 热敏行式打印 Direct thermal line printing
纸宽 Paper width 44mm/57mm 57mm
打印宽度 Print width 32mm/48mm 48mm
分辨率 resolution ration 96 dots/line / 144 dots/line / 240 dots/line 8 dots/mm(384 dots/line)
每行字符数 Character per line 16/24/40 64/32/24
打印速度 Printing speed 1line/sec, 0.7line/sec, 0.4line/sec 30mm/sec(when the utilization rate is 25%)
字符大小 Character size 6x8dots, 8x16dots, or 6x12dots 6x8dots, 8x16dots, or 12x24dots
汉字库 Chinese character library GB2312, 12x12dots, or 16x16dots GB2312, 16x16dots, or 24x24dots
纸的规格 Paper supplied 44mm/57mm wide,40mm
ø
57mm wide,40mm
ø
接口 Interface Serial(RS232C,TTL)/Parallel interface Serial(RS232C,TTL)/Parallel interface
输入电源 Input power DC 5V, 1.5A DC 3.5V～9V, 15W / DC 5V, 3A
操作温度 Operating temperature 0℃～50℃ 5℃～50℃
存储温度 Storage temperature -20℃～60℃ -20℃～60℃
操作湿度 Operating humidity 10%～85% 10%～80%
存储湿度 Storage humidity 10%～90% 10%～90%
