QUICK INSTALL
快速安装
北京炜煌科技发展有限公司
Beijing Bright Technology Development Co.,Ltd
U01
快速安装手册
http://www.whkj.com.cn010‐51655555
●打印机各部件一览 Printer Parts Names
1.固定架 holder
2.导纸片 Paper Guide
3.切刀 Cutter
4.打印单元 Printer Unit
5.电源接口 Power Connector
6.打印轴 Platen Roller
7.打印头 Printer Header
8.切刀架 Cutter fastener
9.数据接口 Interface Connector
10.LF 键 LF Button
11.电源指示灯 Power Indicator
12.纸卷 Paper Roll
13.纸轴 Paper Roller
按钮开关的操作
电源指示灯常亮为正常状态，状态指示灯闪烁为缺纸。
正常上电后，按 LF 键走纸。
自检测方式
打印机断电，按 LF 键不放手同时给打印机上电，松手，打印机就会打印出
自检条。
Operation Specification
After turning on the printer, the indicator light will keep on. When
the light flash, it shows that the paper is lacking, and the printer
can not receive data.
After turning on the printer, press the LF button, the printer will
feed paper, and the SET button is no used.
The Self Test
In the power-off state, press the paper feed button (LF button), not
release and power on. Then the printer will print out the self-check
scrip.
快速安装手册
http://www.whkj.com.cn010‐51655555
●尺寸 Size
WH-U01 型尺寸 Product Size:
外型尺寸 Outline Dimension: 109mm×61.6mm×96.6mm
嵌入深度：Inlaid Deepness： 96.6mm
快速安装手册
http://www.whkj.com.cn010‐51655555

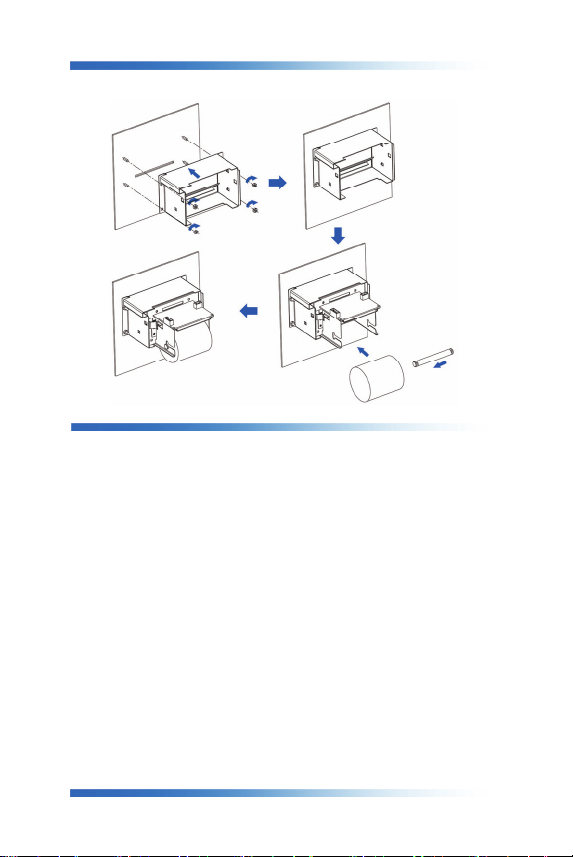

●安装 Installation
安装方法：
请根据打印机的安装尺寸在设备上开孔或预埋 4 个螺丝，然后把打印机固定架认准方向套
在 4 个螺丝上，并用配套螺母拧紧固定（如果在震动颠簸环境使用，建议螺母下加装弹簧
垫）。
开口尺寸：
101mm（W）×40mm（H）。
Installation Method
Fix the printer holder onto the embedded four screws of the device, then tighten
the nut.
Installation Dimension
：
101mm（W）×40mm（H）。
快速安装手册
http://www.whkj.com.cn010‐51655555

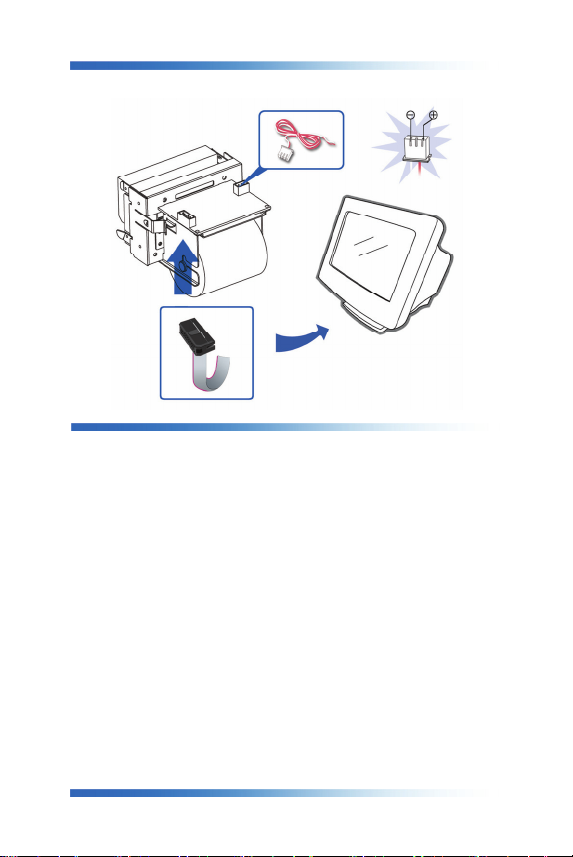

●连接 Connection
通讯连接：
请严格参照公司网站提供产品说明书进行连接。
电源连接：
WH 微打随机提供的一根带有插头的两线电源电缆,插头具有极性保护机构,电源电缆的红
色线接电源正极(+),另一线接电源负极(-)。
注意:不要将交流 220V 与打印机电源插座直接相连，工作电压应在额定电压
±5%以内,电源极性一定要接正确,否则会给打印机造成永久性损坏,炜煌公
司对此不承担保修义务。
Communication Connection
Please refer to the printer manual on company website.
Power Connection
Notice the power cable, connect the red cord to positive pole, connect the white
cord to the negative pole.
Attention： Do not connect AC to the printer directly, operating voltage should
be within ± 5% rated voltage. Power polarity must be correct, otherwise it will
cause permanent damage to printer, brightek company do not assume maintenance
compulsory upon this.
快速安装手册
http://www.whkj.com.cn010‐51655555

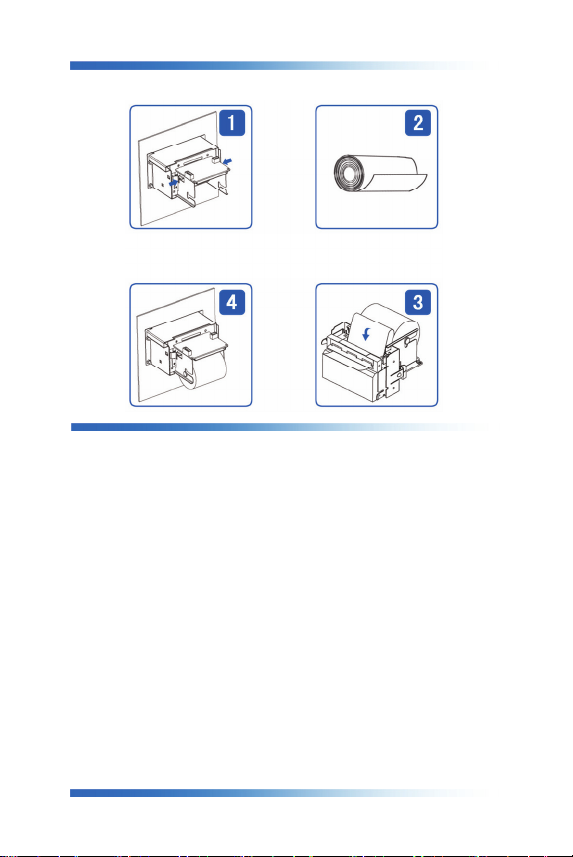

●装纸 Paper Roll
安装步骤：
1.如图 1 箭头方向，用手指夹住两侧的弹性卡扣，并将打印单元从打印机固定架中抽出。
2.将纸轴装入纸卷,然后装入打印机纸仓内，将纸轴两边固定在卡槽内(如图 3)，同时注意
纸的方向有药液的一面（光滑面）向下（如图 2）。
3.把打印纸装入后并拉出一截,将纸插入入纸口内，注意把纸放整齐。
4.开机，按下 LF 键使机头转动，如果纸走歪，再按下 LF 键。
5.把打印单元推入复位。
Replacing the Paper Roll
1. As the Fig.1 show, champ the button both sides with fingers, and draw out the
printer unit.
2. Put the new paper on the paper roller, and install the roller firmly on the
printer. Notice the direction of the paper according to Fig.2.
3. Pull out a small amount of paper and insert the paper into the feeder.
4. Power the printer on, press LF button, make the print head to run, and the paper
will come out.
5. Push the printer unit to the original position.
快速安装手册
http://www.whkj.com.cn010‐51655555

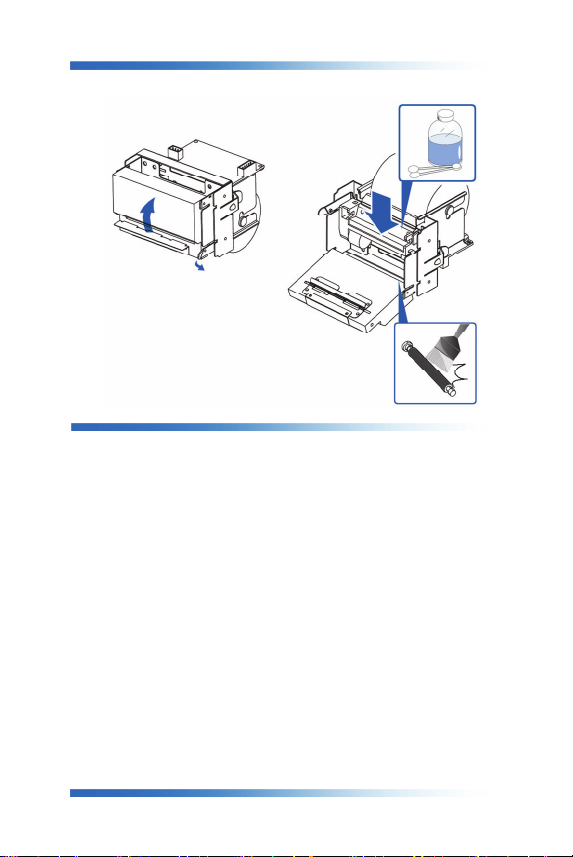

●清洁 Cleaning
清洁保养：
热敏打印机使用久了以后，热敏条与滚轴上会留下一些污垢，如果不及时清理会影响到打
印机的使用与寿命。我们建议您不定期做好清理。方法是打开纸舱盖，用棉棒沾少许酒精，
轻轻擦拭打印机热敏头，及纸仓上的滚轴。
Printer Cleaning
If the interior of the printer is dusty, print quality can decline. So please clean
the printer regularly. Open the cover of printer, then Wipe the print head with
a cleaning pen and Use a cloth moistened with an alcohol solution to clean the
paper sensor and the platen roller.
●产品规格一览表 Product Specification
项目 ITEMS 规格 SPECIFICATION
打印方式 Printing method 行式热敏打印 Direct thermal line printing
纸宽 Paper width 57mm
打印宽度 Print width 48mm
分辨率 resolution ration 8 dots/mm (384 dots/line)
打印头寿命 life of printing head 6,000,000 character lines
打印速度 Printing speed 50mm/sec (when the utilization rate is 25%)
字符大小 Character size 6x8dots, 8x16dots, or 12x24dots
汉字库 Chinese character library GB2312, 16x16dots, or 24x24dots
纸的规格 Paper supplied 57mm wide,50mmø/80mmø/150mmø
接口 Interface RS232C
输入电源 Input power DC 9V～24V, 15W
操作温度 Operating temperature 5℃～50℃
存储温度 Storage temperature -20℃～60℃
操作湿度 Operating humidity 10%～80%
存储湿度 Storage humidity 10%～90%
