Brightek E24 Istruzioni per l’uso



QUICK INSTALL

快速安装

北京炜煌科技发展有限公司

Beijing Bright Technology Development Co.,Ltd





E24

快速安装手册

http://www.whkj.com.cn010‐51655555

●打印机各部件一览 Printer Parts Names



1.色带 Ribbon

2.纸仓 Paper Case

3.纸轴 Paper Roller

4.纸卷 Paper Roll

5.LF 键/状态指示灯 LF Button/Status Light

6.面板 Panel

7.数据接口 Interface Connector

8.电源接口 Power Connector

9.固定架 Holder



按钮开关的操作及指示灯

打印机上电后指示灯保持常亮状态。

正常上电后，LF 键为走纸键，SET 键无效。

自检测方式

打印机断电，按 LF 键不放手同时给打印机上电，松手，打印机就会打印出

自检条。

Operation Specification

After turning on the printer, the indicator light will keep on.

After turning on the printer, press the LF button, the printer will

feed paper, and the SET button is no used.

The Self Test

Press the LF button, do not release repower the printer at the same

time，and then the printer will print out the self-check scrip.

快速安装手册

http://www.whkj.com.cn010‐51655555



●尺寸 Size



WH-E24 型尺寸 Product Size:

外形尺寸：Outline Dimension： 107.4mm×61.4mm×66.2mm

开口尺寸：Installation Dimension：102.4mm（W）×56.4mm（H）

嵌入深度：Inlaid Deepness： 58.2mm

快速安装手册

http://www.whkj.com.cn010‐51655555

●安装 Installation



安装方法：



把打印机嵌入部分插入仪器或设备面板的安装孔内，并把塑料卡子从设备面板后面固定,

螺钉从前面穿入并与塑料卡子中的螺母连接拧紧(如图)，左右对称各一套,安装方法相同。

所安装的面板厚度为 0.5～8mm 厚的金属板或塑料板;厚薄不会影响打印机安装的牢固性。

开口尺寸：102.4mm+0.5×56.4mm+0.5

Installation Method

Insert the built-in part of printer into the installing orifice of instrument or

equipment. As the picture show, fix the fastener onto the printer and tighten the

screws in the front of panel.

The faceplate that will be fixed could be metal plate or plastic plate with

thickness from 0.5mm to 8mm. Neither too thick nor too thin would affect the

fastness of the printers.

Installation dimension:102.4mm+0.5×56.4mm+0.5.

快速安装手册

http://www.whkj.com.cn010‐51655555

●连接 Connection



通讯连接：

请严格参照公司网站提供产品说明书进行连接。

电源连接：

请严格参照产品背面标签所注参数进行连接。

注意:不要将交流 220V 与打印机电源插座直接相连，工作电压应在额定电压

±5%以内,电源极性一定要接正确,否则会给打印机造成永久性损坏,炜煌公

司对此不承担保修义务。

Communication Connection

Please refer to the printer manual on company website.

Power Connection

Notice the power cable, connect the red cord to positive pole, connect the white

cord to the negative pole.

Attention： Do not connect AC to the printer directly, operating

voltage should be within ± 5% rated voltage. Power polarity must be

correct, otherwise it will cause permanent damage to printer, brightek

company do not assume maintenance compulsory upon this.



快速安装手册

http://www.whkj.com.cn010‐51655555

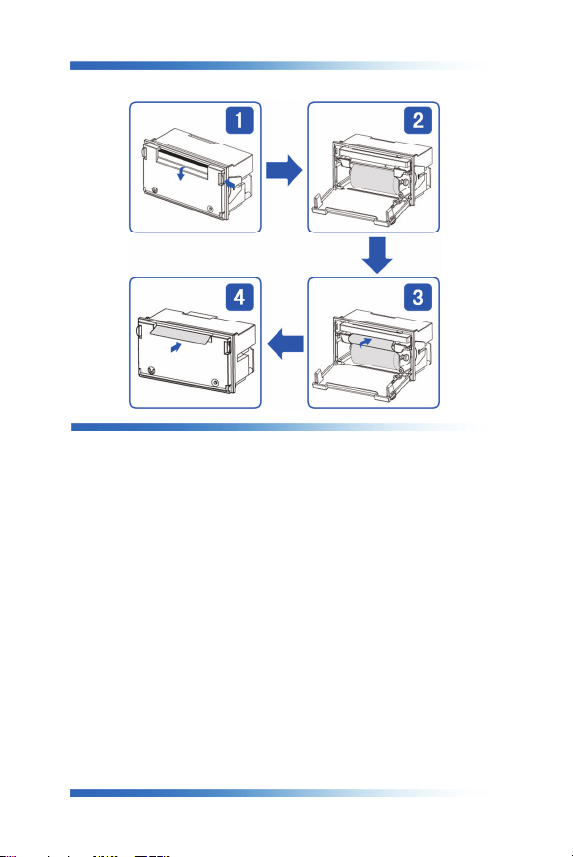

●装纸 Paper Roll



安装步骤：

1.按图 1 所示,用手指夹住打印机两侧的活动舌头,并打开面板盖。

2.将纸轴装入纸卷,然后装入打印机纸仓内，将纸轴两边固定在卡槽内(如图 2)。

3.接通打印机的电源,并将打印纸送到进纸口，然后按 LF 键使机头转动直至纸走出来，这

时看一下纸是否走歪,再按一下 SEL 键或关上电源。

4.合上纸仓盖即可。

Replacing the Paper Roll

1. As the Fig.1 show, champ the movable handles both side with fingers, and open

the panel.

2. Put the new paper on the paper roller, and install the roller firmly on the

printer.

3. Power the printer on, and put out a small amount of paper into the feeder. Then

press LF button, make the print head to run, and the paper will come out, Turn

off the printer.

4. Close the printer cover.

快速安装手册

http://www.whkj.com.cn010‐51655555

●色带 Ribbon



色带更换：

1．翻开纸仓盖，接着如图 2 箭头指示方向抽出打印机。

2．从打印机头上轻轻取下旧色带盒。注意:请先抬起色带盒的左端,然后再抬起色带盒的

右端,取下色带盒。

3．换新的色带盒。首先将色带盒的右端轻轻放在机头右端的齿轮轴上,左端稍微抬起,不

要放下。如色带盒右端未落到底,请按住色带盒上的旋钮,顺时针方向稍微转动一下,直

到色带盒的右端落到底后再放下色带盒的左端。

4．推回机体，并关上纸仓盖即可。

Printer Cleaning

1. Open the paper cover, and draw out the printer follow the arrow as shown in

the Fig2.

2. Take down the old ribbon cassette, notice: lift up the left end of the ribbon

cassette, then lift up the right end, and then take down the ribbon cassette.

3. Installing new one: put down gently the right end of ribbon cassette on the

gear wheel in the print head, lift up the left a little, don’t put down, if the

right edge is not down to the bottom, rotate the knob of the ribbon cassette

slightly in clockwise direction as shown in the image, until the ribbon cassette

is down to the bottom, then put down the left.

4. Push the printer back into the original position and close the printer cover.



●产品规格一览表 Product Specification

项目 ITEMS 规格 SPECIFICATION

打印方式 Printing method 针式打印 Dot matrix printing method

纸宽 Paper width 44mm/57mm

打印宽度 Print width 32mm/48mm

分辨率 resolution ration 96 dots/line / 144 dots/line / 240 dots/line

每行字符数 Character per line 16/24/40

打印速度 Printing speed 1line/sec, 0.7line/sec, 0.4line/sec

字符大小 Character size 6x8dots, 8x16dots, or 6x12dots

汉字库 Chinese character library GB2312, 12x12dots, or 16x16dots

纸的规格 Paper supplied 44mm/57mm wide,30mmø

接口 Interface Serial(RS232C,TTL)/Parallel interface

输入电源 Input power DC 5V, 1.5A

操作温度 Operating temperature 0℃～50℃

存储温度 Storage temperature -20℃～60℃

操作湿度 Operating humidity 10%～85%

存储湿度 Storage humidity 10%～90%
