FACSIMILE EQUIPMENT

PARTS REFERENCE LIST

MODEL: MFC830 / MFC840

( For Germany / United Kingdom / France /

Norway / Belgium / Netherlands /

Switzerland / Ireland / Denmark/ Austria /

Spain / Italy / South Africa / Sweden )

No part of this publication may be reproduced in any form

or by any means without permission in writing from the

publisher.

Specifications are subject to change without prior notice.

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q' ty

(3) Description

Note: No orders without Parts Code or Tool No. can be accepted.

[Example] (1) (2) (3)

REF.NO. CODE Q' TY DESCRIPTION REMARKS

2. Parts change will be informed by the technical information.

COUNTRIES

GERMANY ----- GER

UNITED KINGDOM ----- UK

FRANCE ----- FRA

NORWAY ----- NOR

BELGIUM ----- BEL

NETHER LANDS ---- NLD

SWITZERLAND ---- CHE

IRELAND ---- IRE

DENMARK ---- DEN

AUSTRIA ---- AUT

SPAIN ---- SPA

ITALY ---- ITA

SOUTH AFRICA ---- ZAF

SWEDEN ---- SWE

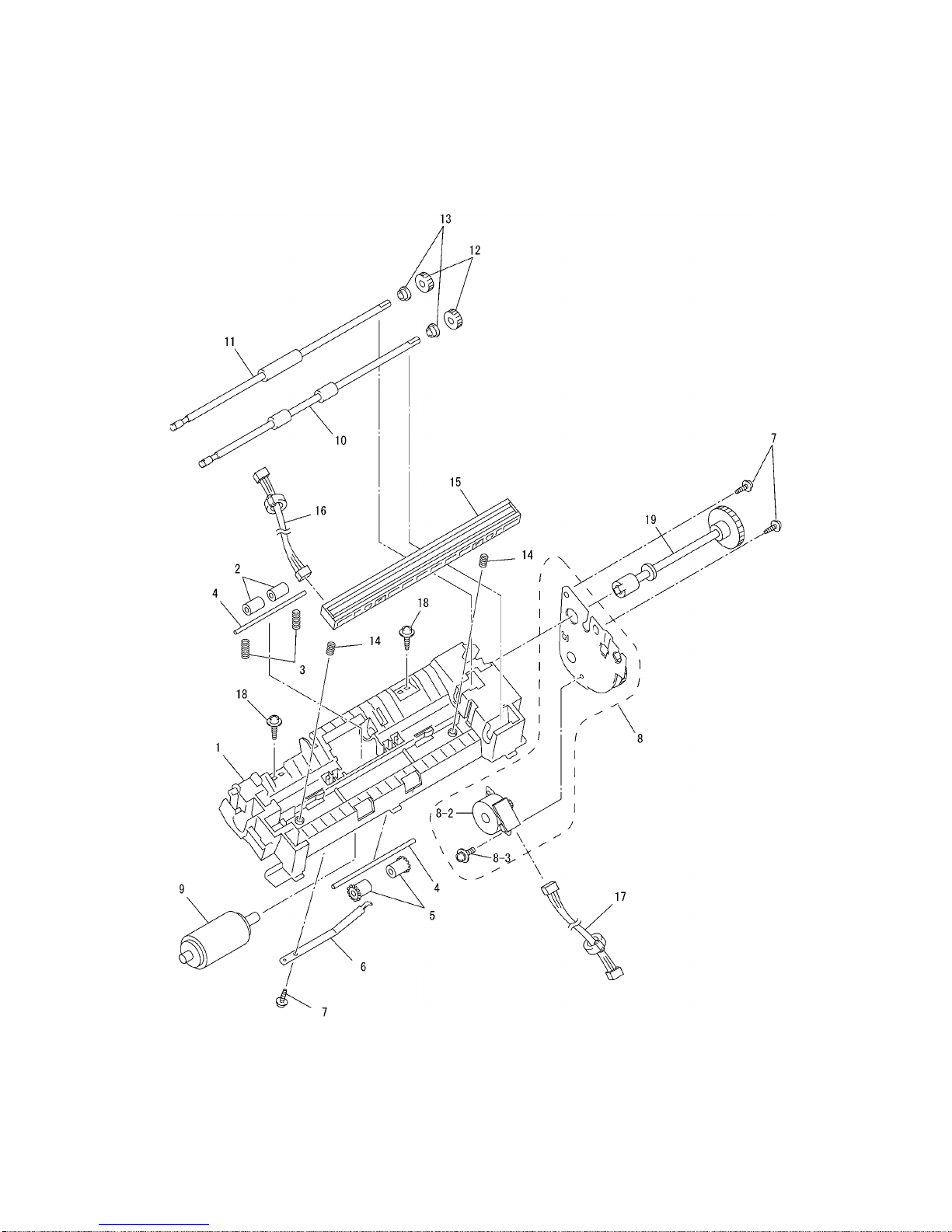

List1(SCANNER FRAME)

REF. NO.

PART CODE

QTY.

DESCRIPTION

REMARKS

LE3112001

SCANNER FRAME

UF9009001

PRESSURE ROLLER

LE2472001

PRESSURE ROLLER SPRING

LE2471001

PRESSURE ROLLER SHAFT

UL6244002

PINCH ROLLER

UU7033001

PINCH ROLLER LEAF SPRING

087310816

TAPTITE, CUP B M3X8

LE3113001

SCANNER DRIVE ASSY

8-1

UU7030001

SEPARATION ROLLER GEAR

8-2

LE3116001

SCANNER MOTOR

8-3

0A4300605

SCREW, PAN (S/P WASHER) M3X6

UU7031001

SEPARATION ROLLER

LE3477001

DOCUMENT EJECTION ROLLER ASSY

LE3476001

DOCUMENT FEED ROLLER ASSY

UU7039001

GEAR27

UU7284001

BUSHING

UU2028001

CIS SPRING

LG2593001

CIS UNIT, COLOR 300DPI

LG2594001

CIS HARNESS

LG2592001

SCANNER MOTOR HARNESS

087311016

TAPTITE, CUP B M3X10

UU7030001

SEPARATION ROLLER GEAR

MFC830, MFC840

List2(MAIN CHASIS)

REF. NO.

PART CODE

QTY.

DESCRIPTION

REMARKS

LE3132001

PURGE GEAR 18

LE3133001

PURGE GEAR 19

LE3134001

PURGE BEVEL GEAR 18

LE3135001

GEAR STOPPER

LE3136001

PURGE GEAR SPRING

LE3939001

CARRIAGE MOTOR

LE3142001

CARRIAGE ASSY

7-1

UU1061001

CARRIAGE PRESSER

7-2

UU1062001

PRESSER SPRING

LE3166001

ECCENTRIC BUSHING L

LE3167001

ECCENTRIC BUSHING R

0A5300605

SCREW, PAN (S/P WASHER) M3X6

UU1080001

RAIL PRESSURE SPRING

UU1454001

CARRIAGE TIMING BELT

LE3169001

IDLE PULLEY HOLDER

LE3170001

IDLE PULLEY HOLDER

UD6025001

IDLE PULLEY SHAFT

LE3171001

TENSION SPRING

LE3172001

ENCODER STRIP

UD6012001

ENCODER STRIP SPRING

LG2606001

HEAD FLAT CABLE, 23P

LG2605001

HEAD FLAT CABLE, 22P

LE3175001

IDLE PULLEY STOPPER

LE3178001

PURGE LEVER

LE3179001

PURGE LEVER SPRING

LE3180001

PURGE SHAFT

UU1088001

FFC HOLDER 1

LE3176001

FFC HOLDER 2

LE3183001

PAPER FEED ROLLER ASSY

048080345

RETAINING RING, E8

LE3187001

PF ROLLER PULLEY L

LE3188001

PAPER EJECTION ROLLER

LE3190001

EJECTION ROLLER PULLEY

UF0026001

PAWLED BUSHING

UF8105001

CONDUCTIVE BUSHING

048050345

RETAINING RING, E5

LE3191001

PF TIMING BELT S

LE3195001

PAPER PRESSURE HOLDER

LE3198001

PRESSURE HOLDER SPRING

LE3201001

PAPER FEED MOTOR ASSY

0A4300605

SCREW, PAN (S/P WASHER) M3X6

LE3207001

PF TIMING BELT L

LE3208001

TENSION PLATE ASSY

LE3600001

TENSION SPRING

LG2597001

CARRIAGE PCB ASSY

UG5577000

FLAT CORE :33.5-20

UG5569000

FLAT CORE :33.5-12

LE3910001

PLATEN

US2967001

STAR WHEEL

LE3606001

STAR WHEEL SPRING

LE3881001

STAR WHEEL RETAINER

LE3194001

PAPER EJECTION SENSOR ACTUATOR

LG2239001

PAPER EJECTION SENSOR

LG2741001

PAPER EJECTION SENSOR HARNESS

LE3199001

RESISTRATION SENSOR ACTUATOR

LE3200001

TWIST SPRING

083321216

TAPTITE, PAN S M3X12

087320616

TAPTITE, CUP S M3X6, MFC830

087320616

TAPTITE, CUP S M3X6, MFC840

087320515

TAPTITE, CUP S M3X5

087210616

TAPTITE, CUP B M2X6

LK0220001

0.1

PRINT HEAD UNIT (INCLUDING 10 PAIRS OF UNITS)

59 LK0610001 1PRINT HEAD UNIT (INCLUDING 1 PAIR OF UNIT)

59-1

LK0198001

MANIFOLD CAP S

59-2

LK0199001

NOZZLE PROTECTOR

LE3182001

MANIFOLD CAP L

LE3155001

HEAD DRIVER CLAMP L

LE3158001

HEAD DRIVER CLAMP R

LE3162001

INK CARTRIDGE GUIDE

LE3162001

INK CARTRIDGE GUIDE

LE3162001

INK CARTRIDGE GUIDE

64 LE3847001 1PAPER GUIDE FILM L

65 LE3848001 1PAPER GUIDE FILM R

MFC830, MFC840

List3(ASF)

REF. NO. PART CODE QTY. DESCRIPTION REMARKS

1 LE3250001 1

1-1 LE3252001 1 BASE PAD

1-2 LE3253001 2 PAPER SUPPORTER

1-3 LE3254001 1 SEPARATION PAD

1-4 LE3255001 1 SEPARATION PAD HOLDER

1-5 LE3434001 1 HOLDER CAP

1-6 LE3259001 1 PAPER FEED SHAFT ASSY

1-7 UF9722001 1 BUSHING R

1-8 UF0026001 1 BUSHING L

1-9 LE3432001 1

SF ROLLER

1-10 LE3268001 1 TORSION SPRING

1-11 LE3522001 2 PAPER STOPPER FILM

1-12 LE3235001 1 SEPARATION PAD HOLDER STOPPER

2 08732061

3 TAPTITE, CUP S M3X6

MFC830, MFC840
