Brother FD4-B276 Manuale utente

FD4−B276, B277 1/15

2000.7

FD4-B276

B277

Flat bed bottom covering sitcher

with thread trimmer

Flat bed top and bottom covering stitcher

with thread trimmer

Specifications

FD4 - B27 7 -033-3 /UT13 / /

A B C D

DDevice

Device

No. Applicable

model Solenoid

thread

trimmer

Solenoid

wiper

Solenoid top

covering thread

trimmer

Solenoid

presser

foot lifter

Pneumatic

thread

trimmer

Pneumatic

presser foot

lifter

UT11 B276 B277 ¡- - - - -

UT12 B276 ¡ ¡ - - - -

UT13 B276 B277 ¡- - ¡- -

UT14 B276 ¡ ¡ -¡- -

UT32 B277 ¡-¡- - -

UT34 B277 ¡-¡ ¡ - -

UT21 B276 B277 - - - - ¡-

UT22 B276 -¡- - ¡-

UT23 B276 B277 - - - - ¡ ¡

UT24 B276 -¡- - ¡ ¡

UT42 B277 - - ¡-¡-

UT44 B277 - - ¡-¡ ¡

AModel

6Bottom covering stitcher

7Top and bottom covering stitcher

BSpecifications

011 Plain stitching

033 Covering

051 Hem stitching (The guide on the front cover)

CNo. of needles / Needle gauge

12 needles

3.2 mm

22 needles

4.0 mm

32 needles

4.8 mm

42 needles

5.6 mm

52 needles

6.4 mm

63 needles

4.8 mm

73 needles

5.6 mm

83 needles

6.4 mm

FD4−B276, B277 2/15

2000.7

Specifications

2-Needle 3-Needle

Stitch pattern Stitch pattern

Sub-

class Application Gauge No. B276 B277 Gauge No. B276 B277

-011 Plain stitching

-1

-2

-3

-4

-5

-6

-7

-8

-033 Covering -3

-4

-5

-6

-7

-8

-051 Hem stitching

-1

-2

-3

-4

-5

-6

-7

-8

FD4−B276, B277 3/15

2000.7

Height of presser

foot (mm) Max. speed (rpm)

Needle size Stitch

length

(mm)

Differentia

l feed ratio

(mm) B276 B277 B276 B277

UYX128

#70

(#65 - #90) 3.6 0.7 - 1.8 7.0 5.0 6,500 6,000

UYX128

#70

(#65 - #90) 3.6 0.7 - 1.8 7.0 5.0 6,500 6,000

UYX128

#70

(#65 - #90) 3.6 0.7 - 1.8 7.0 5.0 6,500 6,000

Gauge No.

Gauge No. No. of needles No. of threads Gauge (mm)

-1 23 or 4 3.2

-2 23 or 4 4.0

-3 23 or 4 4.8

-4 23 or 4 5.6

-5 23 or 4 6.4

-6 34 or 5 4.8

-7 34 or 5 5.6

-8 34 or 5 6.4

FD4−B276, B277 4/15

2000.7

Optional device

Thread wiper set

Solenoid type Part name Part code Q’ty

Thread wiper set, A 183821-201 1

Air type Part name Part code Q’ty

Thread wiper set S28896-001 1

Presser foot lifter set

Solenoid type Part name Part code Q’ty

Solenoid presser foot lifter set (A) 183795-401 1

* With the knee switch

Solenoid type Part name Part code Q’ty

Solenoid presser foot lifter set (B) 183796-401 1

* Without the knee switch

Air type Part name Part code Q’ty

Pneumatic presser foot lifter set S28904-001 1

* Without the knee switch

Solenoid upper thread trimmer set

Part name Part code Q’ty

Upper thread trimmer set S28915-001 1

* With the face plate exclusively for this set.

FD4−B276, B277 5/15

2000.7

Thread trimmer set

Solenoid type

Part name Part code Q’ty

Solenoid thread trimmer set S28906-001 1

Air type

Part name Part code Q’ty

Pneumatic thread trimmer set S28908-001 1

FD4−B276, B277 6/15

2000.75

Special parts to use when using spun thread or cotton thread

Ref. No. Part name Part code Q’ty

1Guide base S28941-001 1

2Washer 105161-004 1

3Screw, pan SM3.57-40 ×6 062670-612 1

4Thread guide (M) holder S28942-001 1

5Screw, pan SM3.18-40 ×5 062660-512 2

6Thread guide (M) S28943-001 3

7Set screw, socket (CP) SM3.18 146427-001 3

8Needle guard, BH S28945-001 1

----- Instruction manual 192271-032 1

* If there is a big difference among right, center, and left needle thread loop size, this thread guide (separate type) is

effective in preventing stitch skipping.

* This needle guard, BH is effective in preventing stitch skipping caused by unwanted left needle backward

movement.

* For attaching the parts listed above, refer to the instruction manual also listed above.

FD4−B276, B277 7/15

2000.5

Processing the work table

* This sewing machine is a fully-submerged type. Refer to the diagram below to prepare the work table and

the machine head support. Furthermore, if processing a folding-type work table, you will need parts which

are sold separately. (Refer to page 10.)

* The top of the table should be 40 mm in thickness and should be strong enough to hold the weight and

withstand the vibration of the sewing machine.

Machine head support (when not using a solenoid presser foot lifter)

*1 Machine head support connection positions

*2 Motor mounting holes

*3 Depth 10

*4 Machine head support plate mounting holes

*5 Depth 8

*6 Chain guide mounting hole

FD4−B276, B277 8/15

2000.5

Machine head support (When using a solenoid presser foot lifter)

*1 Machine head support connection positions

*2 Motor mounting holes

*3 Depth 10

*4 Machine head support plate mounting holes

*5 Depth 8

*6 Chain guide mounting hole

*7 Solenoid-type presser foot lifter mounting holes

FD4−B276, B277 9/15

2000.5

Work table

*1 Machine head support connection positions (5 places)

When not using a solenoid-type presser foot lifter, it is not necessary to make the countersink (a) and the holes.

*2 Cotton stand hole

Folding-type work table

* When processing a folding-type work table, please use the following parts which are available by separate

purchase.

Part name Part code Q’ty

Stopper 101117-001 1

Wood screw, round M4.5 ×16 032461-606 1

Holder 119561-001 1

Wood screw, round M3.5 ×13 032361-306 2

Hinge S42189-000 2

Wood screw, flat M2.7 ×16 034281-605 8

Guide plate 106292-001 3

Wood screw, flat M3.5 ×16 034361-606 6

FD4−B276, B277 10/15

2000.5

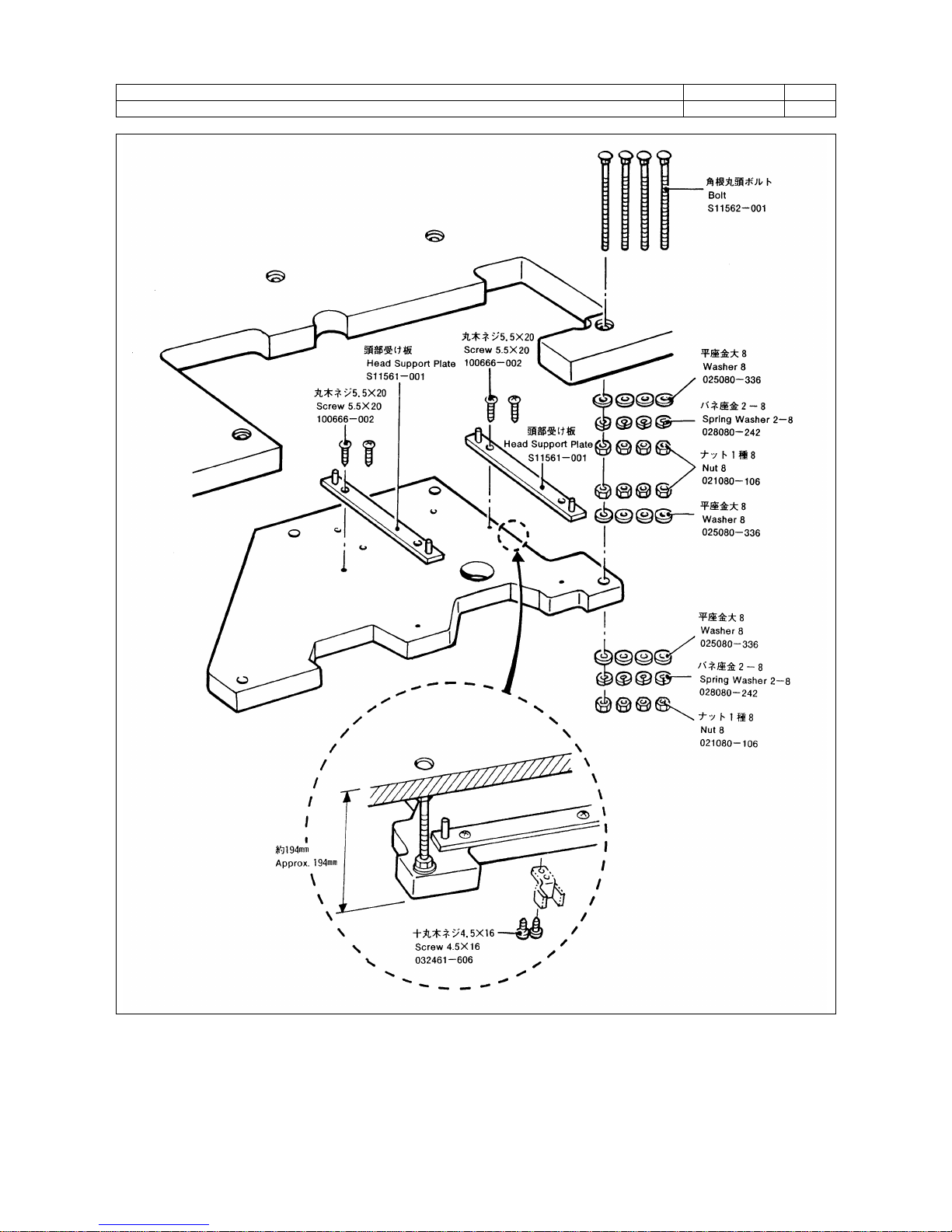

Setting up the full-submerged table

* Use the nuts to adjut the height of the machine head.

Part name Part code Q’ty

Full submerged set S11560-001 1

* The above parts can be supplied individually.
