Bryant TSTATBBNQ001 Guida
72
Battery Operated
4-Wire Operation
Millivolt Compatible
Digital Display
DC Voltage Compatible
Stage: 1-Heat, 1-Cool
Easy Slide Switch
Operation
USERS INFORMATION MANUAL
MODEL TSTATBBNQ001
NON-PROGRAMMABLE DIGITAL
THERMOSTAT
NOTE TO INSTALLER:
This manual must be left with the equipment user.
Heating & Cooling Systems
Heat Cool Thermostat
SINGLE STAGE HEAT & COOL
THERMOSTAT
Page 1
Table Of Contents
LOCATION OF CONTROLS
DISPLAY
NORMAL OPERATION
PREPARATION
REMOVE OLD THERMOSTAT
WIRE CONNECTIONS
JUMPER CONFIGURATION
TEST OPERATION
TROUBLESHOOTING
WARRANTY
2
4
5
6
7
10
17
20
21
INSTALLATION AND BATTERY
REPLACEMENT
8
24
Bryant Heating & Cooling Systems Patents Pending 4/03
TSTATBBNQ001
Safety Warnings
Page 2
CAUTION Follow Installation Instructions carefully.
DISCONNECT POWER TO THE HEATER -
AIR CONDITIONER BEFORE REMOVING
THE OLD THERMOSTAT AND INSTALLING
THE NEW THERMOSTAT.
WARNING
The 2 Alkaline “AA” batteries must be replaced at least
every 12 months to assure proper operation.
The thermostat will display the Low Battery
code (fig. 1) on the display of the thermostat
when it is time to replace the batteries.
When is displayed the batteries must be replaced
immediately. The manufacturer cannot be liable for
improper operation of the thermostat if the batteries are
not immediately replaced.
The annual battery replacement is especially critical in
locations subject to freezing temperatures. The
thermostat will be unable to turn on the Heat if the
batteries are exhausted.
CAUTION
This device complies with Part 15 of the FCC rules.
Operation is subject to the following 2 conditions:
(1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including
interference that may cause undesired operation.
FIG. 1
Location of Controls
Page 3
MODE SWITCH
Heat, Cool or Off On or Auto
FAN SWITCH
UP & DOWN
BUTTONS
72
Display
Page 4
Current room temperature.
If the Up or Down arrow buttons are pressed the
thermostat will show the desired Set Temp temperature
indicator. Once this screen is reached you may use the
Up or Down arrow buttons to adjust the desired room
temperature.
After five seconds with no button presses the
thermostat will revert back to show the current
room temperature.
78 74
SET TEMP
Page 5
Normal Operation
Manual Operation
Select heat or cool with the mode switch.
Normally leave the fan switched to auto.
In fan auto, the fan will turn on only with a heat
or cool demand. When Fan On is selected, the
fan will run continuously, even when the mode
switch is set to Off.
Adjust the desired set temperature with the
Up or Down buttons.
MODE SWITCH
Heat, Cool or Off On or Auto
FAN SWITCH
UP & DOWN
BUTTONS
72
Step #1 Preparation
Page 6
These tools will be required:
Flat Blade
Screwdriver
Wire cutter
& Stripper
Make sure your Heater/Air Conditioner
is working properly before beginning
installation of the thermostat.
Carefully unpack the thermostat.
Save the screws and instructions.
Turn off the power to the Heating/Air
Conditioning system at the main fuse
panel. Most residential systems have
a separate breaker for disconnecting
power to the furnace.
Proper installation of the thermostat will be
accomplished by following these step
by step instructions. If you are unsure
about any of these steps, call a qualified
technician for assistance.
72
Heat Off Cool FanOn
FanAuto
72
Heat Off Cool FanOn
FanAuto
72
Heat Off Cool FanOn
FanAuto
72
Heat Off Cool FanOn
FanAuto
72
Heat Off Cool FanOn
FanAuto
Page 7
Step #2 Remove & Replace Old Thermostat
Remove the cover of the old thermostat.
If it does not come off easily check for
screws.
Loosen the screws holding the thermostat
base or subbase to the wall, and lift away.
Disconnect the wires from the old
thermostat. Tape the ends of the wires
as you disconnect them, and mark them
with the letter of the terminal for easy
reconnection to the new thermostat.
Keep the old thermostat for reference
purposes, until your new thermostat is
functioning properly.
72
Heat Off Cool FanOn
FanAuto
72
Heat Off Cool FanOn
FanAuto
72
Heat Off Cool FanOn
FanAuto
72
Heat Off Cool FanOn
FanAuto
Page 8
The top of the thermostat housing has two (2) screw-
driver slots to assist when seperating.
Repeat the procedure in the other screw driver slot.
Separate the housing halves by pulling the top
forward until the pins release, and then lift the bottom
out.
SCREWDRIVER
SLOTS
The batteries must be replaced
immediately when the thermostat
displays the Low Battery code (fig.1). FIG. 1
To Open The Thermostat
Step #3 Installation and Battery Replacement
To pull the housing apart, insert a small blade screw-
driver into the slot and rotate 90 . This will release
the top housing snaps.
Page 9

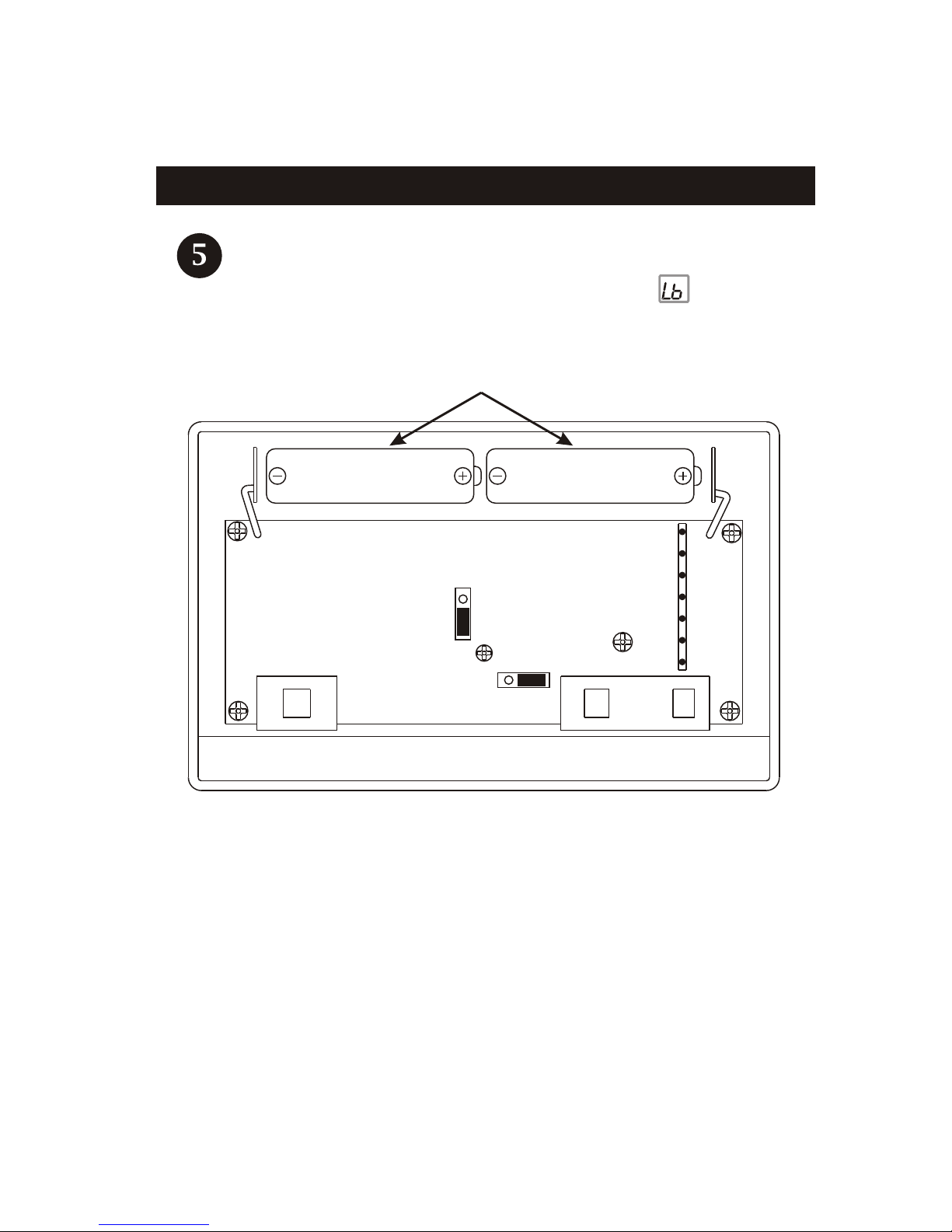

Battery Replacement
REPLACE WITH ALKALINE BATTERIES AT LEAST ONCE
EVERY YEAR, OR WHEN THE “LOW BATTERY” ICON
APPEARS (pages 2,8).
USE “AA” SIZE
ALKALINE BATTERIES USE “AA” SIZE
ALKALINE BATTERIES
POSITION BATTERIES AS SHOWN
FAN W/ HEAT
HEAT PUMP
1
2
3
123
J1
J2
