Bryant Programmable Thermidistat Manuale utente

Programmable

Thermidistat™

Control

Homeowner’s

Guide

Easy-To-Use, Trusted

Comfort.

Congratulations! As the owner

of a new Thermidistat

™

Control,

you have made a commitment to

enjoying enhanced home comfort.

This Thermidistat Control provides

reliable and consistent indoor

temperatures with the added

comfort of proper humidification.

Combining the brains of a computer

and the simplicity of a garage door

opener in an attractively designed

package, Bryant makes enjoying

the comfort of your home easier

than ever. Just follow the instruc-

tions in this guide, then relax

knowing your Thermidistat Control

is in command of your comfort.

Form: OM17-24 Replaces: OM17-16 Printed in the U.S.A. 9-98 Catalog No. 13TS-TA10

Before purchasing this appliance, please read the important energy

cost and efficiency information available from your dealer.

Manufacturer reserves the right to discontinue, or change at any time,

specifications or designs without notice and without incurring obligations.

COMFORT CONTROL

7310 West Morris Street, Indianapolis, IN 46231

Programmable

Thermidistat™

Control

Homeowner’s

Guide

Easy-To-Use, Trusted

Comfort.

Congratulations! As the owner

of a new Thermidistat

™

Control,

you have made a commitment to

enjoying enhanced home comfort.

This Thermidistat Control provides

reliable and consistent indoor

temperatures with the added

comfort of proper humidification.

Combining the brains of a computer

and the simplicity of a garage door

opener in an attractively designed

package, Bryant makes enjoying

the comfort of your home easier

than ever. Just follow the instruc-

tions in this guide, then relax

knowing your Thermidistat Control

is in command of your comfort.

Form: OM17-24 Replaces: OM17-16 Printed in the U.S.A. 9-98 Catalog No. 13TS-TA10

Before purchasing this appliance, please read the important energy

cost and efficiency information available from your dealer.

Manufacturer reserves the right to discontinue, or change at any time,

specifications or designs without notice and without incurring obligations.

COMFORT CONTROL

7310 West Morris Street, Indianapolis, IN 46231

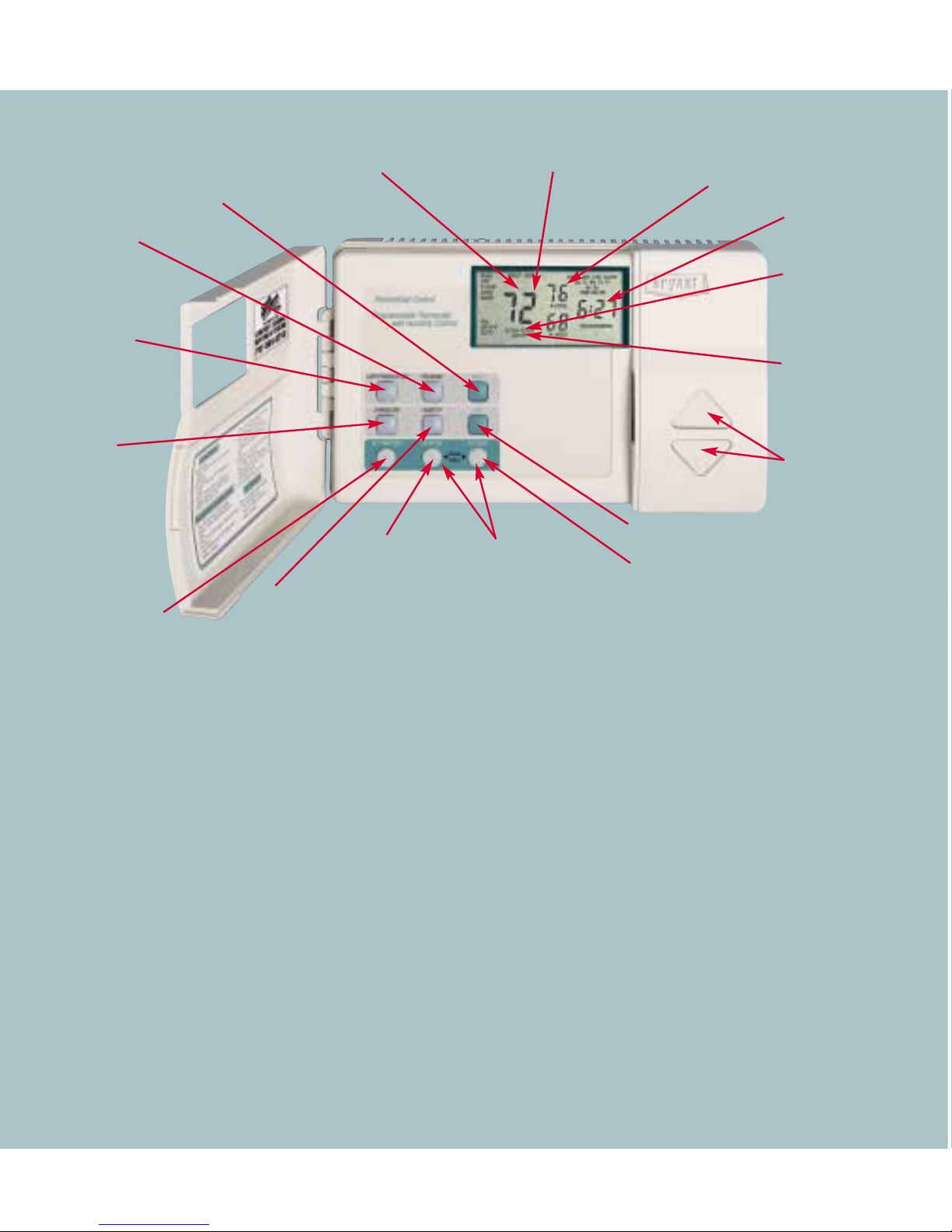

PROGRAM button

starts the

programming

process and moves

you from one step to

the next.

COPY PREVIOUS

DAY button copies

the previous day’s

comfort schedule

into the current

day’s schedule.

CHANGE DAY

button advances you

to the next day to be

programmed and

advances the day

of the week

display.

ROOM TEMPERATURE

DISPLAY shows current

room temperature.

TEMPERATURE SETTINGS

DISPLAY shows the

temperature settings for

current time period.

OUTDOOR TEMPERATURE

DISPLAY shows the

outdoor temperature.

TIME OF DAY

DISPLAY exhibits the

time of day.

CLEAN FILTER

INDICATOR lets you

know it is time to

clean or replace your

system’s air filter.

AUXILIARY HEAT

INDICATOR is

displayed when a

heat pump system’s

auxiliary heat is on.

HUMIDITY

button changes

the display to

show himidity

readings and

allows you to

change humidity

settings.

VACATION button

changes temperature

and humidity set

points to lower levels

for optimum energy

efficiency while

you’re away.

RESET FILTER

FUNCTION restarts

the timer that

determines the next

air filter change or

cleaning. Ac

tivated by pressing

VACATION and

END buttons

simultaneously.

UP AND DOWN

buttons change the

temperature and

humidity set points.

They are also used to

access outdoor

temperature and

indoor humidity

levels.

FAN button chooses ON

or AUTO fan operation.

HOLD/END button

maintains the current

temperature settings.

Also used to end

temperature and

humidity programming

sequence.

SET TIME/TEMP button

allows you to enter

the time of day and

temperature settings.

Year-Round Comfort.

Bryant’s ThermidistatTM Control provides enhanced, year-round comfort. By providing both

temperature and humidity control, this simple, yet powerful, device lets you take the steam out

of summer, the static out of winter and helps eliminate that annoying moisture build-up on

your windows when it’s cold outside. It’s never been quite this easy, and you’ve never had quite

this much comfort available through one control.

Simple, Convenient Control.

Bryant puts your family’s comfort at your fingertips with simple instructions, responsive

push buttons and an easy-to-read, lighted display. Once set, the thermidistat control accurately

monitors indoor conditions and reliably meets your desired comfort levels. Plus, you have the

convenience of temporarily bypassing your settings without disrupting your permanent

comfort schedule.

NOTE: Not all messages displayed in above illustration will appear at once in any situation.

MODE button selects OFF, HEAT,

COOL or AUTO operation.

EMERGENCY HEAT (EHEAT) mode

is also included when the

thermidistat control is installed

with a heat pump.

TABLE OF CONTENTS

PROGRAMMING THE THERMIDISTAT CONTROL

Setting the current day........................................1

Setting the current time......................................1

Setting the mode operation ................................2

Setting the fan operation ....................................3

Personalize your comfort....................................5

Setting your comfort schedule............................6

Copying a daily schedule.................................10

Setting the humidification level........................10

Setting the dehumidification level....................13

Setting the “cool to dehumidify” function ........14

OPERATING THE THERMIDISTAT CONTROL

Changing your comfort schedule......................16

Overriding your comfort schedule....................16

Checking the outdoor temperature

and indoor humidity.....................................17

Checking current programmed time

and temperature settings...............................18

Checking current humidification

and dehumidification settings. ......................19

Clean filter feature............................................20

Vacation feature setup......................................21

Vacation feature operation ..............................24

AUTO CHANGEOVER.........................................25

SMART RECOVERY .............................................26

What if…

The auxiliary heat indicator is displayed...........27

The clean filter indicator is displayed...............27

The hold indicator is displayed.........................27

The out indicator is displayed...........................28

You have a power outage.................................28

You have a system error message .....................28

Warranty.............................................................30

Common Terms and Where to Find Them ...........31

PROGRAMMING THE THERMIDISTAT CONTROL

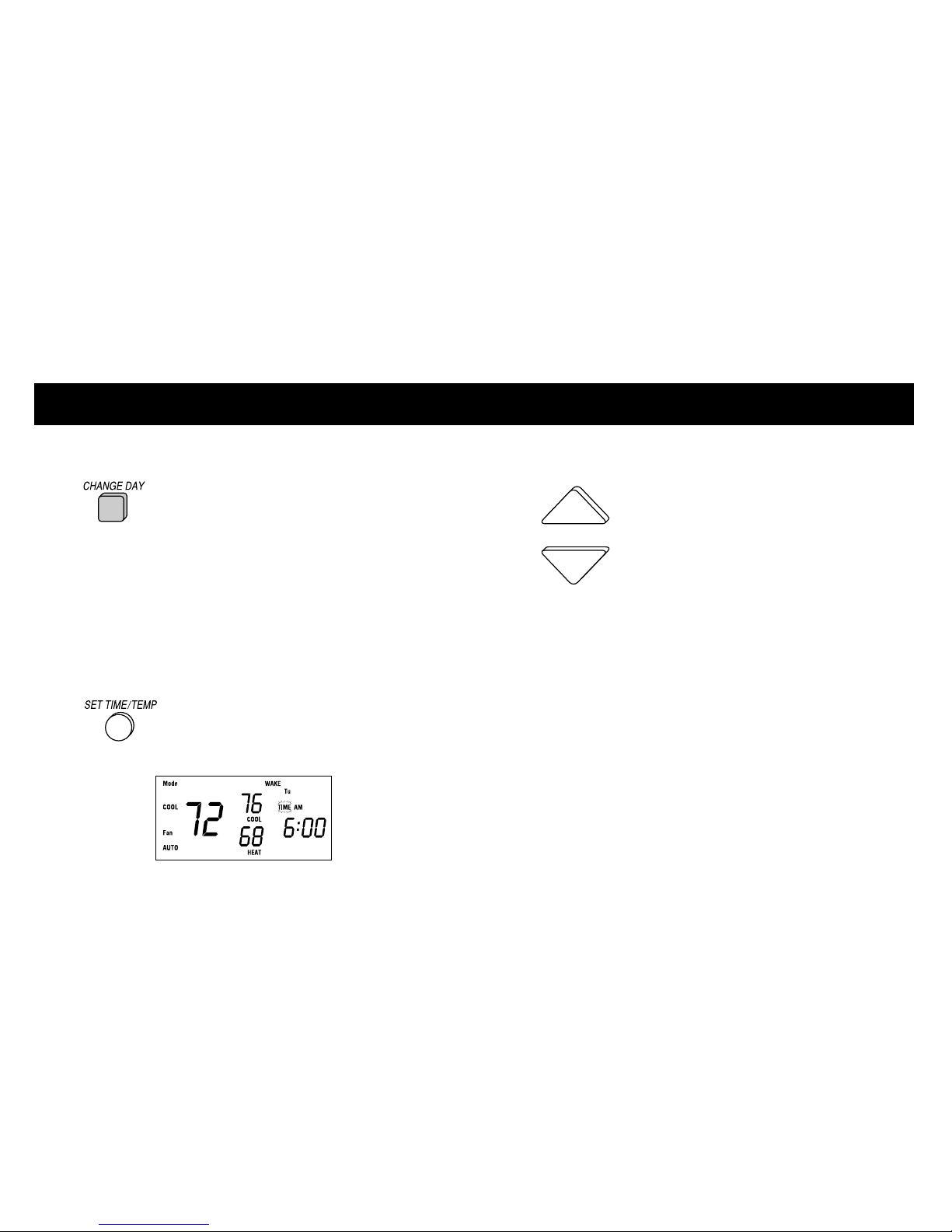

Setting the current day

1Press the CHANGE DAY button.

The day of the week will change.

2Stop on the desired day. The Thermidistat

Control then follows the program schedule

for that day.

Setting the current time

1Press the SET TIME/TEMP button.

The word TIME flashes on the display.

2Press the UP or DOWN buttons

until the correct time is displayed. To quickly

advance to the proper time, press and hold

the UP or DOWN button. To ensure accurate

programming, be sure that AM or PM is

properly selected.

PROGRAMMING THE THERMIDISTAT CONTROL

3When the correct time appears on the display,

press the HOLD/END button.

NOTE: If you choose not to press the HOLD/END

button, the word TIME will stop flashing after

15 seconds.

NOTE: If you live in a Daylight Savings Time area,

you may advance the time 1 hour in the Spring by

simultaneously pressing the SET TIME/TEMP button

and the UP button. In the Fall, you may set back

the time 1 hour by simultaneously pressing the

SET TIME/TEMP button and the DOWN button.

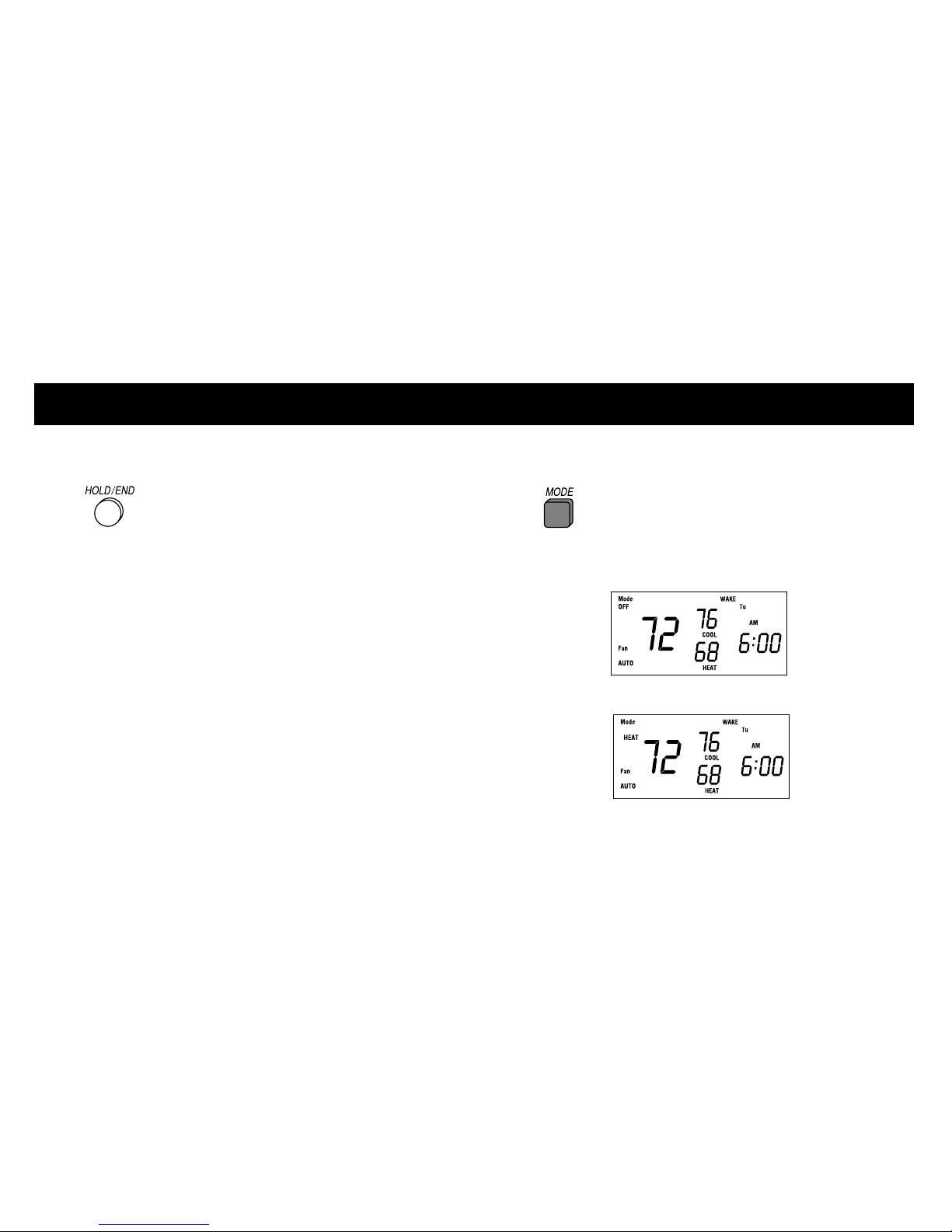

Setting mode operation

1Press MODE button.

2When the MODE button is pressed, the words

OFF,

HEAT,

PROGRAMMING THE THERMIDISTAT CONTROL

COOL,

and AUTO

will rotate on the display.

If you have a heat pump, the display

will show OFF, HEAT, COOL, AUTO,

and EHEAT.

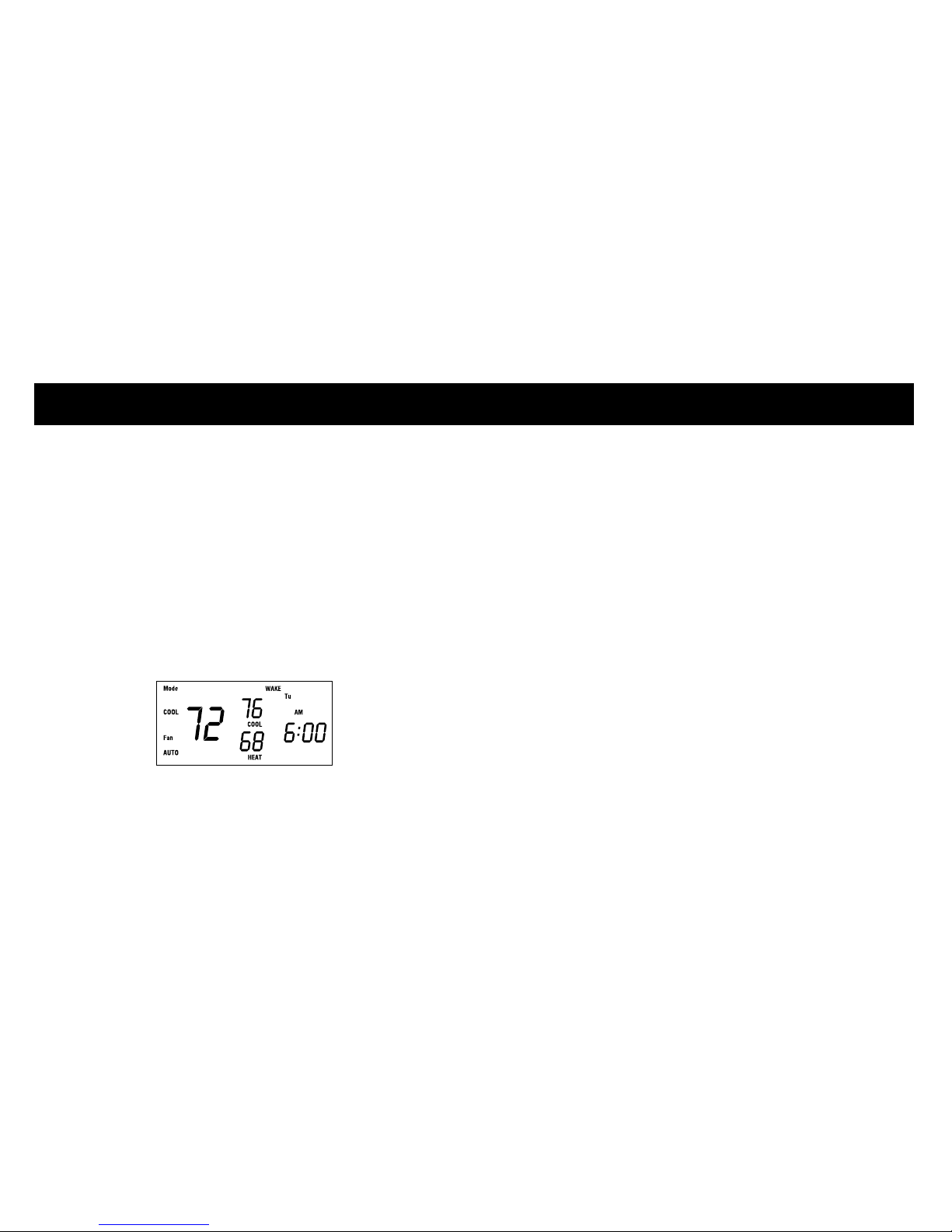

NOTE: In AUTO mode, your system will heat OR

cool as needed to reach your temperature settings.

3Continue to press the MODE

button until you reach the desired setting.

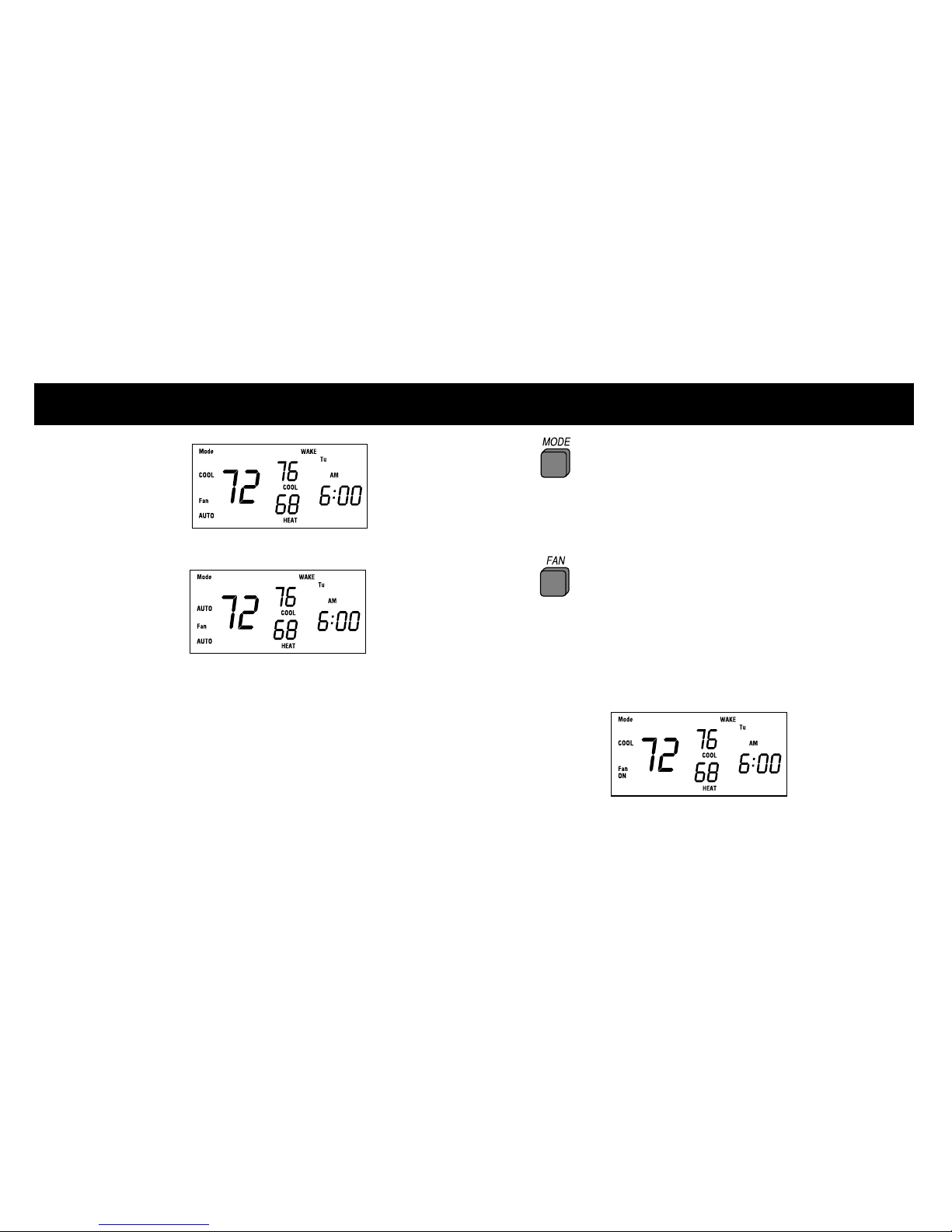

Setting the fan operation

1Press the FAN button to switch

between ON and AUTO fan settings.

When the ON mode is selected, the fan runs

continuously for improved air circulation.

PROGRAMMING THE THERMIDISTAT CONTROL

NOTE: If the indoor humidity level is above

the dehumidify setting, the fan will shut off for

5 minutes after the air conditioner shuts off.

During this period, a triangle next to the word

ON will flash.

When the AUTO mode is selected, the fan

runs only as needed to maintain your indoor

temperature settings.

PROGRAMMING THE THERMIDISTAT CONTROL

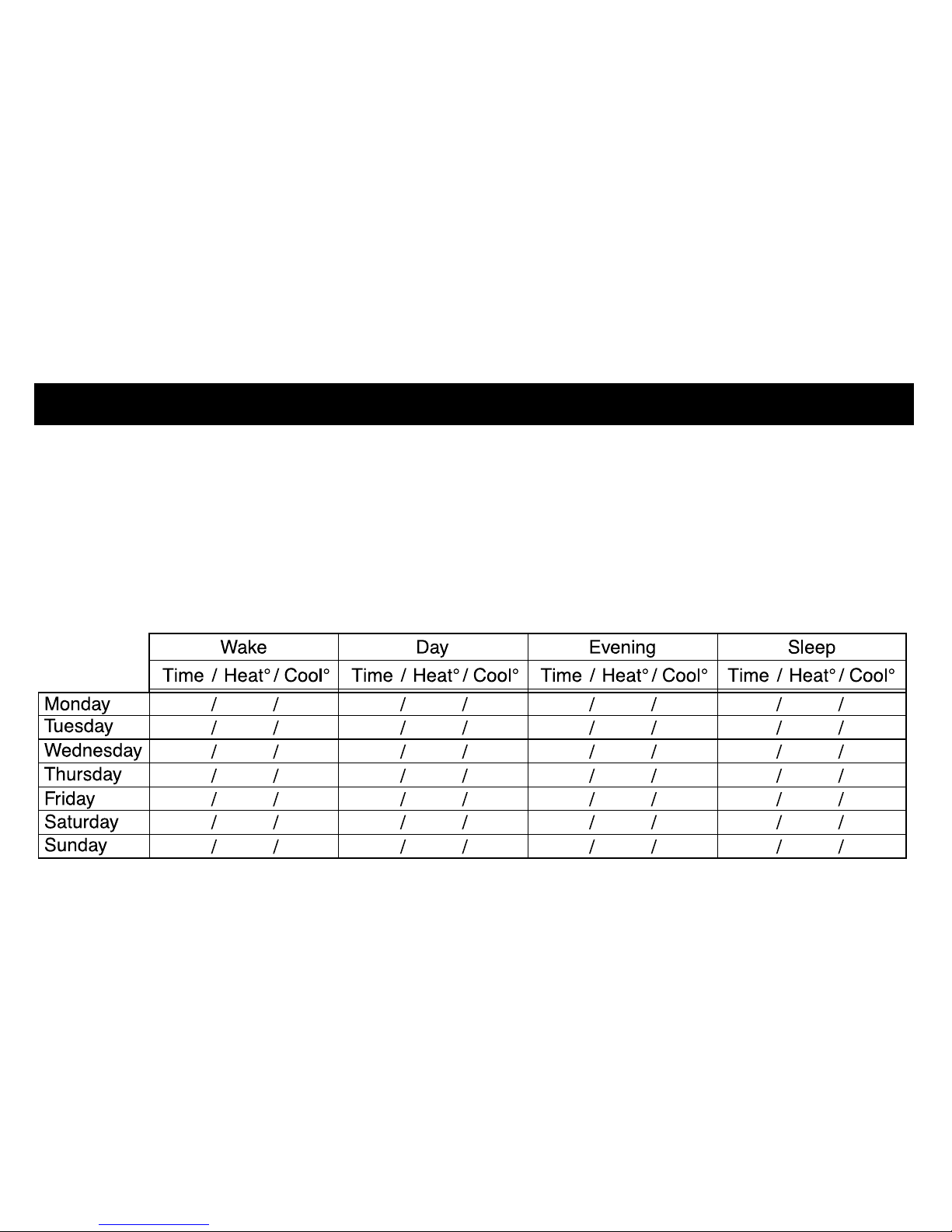

Personalize Your Comfort

Before you program your Thermidistat

Control, take a moment to plan your

temperature schedule. Each day of the

week is divided into 4 time periods:

WAKE, DAY, EVENING, and SLEEP.

For each time period, enter a start time,

heating temperature, and cooling

temperature in the appropriate blank.

Once completed, this chart will be your

guide during programming.

NOTE: Your Thermidistat Control requires your

cooling temperature to be at least 2° higher than

your heating temperature.

PROGRAMMING THE THERMIDISTAT CONTROL

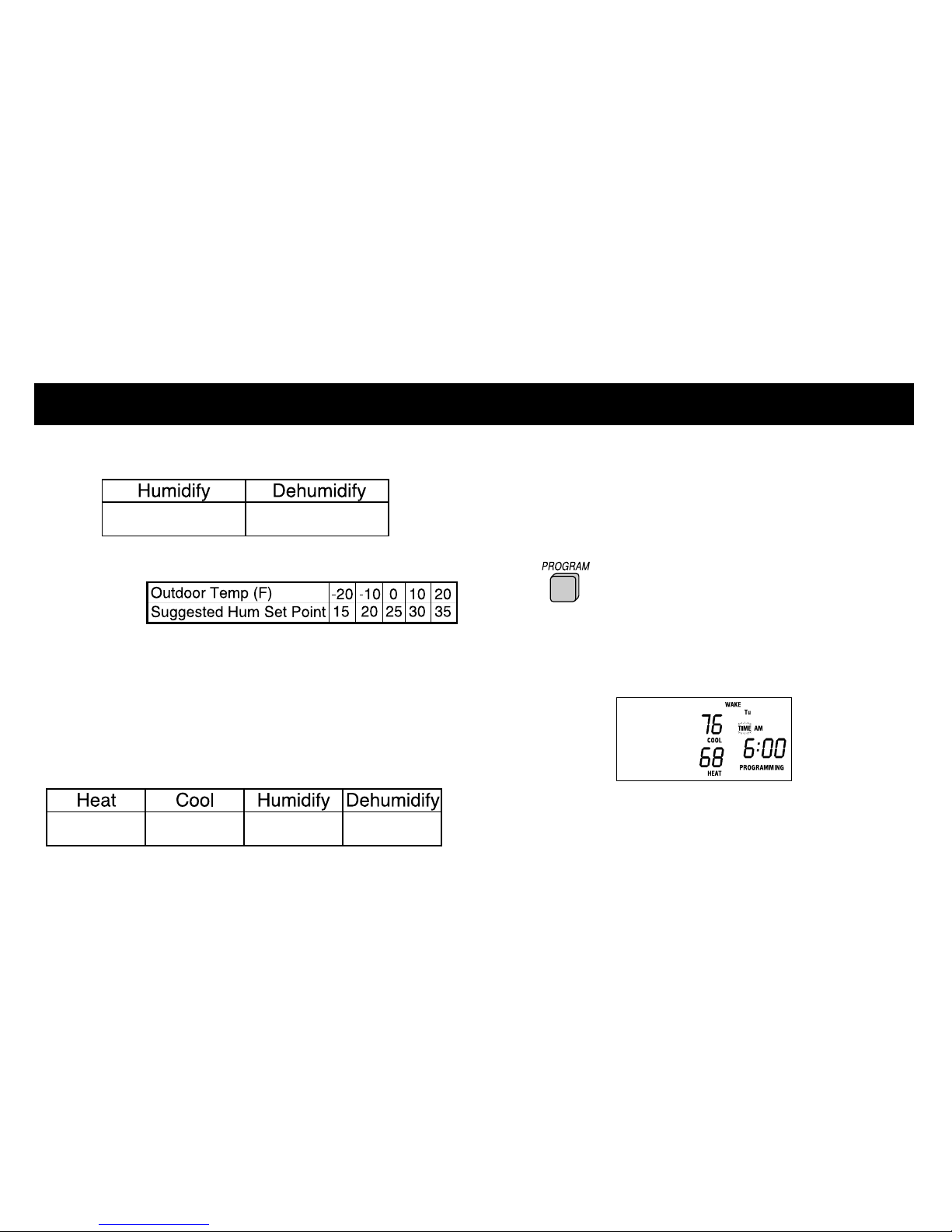

HUMIDITY SETTINGS

SUGGESTED SETTINGS

Humidify–

De-humidify – 50% - 60% suggested

depending on installation, area of the

country, and your heating & cooling

equipment.

VACATION SCHEDULE

Setting your comfort schedule

Before you begin programming, refer to

page 5 of this manual to plan your

personal comfort schedule.

1Press the PROGRAM button.

The word PROGRAMMING appears on the

display and the word TIME flashes on

the display.

Indice

Altri manuali Bryant Termostato

Bryant

Bryant SYSTXBBUID01--D Manuale operativo

Bryant

Bryant T1-PAC01-A Manuale utente

Bryant

Bryant TSTATBBNQ001 Guida

Bryant

Bryant II TSTAT-0-20 Istruzioni e ricette

Bryant

Bryant start-up and Istruzioni e ricette

Bryant

Bryant 53DFST2-NP-BRY Manuale utente

Bryant

Bryant Preferred T6-PRH01-B Manuale utente

Bryant

Bryant TSTATBBPQ501 Guida

Bryant

Bryant TSTATBBP071-01 Dimensioni e guida di installazione

Bryant

Bryant TSTATBBPS101 Guida

Bryant

Bryant PREFERRED T6-NRH Manuale utente

Bryant

Bryant TSTATCCPB101 Manuale utente

Bryant

Bryant T1--NAC Manuale utente

Bryant

Bryant T2--WHS01 Manuale utente

Bryant

Bryant PROGRAMMABLE DIGITAL TERMOSTAT OM 17-101 Manuale utente

Bryant

Bryant TSTATBBPSP2-WC Dimensioni e guida di installazione

Bryant

Bryant T2-NHP01-A Manuale utente

Bryant

Bryant TSTAT Manuale utente

Bryant

Bryant P/N TSTATBBP220-01 Guida

Bryant

Bryant LEGACY LINE-RNC T1-NAC Manuale utente

Bryant

Bryant LEGACY T2-PAC Manuale utente

Bryant

Bryant ZONE PERFECT PLUS Guida

Bryant

Bryant AND THERMIDISTAT CONTROL Istruzioni per il montaggio

Bryant

Bryant 53DFST2-NP-BRY Manuale utente

Manuali Termostato popolari di altre marche

EWELLY

EWELLY EW-181 Manuale utente

Prolon

Prolon T1100 Istruzioni per l'installazione

Computherm

Computherm Q20 Manuale utente

Heatmiser

Heatmiser neoStat Manuale utente

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuale utente

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuale utente

Saswell

Saswell SAS920XWHB-7-S-RF Guida

Aircalo

Aircalo TFP1-ET85P2 Manuale utente

Honeywell

Honeywell CM721 Manuale utente

Carrier

Carrier DEBONAIR 33CS Manuale utente

Lennox

Lennox iHarmony Zone Thermostat Istruzioni per il montaggio

Gemtech

Gemtech GT7000 Manuale di istruzioni

Rollei

Rollei Smartes 45000 Manuale utente

Sinope

Sinope TH1300RF Manuale utente

Honeywell

Honeywell RLV4305 Manuale utente

Honeywell

Honeywell Prestige 2.0 THX9421 Manuale utente

NuTone

NuTone NTBZ48 Istruzioni operative originali

Stelpro

Stelpro MAESTRO ASMT402AD Manuale utente
