BTC BCO5232IM Manuale utente
Combo Drive
CD-R 52X/CD-RW 32X/DVD 16X
User’s Manual
CAUTION
CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
AVOID DIRECT EXPOSURE TO BEAM.
VORSICHT
KLASSE 3B SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN GEOFFNET.
NICHT IN DEN STRAHL SEHEN.
ATTENTION
RADIATION DU FAISCEAU LASER VISIBLES ET INVISIBLES DE CLASSE 3B
EN CAS D'OUVERTURE.
EVITER TOUTE EXPOSITION AUX RAYONS.
Copyright Statement
It is a criminal offence, under applicable copyright laws, to make
unauthorised copies of copyright-protected material, including computer
programs, films, broadcasts and sound recordings. This equipment should
not be used for such purposes.
CLASS 1 LASER PRODUCT
APPAREIL A LASER DE CLASSE 1
LASER KLASSE 1
LUOKAN 1 LASERLAITE
PRODUIT LASER
CATEGORIE 1
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that
may cause undesired operation.
FCC Warning Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
FOR EUROPE
“The drive is in conformity with the EMC directive and low-voltage
directive.”
Table of Contents
INTRODUCTION 1
FEATURES 1
SYSTEM REQUIREMENTS 2
PACKAGE CONTENTS 2
INSTALLATION 3
HOST INTERFACE CONNECTIONS 3
HARDWARE INSTALLATION 4
DRIVER INSTALLATION 6
FOR WINDOWS ENVIRONMENT 6
SOFTWARE DESCRIPTION 6
DVD REGION CODING 7
OPERATION & CONNECTION 9
FRONT PANEL 9
REAR VIEW 10
TECHNICAL DATA 11
TROUBLESHOOTING 13
COMBO DRIVE
1
INTRODUCTION
Features
Welcome to a multimedia world of CD-ReWritable technology and DVD-ROM
capabilities. This high-performance combo drive combines CD-RW and DVD-
ROM in one single drive which frees up precious bay space and presents you
abundant function. It reads CDs of all types at maximum 52X speed, and
DVD-ROMs at 16X speed maximum. For the writing ability, it writes to CD-Rs
at up to 52X speed, and to CD-RWs at up to 32X speed. .With the bundled
software, you can enjoy the fun of creating customized audio and data CDs
and the fascinating DVD entertainment of high resolution.
Here are some important features of this Combo Drive:
♦ EIDE/ATAPI Interface for easy installation
♦ 8X, 16X, 24X, 32X, 40X, 48X and 52X writing speed on CD-R
media
♦ 4X, 10X, 12X, 16X, 24X and 32X writing speed on CD-RW
media
♦ Adopts Buffer Underrun Prevention technology (MTKSuperLink)
♦ Supports writing modes of TAO, DAO, SAO and packet writing
♦ Large internal buffer: 2MB
♦ Supports MultiRead function
♦ Serves as RPC-2 DVD-ROM Drive
♦ Smooth DVD playback
♦ Low power consumption
COMBO DRIVE
2
System Requirements
For IBM compatible PCs, the system requirements recommended are
as follows:
♦ PC sufficient to run Windows 98/ME/2000/XP
♦ Pentium II, Celeron 400MHz & above with at least 64MB of
memory
♦ Fast and sufficient hard disk space (minimum 200MB for
installation, 1GB or more is recommended.)
♦ IDE host interface supporting ATAPI MMC command
♦ Microsoft Windows 98/ME/2000/XP
Package Contents
The package contains the following items:
♦ Combo drive
♦ Audio cable
♦ Application software disc
♦ A bag of screws
COMBO DRIVE
3
INSTALLATION
Host Interface Connections
Most current mainboard models have two IDE ports (primary and
secondary) which can connect two IDE cables. Two IDE cables allow
you to connect up to four devices, but it is recommended that you
separate IDE ports for your hard drive and your Combo drive. This will
ensure that your hard drive’s performance and speed won’t be affected
by having the Combo Drive on the same cable.
Jumper Setting
On the rear panel of the Combo Drive, you will find three pairs of
jumpers: CS (CSEL), SL (Slave) and MA (Master). Use the jumper cap
to set the device to CS, SL or MA mode corresponding to your PC
configuration. If you connect only one device on the IDE cable, you can
set the jumper as “Master” or “Slave”.
If you connect two devices on the same cable, set different jumper for
each device (one as “Master”, and the other one as “Slave”). The same
rule applies to the connection of having your hard disk and one other
device on the same cable.
COMBO DRIVE
4

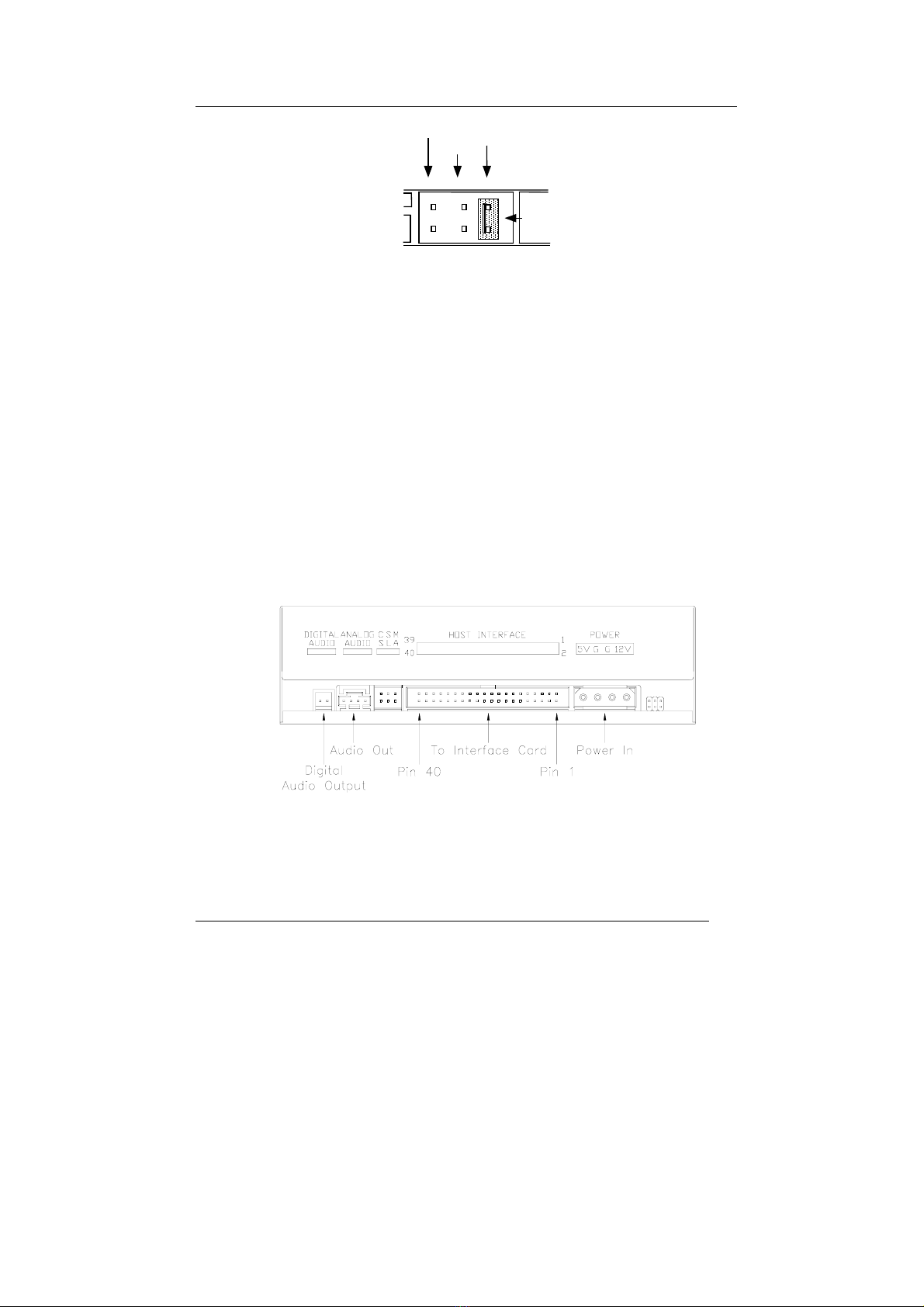

MASTER
CSEL
SLAVE
JUMPER
Improper or conflicting setting will cause the unit not detected by your
system.
Hardware Installation
1. Turn off the power to your computer system and all peripheral
devices.
2. Disconnect all cables and connectors from the back of your
computer, and then remove the cover from the computer.
3. Insert the Combo Drive into one of the vacant 5.25" drive bays and
secure it to your PC with all four mounting screws.
4. Connect one end of the 40-pin IDE cable to the IDE connector of
the Combo Drive and the other end to the IDE port on your
motherboard. Also, connect the power supply cable to the back of
the drive.
The red-edge of the IDE cable must be connected to Pin 1
on the Drive.
COMBO DRIVE
5

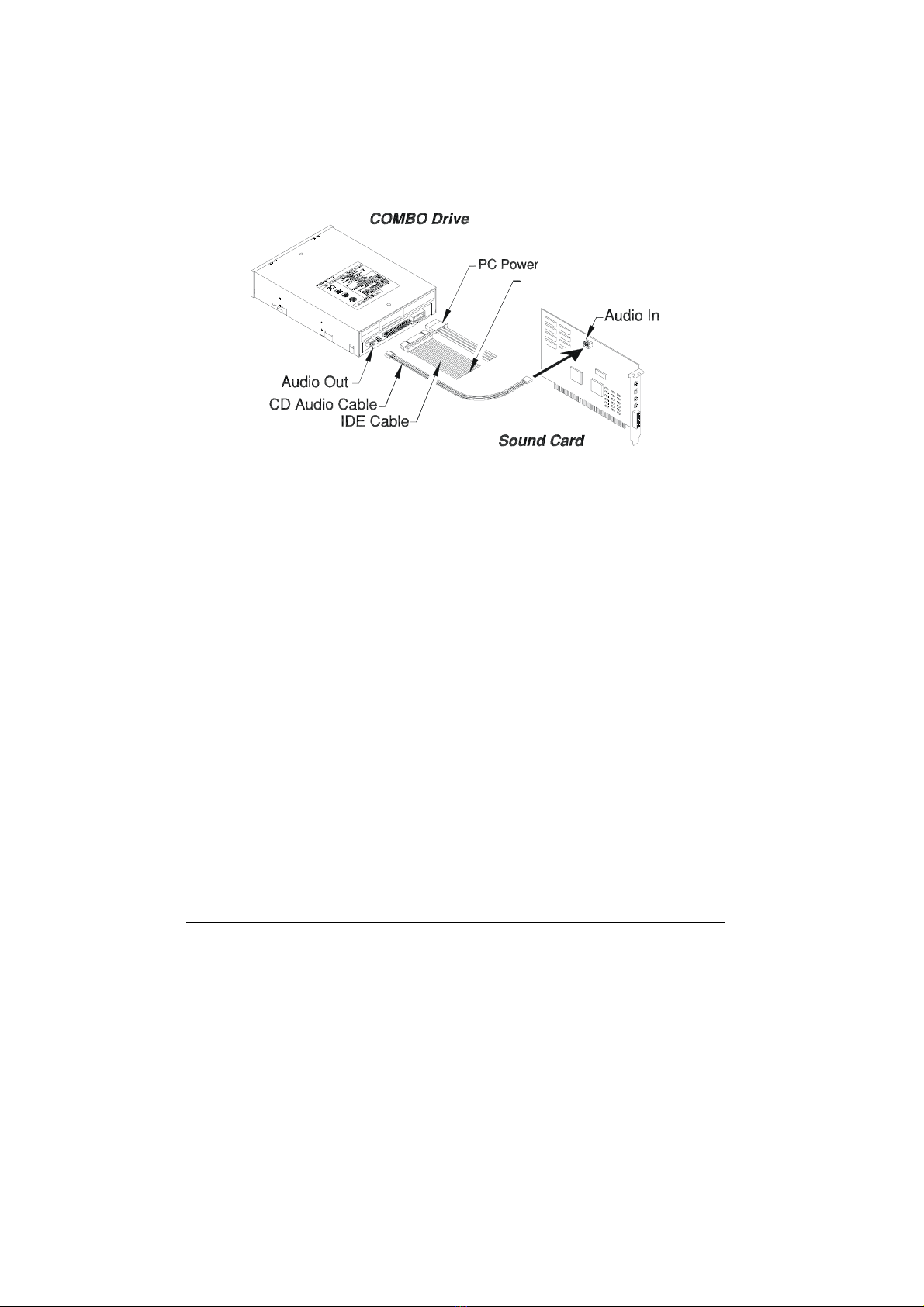

5. If you have a sound card that can be connected to this drive, you
can also connect the drive (as Audio-Out) and the sound card (as
Audio-in) with a 4-pin audio cable.
To M/B Interface
If your mainboard is integrated with built-in sound system, plug the
4-pin audio cable into the CD-IN connector on the mainboard as
Audio-in.
6. Re-attach the cover of the computer, and reconnect the power
cord and all cables to the computer.
COMBO DRIVE
6
Driver Installation
For Windows Environment
This Combo Drive is a PnP device, and Windows 98/ME/2000/XP
can automatically detect the drive and load the appropriate driver.
Software Description
Burning Software
The bundled mastering software gives you the complete solution for
making audio/data CDs right from your desktop. It allows you to copy
files from your computer to a recordable compact disc. In addition, the
audio CDs you create can be played in your home or car CD player.
For the CD-RW media, you can write and erase data on the CD as you
do with a floppy disk.
DVD Playback Software
The bundled DVD playback software has a newly enhanced MPEG-1
and 2 decoder to provide you with the most rich and powerful image
quality. It is based on the proprietary MPEG-2 video decoding engine
that supports full resolution 720 x 480 video playback. You can enjoy
the wide range of educational and entertaining CD/DVD titles with
sound and visual effect of theater quality.
Installation Under Windows Environment
1. Insert the application CD and the installation program will run
automatically.
Or
2. Run:\setup.exe on the application CD.
