Buffalo TeraStation Live Manuale utente

Package Contents:

•Main Unit (TeraStation Live)

•Ethernet Cable

•Power Cable

•TeraNavigator Installation CD

•Quick Setup Guide (this manual)

•Warranty Card

www.buffalotech.com

Quick Setup Guide

TeraStation Live

v1.2

Step 1: Connect your Cables

Plug TeraStation’s power cord and Ethernet cable into the back of

the TeraStation.

Connect the power plug to a power outlet or surge protector. Plug

the other end of the Ethernet cable into a hub, switch, or router

on the network.

Press the power button on the front panel to turn your

TeraStation on.

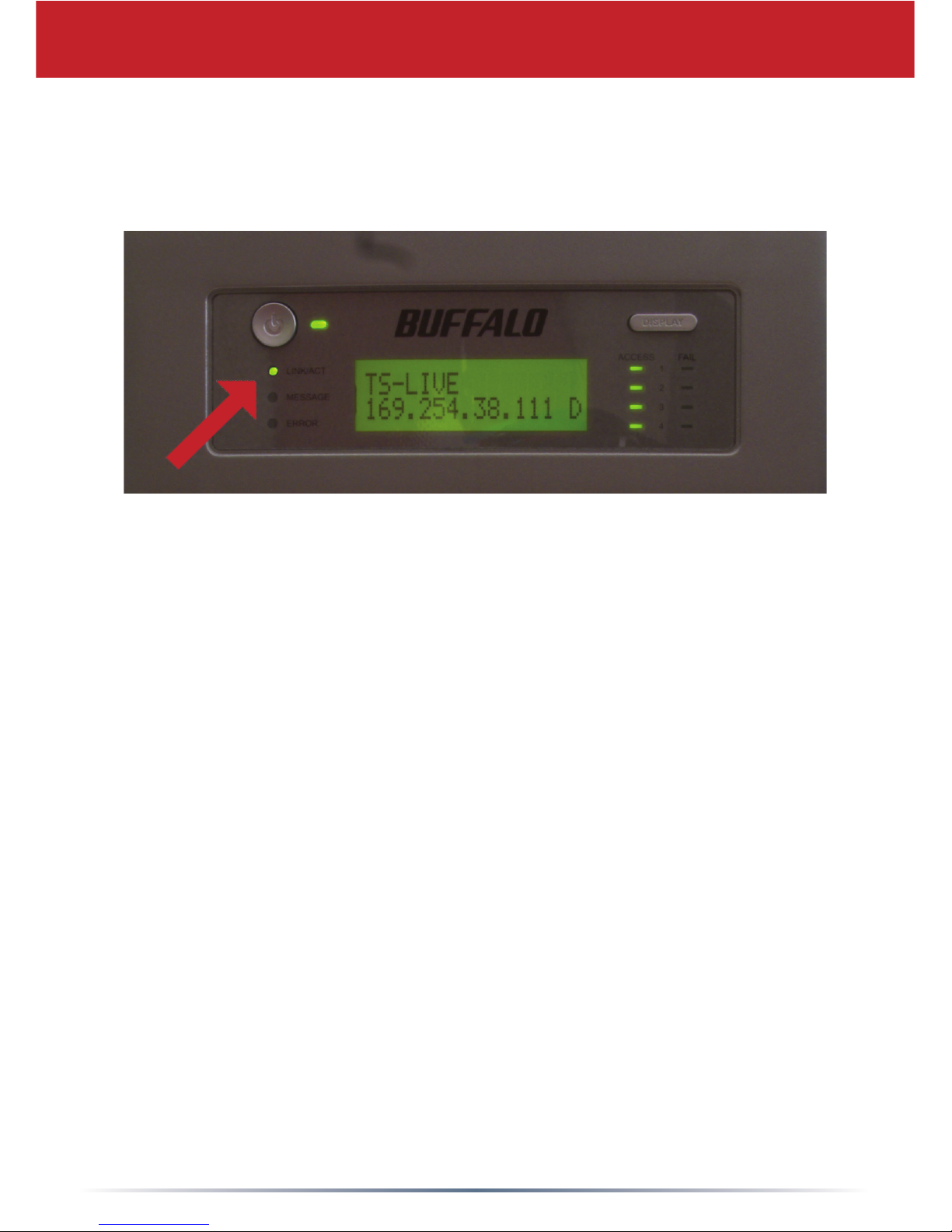

Check the LINK/ACT LED on the front of the TeraStation. If it’s

lit, then your TeraStation is connected to your network. Please

turn to page 4 to continue setup.

If the LINK/ACT LED on the front of TeraStation is not lit, your

TeraStation is not properly connected to your network. Make sure

that:

If problems persist, contact our technical support. Refer to page

9 for more details.

• both TeraStation and the hub, switch, or PC are powered on,

• the Ethernet cable is securely fastened to both devices, and

• the Ethernet cable is not damaged. To verify, try using another

Ethernet cable.

Step 2: Check your Connection

Insert the TeraNavigator CD

into your computer’s CD-

ROM drive. If Setup doesn’t

launch automatically, you

can launch it manually by

clicking Start, then Run....

When the Run dialog

opens, type d:\setup.exe

(where “d” is the drive letter

of your CD-ROM). Press OK to continue. If you are

installing the software on a Mac, open the cd and click

TeraNavigator to begin installation.

If you’re installing on a Mac,

skip to the next page.

If you’re installing on a PC,

click on Connect this PC

to TeraStation (the green,

lower button).

Click Next to step through

the installation.

Step 3: Installing Software

Click on Begin

Installation.

Continue pressing Next to

step through the installation.

When installation is

complete, you may close the

installation window.

Congratulations! Your TeraStation is ready to use. Turn to page

6 for more on using your TeraStation with a PC, or page 7 for

more on using your TeraStation with a Mac.

Please see the TeraStation User Manual on your TeraStation

cd for more help and conguration options.

The TS-Live shortcut will take directly to the

folders on your TeraStation.

Share is the main folder that you can put les

and folders in. Info contains a copy of your

user manual.

Using your TeraStation with a Windows PC

The Buffalo NAS Navigator icon opens

the TeraStation’s client utility. This

lets you easily view system information

for your TeraStation(s). If you click

Setup and choose Conguration

Settings, it will take you to the

settings conguration GUI, where

you may change your TeraStation’s

settings. Until you change it, the GUI’s

username is “admin” and the password

is “password”. Consult your user manual for more information on the

Buffalo NAS Navigator and the Settings Conguration GUI.

Another way to access folders and

data on your TeraStation is through

the mapped driveletter ‘T’. When the

installation program ran, it added your

TeraStation’s main “share” folder to your

“My Computer” folder as drive ‘T’. Use

this virtual hard drive like any other hard

drive on your computer. You may add

additional shares and mapped drive letters to your TeraStation and PC;

consult your user manual for more information.

If you’re using a Windows PC, two new icons will

be on your desktop: Shortcut for TS-Live and

Buffalo NAS Navigator.

After installing the TeraNavigator software,

your Mac will have two new icons on the

desktop.

The Share folder is the main folder

that you can put les and folders in. NAS Navigator is the

TeraStation’s client utility.

Using your TeraStation with a Mac

Clicking NAS Navigator

opens the TeraStation’s

client utility. This lets

you easily view system

information for your

TeraStation(s). If you

click Setup and choose

Browser Management,

it will take you to the

settings conguration GUI,

where you may change

your TeraStation’s settings. Until you change it, the GUI’s

username is “admin” and the password is “password”. Consult

your user manual for more information on the Buffalo NAS

Navigator and the Settings Conguration GUI.

Clicking Share opens

the main folder on the

TeraStation. You may add

additional shares to your

TeraStation; consult your

user manual for more

information.

Technical Support

Buffalo Technology offers free technical support. See the back

page of this quick start guide for contact information. Please also

visit the web site at http://www.buffalotech.com.

FCC Warning

This device complies with part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause

undesired operation.

Technical Specications

LAN Standards: IEEE 802.3u 100BASE-TX; IEEE 802.3 10BASE-T

Transmission: 1000/100Mbps/10 Mbps, 1000BASE-T: 8B1Q4,

PAM5, X 4B/5B, MLT-3; 10BASE-T Manchester Coding

Access Media: CSMA/CD

Media Interface: RJ-45

USB Standard: USB 2.0

Hi-Speed (HS)

Full-Speed (FS)

Low-Speed (LS)

USB Connector: USB A Connector (2)

Data Transmission Speed: Max: 480 Mbps (HS Mode)

Max: 12 Mbps (FS Mode)

Electric Current: 120V A/C

Power Consumption: ~17W (Varies based on size)

Dimensions: 6.7“ x 9.3“ x 12.2“ (170 x 235 x 310 mm.)

Weight: ~15.8 LB. (Weight varies based on size)

Operating Temperature:  32-95˚F;20-80%non-condensing

USA/Canada Technical Support is available 24 hours a day, 7 days a week

Toll-Free: 866-752-6210

email: [email protected]

Europe Technical Support is available between 9am-6pm (Monday-Thursday) (GMT)

and 9am-4:30pm on Fridays.

Phone (UK only): 08712 50 12 60*

Phone: +353 61 70 80 50

Email: helpdesk@buffalo-technology.ie

*Calls cost 8.5p per minute

http://www.buffalotech.com
