Burkert 6027 Manuale utente
Driftsinstruktion
Manuel d‘utilisation
Operating Instructions
Typ 6027
2/2-way solenoid valve
2/2-vägs magnetventil
Électrovanne 2/2 voies
2
1 OPERATING INSTRUCTIONS
The operating instructions contain important information.
▶Read the operating instructions carefully and follow the safety instruc-
tions in particular, and also observe the operating conditions.
▶Operating instructions must be available to each user.
▶The liability and warranty for the device are void if the operating instruc-
tions are not followed.
1.1 Symbols
▶Designates an instruction to prevent risks.
→designates a procedure which you must carry out.
Warning of injuries:
DANGER!
Imminent danger. Serious or fatal injuries.
WARNING!
Potential danger. Serious or fatal injuries.
CAUTION!
Danger. Minor or moderately severe injuries.
Warns of damage to property:
NOTE!
2 INTENDED USE
Incorrect use of the solenoid valve Type 6027 can be dangerous
to people, nearby equipment and the environment.
▶The device is designed to control, shut off and meter neutral media up
to a viscosity of 21 mm2/s.
▶Provided the cable plug is connected and installed correctly, e.g. Bürk-
ert Type 2508, the device satisfies protection class IP65 in accordance
with DIN EN 60529 / IEC 60529.
▶Use according to the permitted data, operating conditions and con-
ditions of use specified in the contract documents and operating
instructions.
▶Correct transportation, correct storage and installation and careful use
and maintenance are essential for reliable and problem-free operation.
▶Use the device only as intended.
2.1 Definition of term
In these operating instructions, the term “device” always refers to the
Type 6027.
english
3
Risk of injury due to malfunction of valves with alternating
current (AC).
Sticking core causes coil to overheat, resulting in a malfunction.
▶Monitor process to ensure function is in perfect working order.
Risk of short-circuit/escape of media through leaking screw joints.
▶Ensure seals are seated correctly.
▶Carefully screw valve and connection lines together.
General hazardous situations.
To prevent injury, ensure that:
▶Do not make any internal or external changes. Ensure that the system
cannot be activated unintentionally.
▶Installation and repair work may be carried out by authorized techni-
cians only and with the appropriate tools.
▶After an interruption in the power supply or pneumatic supply, ensure
that the process is restarted in a defined or controlled manner.
3 BASIC SAFETY INSTRUCTIONS
These safety instructions do not make allowance for any contingencies
and events which may arise during installation, operation and maintenance.
Danger – high pressure.
▶Before loosening the lines and valves, turn off the pressure and
vent the lines.
Risk of electric shock.
▶Before reaching into the system, switch off the power supply and
secure to prevent reactivation.
▶Observe applicable accident prevention and safety regulations for
electrical equipment.
Risk of burns/Risk of fire if used continuously through hot device
surface.
▶Keep the device away from highly flammable substances and media
and do not touch with bare hands.
english
4
▶Do not put any loads on the body.
▶For models with ATEX or UL approval follow the safety instructions
in the ATEX manual or on the respective supplementary sheet.
▶The general rules of technology apply to application planning and
operation of the device.
3.1 Warranty
The warranty is only valid if the device is used as intended in accordance
with the specified application conditions.
3.2 Information on the internet
The operating instructions and data sheets for type 6027 can be found
on the internet at:
www.burkert.com Type 6027
4 TECHNICAL DATA
4.1 Operating conditions
The following values are indicated on the type label:
• Voltage (Tolerance ± 10 %) / Current type
• Coil power consumption (active power in W - at operating temp.)
• Pressure range
• Body material: Brass (MS), Stainless steel (VA)
• Sealing material: EPDM, PTFE, FKM, PEEK, NBR
• Port connection
Circuit function 2/2-way valve:
A (NC) B (NO)
Protection class: IP65 in accordance with DIN EN 60529 / IEC
60529 with cable plug, e.g. Bürkert Type 2508
english
5
4.2 Application conditions
Ambient temperature: max. +55 °C
Permitted medium temperature depending on coil material and sealing
material:
Circuit
function
Coil
material
Frequency Sealing
material
Medium
temperature
Control
function A
(NC)
Polyamide
(AC10)
AC/DC/UC
FKM (FF) -10...+100 °C
Epoxide
FKM (FF) -10...+140 °C
EPDM (AA) -30...+120 °C
NBR (BB) -10...+80 °C
PTFE + PEEK (EP) -40...+180 °C
Control
function B
(NO)
AC
FKM (FF) -10...+100 °C
EPDM (AA) -30...+100 °C
PTFE + PEEK (EP) -40...+100 °C
DC/UC
PTFE + FKM (EF) -10...+140 °C
PTFE + PEEK (EP) -40...+180 °C
EPDM (AA) -30...+120 °C
FKM (FF) -10...+140 °C
CF A (NC) /
CF B (NO) AC/DC/UC PEEK + FKM (TF) -10...+80 °C
Permitted medium temperature and ambient temperature depending on
sealing material:
Temperatures for valves with UL/UR approval
Sealing material
Ambient temperature
EPDM (AA)
PTFE + EPDM (EA)
PTFE + FKM (EF)
PTFE + PEEK (EP)
FKM (FF)
-10...+55 °C
Medium temperature
EPDM (AA) -30...+120 °C
PTFE + EPDM (EA)
PTFE + FKM (EF) -10...+140 °C
PTFE + PEEK (EP) -40...+140 °C
FKM (FF) -10...+140 °C
Operating duration: Unless otherwise indicated on the type label,
the solenoid system is suitable for continuous
operation
english
6
Important information for functional reliability during continuous
operation: If standstill for a long period at least 1-2 activations
per day are recommended.
Medium: neutral gases and liquids which do not attack the
body material, the inner parts of the valves or the
sealing material. Check resistance in individual
cases (www.burkert.com)
4.3 Conformity
In accordance with the EC Declaration of conformity, Type 6027 is com-
pliant with the EC Directives.
4.4 Standards
The applied standards, which verify conformity with the EC Directives,
can be found on the EC-Type Examination Certificate and / or the EC
Declaration of Conformity.
4.5 Type label
Example:
Type
Circuit function
Orifice
Sealing material
Body material
Id.-Number
Voltage, Frequency,
Power consumption
Port connection,
Operating pressure
english
7
5 INSTALLATION
5.1 Safety instructions
DANGER!
Risk of injury from high pressure in the equipment.
▶Before loosening the pipes and valves, turn off the pressure and
vent the lines.
Risk of injury due to electrical shock.
▶Before reaching into the device or the equipment, switch off the
power supply and secure to prevent reactivation.
▶Observe applicable accident prevention and safety regulations for
electrical equipment.
WARNING!
Risk of injury from improper installation.
▶Installation may be carried out by authorized technicians only and
with the appropriate tools.
Risk of injury from unintentional activation of the system and an
uncontrolled restart.
▶Secure system from unintentional activation.
▶Following assembly, ensure a controlled restart.
5.2 Before installation
Installation position: any, actuator preferably upwards.
Procedure:
→Check pipelines for dirt and clean.
→Install a dirt filter before the valve inlet (≤ 0.3 mm).
WARNING!
Medium leaking through damaged connections.
▶Do not damage sealing surfaces of the body connections during
installation.
Danger due to unsuitable screw connections.
▶At high pressures and temperatures ensure that the thread
length (load-bearing thread turns) is adequate for each pairing of
materials.
NOTE!
Caution risk of breakage.
• Do not use the coil as a lever arm.
english
8
5.3 Installation – body design
Procedure:
→Hold the device with a open-end wrench on the body and screw
into the pipeline.
Valve body must not be installed under tension.
Sealing material must not get into the device.
→Observe direction of flow: from 1 → 2 (from P → A),
or CF B from P → B.
5.4 Installation – flange design
Procedure:
→Loosen nut and remove coil.
→Insert seal into body.
→Screw body onto connection plate.
→Install coil (see chapter „5.6“).
→Observe direction of flow:
from 1 → 2 (from P → A),
or CF B from P → B.
5.5 Electrical connection of the cable plug
WARNING!
Risk of injury due to electrical shock.
▶Before reaching into the system, switch off the power supply and
secure to prevent reactivation.
▶Observe applicable accident prevention and safety regulations for
electrical equipment.
If the protective conductor is not connected, there is a risk of electric
shock.
▶Always connect protective conductor and check electrical continuity.
Procedure:
→Tighten cable plug (for permitted types see data sheet), observing
max. torque 1 Nm.
→Check that seal is fitted correctly.
→Connect protective conductor and check electrical continuity.
english
9
Authorized cable plug
e.g. Type 2508
Seal
max. 1 Nm
5.6 Installation of coil
WARNING!
Risk of escape of media.
When a sticking nut is loosened, medium may escape.
▶Do not tighten sticking nut any further.
Risk of injury due to electrical shock.
If the protective conductor contact between the coil and body is
missing, there is danger of electrical shock.
▶During installation insert the plastic ring into the body journal. The
plastic ring must not project over the octagonal nipple.
▶Check protective conductor contact after installing the coil.
Overheating, risk of fire.
If the coil is connected without a pre-installed valve, the coil will overheat
and be destroyed.
▶Connect the coil with a pre-installed valve only.
english
10

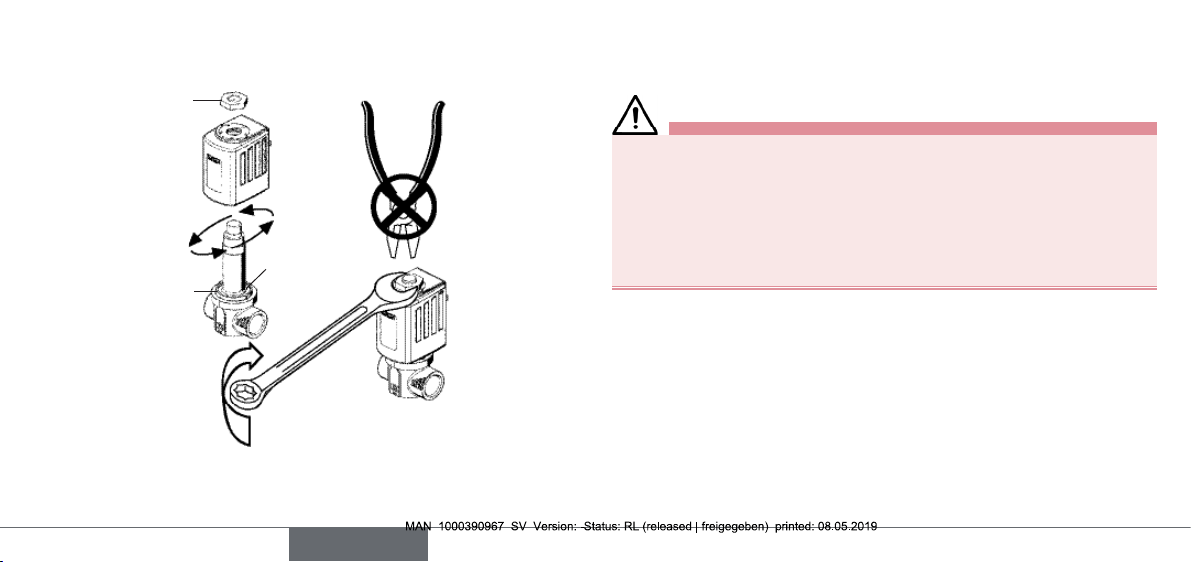

Installation of coil:
Plastic ring
Nut
O-ring
max. 15 Nm
4 x 90°
6 MAINTENANCE, TROUBLESHOOTING
6.1 Safety instructions
WARNING!
Risk of injury from improper maintenance.
▶Maintenance may be carried out by authorized technicians only and
with the appropriate tools.
Risk of injury from unintentional activation of the system and an
uncontrolled restart.
▶Secure system from unintentional activation.
▶Following maintenance, ensure a controlled restart.
6.2 Malfunctions
If malfunctions occur, check whether:
• the device has been installed according to the instructions,
• the electrical and fluid connections are correct,
• the device is not damaged,
• all screws have been tightened,
• the voltage and pressure have been switched on,
• the pipelines are clean.
english
Altri manuali per 6027
4
Indice
Lingue:
Altri manuali Burkert Unità di controllo
Burkert
Burkert EPS 22 ATEX 1 136 X Manuale utente
Burkert
Burkert 623969 Manuale utente
Burkert
Burkert Type 2000 Manuale utente
Burkert
Burkert ACP016 Series Manuale utente
Burkert
Burkert 6712 Manuale utente
Burkert
Burkert 6228 Manuale utente
Burkert
Burkert 2300 Series Manuale utente
Burkert
Burkert 3280 Manuale utente
Burkert
Burkert WhisperValve 6724 Manuale utente
Burkert
Burkert 2103 Series Manuale utente
Burkert
Burkert 2103 Series Manuale utente
Burkert
Burkert 3320 Manuale utente
Burkert
Burkert 3323 Manuale utente
Burkert
Burkert 5420 Manuale utente
Burkert
Burkert 2103 Series Manuale utente
Burkert
Burkert 6520 NAMUR Manuale utente
Burkert
Burkert 2100 series Manuale utente
Burkert
Burkert 2106 Manuale utente
Burkert
Burkert 2064 Manuale utente
Burkert
Burkert 0641 Manuale utente
Manuali Unità di controllo popolari di altre marche
Festo
Festo Compact Performance CP-FB6-E Manuale elenco delle parti
Elo TouchSystems
Elo TouchSystems DMS-SA19P-EXTME Manuale utente
JS Automation
JS Automation MPC3034A Manuale utente
JAUDT
JAUDT SW GII 6406 Series Guida rapida
Spektrum
Spektrum Air Module System Manuale utente
BOC Edwards
BOC Edwards Q Series Manuale utente
