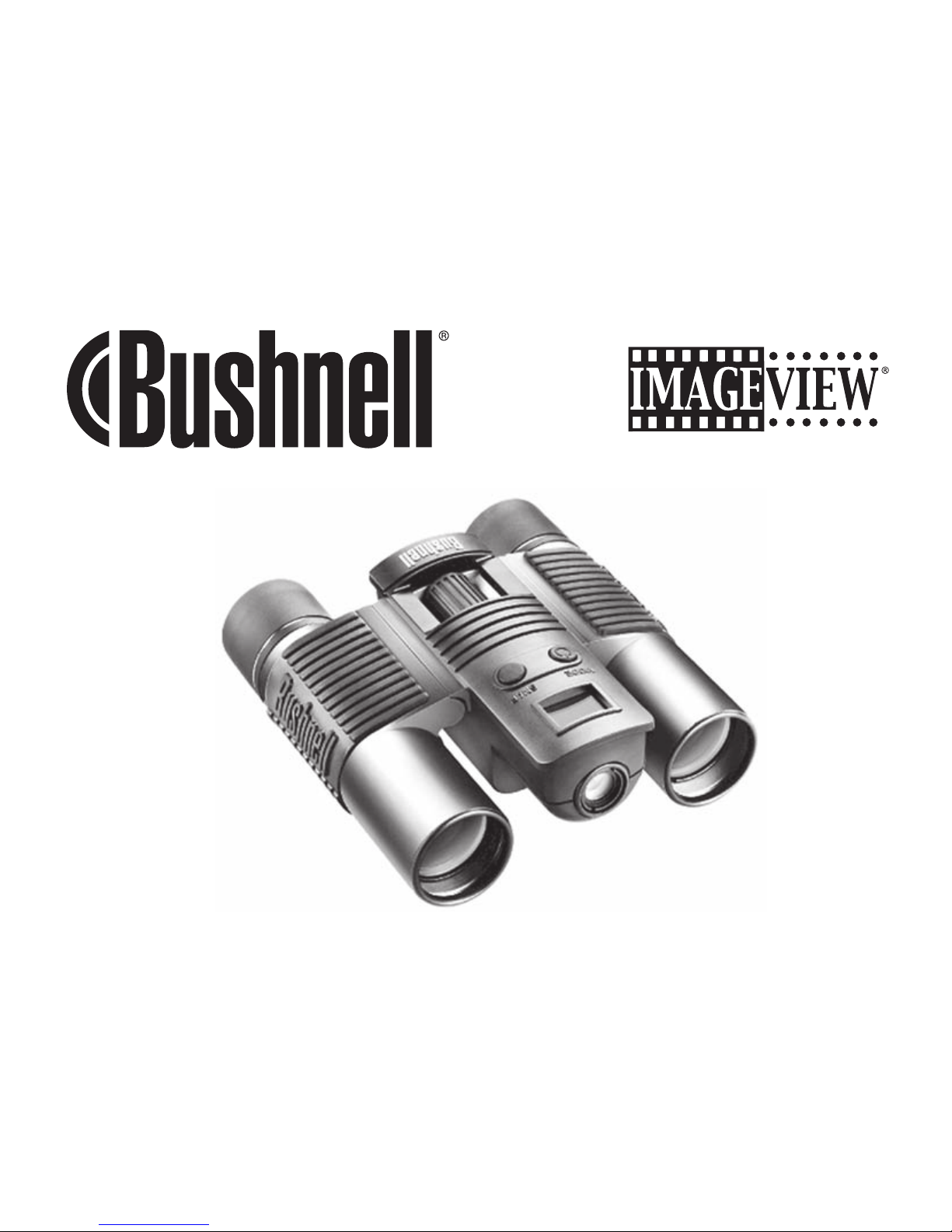

Bushnell ImageView 11-8200 Manuale utente

Model: 11-8200

LIT. #: 98-0418/11-04

CONTENTS

ENGLISH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

FRANÇAIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

DEUTSCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

ITALIANO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

PORTUGUÊS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

QUICK GUIDE: BUSHNELL IMAGEVIEW 11-8200

INSTALL BATTERIES

Insert 2 AAA alkaline batteries as indicated inside the battery compartment

on the bottom of the ImageView.

ADJUST THE BINOCULAR FOR COMFORTABLE VIEWING

Adjust the center focus knob while viewing a distant object through the

binocular, until it appears sharp. Move the left and right sides of the binocular closer together

or farther apart until you see a single circular image. Rotate the right eyepiece (diopter

adjustment) to change the setting if the image does not appear as sharp to your right eye as

it does to your left eye.

TURN ON THE CAMERA

Press the MODE button, then release it when you see the LCD display in front of the button

come on. You will see a battery indicator and 3 digits indicating the number of photos taken

(currently stored in the internal memory). As you take new photos, this counter will advance.

Press and hold MODE to turn off the camera. You should download all photos before changing

batteries or storing the camera unused for a long period of time (more than a few weeks) as

a precaution.

CHECK CAMERA SETTINGS

Make sure the camera is set for high quality (“LQ” does not show on the LCD display-see

full instructions for setting photo quality) if you want the best results, especially if you will be

printing the photos. See “Changing Operational Modes” for full instructions in using features

such as repeat shot, movie clips (avi mode), and deleting a photo you have just taken.

QUICK GUIDE

TAKE A PHOTO (TIPS FOR BETTER QUALITY PHOTOS)

Holding the ImageView as steadily as possible with both hands wrapped

around the binocular, lightly press down the SNAP button using the flat end of

a finger. Leaning against a wall, tree, etc. to brace yourself can also help insure

the camera does not move as you take the photo. Make sure you are at least

30 feet or more away from your photo subject. Unlike the binocular optics (which will focus

down to about 15 ft.), the camera focus is preset and is designed only for distant subjects- your

photos may look out of focus if you were too close.

USING THE IMAGEVIEW WITH YOUR COMPUTER

BEFORE CONNECTING THE IMAGEVIEW TO A COMPUTER, first install the driver from the CD-

ROM as directed in “Software Installation”. After the driver has been installed, you may install

Roxio® PhotoSuite 5 as well, following the on-screen instructions (if you do not already have

photo software you prefer to use). Connect the supplied USB cable between the ImageView

and your computer, using a USB port on the computer itself (avoid USB “hubs”). Please read

“Downloading Photos to Your Computer” for detailed instructions on transferring photos to

a PC using PhotoSuite.

Congratulations on your purchase of a Bushnell ImageView binocular. Before using the

product, please read these instructions and take time to familiarize yourelf with the different

parts and features of the product.

BINOCULAR INSTRUCTIONS

TURNING THE CAMERA ON

AND OFF

Insert 2 AAA alkaline batteries

as indicated on the inside of the

battery compartment, located

on the bottom of the camera

unit. Turn the camera on by

pressing and holding the MODE

button until the display comes

on and the camera beeps. To

turn the unit off, press and

hold the MODE button until the

display goes out. The camera

will turn itself off automatically

to save batteries if none of the

buttons have been pressed for

two minutes.

SNAP (Shutter Release)

Binocular Focus

ON/OFF

(Power)

TAKING A PICTURE

With the camera turned on, press the SNAP button to take a new photo. For best results, hold

the ImageView steady using both hands, and lightly press down the SNAP button using the

flat end of your finger rather than “punching” it with a fingertip. Be sure you are at least 30

feet away from your subject as the camera focus is preset for optimum results with distant

objects (ie: sports, wildlife, etc.).

CHANGING OPERATIONAL MODES

Pressing the MODE button briefly will cycle through several special camera modes and settings.

A corresponding icon or symbol (indicated in parentheses below) will be displayed on the LCD

for each mode as you cycle through them by tapping the MODE button, and blink unless you

select or confirm it with the SNAP button (icon will stop blinking). If no button is pressed for

more than 5 seconds, the camera will return to normal operation. The modes/settings are

shown as you cycle through them in the following order:

• Timer ( ) : selects the self-timer, which will take a photo after a 10 second delay when you

press the SNAP button. This is useful for avoiding blurry photos from bumping the camera

when it is mounted on a tripod (optional), especially in low light conditions. Once set, the

camera will remain in self timer mode until you return to the timer mode setting and turn

it off.

• Repeat Shot ( ) : Takes rapid series of 3 consecutive photos, approx. 1 second apart,

when you press and hold the SNAP button. As with the timer, the camera will remain in

Full

Low

Dead ON

Full

Low

Dead

022

***

this mode until you change it, or until the camera’s memory is full. This is indicated by the

display showing “FUL” and a beep alarm.

• High/Low Quality (LQ) : When “LQ” is displayed, pressing “OK” will set the camera to low

resolution mode (320x240 pixels)-the “LQ” icon will stop blinking. LQ mode will allow you

to fit more photos in the memory before you stop to download them, with the tradeoff of

less quality per photo. To reset the camera to high resolution, return to the LQ mode, and

press SNAP again (“LQ” will no longer be displayed). When the LQ icon is off, the camera

is in high resolution mode (640x480 pixels) for best quality.

• AVI Mode: ( ) : This mode sets the camera to take short movie clips (.avi files) rather than

still photos. After this mode has been activated (press SNAP when the movie icon blinks),

holding down the SNAP button will film an avi movie until you release it (or the memory

is full). When the SNAP button is released, the camera reverts back to normal still photo

operation (assuming unused memory remains). Repeat the steps to set AVI mode again if

you wish to shoot more movie clips.

• Power Frequency Setting: (60/50 Hz): This sets the correct electrical frequency to avoid any

“flickering” in the camera’s output. The normal default is “60” Hz (cycle), as used in the

United States. If you are using the camera in a country with 50 Hz power frequency, press

SNAP when the “50” icon blinks to select it.

• Delete Last ( ) : Pressing SNAP when the “Delete Last” icon is blinking will delete (erase)

the last photo you took from the camera’s memory.

• Delete All ( ) : When this mode is selected, the word “ALL” appears next to the trash

can icon, and the number of total photos in memory will blink in the display. Press and hold

the SNAP button to erase the entire memory contents. You will hear a tone that becomes

higher as the photos are deleted. When the process is complete, the photo number display

will reset to zero. If no button is pressed for 5 seconds, the camera returns to stand-by.

“Delete All” is a quick way to clear the memory following a download of your photos to a

computer, so that the camera is ready to hold as many new photos as possible.

OTHER DISPLAY ICONS

• Battery Indicator ( ) : Shows the amount of battery life left. When only one third of the

icon is filled in, you should plan to replace the batteries soon. Be sure to bring an extra set

of batteries on a long trip or for important events.

WARNING:

Make sure you download all photos (see directions below) from the camera

before removing or changing the batteries. The camera memory is battery

dependant, and your photos will be lost if you take the batteries out, or if

the batteries are allowed to become completely dead.

• PC Connection (PC) : When the camera is connected to your PC via the supplied USB cable,

the “PC” icon is displayed. Note: when the camera is connected to a PC, the camera will

power on automatically, and uses the USB connection for power to conserve battery life

while downloading photos.
