Bushnell CELLUCORE 20 Manuale utente

CELLUCORE 20 MODEL # 119904A (AT&T) / 119904V (VERIZON)

INSTRUCTION MANUAL

CELLUCORE 20 TRAIL CAMERA

WELCOME

Welcome to your Bushnell Trail Camera! This manual has all

the instructions you need to set up your camera and your

account, plus quick answers to your questions.

If your camera does not seem to be functioning properly

or if you are having image quality issues, please check the

Troubleshooting Tips section.

If your problem continues after trying the solutions in

Troubleshooting Tips, please call Bushnell Customer Service

at (800) 423-3537. In Canada, call (800) 361-5702.

Note: This Bushnell trail camera model is not designed

or intended for operation or sale outside of the United

States.

TABLE OF CONTENTS

Camera Overview 4

Camera Status Indicator Guide 6

Quick Start Guide 6

Settings Menu 9

Mounting & Positioning 11

Using An External Power Source 14

Frequently Asked Questions 14

Technical Specifications 16

Two-Year Limited Warranty 17

Lens

Control Panel

Cover

DC In

(For optional solar panel accessory)

Temperature

Sensor

Motion

Indicator

Antenna

LED IR Flash

Latch

Lock Hole

CAMERA OVERVIEW

PIR Sensor

Camera Status

Indicator Lights

Camera Status

Indicator Guide

Power On/Off

Wake Up

Battery Tray

SD Card Slot

Battery

Panel Door

CAMERA STATUS INDICATOR GUIDE

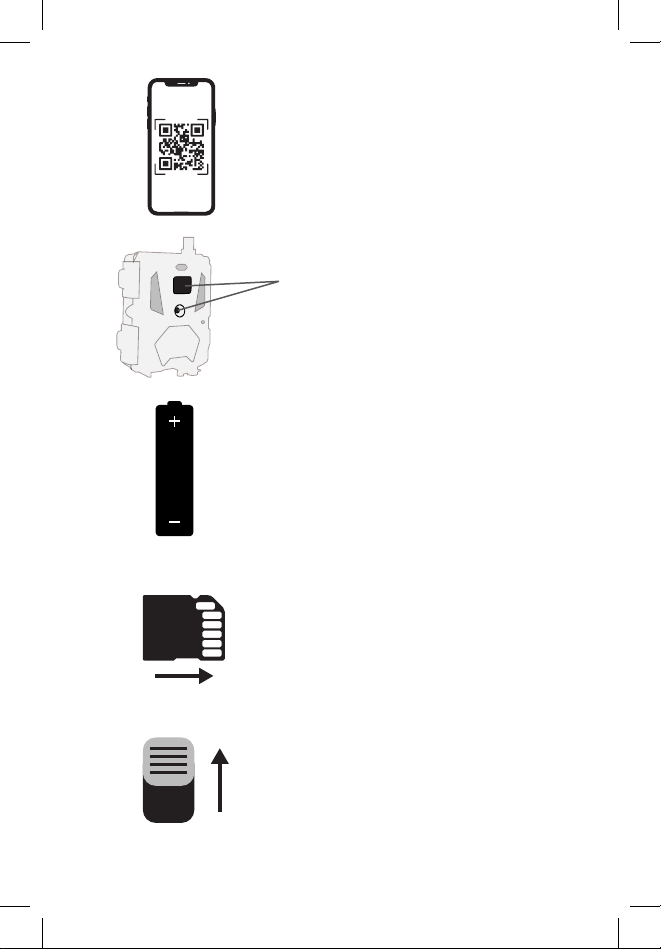

1. Download the free Bushnell Trail

Camera app on your smartphone from

the App Store (iPhone®) or Google

Play® (Android®).

2. Open the app, then sign in or create

a new account.

QUICK START GUIDE

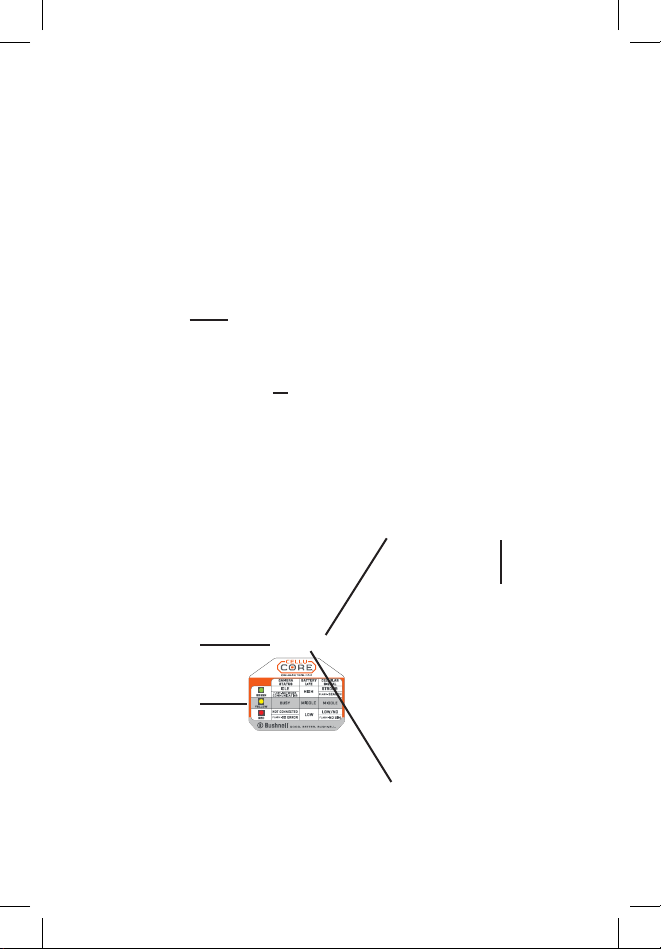

Camera Status Indicator Lights

Look here to

identify what a

green, yellow, or

red light means

for your camera

status, battery

life, and cellular

signal.

3. Log in and click the Camera icon

at the bottom of the screen, then

click “+” to add a new camera. Scan

the QR code on the label inside your

camera again or manually enter its

serial # to associate this camera

with your account.

4. Remove the protective plastic

covers from the camera lens, and

PIR sensor.

5. Install 12 AA batteries (Energizer®

lithium batteries are recommended.

Alkaline batteries may be used

but battery life will be shorter.

Rechargeable batteries are not

recommended). Be sure to position

the batteries for correct polarity

(+/-) when installing.

6. Install a new SD card, up to 32GB.

High speed cards (class 6 or higher)

are recommended if you plan to

record video clips.

7. At the location where you

will place the camera, move the

power switch to the On position.

The camera’s default settings

were chosen for typical usage as

x12

off

Your wireless camera is now ready to use. You can now utilize

the mobile application or management website to review

images, change camera settings, monitor battery life and

other functions of the camera.

Android® and Google Play® are registered trademarks of Google Inc. iPhone® is a

registered trademark of Apple, Inc.

(see pg. 6 for camera status

indicator guide)

a scouting camera for hunters:

photo mode at 2MP resolution,

with a 10 second interval between

photos, and “Medium” LED flash

power output. These settings may

be easily changed to suit your

individual preferences or application

(for example, if you would rather

capture videos, or photos at a

different resolution, spaced further

apart), using the app on your

smartphone or home computer.

8. Prior to closing the camera,

ensure the camera has acquired

cellular signal by checking the

camera status indicator lights and

guide. Lower signal strength can

cause interruptions in service and

shorten battery life. Mount the

camera using the provided tree

strap or 1/4”-20 mounting socket. A

leveling arm to adjust the camera’s

angle is provided near the lower rear

of the camera.

Camera

Status

(Check your app for these settings)

SETTINGS MENU

IMG. TYPE - Selects type of image files that are stored/

transmitted (note: see “Hybrid” under Video submenu).

PHOTO - Still images will be captured by the camera at

settings made in the PHOTO menu.

VIDEO - Video clips will be captured at settings made in the

VIDEO menu. NOTE: your full HD video files will be stored on

the SD card, but they cannot be transmitted wirelessly due to

the file size/cell carrier bandwidth.

HYBRID- Captures a single image followed by a video clip.

IMAGE SIZE - Selects resolution (in megapixels) for still

photos. Higher resolution provides more pixels for increased

detail, but creates larger files that take up more of the SD

card capacity (fills up faster). Available settings are: 2, 8 and

20 (megapixels). 2 is the default setting, which will deliver

excellent detail while still keeping the file size per image

reasonable for most users.

CAPTURE NUMBER - Selects the number of photos captured

per trigger event, with settings from 1 to 5 (default is 1 photo

per trigger).

VIDEO SIZE - Selects resolution for video clips. Choice of

1280x720 (720p), or 960x544 (544p).

VIDEO LENGTH - Selects duration of each video clip captured

per trigger. The default setting is 5S (five seconds per video).

From the 10 SEC setting up, length settings are in 5 second

increments. Maximum video length is 20 Seconds.

CAMERA NAME - Allows you to enter up to 12 characters

of your choice to identify this camera. Especially useful for

multi-camera setups. This will be imprinted on each photo.

Default name is “CORE CAM”.

PIR DELAY - Selects the length of time that the camera will

ignore additional triggers from the PIR after an animal is

first detected and remains within the sensor’s range. During

this user set interval, the camera will not capture photos

or videos. For example, if a second trigger event occurs

7 seconds after the first, but the delay time is set to 10

seconds, the second trigger will be ignored and a new image

will not be captured until the 10 seconds has elapsed. Only

the next trigger that occurs after 10 seconds will take a new

photo/video, and so on. This prevents the card from filling up

with too many redundant images. The default setting is 10

SEC (a ten second delay). From the 10 SEC setting up, delay

settings are in 5 second increments. After scrolling past “59

SEC”, settings go from “1 MIN” to “10 MIN” and then progress

to 60 MIN at five-minute increments (15 MIN, 20MIN, etc.).

WORK MODE - Determines when the PIR (passive infrared)

sensor will activate the camera and capture images.

DAY - 6:00 A.M. - 6:00 P.M.

NIGHT - 6:00 P.M. - 6:00 A.M.

24HRS – PIR Sensor triggers 24 hours a day.

Flash Mode:

SHORT RANGE – This is Medium LED output and fast shutter

speed that is designed to capture good images of animals up

close. This setting will provide the longest battery life but the

shortest flash range.
