PRODUCT INFORMATION

BULLETIN

105 Bonnie Drive

Butler, PA 16002

724-283-4681

724-283-5939 (fax)

www.bwieagle.com

AIR-EAGLE®XLT

900 MHz RF Transmitter

MODEL 441-1200-BAT

DESCRIPTION

The AIR-EAGLE XLT MODEL 441-1200-BAT, is an R.F. transmitter

designed to send a single stop command to any Air-Eagle XLT

Receiver. The TX and RX combine to create a long range radio

frequency system that operates hazardous or hard-to-reach electrical

apparatus from safe, convenient locations of up to 2500 feet away (Up

to 4 mile range with optional antennas). This unit has 7 network

frequencies and 16 digital addresses to allow multiple systems to

operate simultaneously in the same area without interference.

APPROVALS

United States (FCC)

MCQ-XB900HP

Canada (IC)

1846A-XB900HP

INSTALLATION

1. Mount the AIR-EAGLE XLT TRANSMITTER in a convenient location

where the operator will have easy access to the stop button.

2. Install Ch. 2-4 wiringtocontact input terminal strip if desired.

3. Install the 2AA Lithium batteries that were provided.

4. Install antenna ontoconnector located on the right side on the

enclosure.

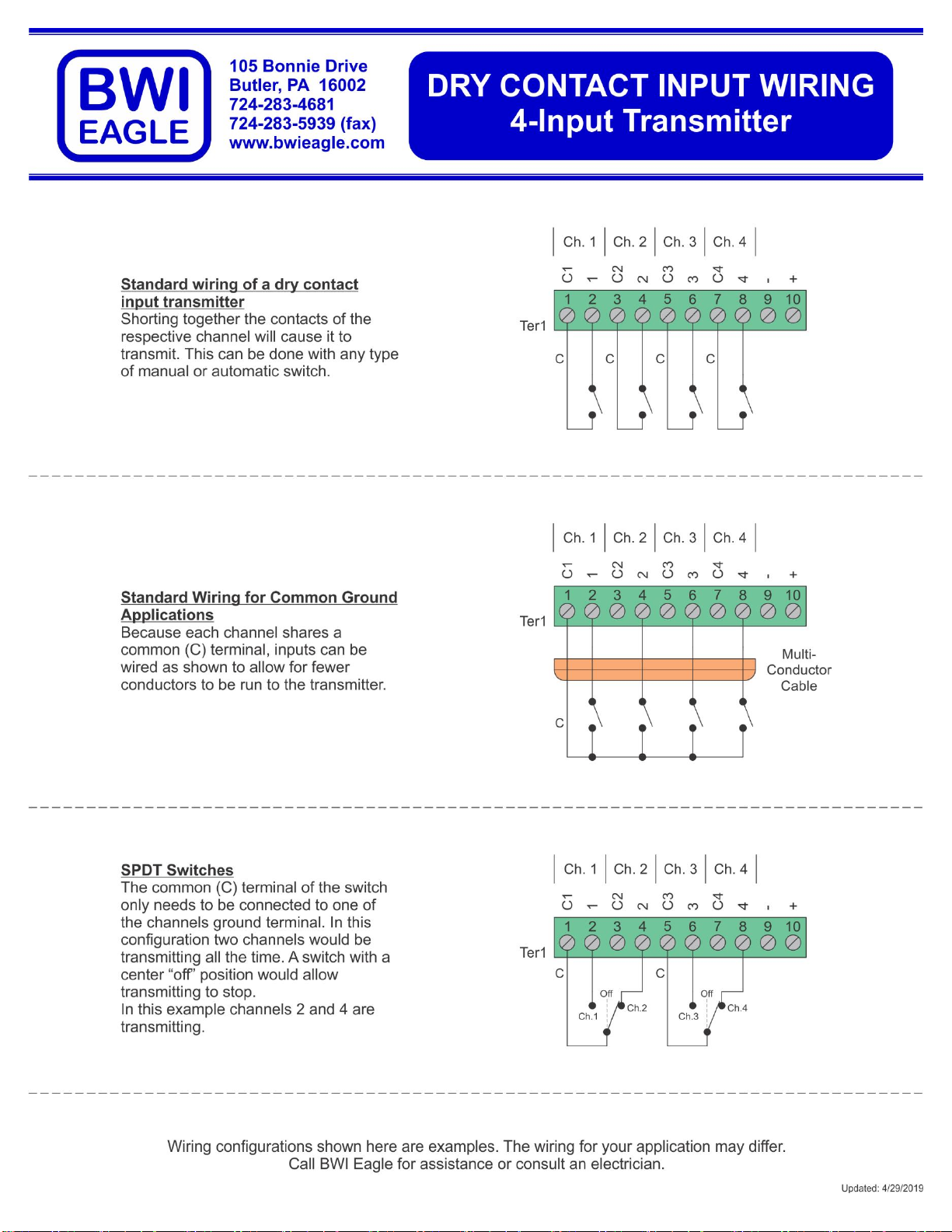

TERMINAL STRIP WIRING

Wire as shown based on number of contact inputs

E-Stop Button Pre-

Wired to Input 1

C Input 2

Input 2

C Input 3

Input 3

C Input 4

Input 4

Not Used

Dimensions (with mounting plate) 6.3” L x 4.8” W x 4.3” H

CONTROLS & INDICATORS

TX LED

Illuminates green when power is applied.

Changes to red while any contact input is

closed and unit is transmitting. When this

LED blinks briefly following a transmission,

the battery needs to be replaced.

Dry Contact Inputs

Transmits individual RF codes to the receiver

SEL2

Dip switch bank for digital address selection

SEL1

Dip switch bank for frequency selection

AIR-EAGLE®XLT

900 MHz RF Transmitter

MODEL 441-1200-BAT

DIGITAL ADDRESS & FREQUENCY SET-UP

This transmitter is factory programmed toDigital Address “1”and

Frequency “1”. These settings can be changed by the user in any

combination but must match the receiver that is set up to

communicate with this transmitter. Note –only change digital

address if using with a digitally addressable receiver. Otherwise, the

digital address must be kept at the default of Digital Address “1”.

1) Remove power from unit.

2) Remove top cover.

3) Select desired digital address and/or network frequency using table

below.

4) Reattach cover and apply power.

5) Programming is now complete.

DIGITAL ADDRESS SET-UP

SEL2 (SW1 –4)

SEL2

(SW1-4)

Digital

Address

SW1

SW2

SW3

SW4

1 (default)

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

SEL2 (SW5-7) –Leave in OPEN position!!

FREQUENCY SET-UP

SEL1 (SW1-3)

SEL1

(SW1-3)

Network

Frequency

SW1

SW2

SW3

1 (default)

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

SEL1 (SW4) –Not used on this model

SPECIFICATIONS

Power Requirements

3.0 VDC

Battery Type

(2) 1.5V lithium or alkaline each,size

AA, to equal 3.0VDC nominal.

Battery Life

(Active Usage)

Approximately 3 months

Battery Life (Idle)

Up to 1 Year

Transmit Data

Four Dry Contact Inputs

Transmit Frequency

900MHz Spread Spectrum

RF Output Power

250 mW

Transmit Range

Approximately 2500 Feet w/standard

antenna

Transmitter Channels

7 Independent Network Frequencies

Enclosure

Polycarbonate, IP66 (NEMA 4)

Operating Temperature

-40oF to +185oF

REPLACEMENT PARTS & ACCESSORIES

PC Board (Main)

441-1202-BAT

Standard Antenna (Included):

900MHz Portable Antenna (For distances up

to 2500 feet*)

49-1103

Optional Antennas and Accessories:

900MHz Omni Directional Antenna (For

distances up to 2 miles*)

49-3101

900MHz 13dB Yagi Antenna

Long Range Operation (For distances up to

4 miles*)

49-3102

Flex Coax Cable w/Connectors

49-4000-XX

(XX = # of Feet)

* = Line of Sight

LIMITED WARRANTY STATEMENT

BWI Eagle Inc. warrants the Air-Eagle Remote Control System, ifproperly used and

installed, will be free from defects in material and workmanship for a period of 1 year

after date of purchase. Said warranty to include the repair or replacement of defective

equipment. This warranty does not cover damage due to external causes, including

accident, problems with electrical power, usage not in accordance with product

instructions, misuse, neglect, alteration, repair, improper installation, or improper

testing. This limited warranty, and any implied warranties that may exist under state

law, apply only to the original purchaser of the equipment, and last only for as long as

such purchasercontinues to own the equipment. This warranty replaces all other

warranties, express or implied including, but not limited to, the implied warranties or

merchantability and fitness for a particular purpose. BWI Eagle makes no express

warranties beyond those stated here. BWI disclaims without limitation, implied

warranties of merchantability and fitness for a particular purpose. Some jurisdictions

do not allow the exclusion of implied warranties so this limitation may not apply to

you. To obtain warranty service, contact BWI Eagle for a return material

authorization. When returning equipment to BWI Eagle, the customer assumes the

risk of damage or loss during shipping and is responsible for the shipping costs

incurred.

DOCUMENT DATE: 04/24/2019 / PRODUCT REV. 4

105 Bonnie Drive

Butler, PA 16002

(724) 283-4681

Fax (724) 283-5939

www.bwieagle.com
