Cabletron Systems 3T02-04 Manuale utente

TOKEN RING SWITCH MODULE

(3T02-04 AND 3T01-04)

USER GUIDE

9031875-01

OFFLINE

RING 1

RX ST RING 2

RX ST RING 3

RX ST RING 4

RX ST PROC

TX 16 TX 16 TX 16 TX 16 PWR

QUAD IEEE 802.5 TOKEN RING (STP)

OFFLINE

RING 1

RX ST RING 2

RX ST RING 3

RX ST RING 4

RX ST PROC

TX 16 TX 16 TX 16 TX 16 PWR

QUAD IEEE 802.5 TOKEN RING (UTP)

Token Ring Switch Module User Guide i

NOTICE

Cabletron Systems reserves the right to make changes in speciﬁcations and other information

contained in this document without prior notice. The reader should in all cases consult Cabletron

Systems to determine whether any such changes have been made.

The hardware, ﬁrmware, or software described in this manual is subject to change without notice.

IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY INCIDENTAL,

INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT

NOT LIMITED TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR

THE INFORMATION CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN

ADVISED OF, KNOWN, OR SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH

DAMAGES.



Printed in the United States of America

Order Number: 9031875-01 May 1996

All other product names mentioned in this manual may be trademarks or registered trademarks of

their respective companies.

Printed on Recycled Paper

Notice

ii Token Ring Switch Module User Guide

FCC NOTICE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

NOTE:

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial environment.

This equipment uses, generates, and can radiate radio frequency energy and if not installed in

accordance with the operator’s manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause interference in which case the user

will be required to correct the interference at his own expense.

WARNING:

Changes or modifications made to this device which are not expressly approved by the

party responsible for compliance could void the user’s authority to operate the equipment.

DOC NOTICE

This digital apparatus does not exceed the ClassA limits for radio noise emissions from digital

apparatus set out in the Radio Interference Regulations of the Canadian Department of

Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables

aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique

édicté par le ministère des Communications du Canada.

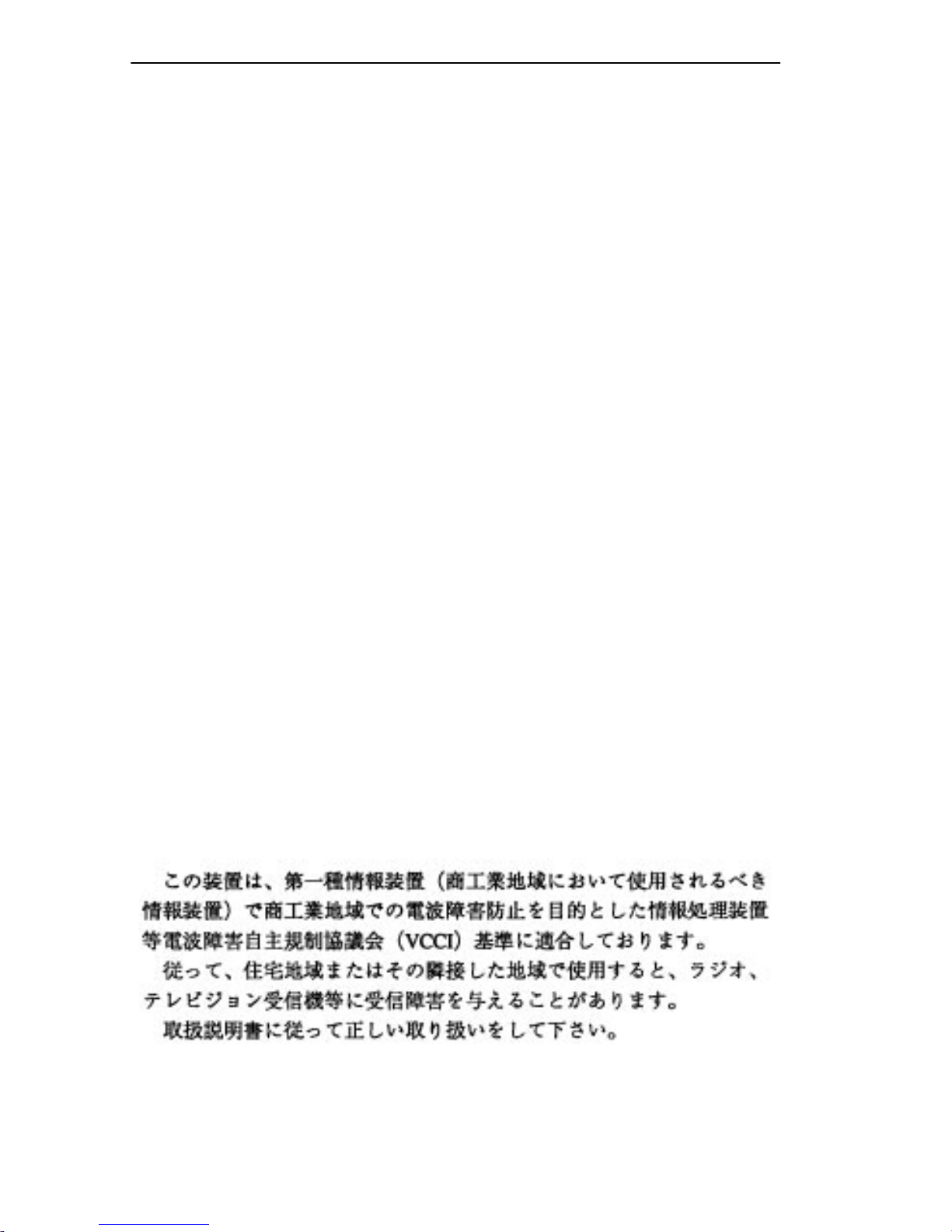

VCCI NOTICE

This equipment is in the 1st Class Category (information equipment to be used in commercial and/or

industrial areas) and conforms to the standards set by the Voluntary Control Council for Interference

by Information Technology Equipment (VCCI) aimed at preventing radio interference in commercial

and/or industrial areas.

Consequently, when used in a residential area or in an adjacent area thereto, radio interference may be

caused to radios and TV receivers, etc.

Read the instructions for correct handling.

Notice

Token Ring Switch Module User Guide iii

CABLETRON SYSTEMS, INC. PROGRAM LICENSE AGREEMENT

IMPORTANT:

Before utilizing this product, carefully read this License Agreement.

This document is an agreement between you, the end user, and Cabletron Systems, Inc. (“Cabletron”)

that sets forth your rights and obligations with respect to the Cabletron software program (the

“Program”) contained in this package. The Program may be contained in ﬁrmware, chips or other

media. BY UTILIZING THE ENCLOSED PRODUCT,YOU ARE AGREEING TO BECOME

BOUND BY THE TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSE AND

THE LIMITATION OF WARRANTY AND DISCLAIMER OF LIABILITY. IFYOU DO NOT

AGREE TO THE TERMS OF THIS AGREEMENT, PROMPTLY RETURN THE UNUSED

PRODUCT TO THE PLACE OF PURCHASE FOR A FULL REFUND.

CABLETRON SOFTWARE PROGRAM LICENSE

1. LICENSE. You have the right to use only the one (1) copy of the Program provided in this

package subject to the terms and conditions of this License Agreement.

You may not copy, reproduce or transmit any part of the Program except as permitted by the

2. OTHER RESTRICTIONS. You may not reverse engineer, decompile, or disassemble the

Program.

3. APPLICABLE LAW. This License Agreement shall be interpreted and governed under the laws

and in the state and federal courts of New Hampshire. You accept the personal jurisdiction and

venue of the New Hampshire courts.

EXCLUSION OF WARRANTY AND DISCLAIMER OF LIABILITY

1. EXCLUSION OF WARRANTY. Except as may be specifically provided by Cabletron in

writing, Cabletron makes no warranty, expressed or implied, concerning the Program (including

its documentation and media).

CABLETRON DISCLAIMS ALL WARRANTIES, OTHER THAN THOSE SUPPLIED TO

YOU BY CABLETRON IN WRITING, EITHER EXPRESSED OR IMPLIED, INCLUDING

BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE PROGRAM, THE

ACCOMPANYING WRITTEN MATERIALS, AND ANY ACCOMPANYING HARDWARE.

2. NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO EVENT SHALL

CABLETRON OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER

(INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS,

PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, SPECIAL,

INCIDENTAL, CONSEQUENTIAL, OR RELIANCE DAMAGES, OR OTHER LOSS)

ARISING OUT OF THE USE OR INABILITY TO USE THIS CABLETRON PRODUCT,

EVEN IF CABLETRON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR

LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, OR

ON THE DURATION OR LIMITATION OF IMPLIED WARRANTIES, IN SOME

INSTANCES THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO

YOU.

Notice

iv Token Ring Switch Module User Guide

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

The enclosed product (a) was developed solely at private expense; (b) contains “restricted computer

software” submitted with restricted rights in accordance with Section 52227-19 (a) through (d) of the

Commercial Computer Software - Restricted Rights Clause and its successors, and (c) in all respects

is proprietary data belonging to Cabletron and/or its suppliers.

For Department of Defense units, the product is licensed with “Restricted Rights” as deﬁned in the

DoD Supplement to the Federal Acquisition Regulations, Section 52.227-7013 (c) (1) (ii) and its

successors, and use, duplication, disclosure by the Government is subject to restrictions as set forth in

subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at 252.227-

7013. Cabletron Systems, Inc., 35 Industrial Way, Rochester, New Hampshire 03867-0505.

Token Ring Switch Module User Guide v

CONTENTS

CHAPTER 1 INTRODUCTION

1.1 Document Conventions...............................................................1-2

1.2 Related Manuals..........................................................................1-3

1.3 Getting Help.................................................................................1-3

1.4 General Description.....................................................................1-4

1.5 Standards....................................................................................1-5

1.6 Connectors..................................................................................1-5

1.7 LEDs............................................................................................1-6

CHAPTER 2 CONNECTING TO THE NETWORK

2.1 Introduction..................................................................................2-1

2.2 Power-up LED Sequence............................................................2-1

2.3 Typical Configurations.................................................................2-2

2.4 Connecting the Token Ring Module to a Hub..............................2-2

2.4.1 Unshielded Twisted Pair.................................................2-2

2.4.2 Shielded Twisted Pair.....................................................2-3

CHAPTER 3 CONFIGURING

3.1 Introduction..................................................................................3-1

3.2 Connecting the LCM....................................................................3-2

3.3 LCM Commands..........................................................................3-3

3.4 Setting the Ring Speed................................................................3-3

3.5 Configuring the Bridging Type.....................................................3-4

3.5.1 Transparent ....................................................................3-4

3.5.2 Source Routing and SRT................................................3-4

3.5.2.1 Bridging Method.............................................3-4

3.5.2.2 Segment Number...........................................3-5

3.5.2.3 Bridge Number...............................................3-5

3.6 Translation Options .....................................................................3-5

3.6.1 ARP Translation..............................................................3-6

3.6.2 Source Routing ARP Translation....................................3-7

3.6.3 IPX Translation ...............................................................3-7

3.6.4 AppleTalk Translation.....................................................3-9

CHAPTER 4 STATISTICS

4.1 Displaying Port Status.................................................................4-1

4.2 Module Statistics .........................................................................4-4

Contents

vi Token Ring Switch Module User Guide

CHAPTER 5 DIAGNOSTICS ANDTROUBLESHOOTING

5.1 Power-up Diagnostics..................................................................5-1

5.1.1 Power-up Tests...............................................................5-1

5.1.2 Power-up Results............................................................5-2

5.2 Operational Diagnostics...............................................................5-2

5.2.1 Loopback Tests...............................................................5-2

5.2.2 Diagnostic Results...........................................................5-3

5.3 Troubleshooting ...........................................................................5-3

5.3.1 If the Module Fails to Power Up......................................5-3

5.3.2 Connectivity Problems.....................................................5-4

CHAPTER 6 ADDING/SWAPPING MODULES

6.1 Unpacking the Token Ring Switch Module ..................................6-1

6.2 Adding a Token Ring Switch Module...........................................6-1

6.3 Swapping a Module .....................................................................6-3

APPENDIX A TECHNICAL SPECIFICATIONS

APPENDIX B BRIDGING METHODS

B.1 Overview.....................................................................................B-1

B.2 Transparent Bridging .................................................................. B-2

B.3 Source Routing Bridging.............................................................B-3

B.4 Source Routing Transparent Bridging.........................................B-5

INDEX

Token Ring Switch Module User Guide Page 1-1

CHAPTER 1

INTRODUCTION

This manual is for system administrators responsible for conﬁguring,

monitoring and maintaining theATX. It should be used with the

ATX User

Guide

and the

ATX MIB User Guide

. The contents of each chapter are

described below.

• Chapter 1,

Introduction

, provides general descriptions of the

modules.

• Chapter 2,

Connecting to the Network

, describes how to physically

attach the modules to a Token Ring network.

• Chapter 3,

Configuring

, discusses the software conﬁguration options

for the modules.

• Chapter 4,

Statistics

, provides information on Token Ring port

statistics.

• Chapter 5,

Diagnostics and Troubleshooting

, discusses identifying

possible problems with the modules.

• Chapter 6,

Adding/Swapping Modules

, gives instructions for adding

and replacing Token Ring modules.

• Appendix A,

Technical Specifications

, lists the pertinent technical

information about the modules.

• Appendix B,

Bridging Methods

, discusses transparent, source

routing, and source routing transparent bridging.

Chapter 1:

Introduction

Page 1-2 Token Ring Switch Module User Guide

1.1 DOCUMENT CONVENTIONS

The following conventions are used in presenting information in this

manual:

Commands, prompts, and information displayed by the computer appear

in Courier typeface:

Current Number of Station Addresses: 5

Current Number of Learned Addresses: 133

Number of Defined Filters: 4

Information that you enter appears in Courier bold typeface:

ATX >

status

Information that you need to enter with a command is enclosed in angle

brackets <>. For example, you must enter a <ring speed> for the selected

port:

ATX >

ringspeed <9 16>

In this example, the ring speed for port 9 is set to 16 megabits/second.

Field value options appear in bold typeface. For example, a ﬁlter type can

be either

Entry

Exit

NOTE

Note

symbol. Calls the reader’s attention to any item of

information that may be of special importance.

TIP

Tip

symbol. Conveys helpful hints concerning procedures or

actions.

CAUTION

Caution

symbol. Contains information essential to avoid

damage to the equipment.

Warning

symbol.Warns against an action that could result in

equipment damage, personal injury or death.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Cabletron Systems Interruttore

Cabletron Systems

Cabletron Systems SmartSTACK ELS100-24TXG Manuale di istruzioni

Cabletron Systems

Cabletron Systems TRXI-22 Manuale utente

Cabletron Systems

Cabletron Systems SmartSwitch 6500 Istruzioni per il montaggio

Cabletron Systems

Cabletron Systems MMAC-Plus 9A000 Manuale utente

Cabletron Systems

Cabletron Systems SmartSTACK ELS100-8TXUF2 Manuale utente

Cabletron Systems

Cabletron Systems 9F122-12 Manuale utente

Cabletron Systems

Cabletron Systems IA1100 Istruzioni per il montaggio

Cabletron Systems

Cabletron Systems FN100 Manuale utente

Cabletron Systems

Cabletron Systems STH 24 STH-24 Manuale utente

Cabletron Systems

Cabletron Systems SmartSwitch 9A100 Manuale utente

Cabletron Systems

Cabletron Systems SynOptics 3000 Series Manuale utente

Cabletron Systems

Cabletron Systems SmartSTACK ELH100 Manuale utente

Cabletron Systems

Cabletron Systems MMAC-Plus 9M426-02 Manuale utente

Cabletron Systems

Cabletron Systems SmartSTACK ELS10-27MDU Istruzioni per l'installazione e il funzionamento

Cabletron Systems

Cabletron Systems MMAC-Plus 9F310-02 Manuale utente

Cabletron Systems

Cabletron Systems CyberSWITCH CSX150 Manuale utente

Cabletron Systems

Cabletron Systems ATX Manuale utente

Cabletron Systems

Cabletron Systems MMAC-Plus 9H531-24 Manuale utente

Cabletron Systems

Cabletron Systems FN100 Manuale utente

Cabletron Systems

Cabletron Systems MMAC-Plus 9H421-12 Manuale

Cabletron Systems

Cabletron Systems MMAC-Plus 9G426-02 Manuale utente

Cabletron Systems

Cabletron Systems MicroMMAC 22ES Manuale utente

Cabletron Systems

Cabletron Systems Netlink FRX8000 Manuale utente

Cabletron Systems

Cabletron Systems SmartSwitch 6500 Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
