Cambridge Audio SX-70 Manuale utente

SX-70 Centre Speaker

Manual Generated: 10/02/2023 - 06:51

Table of Contents

SX-70 Centre Speaker 3 ...............................................................................................................................................................................................

Introduction 4 ................................................................................................................................................................................................................

What's included with the SX-70? 5 ............................................................................................................................................................................

Front panel 6 .................................................................................................................................................................................................................

Rear panel 7 ...................................................................................................................................................................................................................

Installation instructions 8 ...........................................................................................................................................................................................

Technical speciﬁcations 10 ..........................................................................................................................................................................................

Frequently asked questions 11 ...................................................................................................................................................................................

Troubleshooting 12 .......................................................................................................................................................................................................

SX-70 Centre Speaker

Last updated: December 8, 2022 09:01. Revision #8220

Users Manual

Introduction

Last updated: January 19, 2023 01:57. Revision #8422

Thank you for purchasing this Cambridge Audio SX-70 centre speaker. We hope that you enjoy many years of listening pleasure from it. Your

loudspeakers can only be as good as the system it is connected to. Please do not compromise on your ampliﬁer or cabling. Naturally we particularly

recommend ampliﬁcation from the Cambridge Audio range, which has been designed to the same exacting standards as our loudspeakers. Your

dealer can also supply excellent quality speaker cable to ensure your system realises its full potential.

Thank you for taking the time to read this manual; we do recommend you keep it for future reference.

For upcoming news on future products, software updates and exclusive oﬀers, make sure you register your product at

http://www.cambridgeaudio.com/register

What's included with the SX-70?

Last updated: January 19, 2023 01:57. Revision #8423

1. 1 x SX-70 Centre Speaker.

2. Installation guide.

3. 4 x rubber pads.

Front panel

Last updated: January 19, 2023 01:57. Revision #8424

1. 1" (25mm) Silk Dome Tweeter.

2. 2 x 4" (100mm) Woofer.

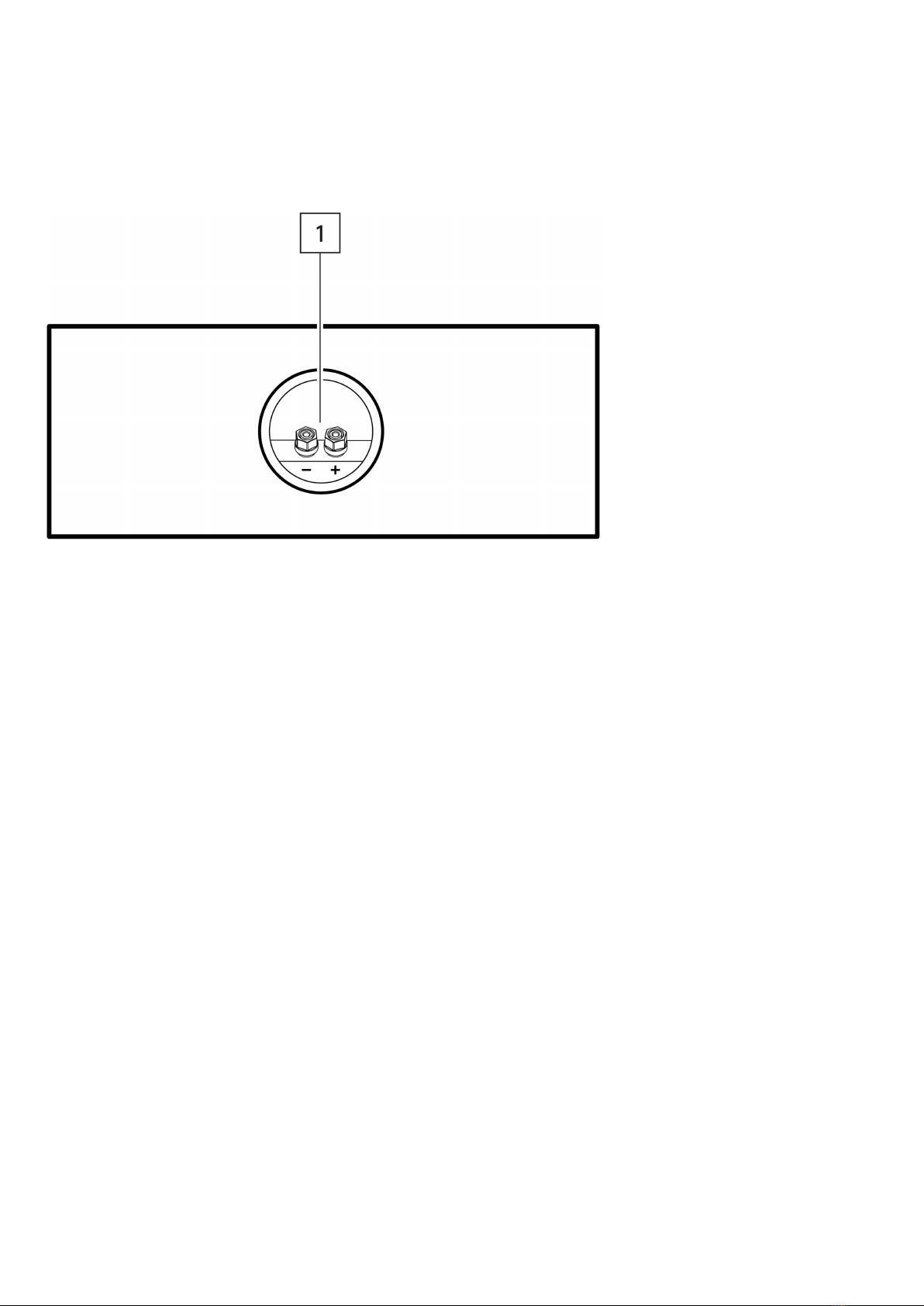

Rear panel

Last updated: January 19, 2023 01:57. Revision #8425

1. +/- Speaker Connection Terminals.

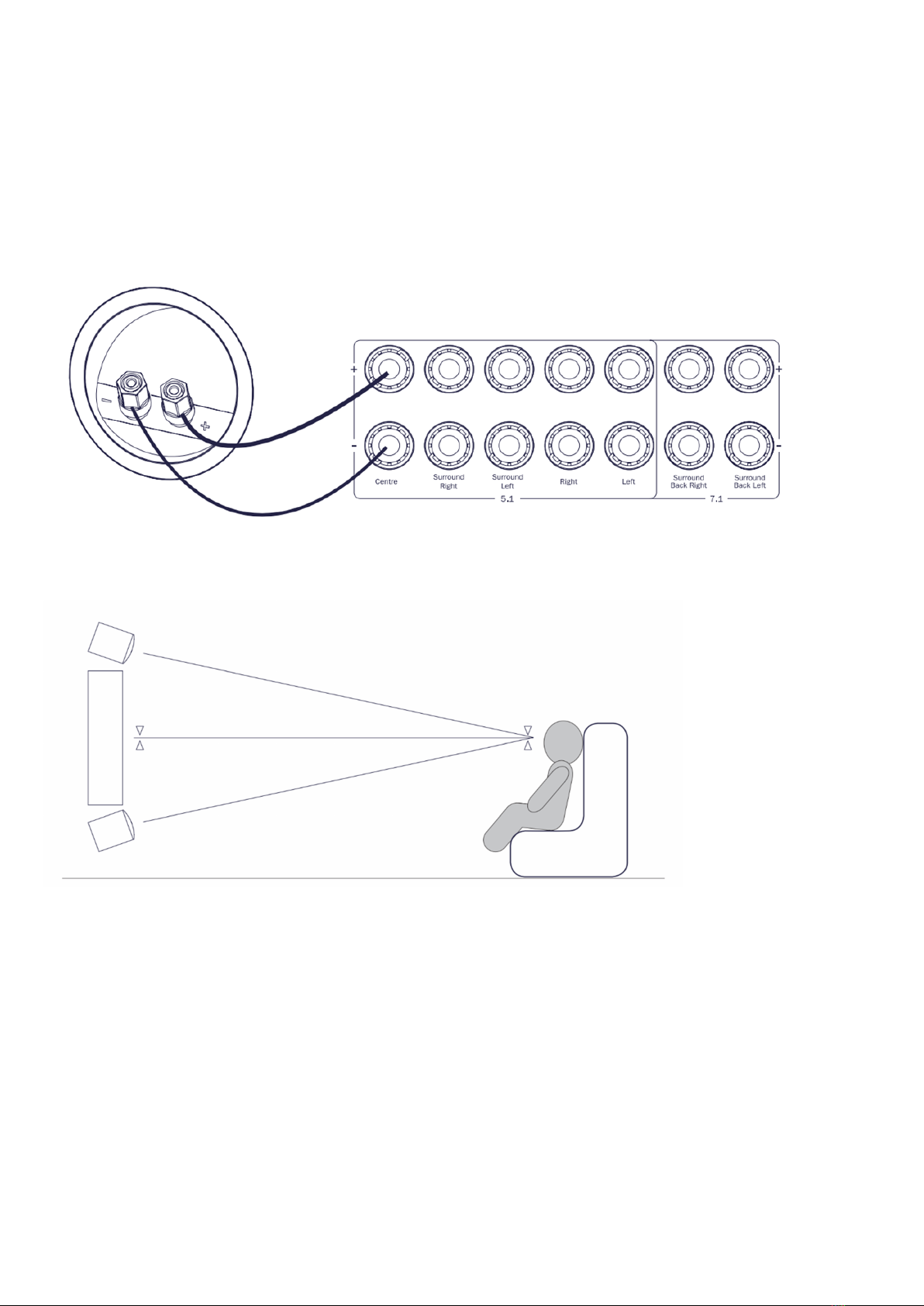

Installation instructions

Last updated: January 19, 2023 01:57. Revision #8426

1. Firstly, using high quality speaker cable connect the SX-70 centre speaker to the speaker terminals on your ampliﬁer. Ensure that you pay close

attention to match the polarity of each connection.

2. For the best results we would recommend positioning the SX-70 centre speaker above or below the screen, angled towards the listener if

possible.

3. Ideally the speakers and listening position should be placed equal distances apart, however, we encourage you to experiment until you ﬁnd a

placement that suits your space and requirements.

Technical speciﬁcations

Last updated: January 19, 2023 01:57. Revision #8427

Sensitivity (SPL)

85dB

Frequency Response

65Hz - 20kHz

Impedance

8 Ohms

Drivers

2 x 4” (100mm) woofers.

1 x 1” (25mm) silk dome tweeter.

Recommended Ampliﬁer Power

10 - 100 Watts

Porting

1 Rear

Speaker Dimensions (H x W x D)

138 x 360 x 246mm.

Weight

4.0kg (8 lbs)
