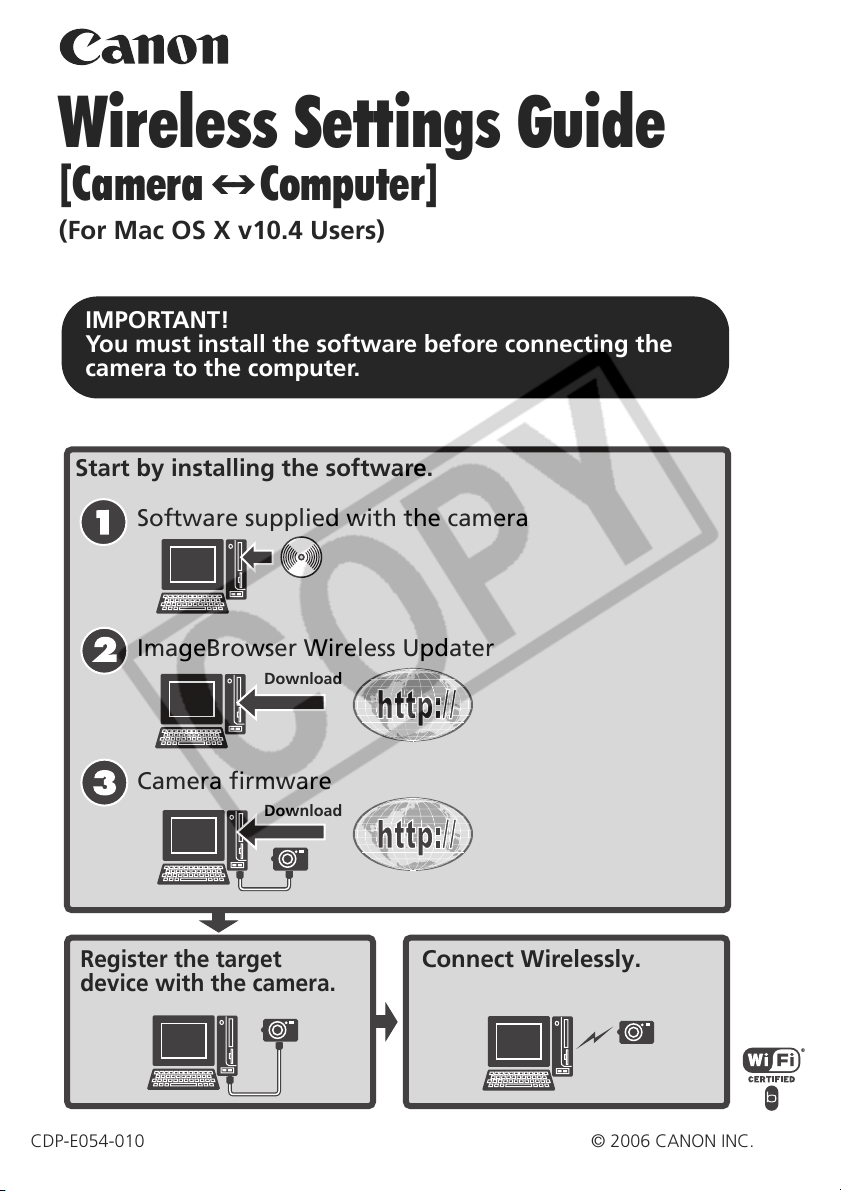

IMPORTANT!

You must install the software before connecting the

camera to the computer.

device with the camera.

Connect Wirelessly.

Start by installing the software.

Software supplied with the camera

ImageBrowser Wireless Updater

Camera firmware

Download

Wireless Settings Guide

(For Mac OS X v10.4 Users)

[Camera



Computer]

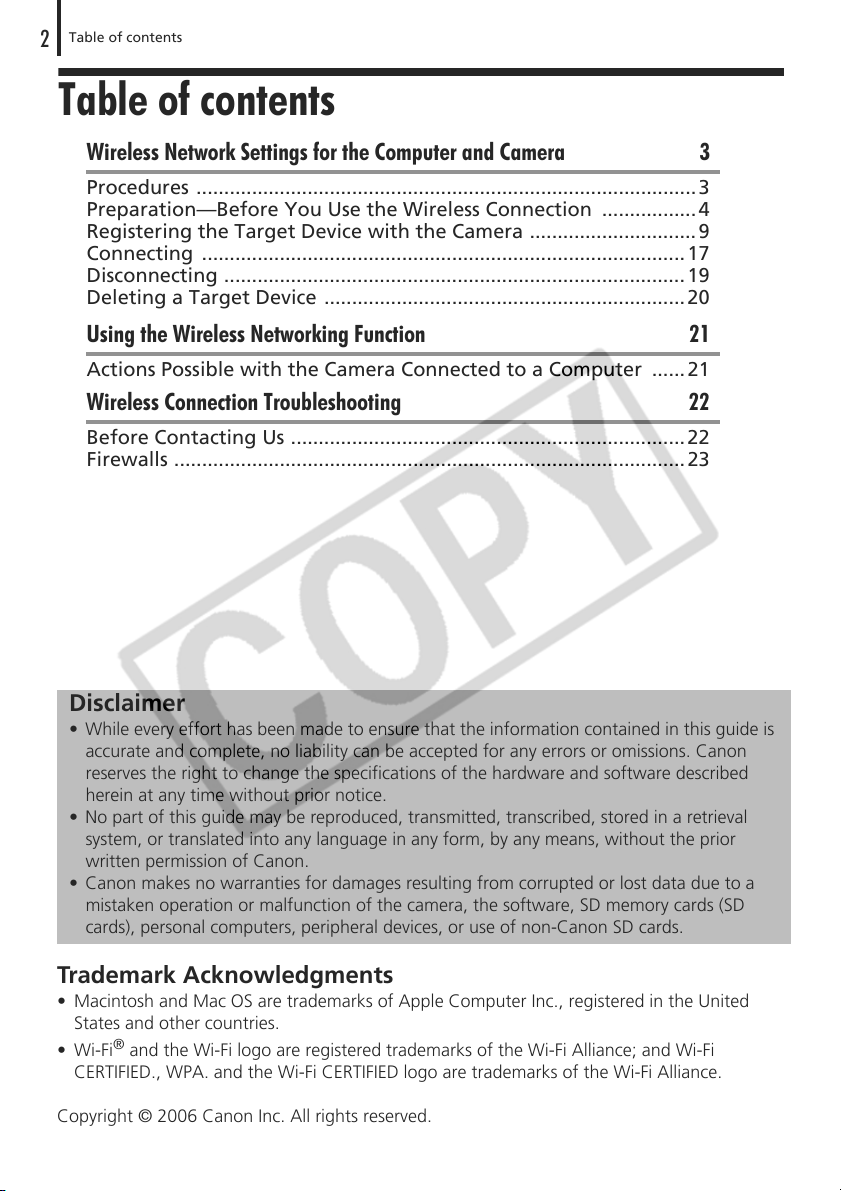

Table of contents

Wireless Network Settings for the Computer and Camera 3

Procedures ..........................................................................................3

Preparation—Before You Use the Wireless Connection .................4

Registering the Target Device with the Camera ..............................9

Connecting .......................................................................................17

Disconnecting ...................................................................................19

Deleting a Target Device .................................................................20

Using the Wireless Networking Function 21

Actions Possible with the Camera Connected to a Computer ......21

Wireless Connection Troubleshooting 22

Before Contacting Us .......................................................................22

Firewalls ............................................................................................23

Trademark Acknowledgments

• Macintosh and Mac OS are trademarks of Apple Computer Inc., registered in the United

States and other countries.

•Wi-Fi

®and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance; and Wi-Fi

CERTIFIED., WPA. and the Wi-Fi CERTIFIED logo are trademarks of the Wi-Fi Alliance.

Disclaimer

• While every effort has been made to ensure that the information contained in this guide is

accurate and complete, no liability can be accepted for any errors or omissions. Canon

reserves the right to change the specifications of the hardware and software described

herein at any time without prior notice.

• No part of this guide may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language in any form, by any means, without the prior

written permission of Canon.

• Canon makes no warranties for damages resulting from corrupted or lost data due to a

mistaken operation or malfunction of the camera, the software, SD memory cards (SD

cards), personal computers, peripheral devices, or use of non-Canon SD cards.

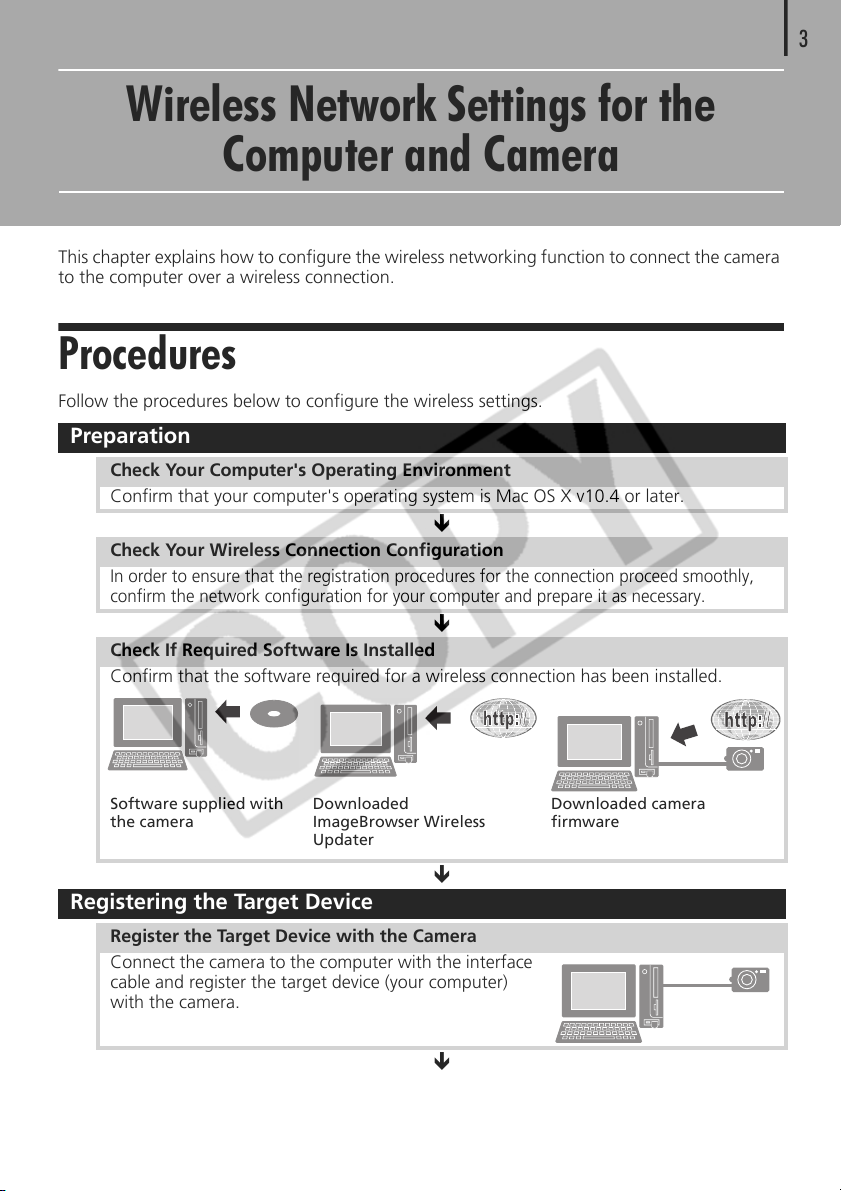

Wireless Network Settings for the

Computer and Camera

This chapter explains how to configure the wireless networking function to connect the camera

to the computer over a wireless connection.

Procedures

Follow the procedures below to configure the wireless settings.

Preparation

Check Your Computer's Operating Environment

Confirm that your computer's operating system is Mac OS X v10.4 or later.



Check Your Wireless Connection Configuration

In order to ensure that the registration procedures for the connection proceed smoothly,

confirm the network configuration for your computer and prepare it as necessary.



Check If Required Software Is Installed

Confirm that the software required for a wireless connection has been installed.



Registering the Target Device

Connect the camera to the computer with the interface

cable and register the target device (your computer)

with the camera.



Software supplied with

the camera

Downloaded

ImageBrowser Wireless

Updater

Downloaded camera

firmware

Wireless Network Settings for the Computer and Camera

Preparation

—

Before You Use the Wireless Connection

This section explains the preparations to make before you use the wireless connection.

Start by checking your computer's operating environment.

Checking Your Computer's Operating Environment

Operating System

The wireless feature can only used with Macintosh computers that come with Mac OS X v10.4

or later pre-installed. Please note it cannot be used with Macintosh computers equipped with

Intel processors.

Environment Required for the Wireless Networking Function

Either of the following two configurations is required to use the wireless feature.

• The computer has built-in wireless networking (e.g. built-in AirPort networking, built-in

wireless LAN card, such as an AirPort card)

• A wireless LAN router, such as an AirPort Base Station, is connected to the computer

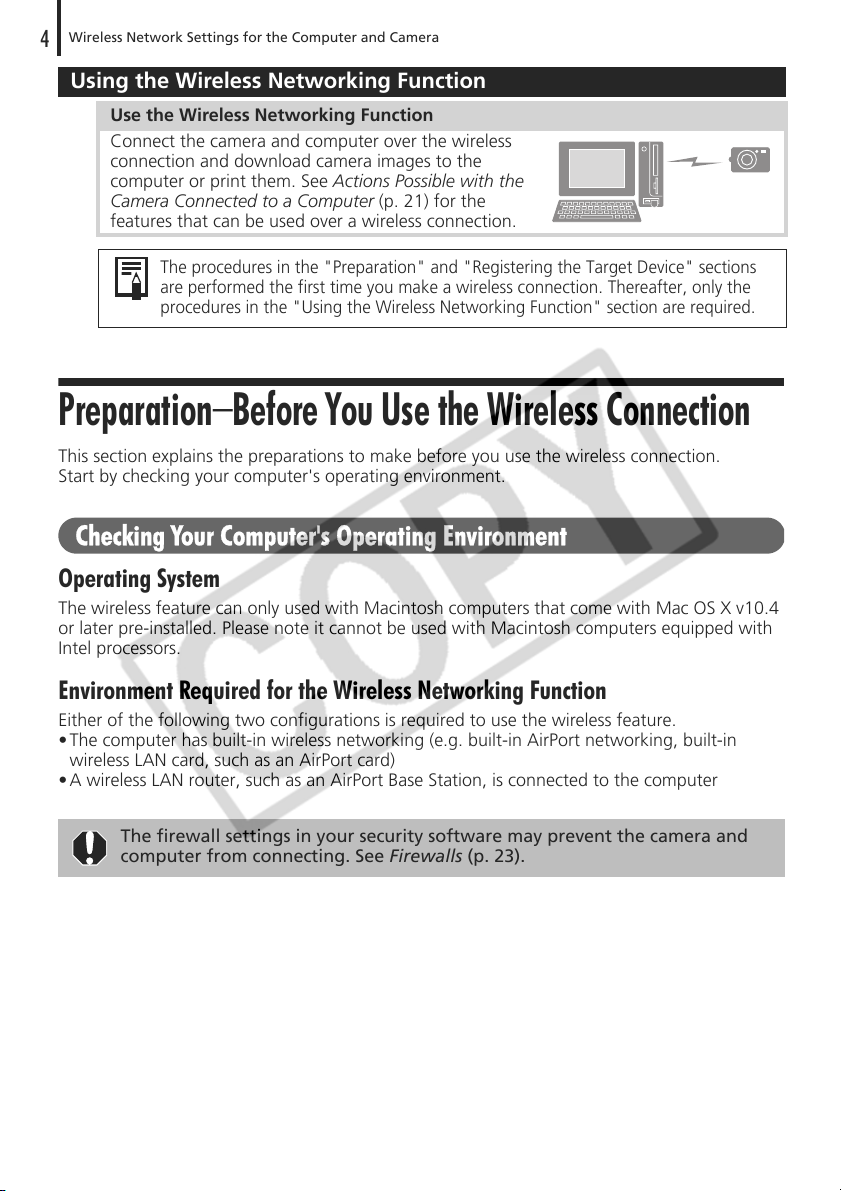

Using the Wireless Networking Function

Use the Wireless Networking Function

Connect the camera and computer over the wireless

connection and download camera images to the

computer or print them. See Actions Possible with the

Camera Connected to a Computer (p. 21) for the

features that can be used over a wireless connection.

The procedures in the "Preparation" and "Registering the Target Device" sections

are performed the first time you make a wireless connection. Thereafter, only the

procedures in the "Using the Wireless Networking Function" section are required.

The firewall settings in your security software may prevent the camera and

computer from connecting. See Firewalls (p. 23).

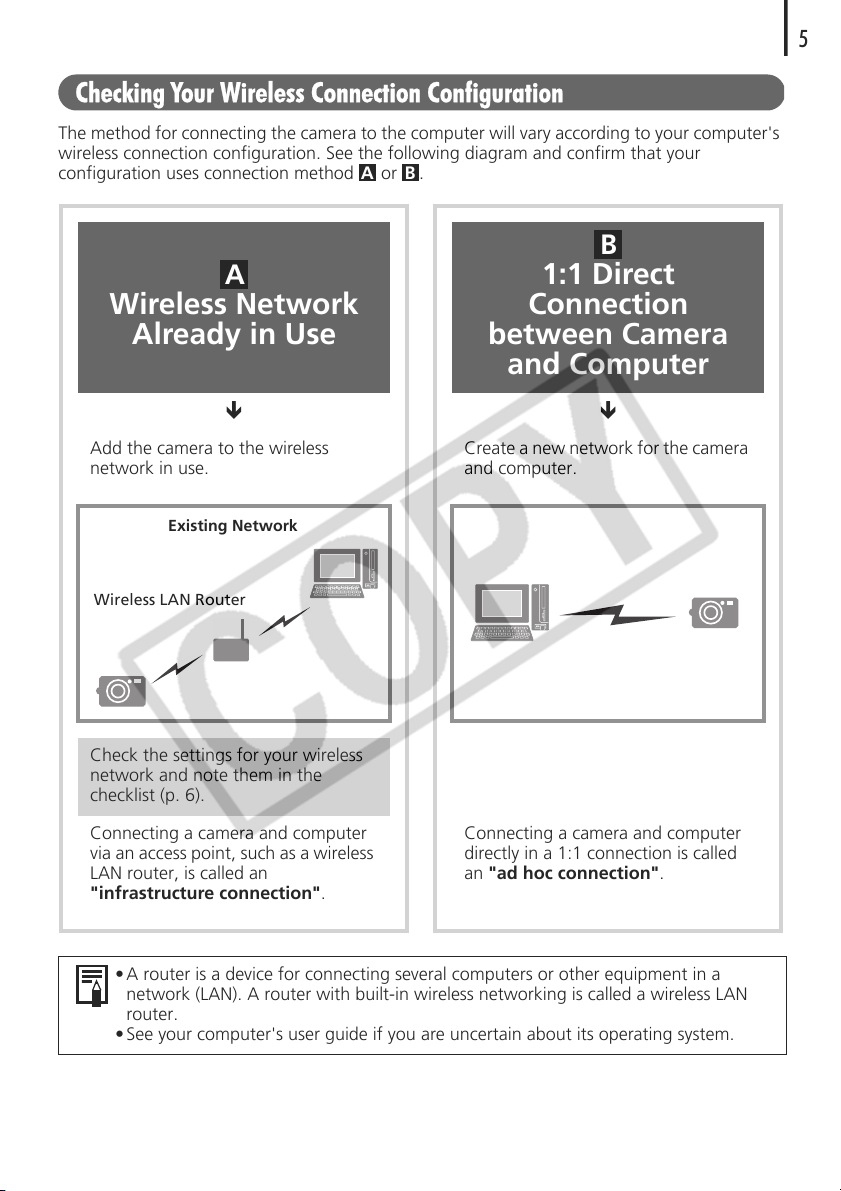

Checking Your Wireless Connection Configuration

The method for connecting the camera to the computer will vary according to your computer's

wireless connection configuration. See the following diagram and confirm that your

configuration uses connection method or .

Wireless Network

Already in Use

1:1 Direct

Connection

between Camera

and Computer



Add the camera to the wireless

network in use.

Create a new network for the camera

and computer.

Check the settings for your wireless

network and note them in the

checklist (p. 6).

Connecting a camera and computer

via an access point, such as a wireless

LAN router, is called an

"infrastructure connection".

Connecting a camera and computer

directly in a 1:1 connection is called

an "ad hoc connection".

•A router is a device for connecting several computers or other equipment in a

network (LAN). A router with built-in wireless networking is called a wireless LAN

router.

• See your computer's user guide if you are uncertain about its operating system.

A B

Existing Network

Wireless LAN Router

Wireless Network Settings for the Computer and Camera

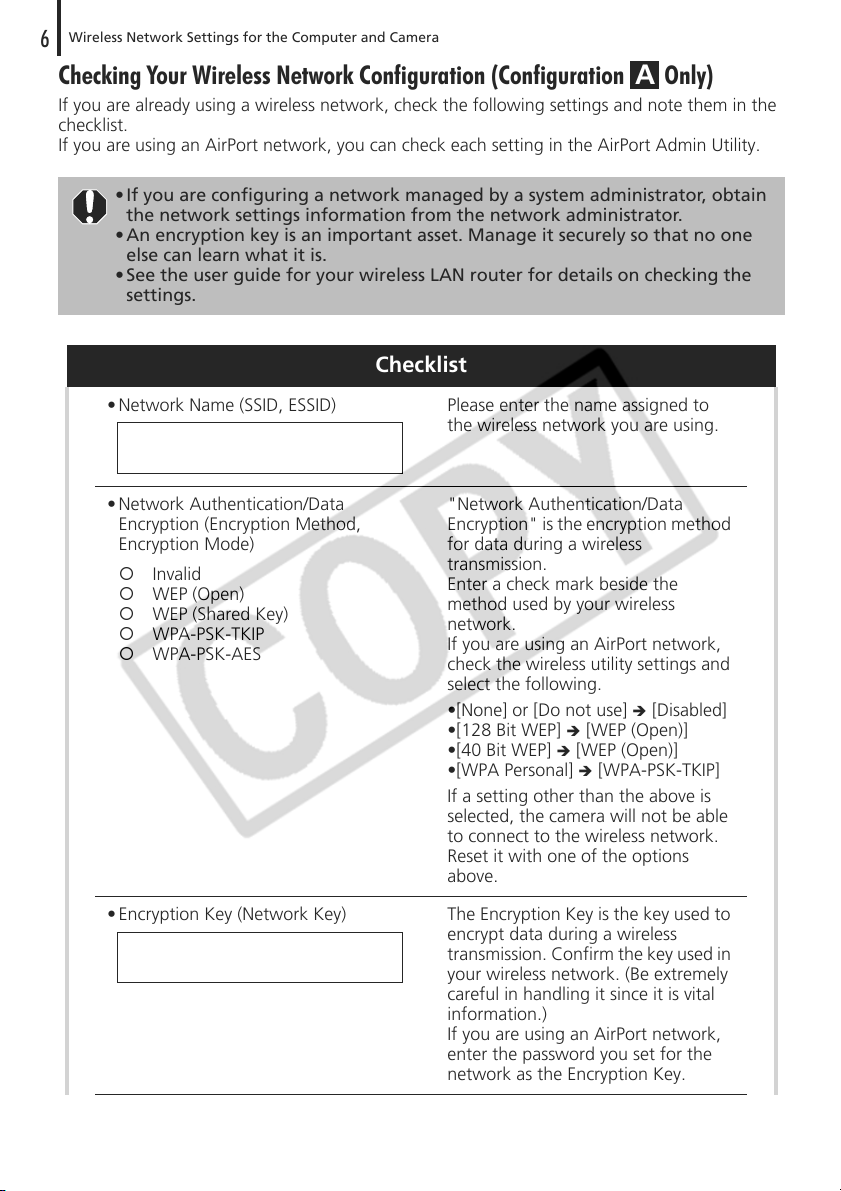

Checking Your Wireless Network Configuration (Configuration Only)

If you are already using a wireless network, check the following settings and note them in the

checklist.

If you are using an AirPort network, you can check each setting in the AirPort Admin Utility.

• If you are configuring a network managed by a system administrator, obtain

the network settings information from the network administrator.

• An encryption key is an important asset. Manage it securely so that no one

else can learn what it is.

• See the user guide for your wireless LAN router for details on checking the

settings.

Checklist

• Network Name (SSID, ESSID) Please enter the name assigned to

the wireless network you are using.

• Network Authentication/Data

Encryption (Encryption Method,

Encryption Mode)

 Invalid

 WEP (Open)

 WEP (Shared Key)

 WPA-PSK-TKIP

 WPA-PSK-AES

"Network Authentication/Data

Encryption" is the encryption method

for data during a wireless

transmission.

Enter a check mark beside the

method used by your wireless

network.

If you are using an AirPort network,

check the wireless utility settings and

select the following.

•[None] or [Do not use] [Disabled]

•[128 Bit WEP] [WEP (Open)]

•[40 Bit WEP] [WEP (Open)]

•[WPA Personal] [WPA-PSK-TKIP]

If a setting other than the above is

selected, the camera will not be able

to connect to the wireless network.

Reset it with one of the options

above.

• Encryption Key (Network Key) The Encryption Key is the key used to

encrypt data during a wireless

transmission. Confirm the key used in

your wireless network. (Be extremely

careful in handling it since it is vital

information.)

If you are using an AirPort network,

enter the password you set for the

network as the Encryption Key.

Check If Required Software Is Installed

Before configuring the wireless settings, confirm that the following software has been

installed.

Checking if the Software Supplied with the Camera Has Been Installed

Check to see if the software supplied with the camera has been installed. If it is not installed,

use the supplied Canon Digital Camera Solution Disk and install it according to the procedures

in Using the Software on the Macintosh Platform—Preparations (p. 47) in the Software &

Wireless Guide.

Installing the ImageBrowser Wireless Updater

Download the ImageBrowser Wireless Updater from the same website you downloaded this

guide from.

1Confirm that ImageBrowser is installed on the computer.

ImageBrowser is normally installed if you have installed the software supplied with your

camera. If it is not installed, install it according to the procedures in Using the Software on

the Macintosh Platform—Preparations (p. 47) in the Software & Wireless Guide.

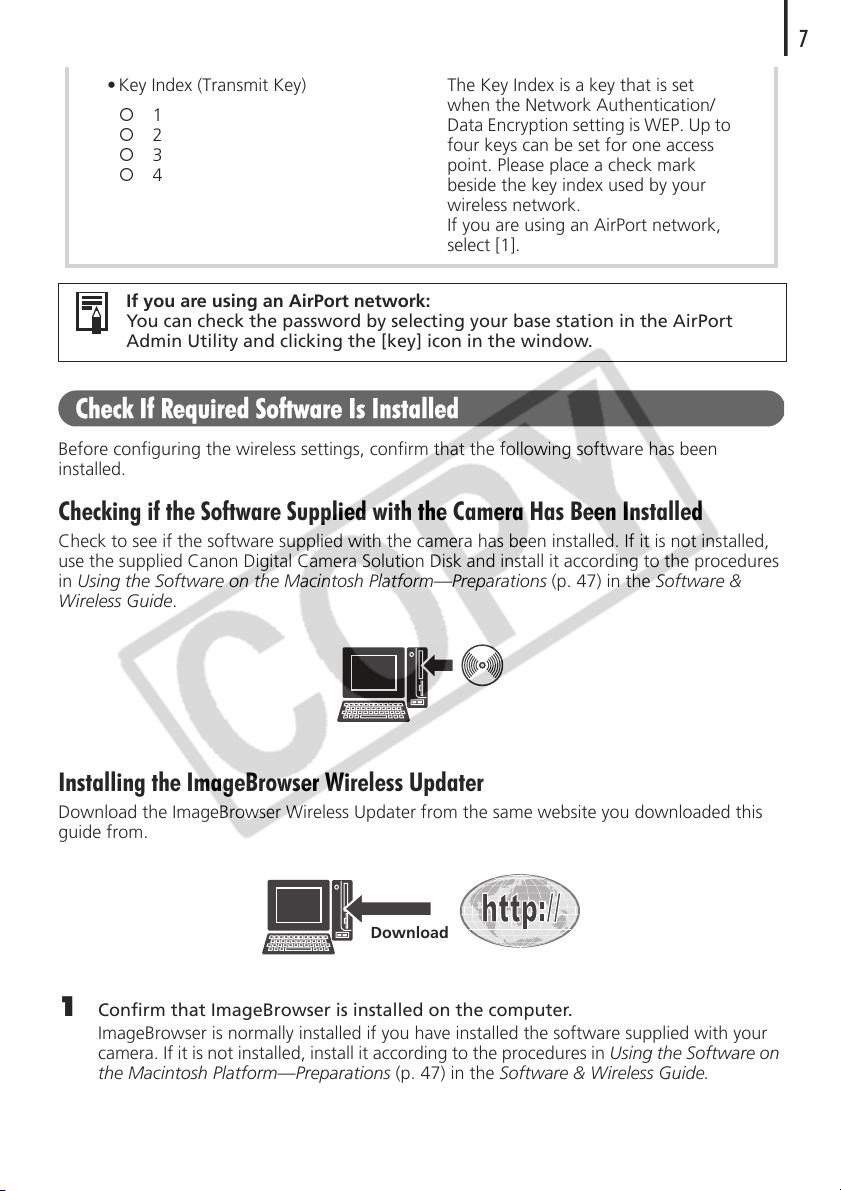

• Key Index (Transmit Key)

 1

 2

 3

 4

The Key Index is a key that is set

when the Network Authentication/

Data Encryption setting is WEP. Up to

four keys can be set for one access

point. Please place a check mark

beside the key index used by your

wireless network.

If you are using an AirPort network,

select [1].

If you are using an AirPort network:

You can check the password by selecting your base station in the AirPort

Admin Utility and clicking the [key] icon in the window.

Download

Wireless Network Settings for the Computer and Camera

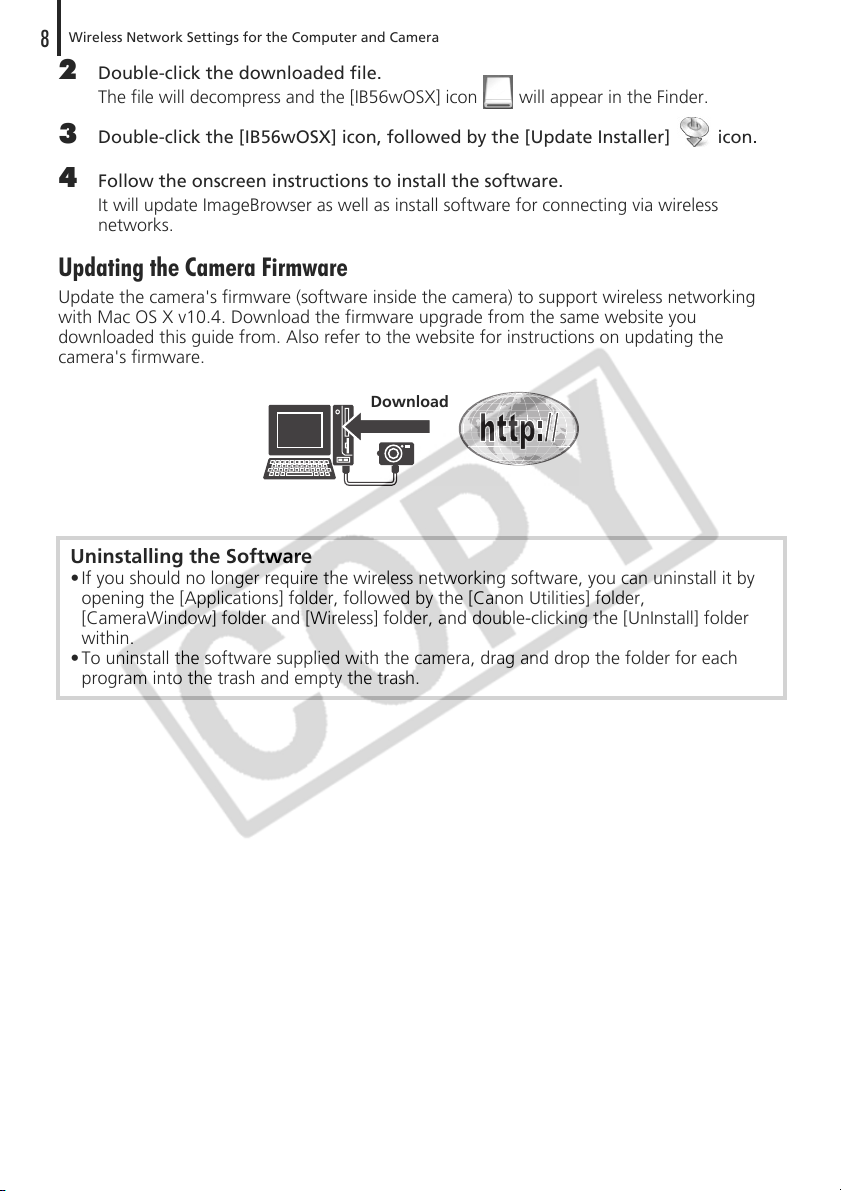

2Double-click the downloaded file.

The file will decompress and the [IB56wOSX] icon will appear in the Finder.

3Double-click the [IB56wOSX] icon, followed by the [Update Installer] icon.

4Follow the onscreen instructions to install the software.

It will update ImageBrowser as well as install software for connecting via wireless

networks.

Updating the Camera Firmware

Update the camera's firmware (software inside the camera) to support wireless networking

with Mac OS X v10.4. Download the firmware upgrade from the same website you

downloaded this guide from. Also refer to the website for instructions on updating the

camera's firmware.

Uninstalling the Software

• If you should no longer require the wireless networking software, you can uninstall it by

opening the [Applications] folder, followed by the [Canon Utilities] folder,

[CameraWindow] folder and [Wireless] folder, and double-clicking the [UnInstall] folder

within.

• To uninstall the software supplied with the camera, drag and drop the folder for each

program into the trash and empty the trash.

Download

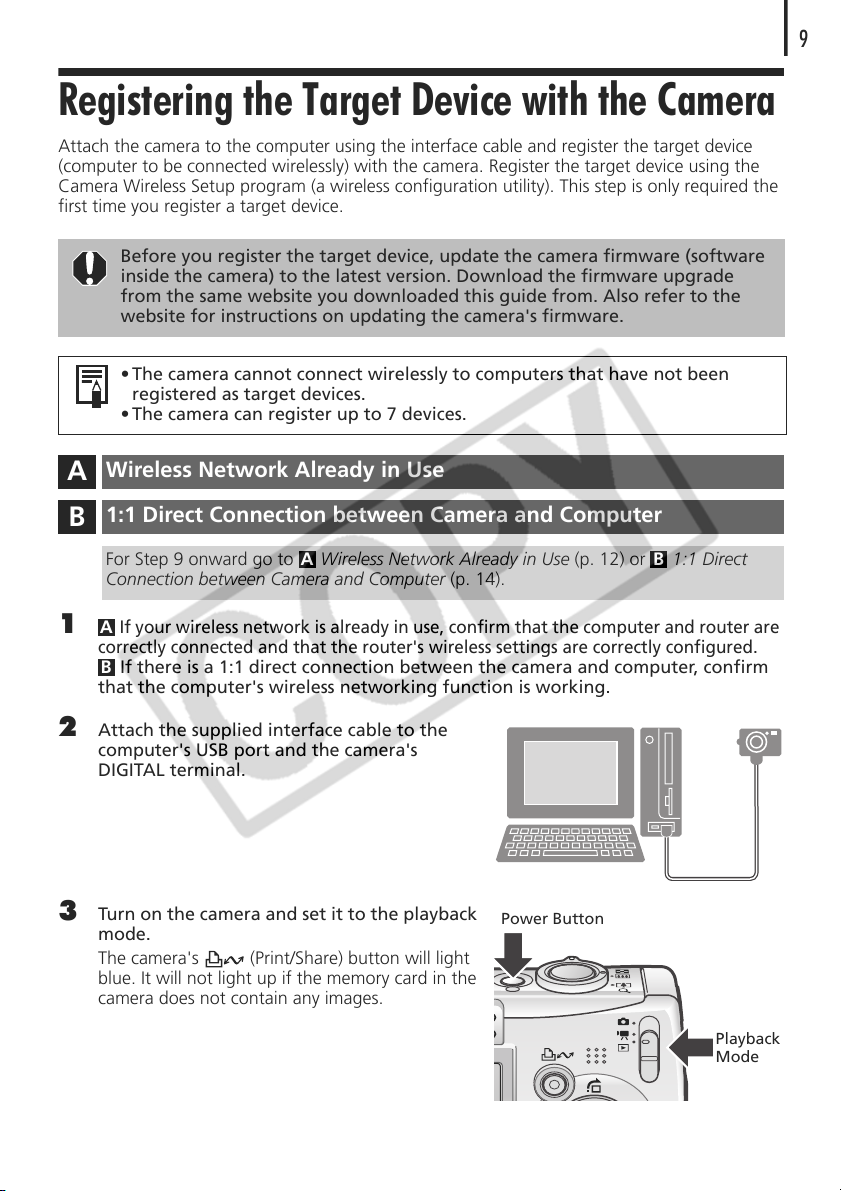

Registering the Target Device with the Camera

Attach the camera to the computer using the interface cable and register the target device

(computer to be connected wirelessly) with the camera. Register the target device using the

Camera Wireless Setup program (a wireless configuration utility). This step is only required the

first time you register a target device.

If your wireless network is already in use, confirm that the computer and router are

correctly connected and that the router's wireless settings are correctly configured.

If there is a 1:1 direct connection between the camera and computer, confirm

that the computer's wireless networking function is working.

2Attach the supplied interface cable to the

computer's USB port and the camera's

DIGITAL terminal.

3Turn on the camera and set it to the playback

mode.

The camera's (Print/Share) button will light

blue. It will not light up if the memory card in the

camera does not contain any images.

Before you register the target device, update the camera firmware (software

inside the camera) to the latest version. Download the firmware upgrade

from the same website you downloaded this guide from. Also refer to the

website for instructions on updating the camera's firmware.

• The camera cannot connect wirelessly to computers that have not been

registered as target devices.

• The camera can register up to 7 devices.

Wireless Network Already in Use

1:1 Direct Connection between Camera and Computer

For Step 9 onward go to Wireless Network Already in Use (p. 12) or 1:1 Direct

Connection between Camera and Computer (p. 14).

A B

Power Button

Playback

Mode

Wireless Network Settings for the Computer and Camera

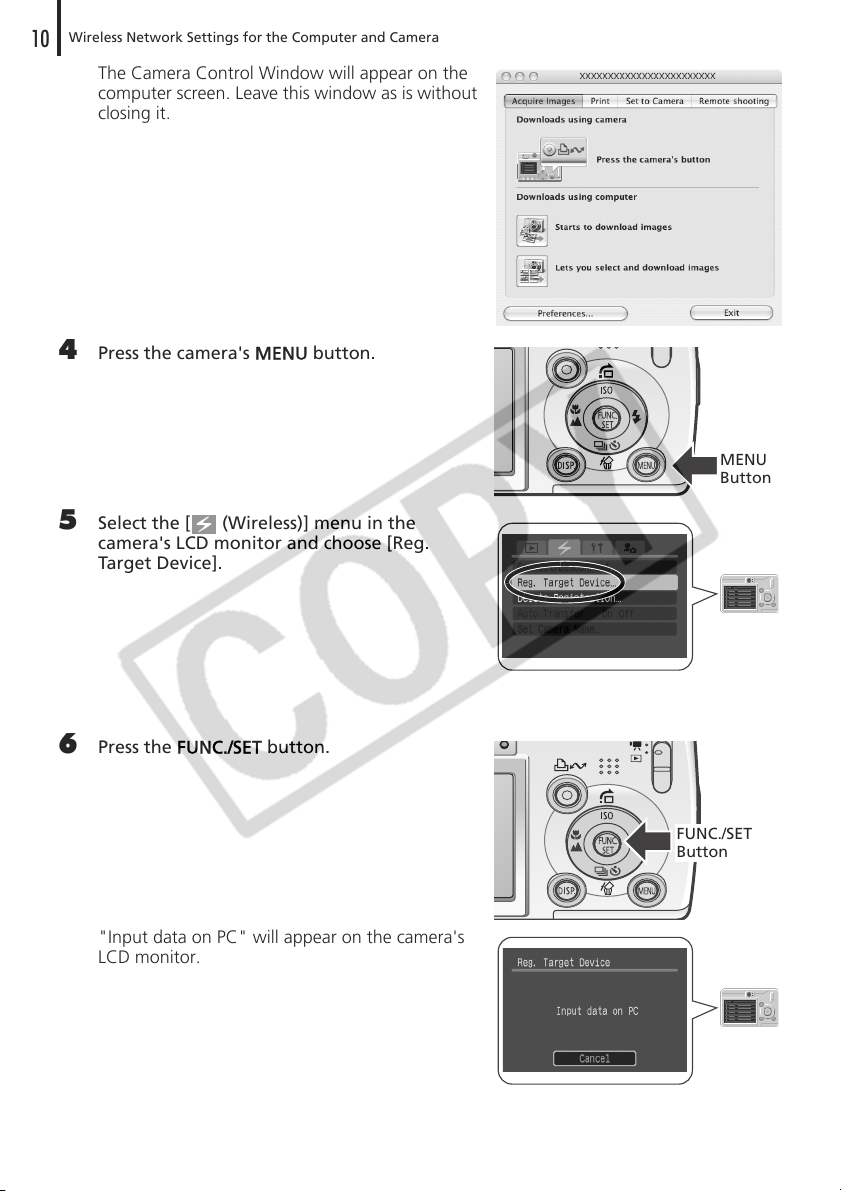

The Camera Control Window will appear on the

computer screen. Leave this window as is without

closing it.

4Press the camera's MENU button.

5Select the [ (Wireless)] menu in the

camera's LCD monitor and choose [Reg.

Target Device].

6Press the FUNC./SET button.

"Input data on PC" will appear on the camera's

LCD monitor.

Button

FUNC./SET

Button

Altri manuali per PowerShot SD430 DIGITAL ELPH WIRELESS

Indice

Altri manuali Canon Macchina fotografica digitale

Canon

Canon PowerShot SD630 Digital ELPH Camera Manuale utente

Canon

Canon SD550 - PowerShot Digital ELPH Camera Manuale utente

Canon

Canon CR-N300 Manuale di servizio

Canon

Canon EOS-1D Mark II Digial Guida rapida

Canon

Canon PowerShot ELPH 100 HS IXUS 115 HS Manuale utente

Canon

Canon PowerShot G2 Manuale utente

Canon

Canon PowerShot ELPH 510 HS Guida rapida

Canon

Canon CDI-E151-010 Manuale utente

Canon

Canon EOS-1D Mark II Digial Manuale utente

Canon

Canon PowerShot G9 Manuale utente

Canon

Canon PowerShot A470 Manuale utente

Canon

Canon WP-DC52 Manuale utente

Canon

Canon PowerShot SD 700 IS Digital Elph Manuale utente

Canon

Canon PowerShot SX100 IS Manuale utente

Canon

Canon ELPH 2 IXUS II Manuale utente

Canon

Canon EOS 70D Manuale utente

Canon

Canon PowerShot A400 Manuale utente

Canon

Canon PowerShot G9 Manuale utente

Canon

Canon EOS REBEL T6iW Manuale utente

Canon

Canon POWERSHOT PRO 1 Manuale utente

Canon

Canon PowerShot S30 Manuale utente

Canon

Canon POWERSHOT A2300 Manuale utente

Canon

Canon SD550 - PowerShot Digital ELPH Camera Manuale utente

Canon

Canon EOS Series Manuale di istruzioni

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Nikon

Nikon Coolpix 100 Manuale utente
