Canon LBP-810 Manuale utente

LBP-810 Laser Printer

Getting Started Guide

IMPORTANT:

Read this manual carefully before using your printer.

Save this manual for future reference.

LBP810-GSG.fm Page 1 Monday, March 12, 2001 11:06 AM

All information in this manual is copyrighted. No part of this publication

may be reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language or computer language, in any form or by

any means, electronic, mechanical, magnetic, optical, chemical, manual,

or otherwise, without prior written consent from Canon.

Notice

Canon makes no guarantees of any kind with regard to this manual.

Canon shall not be held liable for errors contained herein or for

consequential or incidental damages incurred as a result of acting on

information contained in the manual.

Trademarks

LBP, Canon, and the Canon Logo are trademarks of Canon Inc.

Microsoft

, Windows

, and Windows NT

are either registered

trademarks or trademarks of Microsoft Corporation in the United States

and/or in other countries.

Other brand and product names are trademarks or registered trademarks

of their respective companies.

In this manual, Microsoft

, Microsoft

Windows

, and Microsoft

Windows NT

are referred to as Microsoft, Windows and Windows NT

respectively.

LBP810-GSG.fm Page 2 Monday, March 12, 2001 11:06 AM

English

Contents

Using Your LBP-810 Documentation .......................................... 4

Conventions .............................................................................. 4

Using the Online Documentation ............................................. 5

Checking the Package Contents ................................................... 6

Identifying the Parts ..................................................................... 7

Front View ................................................................................ 7

Rear View ................................................................................. 7

Selecting the Printer Location ...................................................... 8

Carrying the Printer................................................................... 8

Installing the EP-22 Cartridge ...................................................... 9

Inserting/Removing the Paper Supports ....................................... 13

Connecting the Printer to Your Computer .................................... 14

Parallel Cable ........................................................................... 14

USB Cable ................................................................................ 15

Connecting to the Power Supply .................................................. 17

Selecting Paper Delivery .............................................................. 18

Face-down Delivery ................................................................. 18

Face-up Delivery ...................................................................... 18

Loading Paper into the MP Tray .................................................. 19

Installing the CAPT ...................................................................... 21

Windows 95/98/Me CD-ROM Installation .............................. 21

Canon CAPT Tools Group ....................................................... 26

Printing ..................................................................................... 26

LBP810-GSG.fm Page 3 Monday, March 12, 2001 11:06 AM

Using Your LBP-810 Documentation

Congratulations on your purchase of the Canon LBP-810 Laser Printer.

Your printer comes with the following documentation:

❏

The LBP-810 Getting Started Guide

(This Guide)

Describes how to set up the printer and install the printing software

(CAPT). Read this manual ﬁrst before operating your printer. The

Getting Started Guide

is also available online (PDF).

❏

The LBP-810 User’s Guide

(PDF)

Describes the printer’s features and its basic operation. The

User’s

Guide

is available online. Use this manual when you need a quick

reference help.

❏

Help

Provides help for the CAPT (Canon Advanced Printing Technology).

Use Help to get more information while operating the printer.

❏

CD-ROM Menu Help

Provides help for using the CD-ROM Menu.

❏

Readme File

Contains last-minute information about the Canon LBP-810 printer.

Conventions

This guide uses the following conventions:

CAUTION:

Indicates precautions that must be observed to prevent possible injury.

Indicates that neglecting the suggested procedure or practice could result

in damage to the printer.

Indicates notes and memos containing useful tips or detailed information.

LBP810-GSG.fm Page 4 Monday, March 12, 2001 11:06 AM

English

Using Your LBP-810 Documentation

Using the Online Documentation

To read the PDF ﬁles, insert the compact disc in your CD-ROM drive.

The CD-ROM menu appears automatically.

To access the CD-ROM Menu Help

, click the CD-ROM Menu Help

button.

To access the LBP-810 Documentation

, click the Canon LBP-810

Manuals button. To read the manual, you must have Adobe Acrobat

Reader installed.

To install Adobe Acrobat Reader

, click the Acrobat Reader Install

button, and select the language folder you want to install. Double-click

the .EXE ﬁle in that folder. Adobe Acrobat Reader will install in the

language you selected. For help using Acrobat Reader, select the

Online

Guide

in the Acrobat Reader Help menu.

System Requirements

Before installing the LBP-810 Laser Printer’s printing software, make

sure your computer has the following minimum conﬁguration:

❏

Pentium PC running Windows 95/98/Me or Windows NT 4.0/2000. A

Pentium 200 MMX processor or faster is recommended.

❏

16 MB of RAM (32 MB for Windows NT 4.0/2000) and 15 MB of

available disk space. 24 MB of RAM (48 MB for Windows NT 4.0,

128MB for Windows 2000) is recommended.

❏

Monitor with a resolution of 640 x 480, showing at least 16 colors.

❏

A standard USB or parallel port and a CD-ROM drive.

❏

Sound card (if you want to hear audio messages).

LBP810-GSG.fm Page 5 Monday, March 12, 2001 11:06 AM

Checking the Package Contents

As you unpack the printer, save the carton and packing materials in case

you want to move or ship the printer in the future.

Input paper support

LBP-810 Printer

Output paper support

EP-22 cartridge

CD-ROM disc

Power cord

(Example: 120V Model)

Documentation

(Getting Started Guide)

LBP810-GSG.fm Page 6 Monday, March 12, 2001 11:06 AM

English

Identifying the Parts

Front View

Rear View

Multi-purpose tray

(MP tray)

Paper guides

Manual feed slot

Paper delivery

selector

Face-down

delivery slot

Front cover

Face-up

delivery slot

Face-down output

paper support

Input paper support

Power switch

Parallel port

interface connector

Power socket

USB port

interface connector

LBP810-GSG.fm Page 7 Monday, March 12, 2001 11:06 AM

Selecting the Printer Location

When selecting a site for the printer, the location should provide ample

space for ventilation and easy servicing of the printer. Use the

dimensional diagrams below for space considerations.

(Dimensions are in millimeters.)

Carrying the Printer

CAUTION:

Do not carry the printer by holding the front panel, the face-up delivery

slot, or by holding it at the front and rear. This could result in damage to

the printer or personal injury if the printer is dropped.

768

345

405

312

100

266

378

550

Top view Side view

LBP810-GSG.fm Page 8 Monday, March 12, 2001 11:06 AM

English

Installing the EP-22 Cartridge

The EP-22 cartridge contains a photosensitive part called the “drum,”

which has characteristics similar to photo ﬁlm. It also contains black

carbon powder called “toner.” The drum is extremely sensitive to light

and may deteriorate if exposed to light. Poor print quality can result if the

toner becomes caked or unevenly distributed inside the cartridge.

Follow the instructions below when handling the cartridge.

❏

Do not open the protective bag containing the cartridge until you are

ready to install it in the printer.

❏

Save the protective bag. You may need to repack and transport the

cartridge at a later date.

❏

Do not expose the cartridge to direct sunlight. Do not expose it to

bright light or room light for more than 5 minutes.

❏

Do not open the drum’s protective shutter on the cartridge. If the

shutter is open and the drum is damaged, print quality may deteriorate.

❏

Do not touch the drum’s protective shutter.

Correct handling Incorrect handling

LBP810-GSG.fm Page 9 Monday, March 12, 2001 11:06 AM

Installing the EP-22 Cartridge

❏

Do not stand the cartridge on end, or turn it upside down. Toner could

become caked in the cartridge resulting in poor print quality.

❏

Keep the cartridge away from a monitor’s cathode ray tube (CRT),

disk drives, and ﬂoppy disks. The magnet inside the cartridge can

destroy the image data in the CRT, or data on the disks.

CAUTION:

Do not dispose of toner cartridges in ﬁre. Toner powder is ﬂammable.

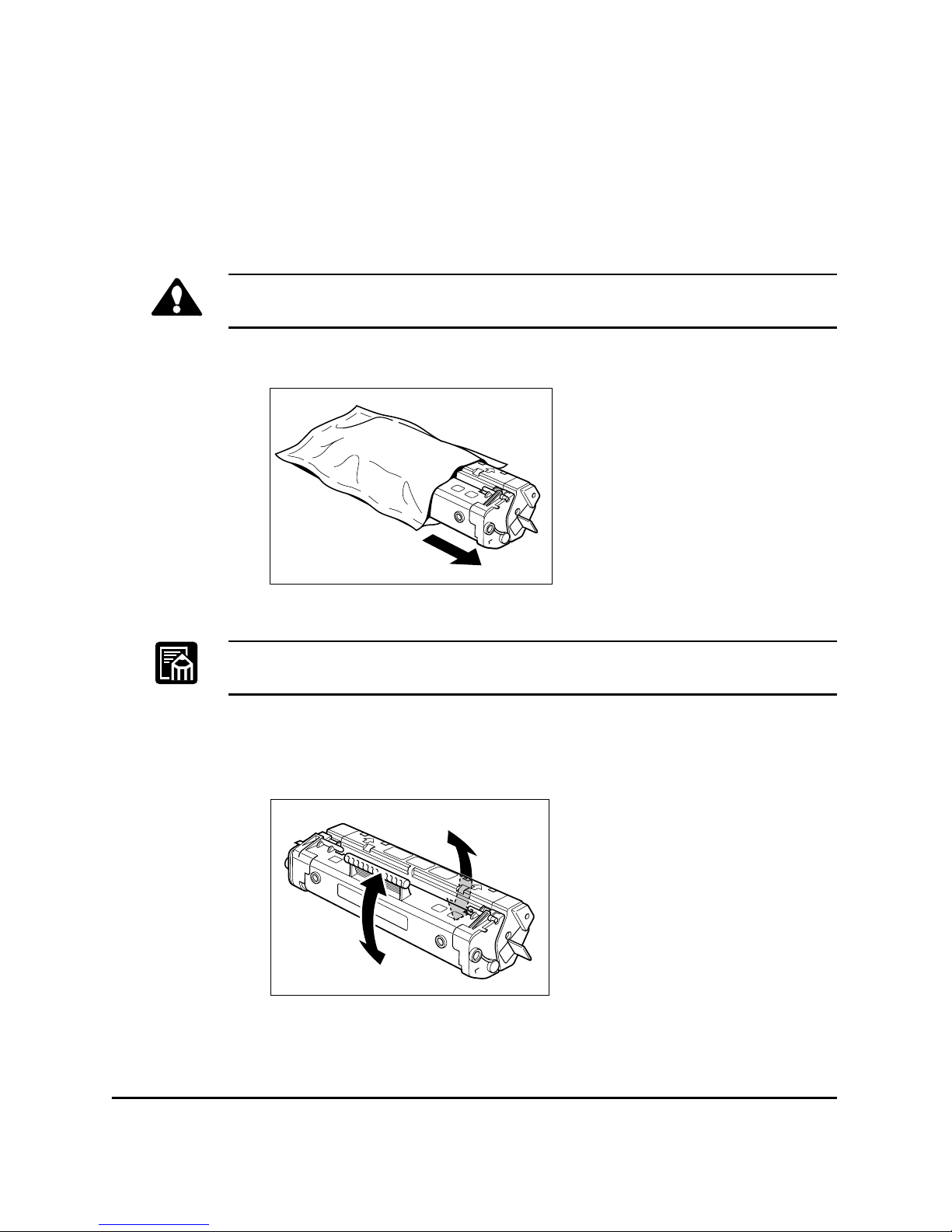

1. Remove the cartridge from its protective bag.

Save the protective bag. You may need to repack and transport the

cartridge at a later date.

2. Gently rock the cartridge from side to side ﬁve or six times. This

evenly distributes the toner inside the cartridge. Uneven toner

distribution causes poor print quality.

LBP810-GSG.fm Page 10 Monday, March 12, 2001 11:06 AM
